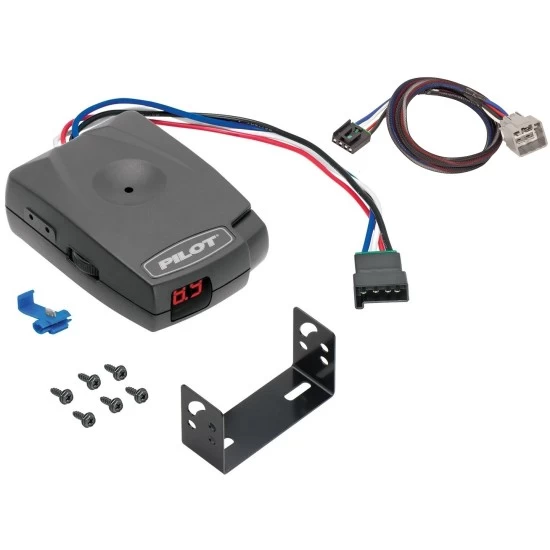

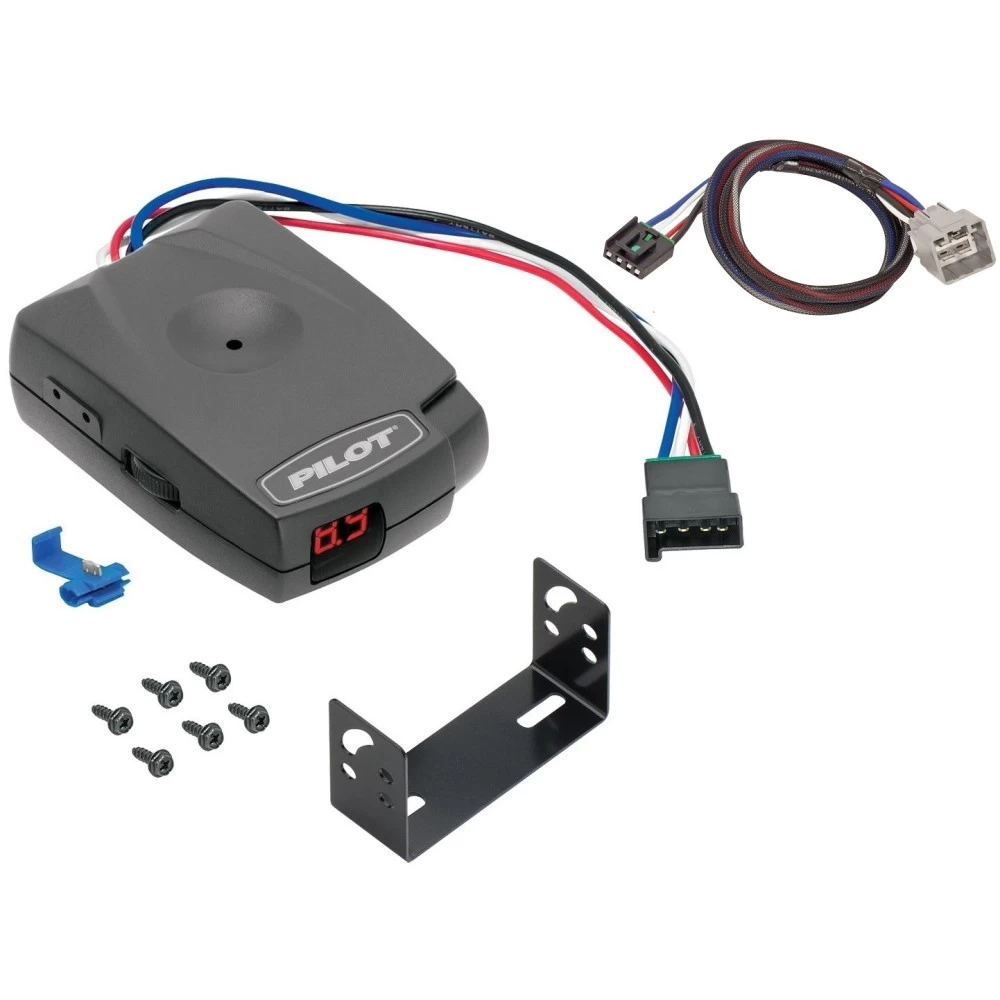

Trailer Brake Control for 10 Dodge RAM 1500 2500 3500 w/ Plug Play Wiring Adapter Eletric Trailer Brakes Module Box Controller Pro Series Pilot
Model: 80550 3021Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
2010 Dodge, Ram 1500, All Styles
2010 Dodge, Ram 2500, All Styles
2010 Dodge, Ram 3500, All Styles
Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.
Brake Control Specs:
| Part Number | 80550 |
| Brand | Pro Series |
| Type | Timed Actuated |
| Axles | 1 to 3 axle trailers |
| Warranty | Limited lifetime warranty |
| Features: | Large easy to read dual digital display shows: Properly wired control Voltage output to brakes (vs. a percentage) Connection to trailer Dark smoke lens ideal for direct light applications; performs better than red lens Protection against short circuit/loss of ground Microprocessor allows control to be mounted upside down and still have a readable display Standard mounting bracket included with optional ball mount available For use on any 12 volt negative ground system Plug & Play feature allows quick and easy connection Limited lifetime warranty |
| Installation Instructions |  |
2-Plug Wiring Asapter Specs:
| Part Number | 3021 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Pro Series made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 10 2010
$75 32 $103.05 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$103.05 $75 32
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $18.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Pro Series
- Model: 80550 3021
- Includes: Pilot Trailer Time-Delay Brake Controller for Trailers with 1-3 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Brake Control Unit
Mounting hardware and bracket
Vehicle specific Plug and Play Wiring Adapter
Fits The Following Vehicles
2010 Dodge, Ram 1500, All Styles
2010 Dodge, Ram 2500, All Styles
2010 Dodge, Ram 3500, All Styles
Pilot has a dark, smoke lens that is ideal for direct light applications, creating optimum visibility to read the large, two-digit display. Pilot has flexible mounting options and can be installed in any direction. Our microprocessor allows you the ability to read the display even when mounted upside down. The Pilot’s digital display shows voltage output to the brakes.
Brake Control Specs:
| Part Number | 80550 |
| Brand | Pro Series |
| Type | Timed Actuated |
| Axles | 1 to 3 axle trailers |
| Warranty | Limited lifetime warranty |
| Features: | Large easy to read dual digital display shows: Properly wired control Voltage output to brakes (vs. a percentage) Connection to trailer Dark smoke lens ideal for direct light applications; performs better than red lens Protection against short circuit/loss of ground Microprocessor allows control to be mounted upside down and still have a readable display Standard mounting bracket included with optional ball mount available For use on any 12 volt negative ground system Plug & Play feature allows quick and easy connection Limited lifetime warranty |
| Installation Instructions | |
2-Plug Wiring Asapter Specs:
| Part Number | 3021 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Pro Series made by same people that brought you Tekonsha and Draw-Tite the most powerful manufacturers of electric trailer brake control systems. Manufactured by the same people that brought you Reese, Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our brake controls easily install on your Car Truck Van and SUV. For custom applications on Ford F150 F250 F350 E Series Van Expedition Toyota Tundra Tacoma Chevy Silverado Tahoe GMC Sierra Nissan Titan Frontier please choose one of our 2-Plug wiring adapters recommended below. These adapters will simply plug into the back of the brake control and the other end plugs into a matching plug on your truck. There is no splicing or worry involved, a very easy process. We have adapters for other vehicles as well. The brake control itself always comes with a 1-plug adapter out of the box, which you can splice into any vehicle. Getting a 2plug adapter will only easy your installation and avoid any sort of splicing. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999. We will match or beat anyones price.
Partial list of fitment years: 10 2010
Get Expert Help
Trailer Brake Control for 10 Dodge RAM 1500 2500 3500 w/ Plug Play Wiring Adapter Eletric Trailer Brakes Module Box Controller Pro Series Pilot Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302100
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness connector under the dashboard:
- Positioned to the left of the steering column, near the emergency brake pedal.
- The connector is taped to another harness and will match the 4-pin connector on the adapter.
Step 2: Connect the Adapter
- Plug the brake control adapter into the vehicle electric controller connector.
- Use butt connectors (not provided) to attach the adapter’s wires to the corresponding wires on the electric brake controller.
- Refer to the brake controller manufacturer’s instructions for proper wiring and mounting procedures.
Step 3: Finalize Installation and Testing
- Complete the installation by mounting the brake controller securely as directed by the manufacturer.
- Perform all test procedures recommended in the brake controller instructions to ensure proper operation.
Important Notes:
- If the vehicle is not equipped with an OEM trailer tow package, additional fuses and relays may be required to complete the output and battery feed circuits.
- These items are sold separately. Refer to the vehicle’s owner’s manual for fuse and relay locations.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- Exceeding this rating may cause fires or damage to the vehicle’s electrical system.
- Always follow the vehicle manufacturer’s towing capacity guidelines.
- Read the vehicle’s owner’s manual and the brake control manufacturer’s instructions for additional safety and installation details.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal from the vehicle to the brake controller.
- Battery Feed (Fused): Supplies power to the trailer brake controller.
- Trailer Brake Controller Output: Sends braking signal to the trailer brakes.
- Ground: Ensures proper grounding connection.
Final Notes:
- Periodically inspect all wiring and connections to ensure they remain secure and free from corrosion.
- Ensure wires are routed away from sharp edges, heat sources, or moving parts that could cause damage.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302100
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness connector under the dashboard:
- Positioned to the left of the steering column, near the emergency brake pedal.
- The connector is taped to another harness and will match the 4-pin connector on the adapter.
Step 2: Connect the Adapter
- Plug the brake control adapter into the vehicle electric controller connector.
- Use butt connectors (not provided) to attach the adapter’s wires to the corresponding wires on the electric brake controller.
- Refer to the brake controller manufacturer’s instructions for proper wiring and mounting procedures.
Step 3: Finalize Installation and Testing
- Complete the installation by mounting the brake controller securely as directed by the manufacturer.
- Perform all test procedures recommended in the brake controller instructions to ensure proper operation.
Important Notes:
- If the vehicle is not equipped with an OEM trailer tow package, additional fuses and relays may be required to complete the output and battery feed circuits.
- These items are sold separately. Refer to the vehicle’s owner’s manual for fuse and relay locations.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- Exceeding this rating may cause fires or damage to the vehicle’s electrical system.
- Always follow the vehicle manufacturer’s towing capacity guidelines.
- Read the vehicle’s owner’s manual and the brake control manufacturer’s instructions for additional safety and installation details.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal from the vehicle to the brake controller.
- Battery Feed (Fused): Supplies power to the trailer brake controller.
- Trailer Brake Controller Output: Sends braking signal to the trailer brakes.
- Ground: Ensures proper grounding connection.
Final Notes:
- Periodically inspect all wiring and connections to ensure they remain secure and free from corrosion.
- Ensure wires are routed away from sharp edges, heat sources, or moving parts that could cause damage.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electronic Brake Control
Part Number: N80550
Components of the Brake Control:
- A. Power Knob
- B. Manual Slide Knob
- C. Anchor and Pivot Holes
- D. Two-Digit Power Display
- E. Optional Ball Mount Interface
Tools Required:
- Phillips Screwdriver
- Drill (Optional)
- Standard Adjusting Tool or Screwdriver
Important Notes:
- Do not mount or activate RF-generating devices (e.g., cell phones, radios) within 12 inches of the Brake Control.
- CAUTION: Reversing the connection to a breakaway battery on the trailer will destroy the Brake Control.
- Always disconnect the trailer plug before testing a breakaway switch to prevent damage to the Brake Control.
- WARNING: Ensure that the Gross Combined Weight Rating (GCWR) never exceeds the vehicle manufacturer’s recommendation.
- The Brake Control is specifically designed for use with electric trailer brakes.
Installation Steps:
Step 1: Mounting the Brake Control
- Select a solid surface under the dashboard for installation.
- Secure the mounting bracket using the provided #6 x 3/8" screws.
- Insert screws into the mounting holes (C) and adjust the Brake Control to the desired position.
- Tighten screws until snug.
Step 2: Connect the Wiring
- Connect the White Wire to the vehicle’s ground.
- Connect the Black Wire to the vehicle’s battery.
- Connect the Red Wire to the brake signal switch.
- Connect the Blue Wire to the trailer brake output.
Step 3: Adjust the Power to the Trailer Brakes
- Connect the trailer to the tow vehicle.
- Locate the Manual Slide Knob and Power Knob.
- Apply the Manual Slide Knob and turn the Power Knob until the display reads 4.0.
- Drive the vehicle with the trailer at 25 mph on a dry, level, paved surface.
- Apply the Manual Slide Knob:
- If the trailer brakes lock up: Turn the Power Knob down.
- If the braking is insufficient: Turn the Power Knob up.
- Repeat Step 5 until the power is just below wheel lock-up or at sufficient braking force.
Troubleshooting Guide:
Situation 1: No Display When Brakes Are Applied
- Cause: Poor connection on Power (Black Wire) or Ground (White Wire).
Situation 2: Display Reads Incorrectly
- Cause: Corrosion on the trailer plug or poor connection on the Brake Line (Blue Wire).
Situation 3: Braking is Too Aggressive
- Cause: Power is set too high.
Situation 4: Braking is Too Light
- Cause: Power is set too low.
Optional Mounting Ball Installation (Purchased Separately):
- Find a desired location and attach the mounting ball using double-sided tape.
- Drill three 1/16” holes for the screws.
- Secure the mounting ball with the provided #6 x 3/8" screws.
- Attach the Brake Control to the mounting ball using the mounting screw and foam gasket.
- Adjust the Brake Control to the desired position and tighten securely.
Changing the Display Orientation:
-
To Flip Display Upside Down:
- Connect the White, Red, and Blue Wires to the tow vehicle.
- While pressing the Manual Slide Knob or Brake Pedal, connect the Black Wire to the vehicle battery.
- The display will now be upside down.
-
To Reset Display to Right-Side Up:
- Disconnect the Black Wire from the battery.
- Wait 5 seconds.
- Reconnect the Black Wire without applying the brake pedal or Manual Slide Knob.
Brake Adjustment (Courtesy of Dexter Axle):
- Jack up the trailer and secure it on jack stands.
- Remove the adjusting hole cover on the brake backing plate.
- Use an adjusting tool to expand the brake shoes until the wheel is difficult to turn.
- Back off the adjuster until the wheel turns freely with slight lining drag.
- Repeat for all wheels.
End of Instructions
Installation Instructions for Electronic Brake Control
Part Number: N80550
Components of the Brake Control:
- A. Power Knob
- B. Manual Slide Knob
- C. Anchor and Pivot Holes
- D. Two-Digit Power Display
- E. Optional Ball Mount Interface
Tools Required:
- Phillips Screwdriver
- Drill (Optional)
- Standard Adjusting Tool or Screwdriver
Important Notes:
- Do not mount or activate RF-generating devices (e.g., cell phones, radios) within 12 inches of the Brake Control.
- CAUTION: Reversing the connection to a breakaway battery on the trailer will destroy the Brake Control.
- Always disconnect the trailer plug before testing a breakaway switch to prevent damage to the Brake Control.
- WARNING: Ensure that the Gross Combined Weight Rating (GCWR) never exceeds the vehicle manufacturer’s recommendation.
- The Brake Control is specifically designed for use with electric trailer brakes.
Installation Steps:
Step 1: Mounting the Brake Control
- Select a solid surface under the dashboard for installation.
- Secure the mounting bracket using the provided #6 x 3/8" screws.
- Insert screws into the mounting holes (C) and adjust the Brake Control to the desired position.
- Tighten screws until snug.
Step 2: Connect the Wiring
- Connect the White Wire to the vehicle’s ground.
- Connect the Black Wire to the vehicle’s battery.
- Connect the Red Wire to the brake signal switch.
- Connect the Blue Wire to the trailer brake output.
Step 3: Adjust the Power to the Trailer Brakes
- Connect the trailer to the tow vehicle.
- Locate the Manual Slide Knob and Power Knob.
- Apply the Manual Slide Knob and turn the Power Knob until the display reads 4.0.
- Drive the vehicle with the trailer at 25 mph on a dry, level, paved surface.
- Apply the Manual Slide Knob:
- If the trailer brakes lock up: Turn the Power Knob down.
- If the braking is insufficient: Turn the Power Knob up.
- Repeat Step 5 until the power is just below wheel lock-up or at sufficient braking force.
Troubleshooting Guide:
Situation 1: No Display When Brakes Are Applied
- Cause: Poor connection on Power (Black Wire) or Ground (White Wire).
Situation 2: Display Reads Incorrectly
- Cause: Corrosion on the trailer plug or poor connection on the Brake Line (Blue Wire).
Situation 3: Braking is Too Aggressive
- Cause: Power is set too high.
Situation 4: Braking is Too Light
- Cause: Power is set too low.
Optional Mounting Ball Installation (Purchased Separately):
- Find a desired location and attach the mounting ball using double-sided tape.
- Drill three 1/16” holes for the screws.
- Secure the mounting ball with the provided #6 x 3/8" screws.
- Attach the Brake Control to the mounting ball using the mounting screw and foam gasket.
- Adjust the Brake Control to the desired position and tighten securely.
Changing the Display Orientation:
-
To Flip Display Upside Down:
- Connect the White, Red, and Blue Wires to the tow vehicle.
- While pressing the Manual Slide Knob or Brake Pedal, connect the Black Wire to the vehicle battery.
- The display will now be upside down.
-
To Reset Display to Right-Side Up:
- Disconnect the Black Wire from the battery.
- Wait 5 seconds.
- Reconnect the Black Wire without applying the brake pedal or Manual Slide Knob.
Brake Adjustment (Courtesy of Dexter Axle):
- Jack up the trailer and secure it on jack stands.
- Remove the adjusting hole cover on the brake backing plate.
- Use an adjusting tool to expand the brake shoes until the wheel is difficult to turn.
- Back off the adjuster until the wheel turns freely with slight lining drag.
- Repeat for all wheels.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
The product comes with a [X]-year warranty that covers defects in materials and workmanship. For complete warranty instructions, please download the full installation PDF.
Related Products
