Product Details
- Brand: Reese
- Model: 8508211 3016-2

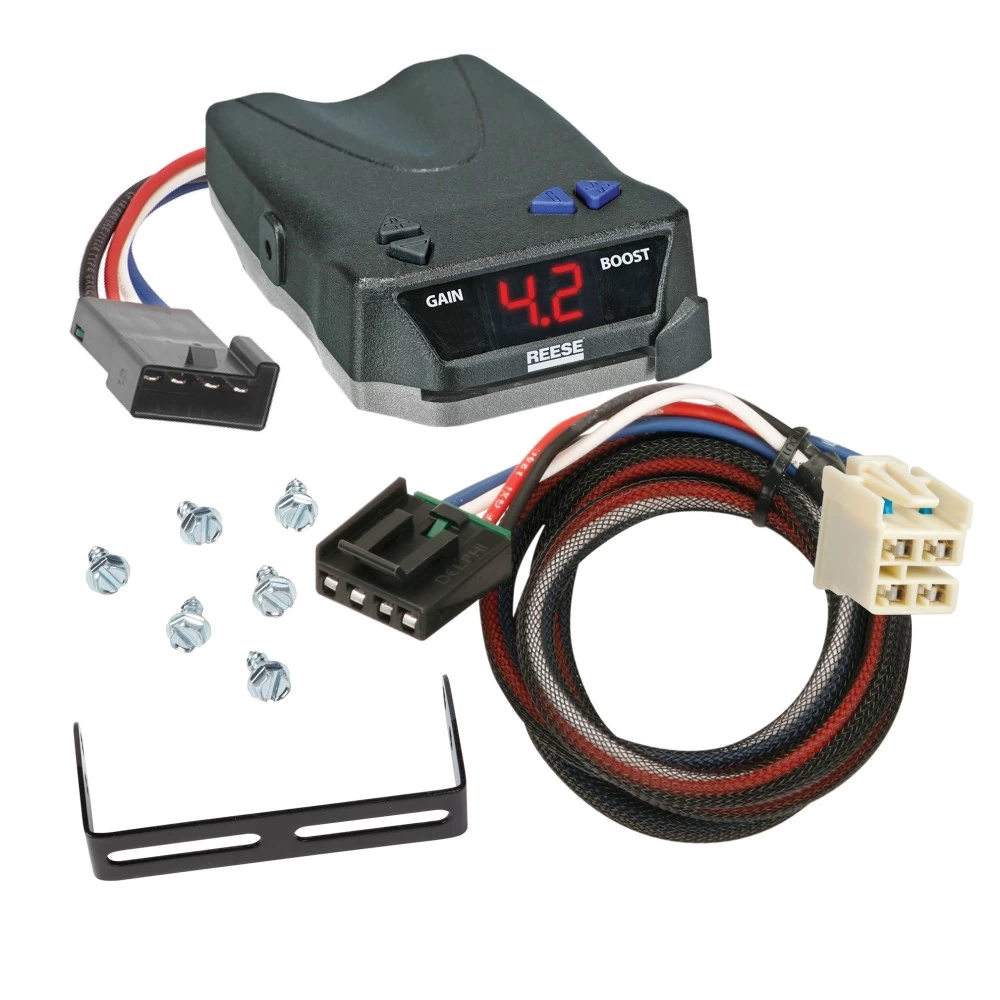

- Includes: BRAKE-EVN Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Trailer Brake Control for 15-19 Chevy Silverado GMC Sierra 2500 3500 HD Electric Trailer Brakes Module Box Controller 1-4 Axle Install Notes
Installation Instructions for Trailer Brake Controller Adapter
Part Number: 301600
Tools Required:
- Trim Panel Remover
- Wire Crimpers
Step-by-Step Instructions:
1. Determine Your Brake Control Installation Option
-
1 Plug Option:
- Using the supplied butt connectors, attach the adapter wires to the corresponding wires on the electric brake control.
- Follow the brake control installation instructions before attaching the adapter to the vehicle junction box.
-
2 Plug Option:
- Plug the brake control adapter into the mating receptacle on the backside of the brake control unit before attaching it to the vehicle junction box.
2. Locate the Vehicle’s Electric Junction Box
- Find the vehicle’s black Electric Junction Box:
- Located inside the pickup, underneath the dashboard, to the left of the steering column, just above the carpet.
- Remove the cover of the Electric Junction Box.
- Locate the mating connection point for the electric trailer brake wiring.
3. Plug in the Brake Control Adapter
- Connect the Brake Control Adapter into the mating connector located in the Electric Junction Box.
- Ensure a secure and proper connection.
4. Complete the Installation and Testing
- Follow the brake control manufacturer’s instructions to complete the installation.
- Mount the brake controller unit securely as directed.
- Perform test procedures as outlined in the brake controller manual.
Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Exceeding these limits may result in fire or electrical damage.
- Follow the vehicle manufacturer’s towing ratings and guidelines.
- Always read and understand the vehicle’s owner’s manual and instructions before installation.
Safety Precautions:
- Wear safety glasses and follow all safety precautions during installation.
- Periodically check connections for proper operation and secure fit.
Wiring Overview:
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Battery Feed (Fused): Supplies power to the trailer brake controller.
- Ground: Provides grounding connection for proper function.
- Stop Lamp Switch (Input): Receives braking signal from the vehicle brake switch.
End of Instructions
Installation Instructions for Trailer Brake Controller Adapter
Part Number: 301600
Tools Required:
- Trim Panel Remover
- Wire Crimpers
Step-by-Step Instructions:
1. Determine Your Brake Control Installation Option
-
1 Plug Option:
- Using the supplied butt connectors, attach the adapter wires to the corresponding wires on the electric brake control.
- Follow the brake control installation instructions before attaching the adapter to the vehicle junction box.
-
2 Plug Option:
- Plug the brake control adapter into the mating receptacle on the backside of the brake control unit before attaching it to the vehicle junction box.
2. Locate the Vehicle’s Electric Junction Box
- Find the vehicle’s black Electric Junction Box:
- Located inside the pickup, underneath the dashboard, to the left of the steering column, just above the carpet.
- Remove the cover of the Electric Junction Box.
- Locate the mating connection point for the electric trailer brake wiring.
3. Plug in the Brake Control Adapter
- Connect the Brake Control Adapter into the mating connector located in the Electric Junction Box.
- Ensure a secure and proper connection.
4. Complete the Installation and Testing
- Follow the brake control manufacturer’s instructions to complete the installation.
- Mount the brake controller unit securely as directed.
- Perform test procedures as outlined in the brake controller manual.
Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Exceeding these limits may result in fire or electrical damage.
- Follow the vehicle manufacturer’s towing ratings and guidelines.
- Always read and understand the vehicle’s owner’s manual and instructions before installation.
Safety Precautions:
- Wear safety glasses and follow all safety precautions during installation.
- Periodically check connections for proper operation and secure fit.
Wiring Overview:
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Battery Feed (Fused): Supplies power to the trailer brake controller.
- Ground: Provides grounding connection for proper function.
- Stop Lamp Switch (Input): Receives braking signal from the vehicle brake switch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electronic Brake Control
Product Information:
- Model: Electronic Brake Control for 2, 4, 6, & 8 Brake Applications
- Part Number: N8508211
Components of the Brake Control:
- A. Output (Gain) Control
- B. Boost Control
- C. Manual Slide Control
- D. Bracket Mounting Holes
- E. LED Display
Package Includes:
- (1) Brake Control Unit
- (1) Mounting Bracket
- (4) Self-Tapping Mounting Screws (#6 x 3/8")
- (1) Warranty Card
Tools Required:
- Drill with 1/8” bit
- Wire Crimping Tool
- Probe-Type Circuit Tester
- Wire Cutter/Stripper
- Phillips Screwdriver or 1/4” Nut Driver
Wiring Connections:
- Black Wire: Vehicle Power
- White Wire: Vehicle Ground
- Red Wire: Stoplight Switch
- Blue Wire: Trailer Brakes
Step-by-Step Installation:
Step 1: Selecting a Mounting Location
-
Choose a location that is:
- Secure and solid for mounting.
- Easily accessible to the driver.
- Clear behind the surface to avoid damaging wiring or components when drilling.
-
Use the bracket as a template to mark hole locations.
Step 2: Mounting the Brake Control
- Drill holes at the marked locations using a 1/8” drill bit.
- Secure the bracket using (2) self-tapping screws.
- Mount the brake control unit to the bracket using the remaining screws.
Step 3: Wiring the Brake Control
-
Follow the wiring instructions:
- Black Wire: Connect to a constant 12V power source using a 30A auto-reset circuit breaker.
- White Wire: Connect to a solid vehicle ground.
- Red Wire: Connect to the stoplight switch wire.
- Blue Wire: Connect to the trailer brake output wire.
-
Ensure all connections are secure and properly insulated.
Adjusting Power to the Trailer Brakes:
-
Connect the trailer to the tow vehicle.
-
With the engine running, hold the Manual Slide Control to the left and set the Output/Gain Control to approximately 5.0.
-
Drive at 25 mph on a dry, level surface.
-
Fully apply the Manual Slide Control:
- If the brakes lock up: Reduce the Output/Gain.
- If braking is insufficient: Increase the Output/Gain.
-
Repeat until braking force is just below wheel lock-up.
Boost Settings:
The Boost feature increases brake sensitivity with three levels:
- b.1: Starts braking at 14% power.
- b.2: Starts braking at 28% power.
- b.3: Provides the most aggressive braking for heavy trailers.
To Adjust Boost Settings:
- Press the Boost Button to display the current setting.
- Use the + or - buttons to adjust.
Manual Control:
- Location: Right side of the brake control.
- The Manual Slide Control applies trailer brakes without activating vehicle brakes.
- Slide left to apply braking force manually.
- The power level can be monitored on the LED display.
LED Display Information:
Indicator | Meaning |
---|---|
Green | Trailer connected. |
Red | Brakes applied. |
Flashing | Wiring issues or short circuit detected. |
Troubleshooting:
Problem | Cause | Solution |
---|---|---|
No LED Display | No power or ground connection. | Check wiring connections. |
Brakes Too Aggressive | Boost or Output/Gain set too high. | Reduce settings. |
Trailer Brakes Not Responding | Insufficient power output. | Increase Gain setting. |
Flashing Display (2 per second) | Short circuit or overload detected. | Inspect trailer wiring and connections. |
Brake Adjustment Guide:
- Raise and secure the trailer with jack stands.
- Remove the brake backing plate cover.
- Adjust the brake shoes outward until the wheels are hard to turn.
- Back off slightly until the wheels spin freely with a slight drag.
Safety Notes:
- Always test trailer brakes at low speeds.
- Do not exceed the vehicle's Gross Combined Weight Rating (GCWR).
- Regularly inspect and adjust trailer brakes every 3,000 miles.
Technical Assistance:
For technical support and assistance, our team of experts is available to help.
You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Limited Warranty: Covers defects in materials and workmanship.
- Excludes misuse, improper installation, and normal wear and tear.
For complete warranty instructions, please download the full installation PDF.
