Installation Instructions for Chevrolet Silverado
Part Numbers:
- 306400
Wiring Access Location:
- Under dash, left of the steering column, near the emergency brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Turn off the vehicle and remove the keys from the ignition.
- Locate the electric brake control harness under the dash, left of the steering column, taped to another harness near the emergency brake pedal.

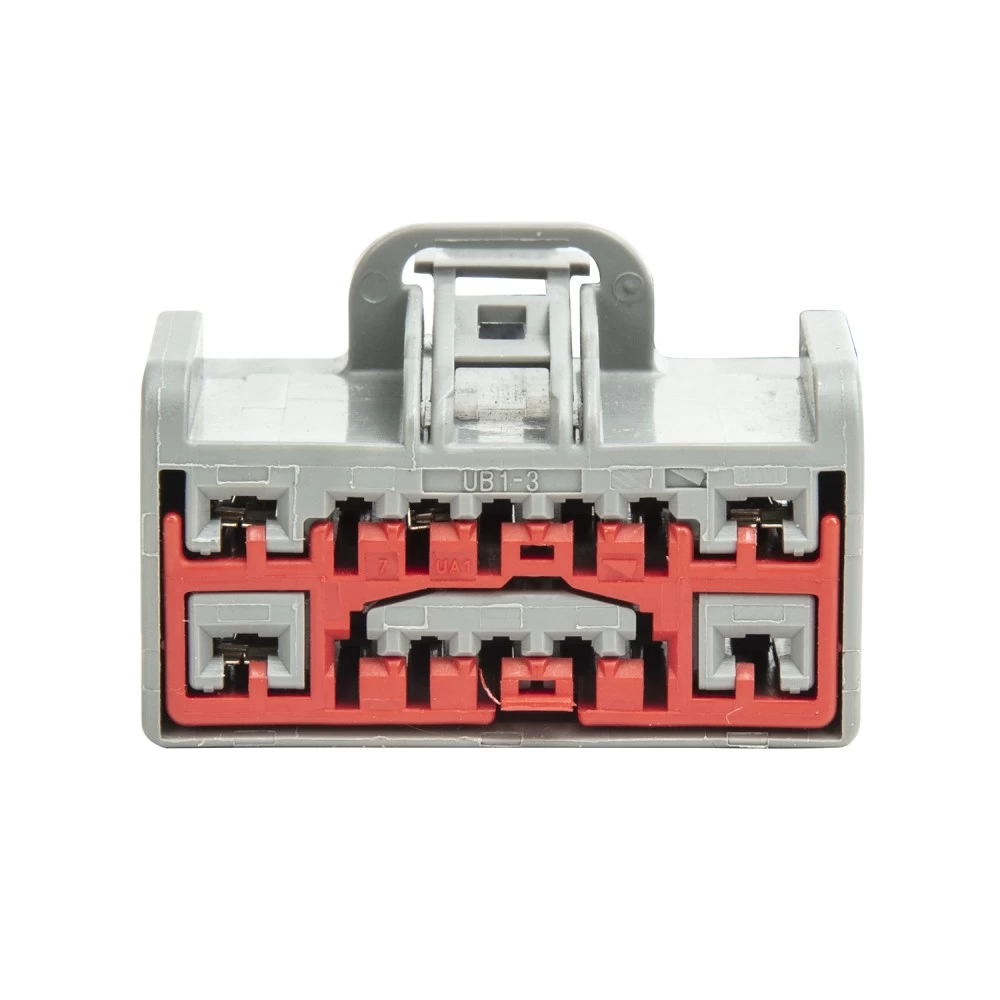

- The harness includes a 14-pin connector that mates with the brake control adapter.
Step 2: Connect the brake control adapter

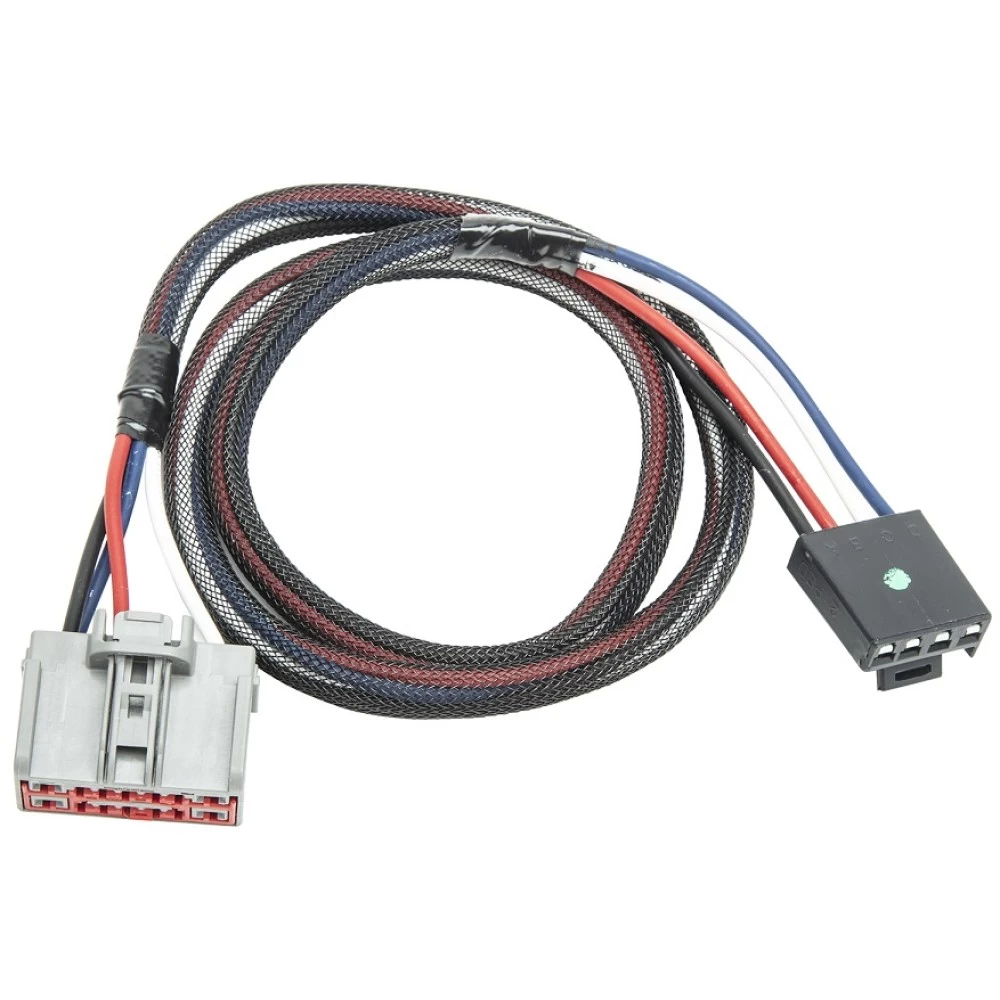

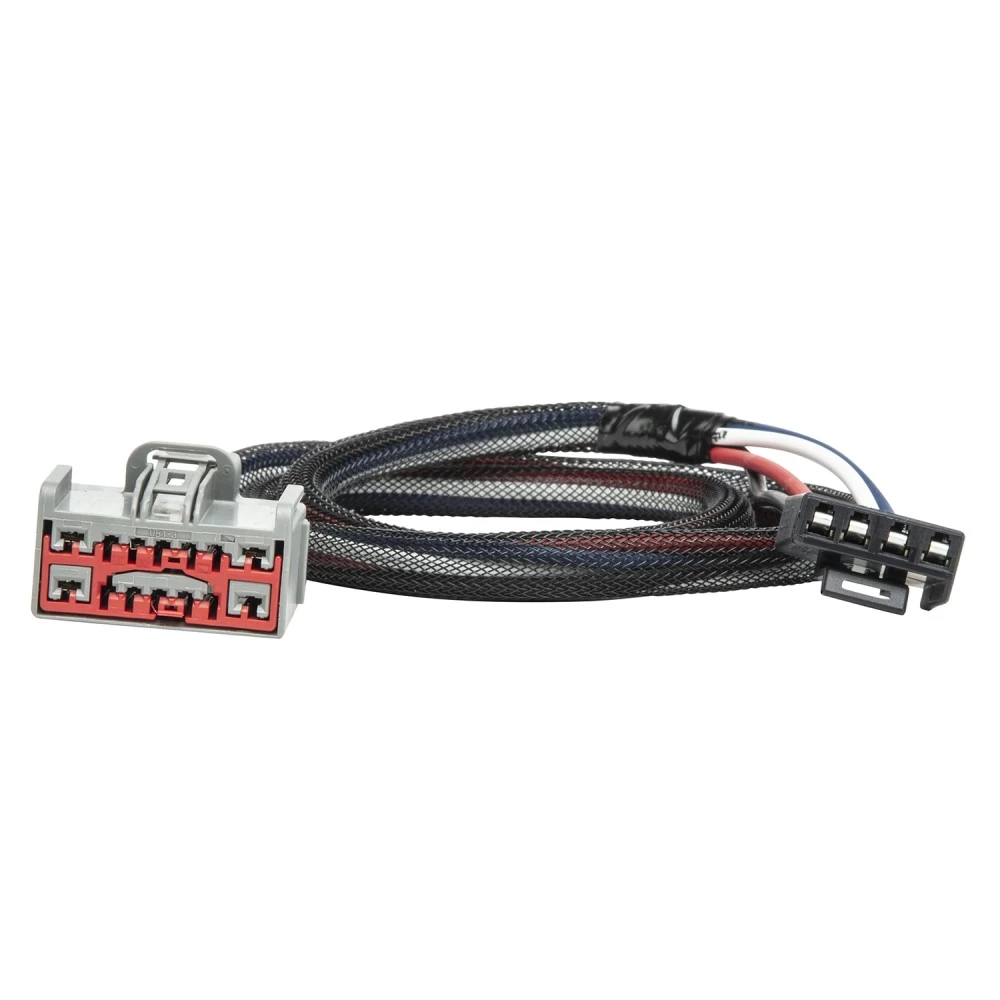

- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Route the adapter wiring
- Locate a routing path for the adapter wiring to exit the bottom of the dash.
- Ensure the wiring is secured and does not interfere with vehicle components.
Step 4: For vehicles with a factory brake controller
- Vehicles equipped with a factory brake controller will not have an active Trailer Brake Control Output on the factory brake control harness.
- A separate Trailer Brake Control Output wire (not included) must be routed from the aftermarket brake controller (blue wire) to the factory 7-way connector.
Step 5: Complete installation and mount the brake control unit
- Mount the brake control unit and perform test procedures as directed in the brake control manufacturer’s instructions.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 4 axles: 8 brakes (24 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Installation Instructions
Part Numbers:
- 306400
Wiring Access Location:
- Under dash, left of the steering column, near the emergency brake pedal
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the vehicle brake control harness connector
- Turn off the vehicle and remove the keys from the ignition.
- Locate the electric brake control harness under the dash, left of the steering column, taped to another harness near the emergency brake pedal.
- The harness includes a 14-pin connector that mates with the brake control adapter.
Step 2: Connect the brake control adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions.
Step 3: Route the adapter wiring
- Locate a routing path for the adapter wiring to exit the bottom of the dash.
- Ensure the wiring is secured and does not interfere with vehicle components.
Step 4: For vehicles with a factory brake controller
- Vehicles equipped with a factory brake controller will not have an active Trailer Brake Control Output on the factory brake control harness.
- A separate Trailer Brake Control Output wire (not included) must be routed from the aftermarket brake controller (blue wire) to the factory 7-way connector.
Step 5: Complete installation and mount the brake control unit
- Mount the brake control unit and perform test procedures as directed in the brake control manufacturer’s instructions.
Safety Notes:
- Vehicles not equipped with an OEM trailer tow package may require fuses and relays to complete output and battery feed circuits (sold separately).
- Do not exceed the lower of the towing manufacturer’s rating or the following limits:
- Maximum 4 axles: 8 brakes (24 amps).
- Overloading circuits can cause fires.
- Always wear safety glasses and follow all safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
- Warranty Duration: 1 year from the date of purchase.
- Coverage: The product is warranted against defects in materials and workmanship under normal use.
- For complete warranty instructions, please download the full installation PDF.
Installation Instructions for Electronic Brake Control
Part Number: N5535
Components of the Brake Control:

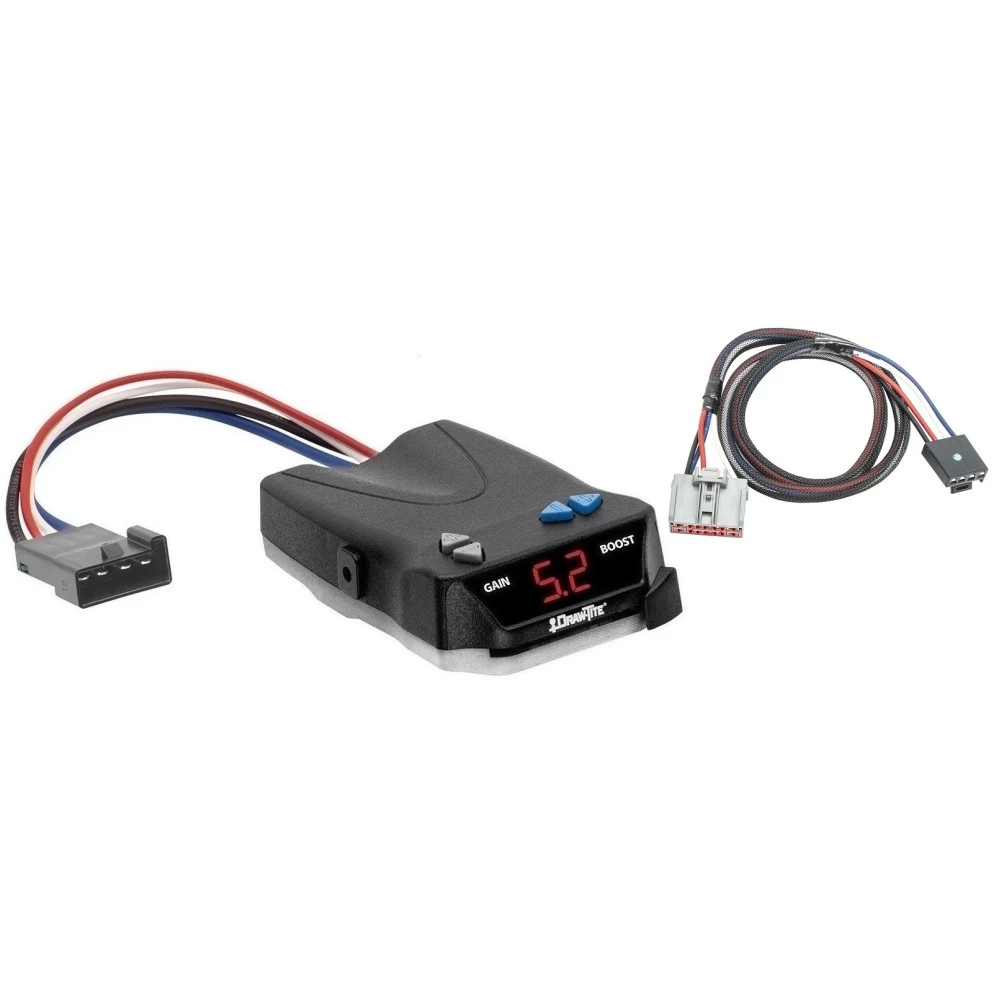

- A. Output (Gain) Control
- B. Boost Control
- C. Manual Slide Control
- D. Bracket Mounting Holes
- E. LED Display
Package Contents:
- (1) Brake Control Unit
- (1) Mounting Bracket
- (4) Self-Tapping Mounting Screws (#6 x 3/8”)
- (1) Warranty Card
Tools Required:
- Phillips Screwdriver
- Drill with 1/8” Drill Bit
- Wire Connector Crimp Tool
- Probe-Type Circuit Tester
- Wire Cutter/Stripper
- Assorted End Wrenches
Wiring and Controls:
- Black Wire: Vehicle Power
- Red Wire: Stop Light Switch
- White Wire: Vehicle Ground
- Blue Wire: Trailer Brakes
Installation Steps:
Step 1: Selecting a Mounting Location
- Choose a secure, solid surface that is easily accessible to the driver.
- Ensure the area behind the panel is clear to avoid damage during drilling.
Step 2: Install the Mounting Bracket
- Hold the mounting bracket in the selected position and mark the hole locations.
- Drill holes with a 1/8” drill bit.
- Secure the bracket using (2) self-tapping screws (provided).
- Mount the Brake Control unit into the bracket with the remaining screws.
Adjusting Power to the Trailer Brakes:
- Connect the trailer to the tow vehicle.
- With the engine running, hold the Manual Slide Control fully to the left and set the Output (Gain) Control to approximately 5.0.
- Drive at 25 mph on a level, dry, paved surface.
- Fully apply the Manual Slide Control:
- If the trailer brakes lock up: Decrease the power using the Output/Gain Control.
- If braking is insufficient: Increase the power.
- Repeat until braking is sufficient but just below wheel lock-up.
- Test braking using the brake pedal at low speeds.
Boost Control:
The Boost feature increases braking aggressiveness with three levels:
- b.1: Boost Level 1 – Starts braking at 14% power.
- b.2: Boost Level 2 – Starts braking at 28% power.
- b.3: Boost Level 3 – Highest boost setting for heavy loads.
To Activate Boost:
- Press the Boost Button to display the current level.
- Use the + or - buttons to adjust.
Troubleshooting:
Issue | Cause | Solution |
---|---|---|
No Display | Power or ground wire issue. | Check black and white connections. |
Flashing Display (2/sec) | Overload or short on the brake wire. | Inspect trailer brake wiring. |
Braking Too Aggressive | Output set too high. | Reduce Output/Gain setting. |
No Braking | Output set too low. | Increase Output/Gain setting. |
Blank Display (Idle) | Power-saving mode (after 15 minutes). | Activate the brakes to resume. |
Brake Adjustment Procedure:
- Raise the trailer and secure it with jack stands.
- Remove the cover on the brake backing plate.
- Adjust the brake shoes until the wheel is hard to turn.
- Back off the adjuster slightly until the wheel spins freely with slight drag.
- Repeat for all wheels.
End of Instructions
