Product Details
- Brand: Tekonsha
- Model: 90885 3035-1

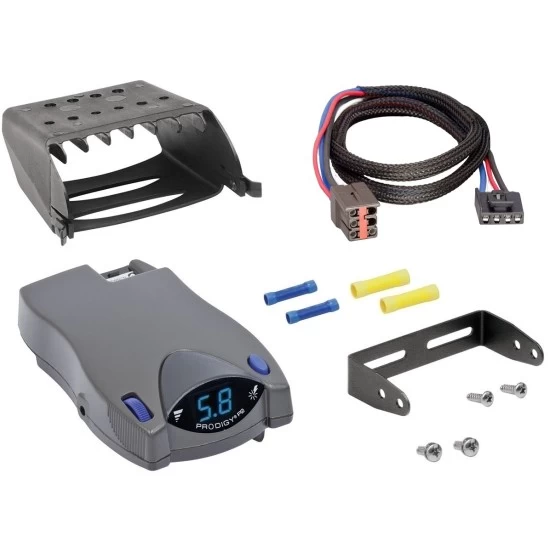

- Includes: Prodigy P2 Proportional Brake Controller for Trailers with 1-4 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Get Expert Help
Trailer Brake Control for 92-08 Ford E-150 E-250 E-350 w/ Plug Play Wiring Adapter Tekonsha Prodigy P2 Eletric Trailer Brakes Module Box Controller Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303500
Tools Required:
- Test Light
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness under the dashboard:
- Near the center console on most vehicles.
- For Ford Full-Size Vans: Underneath and to the left of the steering column.
- For Ford Explorer/Mercury Mountaineer:
- Behind the glove box on the passenger side, or
- Underneath and to the left of the steering column, taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the adapter’s plug.
Step 2: Verify Battery Power
- Use a test light to probe the connector and verify that battery power is supplied.
- Alternatively, follow the wires from the connector to ensure they are not disconnected behind the instrument panel.
If battery power is present:
- Proceed to Step 4.
If no battery power is present:
- Follow Step 3 to add power.
Step 3: Add Power to the Connector
- Use an electric brake control wiring kit to route the required wires as follows:
- Cut the battery feed wire at the vehicle connector, leaving enough wire to splice.
- Use the supplied butt connector to connect the wiring kit’s battery feed wire to the vehicle harness.
- Cut the trailer brake wire at the vehicle connector, leaving enough wire to splice.
- Connect the wiring kit’s trailer brake wire using the supplied butt connector.
Step 4: Connect the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions to wire and mount the brake controller unit.
Step 5: Test the Installation
- Complete the installation as instructed by the brake control manufacturer.
- Perform all test procedures to verify proper operation of the trailer brake system.
Warnings:
- Overloading the Circuit May Cause Fires:
- DO NOT exceed the lower of the following:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- DO NOT exceed the lower of the following:
- Always read and follow the vehicle owner’s manual and the brake controller installation instructions.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding for the brake controller system.
- Stop Lamp Switch (Input): Provides a braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
Safety Notes:
- Verify all wiring connections are secure and routed away from:
- Sharp edges
- Hot surfaces
- Moving parts
- Inspect the adapter and wiring periodically for wear or damage.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 303500
Tools Required:
- Test Light
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness
- Locate the electric brake control harness under the dashboard:
- Near the center console on most vehicles.
- For Ford Full-Size Vans: Underneath and to the left of the steering column.
- For Ford Explorer/Mercury Mountaineer:
- Behind the glove box on the passenger side, or
- Underneath and to the left of the steering column, taped to another harness near the emergency brake pedal.
- Identify the 6-pin connector that matches the adapter’s plug.
Step 2: Verify Battery Power
- Use a test light to probe the connector and verify that battery power is supplied.
- Alternatively, follow the wires from the connector to ensure they are not disconnected behind the instrument panel.
If battery power is present:
- Proceed to Step 4.
If no battery power is present:
- Follow Step 3 to add power.
Step 3: Add Power to the Connector
- Use an electric brake control wiring kit to route the required wires as follows:
- Cut the battery feed wire at the vehicle connector, leaving enough wire to splice.
- Use the supplied butt connector to connect the wiring kit’s battery feed wire to the vehicle harness.
- Cut the trailer brake wire at the vehicle connector, leaving enough wire to splice.
- Connect the wiring kit’s trailer brake wire using the supplied butt connector.
Step 4: Connect the Adapter
- Plug the brake control adapter into the vehicle’s electric brake control harness connector.
- Follow the brake control manufacturer’s installation instructions to wire and mount the brake controller unit.
Step 5: Test the Installation
- Complete the installation as instructed by the brake control manufacturer.
- Perform all test procedures to verify proper operation of the trailer brake system.
Warnings:
- Overloading the Circuit May Cause Fires:
- DO NOT exceed the lower of the following:
- The vehicle manufacturer’s towing rating, or
- Maximum Capacity: 4 axles / 8 brakes (24 amps).
- DO NOT exceed the lower of the following:
- Always read and follow the vehicle owner’s manual and the brake controller installation instructions.
Wiring Overview:
- Battery Feed (Fused): Supplies power to the brake controller.
- Ground: Ensures proper grounding for the brake controller system.
- Stop Lamp Switch (Input): Provides a braking signal to the brake controller.
- Trailer Brake Controller (Output): Sends braking signals to the trailer brakes.
Safety Notes:
- Verify all wiring connections are secure and routed away from:
- Sharp edges
- Hot surfaces
- Moving parts
- Inspect the adapter and wiring periodically for wear or damage.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation and Operation Instructions for Prodigy P2 Electronic Brake Control
Part Numbers:
- N90885
Specifications:
- Supports 2, 4, 6, and 8 brake applications.
- Proportional braking with inertial sensing for smooth and effective trailer braking.
Tools Required:
- Drill with 1/8" bit.
- Screwdriver.
- Wire crimp tool.
- Wire stripper.
- Circuit tester.
Wiring Access Location:
Not specified.
Safety Notes:
- Keep the control away from RF-generating devices, such as cell phones, within 12 inches.
- The unit supports proportional braking even in reverse.
- Always adhere to the Gross Combined Weight Rating (GCWR) recommended by the vehicle manufacturer.
- Warm trailer brakes before setting power for more accurate adjustments.
- Inspect brakes and connections regularly for safety and performance.
Hardware List:
- Brake control unit.
- Mounting bracket.
- Screws for mounting.
Step-by-Step Instructions:
Mounting the Brake Control:
- Choose a Mounting Location:
- Install on a solid, flat surface.
- The front of the unit must be horizontal within ±20°.
- Attach the Mounting Bracket:
- Secure the bracket using #8 x 3/8" machine screws.
- Install the Brake Control:
- Position the brake control on the bracket and adjust for easy access.
Wiring the Brake Control:
- Black Wire: Connect to a positive 12V battery source.
- White Wire: Connect to the vehicle ground.
- Blue Wire: Connect to the trailer brake system.
- Red Wire: Connect to the cold side of the brake pedal switch.
Initial Power Setup:
- Connect the trailer to the tow vehicle.
- Set the power knob to approximately 6.0.
- Drive on a flat surface at 25 mph and test the manual control.
- Adjust the power to prevent brake lock-up or ensure sufficient stopping force.
Boost Settings:
- Boost Levels:
- [b.1]: For light braking or minimal loads.
- [b.2]: Moderate braking for medium loads.
- [b.3]: Aggressive braking for heavy loads.
- Press the boost button repeatedly to adjust the level. The display will show the current setting.
Troubleshooting Guide:
Problem | Possible Cause | Solution |
---|---|---|
No trailer brakes. | Poor ground or disconnected wires. | Inspect and reconnect wires. |
Brakes lock up. | Power too high. | Lower the power setting. |
Display error. | Overload or short circuit detected. | Check all connections for faults. |
No display or response. | Power interruption or loose connections. | Verify the black wire and connections. |
Maintenance:
- Adjust brakes after the first 200 miles and every 3,000 miles.
- Periodically inspect connections, wires, and the brake control unit.
Warranty Information:
- Limited Warranty:
- Covers defects in materials and workmanship.
- Excludes misuse, improper installation, and overloading.
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
