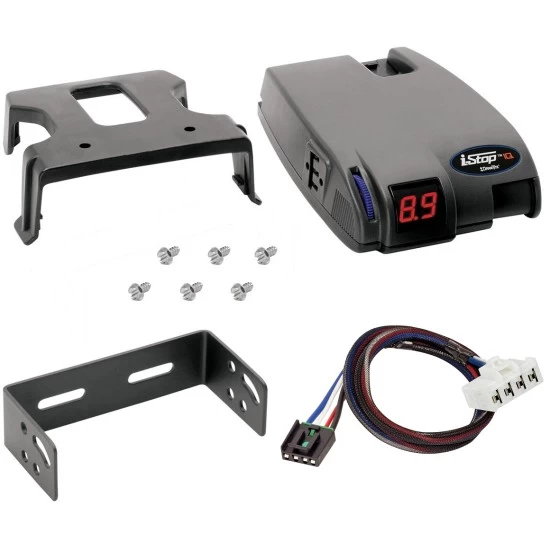

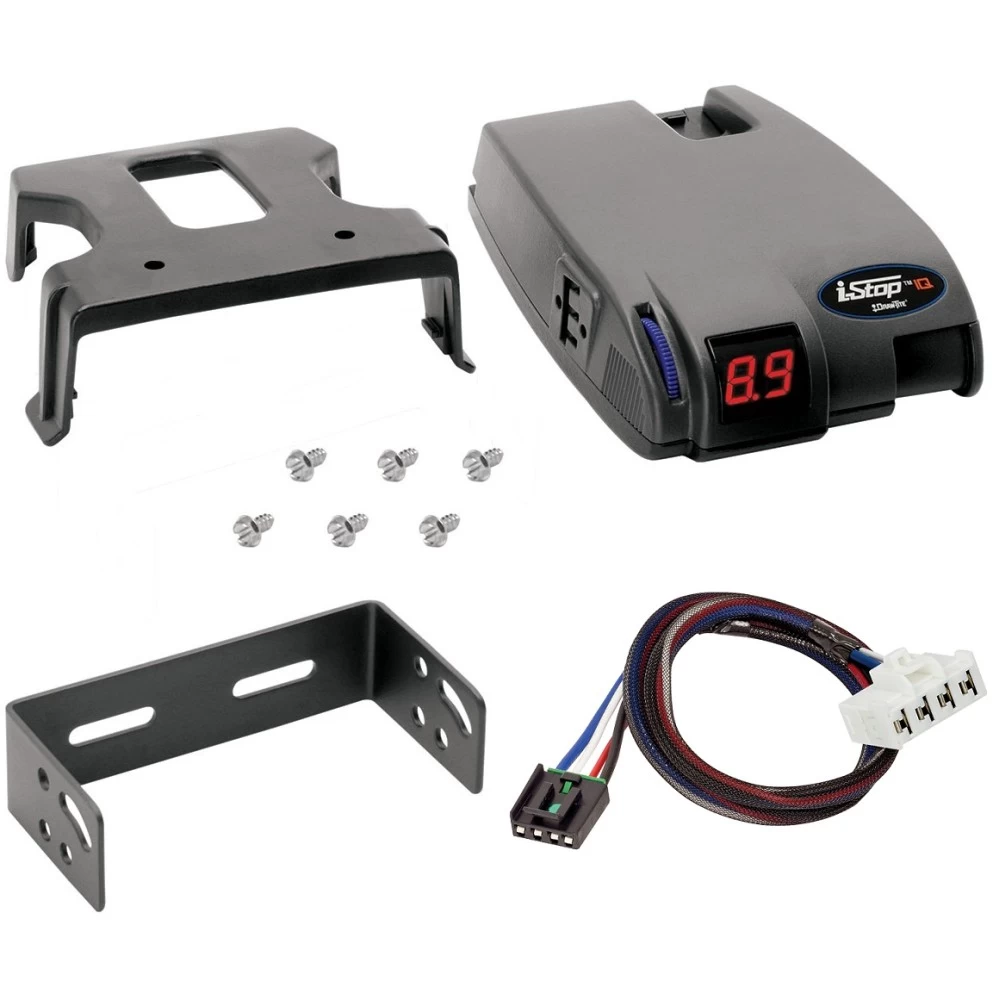

- Includes: I-Stop IQ Proportional Trailer Brake Controller 1 to 3 Axles, Trailer Brake Controller Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Brake Control for 95-09 Dodge RAM 1500 2500 3500 w/ Plug Play Wiring Adapter Proportional Draw-Tite Eletric Trailer Brakes Module Box Controller Install Notes
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness Connector
- The electric brake control harness connector is located:
- Underneath the dashboard
- To the left of the steering column, near the emergency brake pedal.
- It is typically taped to another harness and will feature a 4-pin connector that matches the adapter’s connector.
Step 2: Connect the Adapter
- Plug the brake control adapter into the 4-pin connector on the vehicle’s brake control harness.
- Connect the opposite end of the adapter to the brake controller.
- Follow the brake control manufacturer’s installation instructions for wiring and mounting the unit.
CAUTION:
Plug the adapter into the brake controller before attaching it to the vehicle connector.
Step 3: Complete Installation and Testing
- Mount the brake controller as per the manufacturer’s instructions.
- Perform all test procedures recommended by the brake controller manufacturer to verify proper operation.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Follow the lower of the towing manufacturer’s rating or the above maximum.
- Always refer to the vehicle owner’s manual and the brake controller instructions for proper installation and operation.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal to the brake controller.
- Fused Battery Feed: Supplies power to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Ground: Connects the brake controller to vehicle ground.
Final Notes:
- Periodically check all connections to ensure they remain secure and free of corrosion.
- Avoid exceeding the electrical limits specified for the towing system.
End of Instructions
Installation Instructions for Electric Trailer Brake Control Wiring Adapter
Part Number: 302000
Tools Required:
- None
Step-by-Step Instructions:
Step 1: Locate the Vehicle’s Electric Brake Control Harness Connector
- The electric brake control harness connector is located:
- Underneath the dashboard
- To the left of the steering column, near the emergency brake pedal.
- It is typically taped to another harness and will feature a 4-pin connector that matches the adapter’s connector.
Step 2: Connect the Adapter
- Plug the brake control adapter into the 4-pin connector on the vehicle’s brake control harness.
- Connect the opposite end of the adapter to the brake controller.
- Follow the brake control manufacturer’s installation instructions for wiring and mounting the unit.
CAUTION:
Plug the adapter into the brake controller before attaching it to the vehicle connector.
Step 3: Complete Installation and Testing
- Mount the brake controller as per the manufacturer’s instructions.
- Perform all test procedures recommended by the brake controller manufacturer to verify proper operation.
Safety Warnings:
- Do NOT overload the circuit:
- Maximum capacity: 4 axles / 8 brakes (24 amps).
- Follow the lower of the towing manufacturer’s rating or the above maximum.
- Always refer to the vehicle owner’s manual and the brake controller instructions for proper installation and operation.
Wiring Overview:
- Stop Lamp Switch to Brake Controller (Input): Provides braking signal to the brake controller.
- Fused Battery Feed: Supplies power to the brake controller.
- Trailer Brake Controller (Output): Sends braking signal to the trailer brakes.
- Ground: Connects the brake controller to vehicle ground.
Final Notes:
- Periodically check all connections to ensure they remain secure and free of corrosion.
- Avoid exceeding the electrical limits specified for the towing system.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for Electronic Brake Control
Part Number: N20191
Components of the Brake Control:
- A. Power Knob
- B. Boost Button
- C. Manual Slide Knob
- D. Connector (For Wiring Harness)
- E. Bracket Mounting Holes
- F. Two-Digit Power Display
- G. Dash Mounting Clip Attachment Locations
Tools Required:
- Phillips Screwdriver
- Drill (Optional)
-
6 x 3/8" Screws (Included)
Safety Notes:
- Do not mount or operate RF devices (e.g., cell phones) within 12 inches of the Brake Control.
- CAUTION: Reversing a connection to the breakaway battery can destroy the Brake Control.
- Disconnect the trailer plug before testing a breakaway switch.
- This Brake Control is designed for electric trailer brakes only.
- WARNING: Do not exceed the vehicle manufacturer’s GCWR (Gross Combined Weight Rating).
Mounting Instructions:
Traditional Bracket Mount:
- Secure the mounting bracket to a solid surface using the included #6 x 3/8” screws.
- Align the Brake Control with the mounting holes and tighten screws until snug.
- Adjust the Brake Control to obtain the correct mounting angle.
Dash Mounting Clip:
- Secure the dash clip to a solid surface with the included #6 x 3/8” screws.
- Attach the Brake Control:
- Slide the Brake Control into the dash clip until the rear slots engage with the tabs.
- Raise the front of the Brake Control and lock it into the clip.
- Ensure the Brake Control is mounted evenly in the same adjustment slot on both sides.
Wiring Instructions:
Use one of the two options to wire the Brake Control:
Option 1: Generic Wiring
- Connect the White Wire to vehicle ground.
- Connect the Black Wire to the battery positive terminal.
- Connect the Red Wire to the stoplight signal.
- Connect the Blue Wire to the trailer brakes.
Option 2: OEM Specific Wiring Harness
- Use a vehicle-specific Tekonsha harness (available separately). Plug the harness into the Brake Control connector and the vehicle's tow package connector.
Adjusting Brake Power:
- Connect the trailer to the tow vehicle.
- Turn on the engine and use the Manual Slide Knob to set the power display to 6.0.
- Drive the vehicle and trailer at 25 mph on a level, dry surface.
- Fully apply the Manual Slide Knob:
- If trailer brakes lock up: Turn the Power Knob down.
- If braking is insufficient: Turn the Power Knob up.
- Repeat until the power is just below wheel lock-up or provides sufficient braking.
Boost Feature:
The Boost Button increases the aggressiveness of trailer braking. There are three levels:
- b.1: Boost Level 1 – Starts at 13% power.
- b.2: Boost Level 2 – Starts at 25% power.
- b.3: Boost Level 3 – Starts higher for heavier loads.
To Activate Boost:
- Press the Boost Button to display the current level.
- Continue pressing to advance the Boost setting.
- The Boost level will display for 5 seconds and then return to the power display.
Troubleshooting:
Display Condition | Cause |
---|---|
Flashes 2 times per second | Short circuit or overload on the brake wire. |
No display with activation | Loss of power or ground connection. |
No braking | Power control set to 0. Check power knob. |
Upper two bars flash | Brake Control mounted at too high an angle. |
Lower two bars flash | Brake Control mounted at too low an angle. |
Blank display (15 minutes) | Power saving mode activated after inactivity. |
Final Checks:
- Ensure all wiring connections are secure.
- Verify that the Brake Control display reads power output when the brakes are applied.
- Perform multiple low-speed stops to confirm proper braking.
End of Instructions
Installation Instructions for Electronic Brake Control
Part Number: N20191
Components of the Brake Control:
- A. Power Knob
- B. Boost Button
- C. Manual Slide Knob
- D. Connector (For Wiring Harness)
- E. Bracket Mounting Holes
- F. Two-Digit Power Display
- G. Dash Mounting Clip Attachment Locations
Tools Required:
- Phillips Screwdriver
- Drill (Optional)
-
6 x 3/8" Screws (Included)
Safety Notes:
- Do not mount or operate RF devices (e.g., cell phones) within 12 inches of the Brake Control.
- CAUTION: Reversing a connection to the breakaway battery can destroy the Brake Control.
- Disconnect the trailer plug before testing a breakaway switch.
- This Brake Control is designed for electric trailer brakes only.
- WARNING: Do not exceed the vehicle manufacturer’s GCWR (Gross Combined Weight Rating).
Mounting Instructions:
Traditional Bracket Mount:
- Secure the mounting bracket to a solid surface using the included #6 x 3/8” screws.
- Align the Brake Control with the mounting holes and tighten screws until snug.
- Adjust the Brake Control to obtain the correct mounting angle.
Dash Mounting Clip:
- Secure the dash clip to a solid surface with the included #6 x 3/8” screws.
- Attach the Brake Control:
- Slide the Brake Control into the dash clip until the rear slots engage with the tabs.
- Raise the front of the Brake Control and lock it into the clip.
- Ensure the Brake Control is mounted evenly in the same adjustment slot on both sides.
Wiring Instructions:
Use one of the two options to wire the Brake Control:
Option 1: Generic Wiring
- Connect the White Wire to vehicle ground.
- Connect the Black Wire to the battery positive terminal.
- Connect the Red Wire to the stoplight signal.
- Connect the Blue Wire to the trailer brakes.
Option 2: OEM Specific Wiring Harness
- Use a vehicle-specific harness (available separately). Plug the harness into the Brake Control connector and the vehicle's tow package connector.
Adjusting Brake Power:
- Connect the trailer to the tow vehicle.
- Turn on the engine and use the Manual Slide Knob to set the power display to 6.0.
- Drive the vehicle and trailer at 25 mph on a level, dry surface.
- Fully apply the Manual Slide Knob:
- If trailer brakes lock up: Turn the Power Knob down.
- If braking is insufficient: Turn the Power Knob up.
- Repeat until the power is just below wheel lock-up or provides sufficient braking.
Boost Feature:
The Boost Button increases the aggressiveness of trailer braking. There are three levels:
- b.1: Boost Level 1 – Starts at 13% power.
- b.2: Boost Level 2 – Starts at 25% power.
- b.3: Boost Level 3 – Starts higher for heavier loads.
To Activate Boost:
- Press the Boost Button to display the current level.
- Continue pressing to advance the Boost setting.
- The Boost level will display for 5 seconds and then return to the power display.
Troubleshooting:
Display Condition | Cause |
---|---|
Flashes 2 times per second | Short circuit or overload on the brake wire. |
No display with activation | Loss of power or ground connection. |
No braking | Power control set to 0. Check power knob. |
Upper two bars flash | Brake Control mounted at too high an angle. |
Lower two bars flash | Brake Control mounted at too low an angle. |
Blank display (15 minutes) | Power saving mode activated after inactivity. |
Final Checks:
- Ensure all wiring connections are secure.
- Verify that the Brake Control display reads power output when the brakes are applied.
- Perform multiple low-speed stops to confirm proper braking.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Revision:
N20191 Rev. A 2-6-07
