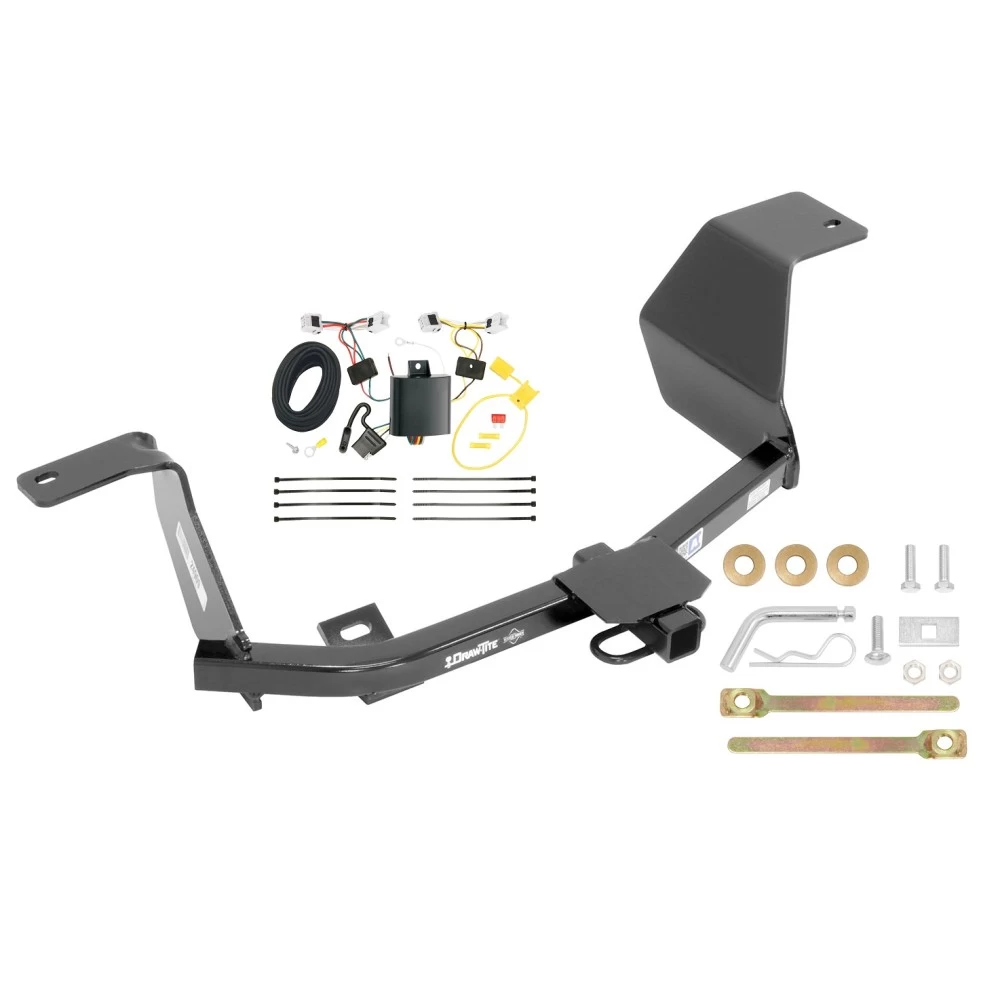

Installation Instructions for Nissan Versa Note

Part Numbers:

• 24909
• 60340
• 77296

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Galvanic Isolators (provided)
• Lubricant or Soapy Water
• Tin Snips
• Wrenches: M10, 11/16”, 3/4”
• Drill Bits: 1” Hole Saw (driver’s side only)

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach the exhaust from the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to assist removal.

2. Trim Heat Shield:

   • Remove the rearward M6 bolt securing the heat shield and return it to the vehicle owner.
   • Trim the heat shield to allow access to the passenger-side frame rail hole. Refer to Figure 3.

3. Remove Charcoal Canister:

   • Remove the M8 bolt securing the black box (charcoal canister) to the frame. Slide the box forward to remove.

4. Drill Access Holes:

   • Using a 1” hole saw, drill access holes into the driver and passenger-side frame rails aligned with the existing holes. This will allow insertion of the handle nuts. Refer to Figure 2.

5. Install Handle Nuts:

   • Insert the 1/2” handle nuts into the frame through the drilled holes.

6. Install Tie-Down Hook Hardware:

   • Attach the 1/2” carriage bolt and spacer to the tie-down hook as shown in Figure 1.

7. Apply Galvanic Isolators:

   • Attach the clear galvanic isolators to the passenger-side bracket. Refer to Figure 1.

8. Position Hitch:

   • Raise the hitch into position. Install a conical washer and hex nut on the tie-down attachment but do not fully tighten at this stage.

9. Attach Remaining Fasteners:

   • Feed the 1/2” fasteners through the slots on both sides of the hitch and install as shown in Figure 1.
   • Note: On the passenger side, sandwich the heat shield between the frame rail and the hitch.

10. Center Hitch:

    • Align and center the hitch on the vehicle.

11. Tighten Fasteners:

    • Torque all 1/2”-13 GR5 fasteners with handle nuts to 50 Lb.-Ft. (68 N*M).
    • Torque all other 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).

12. Reinstall Charcoal Canister:

    • Reattach the charcoal canister removed in Step 3.

13. Reinstall Exhaust:

    • Reattach the exhaust to the rubber isolator.

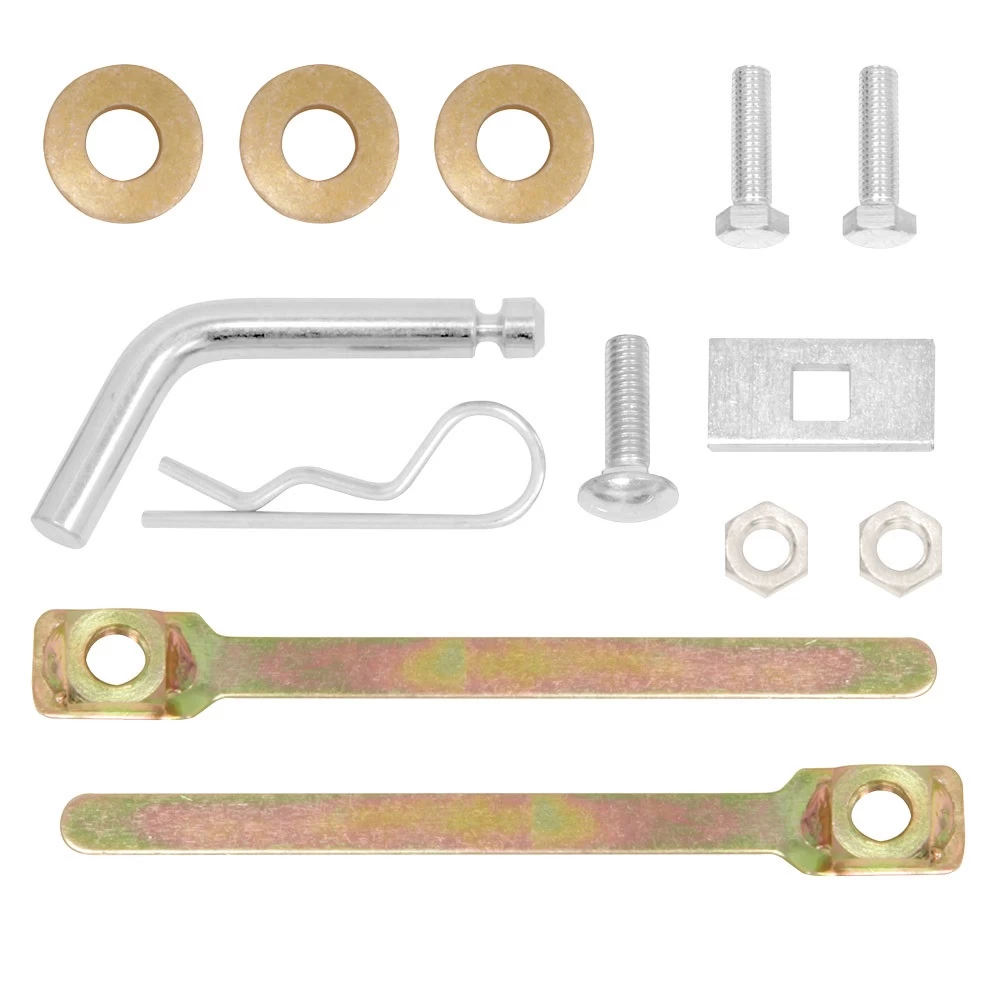

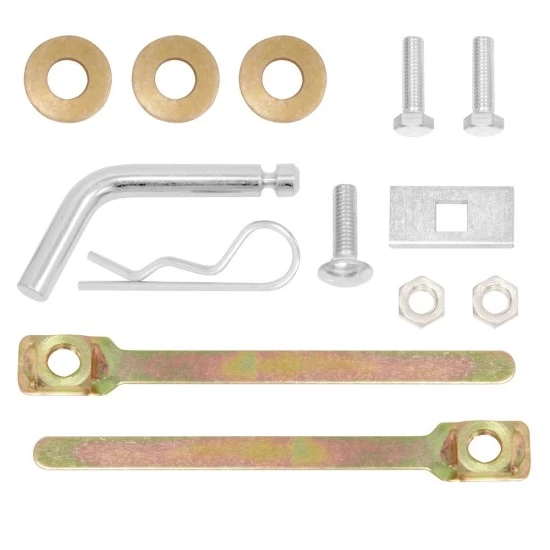

Hardware List:

• (1) Carriage Bolt: 1/2”-13 x 2.00” GR5
• (2) Handle Nuts: 1/2”-13
• (1) Spacer: 1/4” x 1.50” x 3.00”
• (3) Conical Washers: 1/2”
• (1) Hex Nut: 1/2”-13
• (2) Galvanic Isolators

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Installation Instructions for Vehicle (All Models)

Part Numbers:

• 24909
• 60340
• 77296

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Galvanic Isolators (provided)
• Lubricant or Soapy Water
• Tin Snips
• Wrenches: M10, 11/16”, 3/4”
• Drill Bits: 1” Hole Saw (driver’s side only)

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed the towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Detach the exhaust from the rubber isolator. Spray lubricant or soapy water on the metal hanger rod and rubber isolator to assist removal.

2. Trim Heat Shield:

   • Remove the rearward M6 bolt securing the heat shield and return it to the vehicle owner.
   • Trim the heat shield to allow access to the passenger-side frame rail hole. Refer to Figure 3.

3. Remove Charcoal Canister:

   • Remove the M8 bolt securing the black box (charcoal canister) to the frame. Slide the box forward to remove.

4. Drill Access Holes:

   • Using a 1” hole saw, drill access holes into the driver and passenger-side frame rails aligned with the existing holes. This will allow insertion of the handle nuts. Refer to Figure 2.

5. Install Handle Nuts:

   • Insert the 1/2” handle nuts into the frame through the drilled holes.

6. Install Tie-Down Hook Hardware:

   • Attach the 1/2” carriage bolt and spacer to the tie-down hook as shown in Figure 1.

7. Apply Galvanic Isolators:

   • Attach the clear galvanic isolators to the passenger-side bracket. Refer to Figure 1.

8. Position Hitch:

   • Raise the hitch into position. Install a conical washer and hex nut on the tie-down attachment but do not fully tighten at this stage.

9. Attach Remaining Fasteners:

   • Feed the 1/2” fasteners through the slots on both sides of the hitch and install as shown in Figure 1.
   • Note: On the passenger side, sandwich the heat shield between the frame rail and the hitch.

10. Center Hitch:

    • Align and center the hitch on the vehicle.

11. Tighten Fasteners:

    • Torque all 1/2”-13 GR5 fasteners with handle nuts to 50 Lb.-Ft. (68 N*M).
    • Torque all other 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).

12. Reinstall Charcoal Canister:

    • Reattach the charcoal canister removed in Step 3.

13. Reinstall Exhaust:

    • Reattach the exhaust to the rubber isolator.

Hardware List:

• (1) Carriage Bolt: 1/2”-13 x 2.00” GR5
• (2) Handle Nuts: 1/2”-13
• (1) Spacer: 1/4” x 1.50” x 3.00”
• (3) Conical Washers: 1/2”
• (1) Hex Nut: 1/2”-13
• (2) Galvanic Isolators

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working beneath the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3592
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-Connector Adapter for Nissan Sentra

Part Numbers:

• 118582

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the trunk.
   • Temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
   • Disconnect the connectors carefully to avoid damaging the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver-side wiring connectors.
   • Ensure the connectors are fully inserted with locking tabs secured.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire behind the panels and along the threshold to the passenger-side taillight wiring harness.
   • Repeat Step 3 using the green wire T-Connector.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • From inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the engine compartment.

   Warning:

   • Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.

7. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the provided yellow fuse holder to the positive (+) battery cable using the ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

8. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.

   Warning:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

9. Mount the Black Box:

   • Locate a flat surface in an out-of-the-way place to mount the T-Connector’s black box using the provided double-sided tape.

10. Secure the Wiring:

    • Use the provided cable ties to secure the remainder of the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.

11. Reassemble the Vehicle:

    • Replace the carpet, clips, and panels that were removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps per side
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.

Installation Instructions for T-Connector Adapter for Nissan Sentra

Part Numbers:

• 118582

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Prepare the Vehicle:

   • Open the trunk.
   • Temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Vehicle’s Taillight Wiring Harness:

   • On both the driver and passenger sides, locate the vehicle’s taillight wiring harness.
   • Disconnect the connectors carefully to avoid damaging the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow wire between the driver-side wiring connectors.
   • Ensure the connectors are fully inserted with locking tabs secured.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire behind the panels and along the threshold to the passenger-side taillight wiring harness.
   • Repeat Step 3 using the green wire T-Connector.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • From inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the supplied yellow butt connector.
   • Route the black wire through a grommet and along the vehicle’s exterior frame or thresholds to the engine compartment.

   Warning:

   • Avoid hot pipes, heat shields, fuel tanks, or areas where the wire could be pinched or damaged.

7. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the provided yellow fuse holder to the positive (+) battery cable using the ring terminal.
   • Connect the black wire to the fuse holder using the yellow butt connector.
   • Insert the 10-amp fuse into the fuse holder.

8. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.

   Warning:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

9. Mount the Black Box:

   • Locate a flat surface in an out-of-the-way place to mount the T-Connector’s black box using the provided double-sided tape.

10. Secure the Wiring:

    • Use the provided cable ties to secure the remainder of the T-Connector harness, avoiding areas that could pinch, cut, or melt the wires.

11. Reassemble the Vehicle:

    • Replace the carpet, clips, and panels that were removed during installation, ensuring no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Specifications:

• Max. stop/turn light: 2.1 amps per side
• Max. tail lights: 5.6 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.
