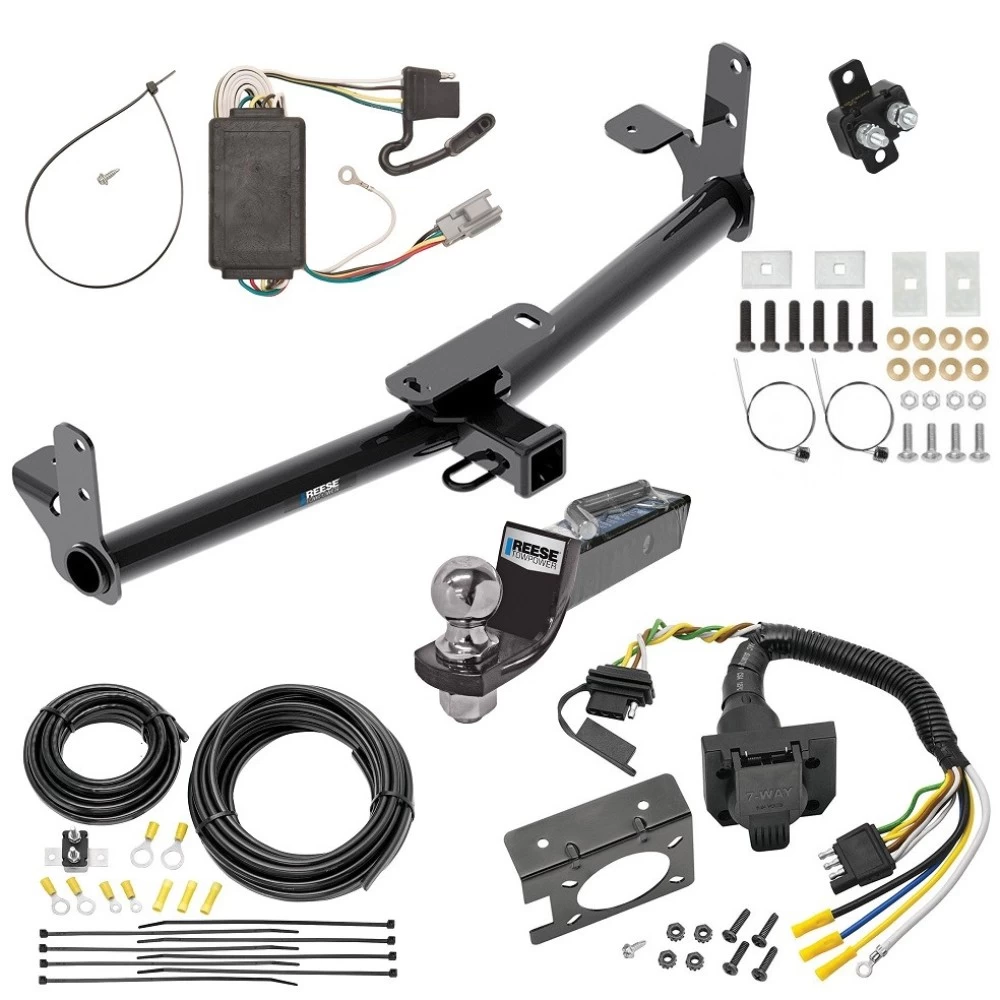

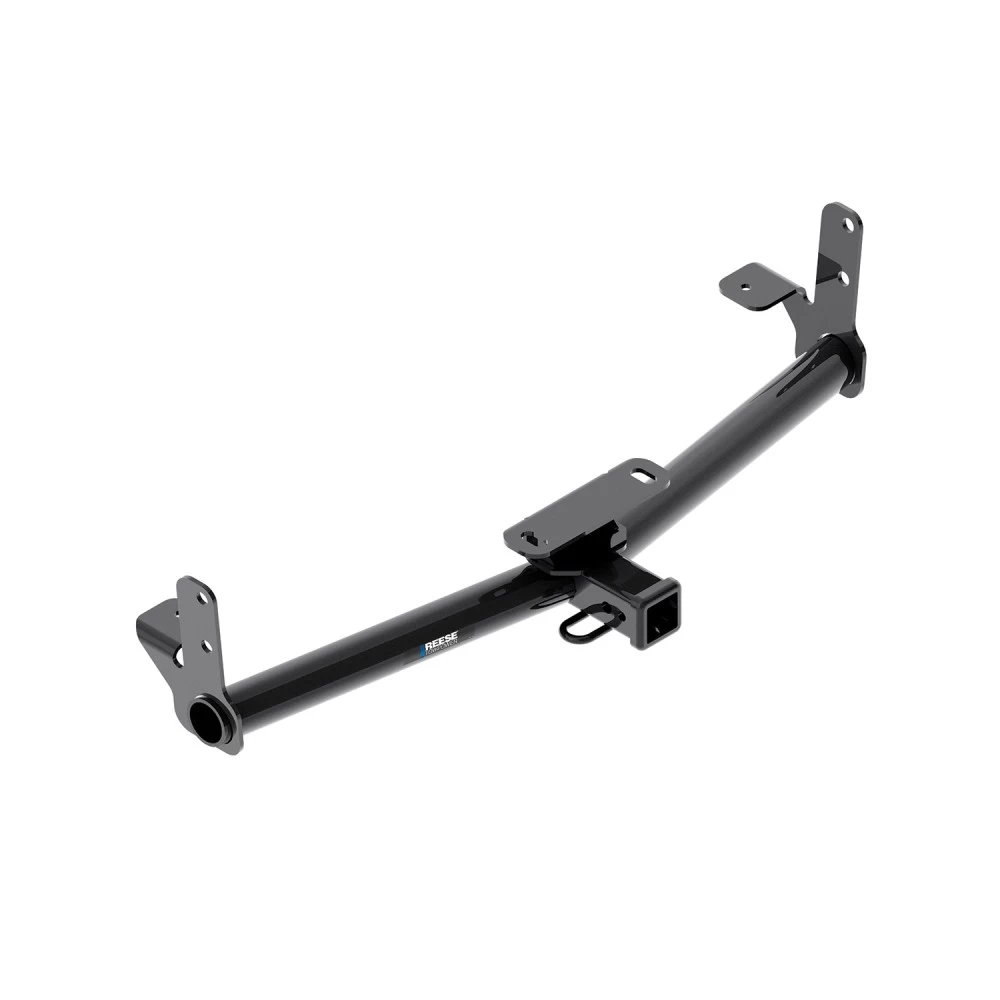

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76028, #84028, and #CQT76028

Part Numbers:

• 76028
• 84028
• CQT76028

Applications:

• Years: 2005-Current (Chevrolet Equinox), 2010-Current (GMC Terrain), 2006-2009 (Pontiac Torrent), 2002-2007 (Saturn Vue, except Redline)
• Make and Models: Chevrolet Equinox, GMC Terrain, Pontiac Torrent, Saturn Vue

For the most up-to-date application years and trim levels, refer to the manufacturer's website.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 18 mm, 19 mm, 3/4"
• 6" Socket Extension
• Utility Knife
• Tape Measure

Step-by-Step Instructions:

1. Remove the Fascia Door:

• If present, remove the fascia door.

2. Install Carriage Bolts and Blocks:

• Feed the carriage bolt and large block through slots on the bottom of the frame rails using the pull wire as shown in Figure 3.

3. Position the Hitch:

• Raise the hitch into position, lifting the bumper mounting bracket over the fascia where necessary.
• Secure the hitch using M12 bolts and conical washers into the existing weld nuts. Be cautious not to push the bolts into the frame (Figure 1).

4. Install Hardware:

• Thread the conical washer over the pull wire to hold the bolt in place, remove the pull wire, and attach the hex nut.
• Hand-tighten all bolts.

5. Secure to Bumper:

• For vehicles without weld nuts:
  Pull carriage bolts and small blocks through the end of the bumper and the bumper mounting bracket using the pull wire. Attach the conical washer and nut.
• For vehicles with weld nuts:
  Install the M12 bolts and conical washers into the existing weld nuts on the bumper (Figure 2).

6. Tighten Fasteners:

• Torque all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
• Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).

7. Replace or Modify Fascia Door:

• Replace the fascia door for 2005-2015 Equinox models.
• For 2016 and newer models, trim the fascia door as shown in Figure 4 (obtain the owner's permission before trimming).
• Return fascia doors to the owner for other models.

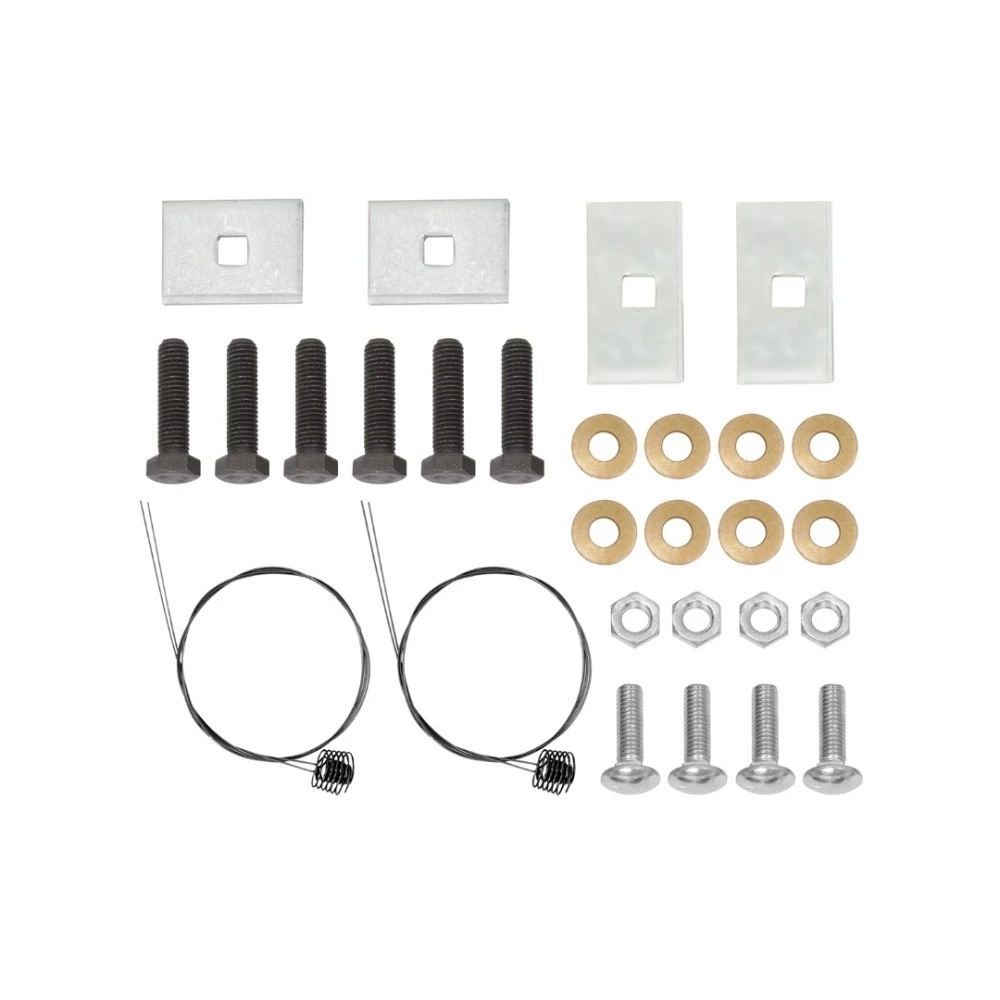

Hardware List:

• 4 × Carriage Bolt (1/2-13 × 1.50 GR5)
• 2 × Spacer Block (.250 × 1.50 × 3.00)
• 8 × Conical Washer (1/2")
• 4 × Hex Nut (1/2-13 GR2)
• 6 × Bolt (M12 × 1.75 × 45 CL10.9)
• 2 × Small Spacer Block (.250 × 1.50 × 2.0)
• 4 × Pull Wire (1/2-13)

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque for all fasteners to keep the hitch secure while towing.
• Do not cut access or attachment holes with a torch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
• Periodically check all fasteners for tightness.

Specifications:

• Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118391

Tools Required:

• Drill with 3/32" drill bit.
• Test light or trailer for verification.

Step-by-Step Instructions:

1. Locate the Vehicle’s Harness Area:

   • Open the rear tailgate and locate the vehicle’s jack storage compartment on the driver’s side.
   • Remove the panel and tire jack to access the harness area.

2. Find the Trailer Harness Connector:

   • Inside the driver’s side jack compartment, locate the vehicle’s trailer harness connector.
   • This is a 6-pin connector taped to the vehicle’s wiring harness near the floor of the jack compartment.

3. Install the T-Connector:

   • Remove the tape on the vehicle’s 6-pin connector.
   • Plug the T-Connector into the vehicle’s trailer plug harness.
   • Ensure the T-Connector is fully inserted with locking tabs in place.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the grounding area to remove dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.
   • Do not drill into exposed surfaces.

5. Test the Installation:

   • Use a test light or trailer to verify the T-Connector’s functionality.
   • Ensure all connections are complete for the T-Connector to function properly.

6. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the jack storage compartment.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps).
   • Max. tail lights: (5 amps).

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional guidance.
• Test thoroughly to ensure proper installation.

Installation Instructions for T-Connector Adapter

Part Numbers:

• 118391

Tools Required:

• Drill with 3/32" drill bit
• Test light or trailer for verification

Step-by-Step Instructions:

1. Locate the Vehicle’s Harness Area:

   • Open the rear tailgate and locate the vehicle’s jack storage compartment on the driver’s side.
   • Remove the panel and tire jack to access the harness area.

2. Find the Trailer Harness Connector:

   • Inside the driver’s side jack compartment, locate the vehicle’s trailer harness connector.
   • This is a 6-pin connector taped to the vehicle’s wiring harness near the floor of the jack compartment.

3. Install the T-Connector:

   • Remove the tape on the vehicle’s 6-pin connector.
   • Plug the T-Connector into the vehicle’s trailer plug harness.
   • Ensure the T-Connector is fully inserted with locking tabs in place.

4. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the grounding area to remove dirt and rustproofing.
   • Drill a 3/32" hole and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.
   • Do not drill into exposed surfaces.

5. Test the Installation:

   • Use a test light or trailer to verify the T-Connector’s functionality.
   • Ensure all connections are complete for the T-Connector to function properly.

6. Store the 4-Flat Connector:

   • When not in use, store the 4-flat connector in the jack storage compartment.

Specifications:

• Max Stop/Turn Light: 2.1 amps per side
• Max Tail Lights: 5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
