Trailer Hitch Tow Package w/ 7-Way RV Wiring For 19-22 Subaru Ascent w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models

Trailer Hitch Tow Package w/ 7‑Way RV Wiring For 19‑22 Subaru Ascent w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models

Name: Trailer Hitch Tow Package w/ 7-Way RV Wiring For 19-22 Subaru Ascent w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models
Brand: Draw-Tite
Price: 382.95 USD

Model: 76253 118290 20212 21536

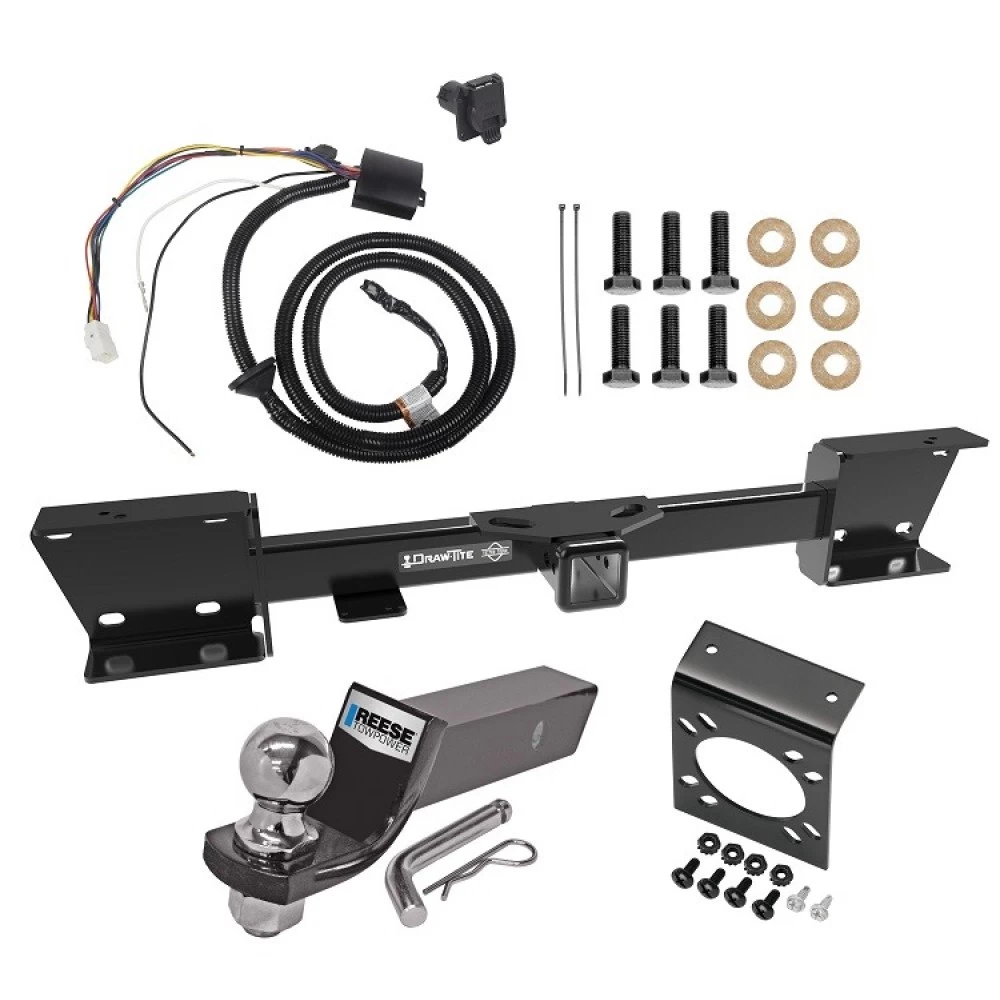

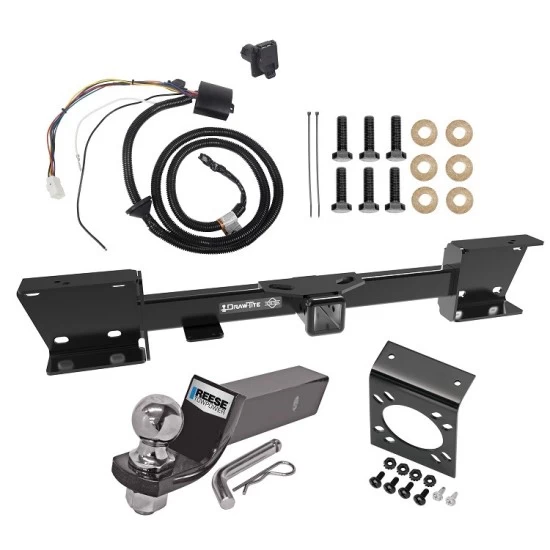

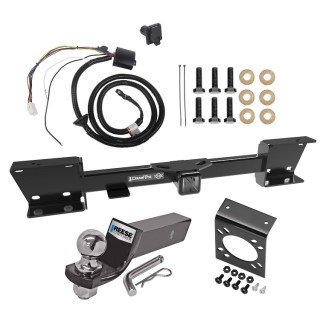

Includes Everything Pictured:
Custom Fit Trailer Hitch
Tow Harness Wiring Package (7-Way)
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
7-Way Mounting Bracket
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2019 - 2022 Subaru, Ascent, All Styles

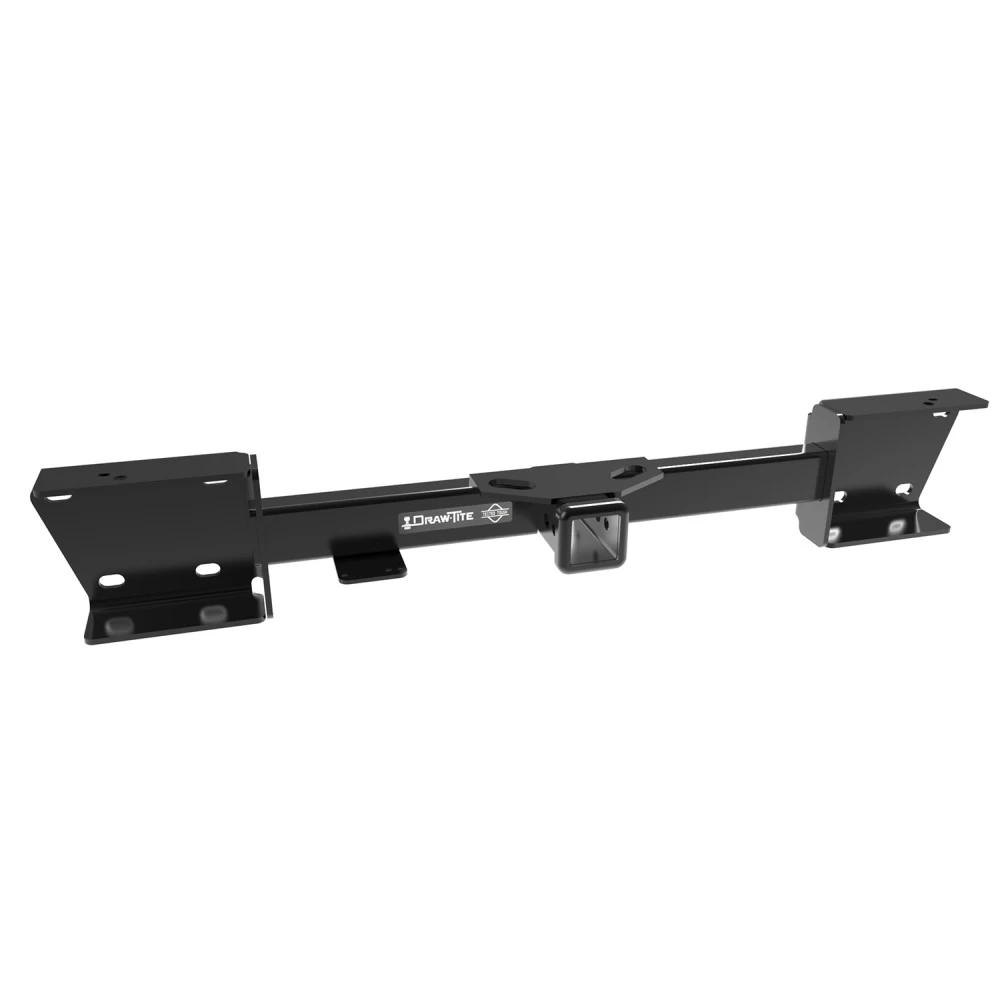

Trailer Hitch Specs:

Part Number	76253
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3/4
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	750 lbs
Warranty	Lifetime
Installation Instructions

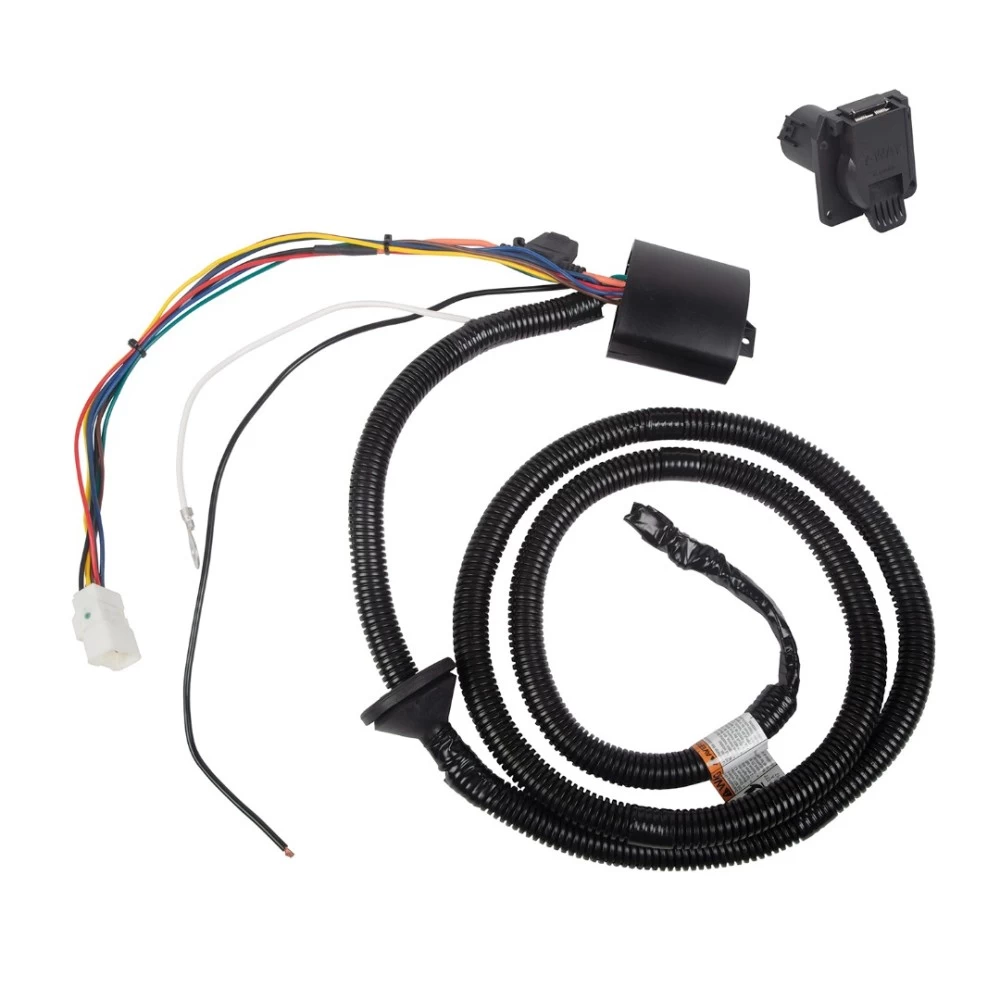

Wiring Kit Specs:

Part Number	118290
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

7-Way Mount Bracket

Part Number	20212
Fits	7-Way Flat Pin Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

Towing Starter Kit Specs:

Part Number	21536
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Ball Size	2"
Ball Shank Dia.	1"
Ball-Mount Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	6,000 lb Gross Towing Weight 600 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Ball-Mount Finish	Black Powdercoat
Ball Finish	Chrome (Cold forged for superior strength)
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.

For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.

Partial list of fitment years: 19 20 21 22 2019 2020 2021 2022

See Full Description

$382 ⁹⁵ $608.57 37% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
Pre-Order

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$608.57 $382 ⁹⁵

Pay in 4 interest-free installments of $95.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $95.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 76253 118290 20212 21536
Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Mounting Bracket, Trailer Tow Hitch Ball Mount Starter Kit

Compatibility Chart

Year Range	Make	Model	Style

Specification
Attachment Location	Rear
Ball Mount Included	Yes
Color	Black
Drilling Required	No
Gross Towing Weight	5,000 lbs.
Hitch Class	III
Material	Steel
Maximum Tongue Weight	750 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Square Tube

Be the first to ask a question.

Description

2019 - 2022 Subaru, Ascent, All Styles

Trailer Hitch Specs:

Part Number	76253
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3/4
Receiver size opening	2"
Max gross trailer weight	5,000 lbs
Max GTW w/ weight distribution	N/A
Max Tongue Weight	750 lbs
Warranty	Lifetime
Installation Instructions

Wiring Kit Specs:

Part Number	118290
Brand	Tekonsha
Warranty	1 Year
Installation Instructions

7-Way Mount Bracket

Part Number	20212
Fits	7-Way Flat Pin Connectors
Brand	Tow Ready
Mounts electrical connector to attachment bracket Includes screws and nuts Attractive point-of-purchase packaging
Warranty	1 Year

Towing Starter Kit Specs:

Part Number	21536
Brand	Reese
Fits	2" x 2" Trailer Hitch Receiver
Ball Size	2"
Ball Shank Dia.	1"
Ball-Mount Length	9" From Center of Pin Hole to Center of Ball Hole
Towing Capacity	6,000 lb Gross Towing Weight 600 lb Tongue Weight
Drop	2" From inside top of hitch opening
Rise	3/4" from top of inside of hitch opening
Ball-Mount Finish	Black Powdercoat
Ball Finish	Chrome (Cold forged for superior strength)
Warranty	Lifetime

Questions or Comments? Call 702-374-8999

Partial list of fitment years: 19 20 21 22 2019 2020 2021 2022

Tags: 76253 , 118290 , 20212 , 21536 , Draw-Tite , Trailer , Hitch , Tow , Package , 7-Way , RV , Wiring , 19-22 , Subaru , Ascent , 2" , Drop , Mount , 2" , Ball , Class , 3 , 2" , Receiver , All , Models , 19 , 20 , 21 , 22 , 2019 , 2020 , 2021 , 2022

Get Expert Help

Trailer Hitch Tow Package w/ 7-Way RV Wiring For 19-22 Subaru Ascent w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models Install Notes

Installation Instructions for T-One® T-Connector for Subaru Ascent

Part Numbers:

118290

Tools Required:

Trim Panel Remover
10mm Socket & Ratchet or Wrench
Drill (3/32” Drill Bit)
1/4” Socket
Philips Head Screwdriver
Test Probe
2” Hole Saw & Drill
Metal Primer Paint

Step-by-Step Instructions:

Prepare the Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove access panels, threshold, trunk floor panels, and trays from the driver’s side.
- Set aside all items carefully to avoid damage.
Connect the Tow Plug Adapter:
- Locate the vehicle’s 8-pin connector behind the rear interior trim panel.
- Insert the 8-pin Tow-Plug Adapter into the connector and lock it into place.
Ground the T-One® T-Connector:
- Pull back the interior trim panel on the driver’s side.
- Locate the existing ground stud, loosen the bolt, place the screw eyelet on the stud, and re-tighten the bolt.
- Caution: Ensure all other ground connections are secure when reattaching the ground stud.
Route the Power Wire:
- Locate the black 12-gauge power wire on the wiring harness.
- Attach the provided black wire and route it along the exterior frame or follow the existing wiring thresholds into the engine compartment to the battery.
- Warning: Avoid routing near hot pipes, heat shields, the fuel tank, or any points that could pinch or damage the wire.
Connect the Power Wire to the Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Install the Fuse:
- Reconnect the Negative (-) battery cable.
- Insert the 30-amp fuse into the fuse holder.
Mount the Black Box Module:
- Find a flat, out-of-the-way surface to mount the T-One® T-Connector’s black box module, preventing damage or rattling.
Drill for the 7-Way Harness:
- Inside the cargo area, drill a 2” hole near the connector using a hole saw.
- Deburr the hole and coat it with primer to prevent rust.
- Route the 7-Way harness through the hole and seat the grommet inside.
Route and Mount the 7-Way Socket:
- Determine the mounting location for the 7-Way socket.
- Route the harness containing the 7 wires behind the rear bumper fascia and over the bumper support bracket.
- Pin the 7-Way connector, connect it to the 7-Way socket, and mount the assembly in an accessible location (Bracket not included).
Test the Installation:
- Ensure all connections are complete for proper T-One® T-Connector functionality.
- Test the installation using a test light or trailer.
- Reset the vehicle's electrical system by temporarily removing the key from the ignition.
Secure the Harness:
- Use the provided cable ties to secure the remainder of the harness, avoiding areas that could pinch, cut, or melt the wire.
Reinstall Components:
- Replace all removed panels, thresholds, covers, and floor items, ensuring wires are not pinched or cut.
Warning:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Read the vehicle’s owner’s manual and instruction sheet for additional information.

Safety Notes:

Always wear safety glasses and follow proper precautions during installation.
Avoid routing wires near areas that may damage the harness.
Follow the vehicle warnings and installation instructions carefully.

Manufacturer Notes:

Store these instructions for future reference.
Refer to the vehicle owner’s manual for additional details.
