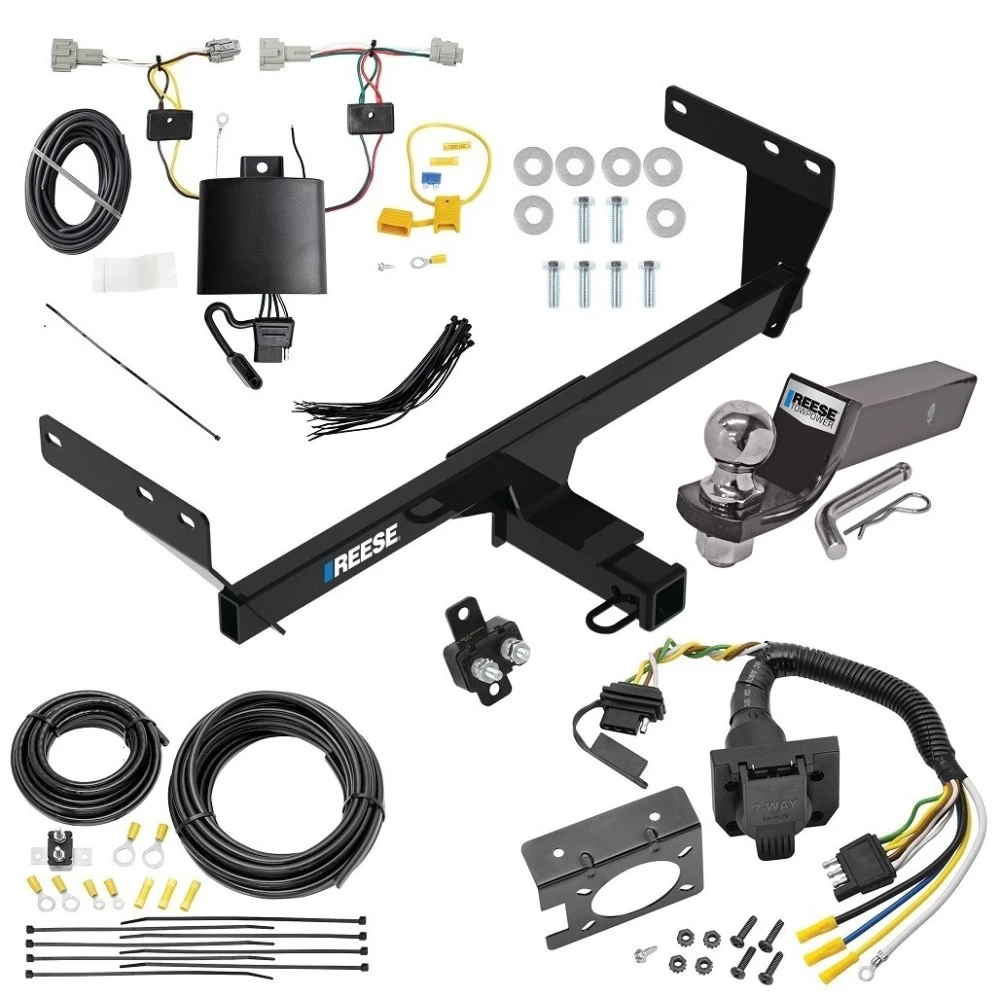

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Wiring Adapter, Trailer Brake Controller Installation Kit, Circuit Breaker, Trailer Tow Hitch Ball Mount Starter Kit
Compatibility Chart
Description
Get Expert Help
Trailer Hitch Tow Package w/ 7-Way RV Wiring For 21-24 Nissan Rogue w/ 2" Drop Mount 2" Ball Class 3 2" Receiver All Models Reese Install Notes
Installation Instructions for 2021-Current Nissan Rogue
Part Numbers:
- 76396
- 84396
- CQT76396
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 19 mm
- Socket Extension
- M12x1.25 Tap
Step-by-Step Instructions:
-
Clean Access Holes:
- Using an M12x1.25 tap, clean the existing weldnuts on both sides of the vehicle frame to remove paint and debris.
-
Install Hitch:
- Raise the hitch into position and align it with the mounting holes in the vehicle frame.
- Loosely install six M12 bolts and six 1/2" conical washers (teeth side toward hitch).
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 Nm).
Hardware List:
- (6) M12x1.25x35 CL8.8 Bolts
- (6) 1/2" Conical Washers
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Periodically check that the hitch is securely mounted and all fasteners are tight.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Follow all vehicle manufacturer instructions related to towing.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,588 kg) trailer weight, 525 lbs (238 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Notes:
- Installation time for professional installers is approximately 30 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Installation Instructions for 2021-Current Nissan Rogue
Part Numbers:
- 76396
- 84396
- CQT76396
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Socket: 19 mm
- Socket Extension
- M12x1.25 Tap
Step-by-Step Instructions:
-
Clean Access Holes:
- Using an M12x1.25 tap, clean the existing weldnuts on both sides of the vehicle frame to remove paint and debris.
-
Install Hitch:
- Raise the hitch into position and align it with the mounting holes in the vehicle frame.
- Loosely install six M12 bolts and six 1/2" conical washers (teeth side toward hitch).
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 ft-lbs (103 Nm).
Hardware List:
- (6) M12x1.25x35 CL8.8 Bolts
- (6) 1/2" Conical Washers
Safety Notes:
- Always wear safety glasses during installation.
- Ensure all fasteners are properly tightened to the specified torque.
- Periodically check that the hitch is securely mounted and all fasteners are tight.
- Replace any damaged hitch or ball immediately.
- Do not cut or modify the hitch.
- Follow all vehicle manufacturer instructions related to towing.
Specifications:
- Weight Carrying Capacity: 3,500 lbs (1,588 kg) trailer weight, 525 lbs (238 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Notes:
- Installation time for professional installers is approximately 30 minutes.
- For step-by-step photo instructions, scan the QR code provided in the manual.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Nissan Rogue
Part Numbers:
- 118833
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Hatch:
- Remove the plastic threshold cover, side panels, and cargo trays to locate the vehicle’s wiring in the rear cargo area.
- Using a 10mm socket or wrench, remove the 10mm bolts securing the cargo hooks.
-
Access the Taillight Wiring Harness:
- Remove two 10mm nuts from the taillight pocket on both the driver’s and passenger’s sides.
- Carefully slit the grommet to allow for the T-Connector wiring.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely engaged.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties, avoiding areas where the wire could be pinched, cut, or damaged.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- If no ground point is available, drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
- Clean the grounding area of dirt and rustproofing before securing.
Caution: Verify what is behind any surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the green wire behind the panels and along the threshold to the passenger-side taillight pocket.
-
Connect the Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely engaged.
-
Connect the Power Wire:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Route the Power Wire:
- Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, fuel tanks, or areas that may pinch or damage the wire.
-
Connect the Power Wire to the Black Box:
- Connect the black 12-gauge wire to the black power wire on the T-One® Connector black box using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Replace all panels, threshold covers, and storage items removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the storage compartment and store it when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
- Always read and follow all warnings and instructions printed on the tow vehicle’s battery.
Installation Instructions for T-One® T-Connector for Nissan Rogue
Part Numbers:
- 118833
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Hatch:
- Remove the plastic threshold cover, side panels, and cargo trays to locate the vehicle’s wiring in the rear cargo area.
- Using a 10mm socket or wrench, remove the 10mm bolts securing the cargo hooks.
-
Access the Taillight Wiring Harness:
- Remove two 10mm nuts from the taillight pocket on both the driver’s and passenger’s sides.
- Carefully slit the grommet to allow for the T-Connector wiring.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the driver-side wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely engaged.
-
Mount the Black Box:
- Mount the T-One® Connector black box on the driver’s side using the provided double-sided tape.
- Secure the remaining harness with the provided cable ties, avoiding areas where the wire could be pinched, cut, or damaged.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- If no ground point is available, drill a 3/32” hole and secure the white wire with the provided eyelet and screw.
- Clean the grounding area of dirt and rustproofing before securing.
Caution: Verify what is behind any surface before drilling to avoid damage or injury.
-
Route the Passenger-Side T-Connector:
- Route the green wire behind the panels and along the threshold to the passenger-side taillight pocket.
-
Connect the Passenger-Side T-Connector:
- Insert the T-One® Connector end with the green wire between the passenger-side wiring connectors.
- Ensure the connectors are fully inserted and the locking tabs are securely engaged.
-
Connect the Power Wire:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.
-
Route the Power Wire:
- Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail, avoiding hot pipes, heat shields, fuel tanks, or areas that may pinch or damage the wire.
-
Connect the Power Wire to the Black Box:
- Connect the black 12-gauge wire to the black power wire on the T-One® Connector black box using the provided yellow butt connector.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Install the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Reassemble the Vehicle:
- Replace all panels, threshold covers, and storage items removed during installation.
- Ensure no wires are pinched or damaged.
-
Store the 4-Flat Connector:
- Route the 4-flat connector through the driver’s side trim panel into the storage compartment and store it when not in use.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring
Tools Required:
- Phillips Head Screwdriver
- Drill with 3/32" Drill Bit
- 10mm Socket & Ratchet or Wrench
- Wire Crimpers
- Wire Cutters
- Test Light or Multimeter
- Cable Ties
Part 1: Install the 4-Way to 7-Way Adapter
Step-by-Step Instructions:
-
Mount the Adapter:
- Choose a suitable mounting point on the vehicle, typically near the hitch.
- Use the provided bracket and screws to secure the adapter.
-
Connect the 4-Flat Plug:
- Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
- This connection enables tail lights, left turn, and right turn signals.
-
Ground the Adapter:
- Locate a clean, solid grounding point near the adapter.
- Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.
-
Leave Additional Wires Disconnected:
- The following wires will remain disconnected until Part 2:
- Black Wire: Power from the battery.
- Blue Wire: Brake control output.
- Yellow Wire: Reverse light (optional; leave disconnected unless needed).
- The following wires will remain disconnected until Part 2:
-
Test Initial Connection:
- Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).
Part 2: Install Brake Control Wiring
Step-by-Step Instructions:
-
Mount Circuit Breakers:
- Install two 30A circuit breakers on the firewall or another suitable location near the battery.
- Use self-tapping screws to mount them securely.
-
Route Power Wires:
- Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
- Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
- Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).
-
Install the Brake Controller:
- Mount the brake controller under the dash on a firm surface.
- Use the following connections:
- Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
- Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
- White Wire: Connect to a solid ground point on the vehicle body.
- Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).
-
Optional: Connect Reverse Light Circuit:
- If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.
-
Reconnect the Battery:
- Reattach the negative battery cable and ensure all connections are secure.
- Insert the fuses into both circuit breakers.
-
Secure All Wires:
- Use cable ties to secure all loose wires and prevent damage or rattling.
-
Test the System:
- Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
- If applicable, test the reverse light circuit.
Notes:
- Most installations will only require connecting the black and blue wires from the 7-way adapter.
- Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
- Always adhere to safety guidelines and verify all connections before use.
Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
