Trailer Hitch w/ 4 Bike Rack For 12‑22 Nissan NV1500 NV2500 NV3500 Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable

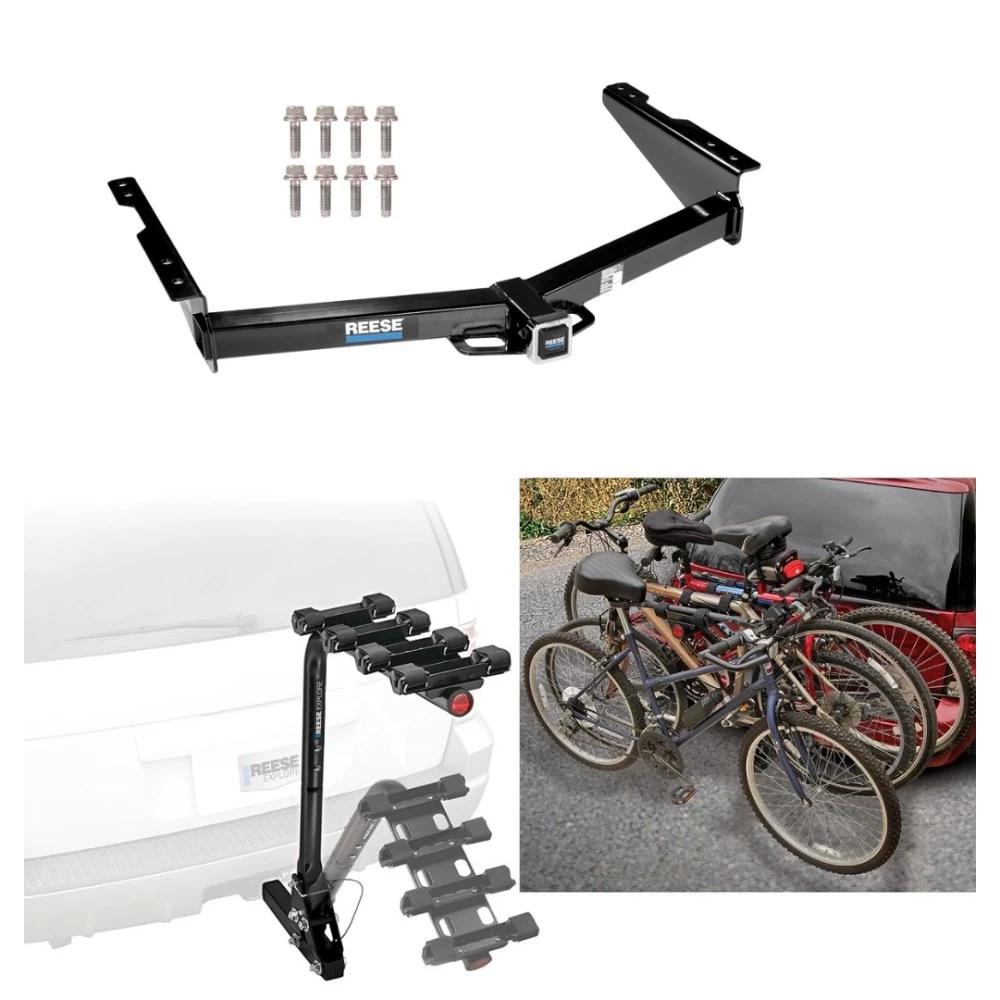

Model: 44664 63124Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2012 - 2022 Nissan, NV1500, All Styles
2012 - 2022 Nissan, NV2500, All Styles
2012 - 2022 Nissan, NV3500, All Styles

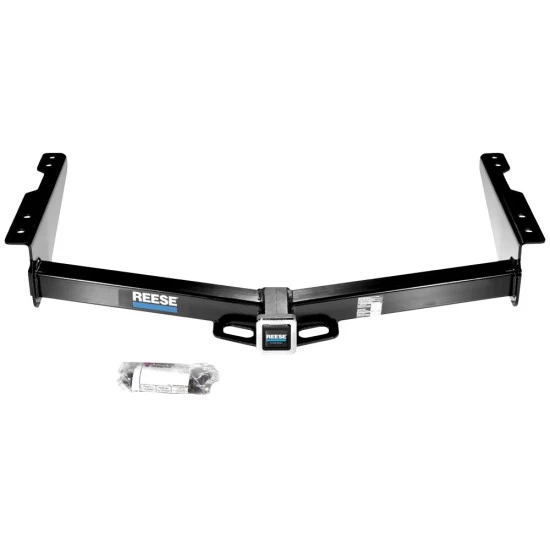

Trailer Hitch Specs:
| Part Number | 44664 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,500 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 1,125/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

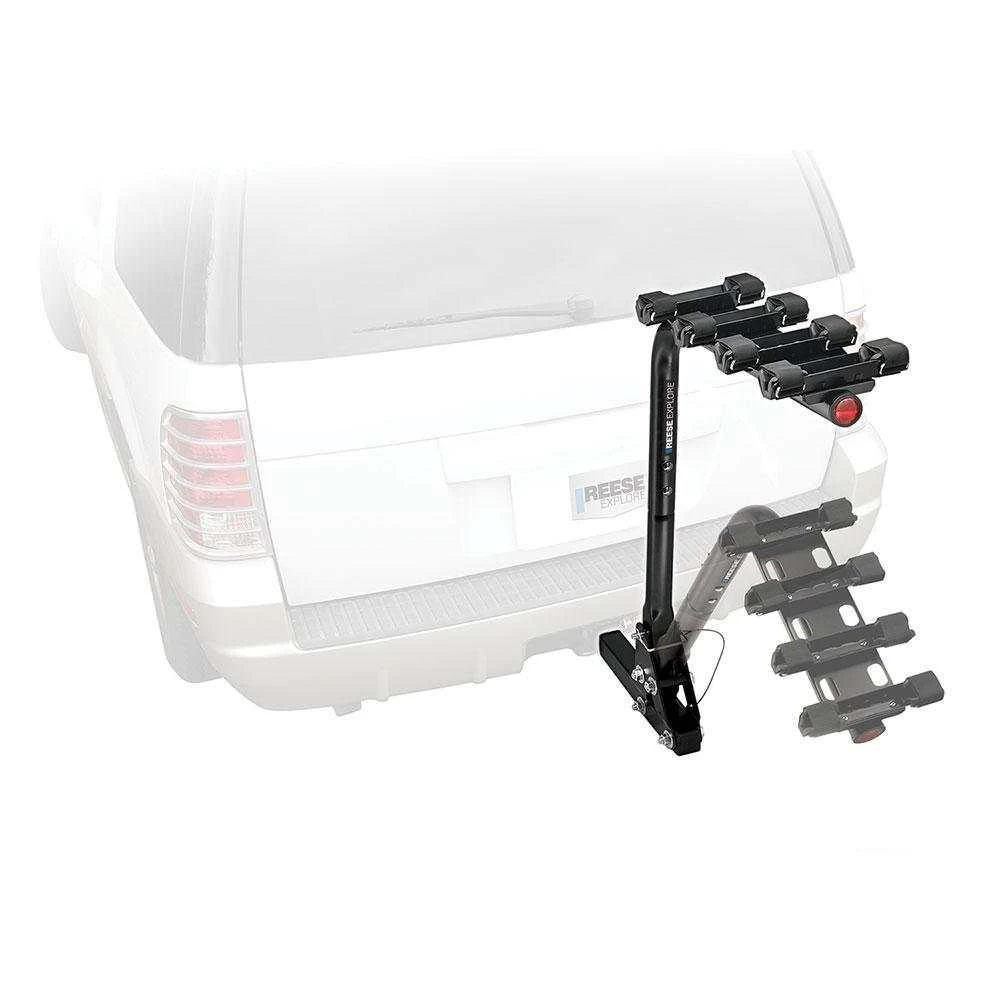

Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 20 21 22 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
$344 39 $672.33 49% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$672.33 $344 39
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $86.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 44664 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2012 - 2022 Nissan, NV1500, All Styles
2012 - 2022 Nissan, NV2500, All Styles
2012 - 2022 Nissan, NV3500, All Styles
Trailer Hitch Specs:
| Part Number | 44664 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 7,500 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 1,125/1,000 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 20 21 22 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 12-22 Nissan NV1500 NV2500 NV3500 Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for Nissan NV 1500, 2500, & 3500 (All Models)
Part Numbers:
- 44664
- 75715
- 87610
Tools Required:
- Wrenches: 17mm
- Drill Bits: None
Step-by-Step Instructions:
- Raise the hitch into position, aligning the holes in the hitch with existing weldnuts in the bottom of the frame.
- Install M12 bolts into the weldnuts (8 places) and tighten to the specified torque below.
Hardware List:

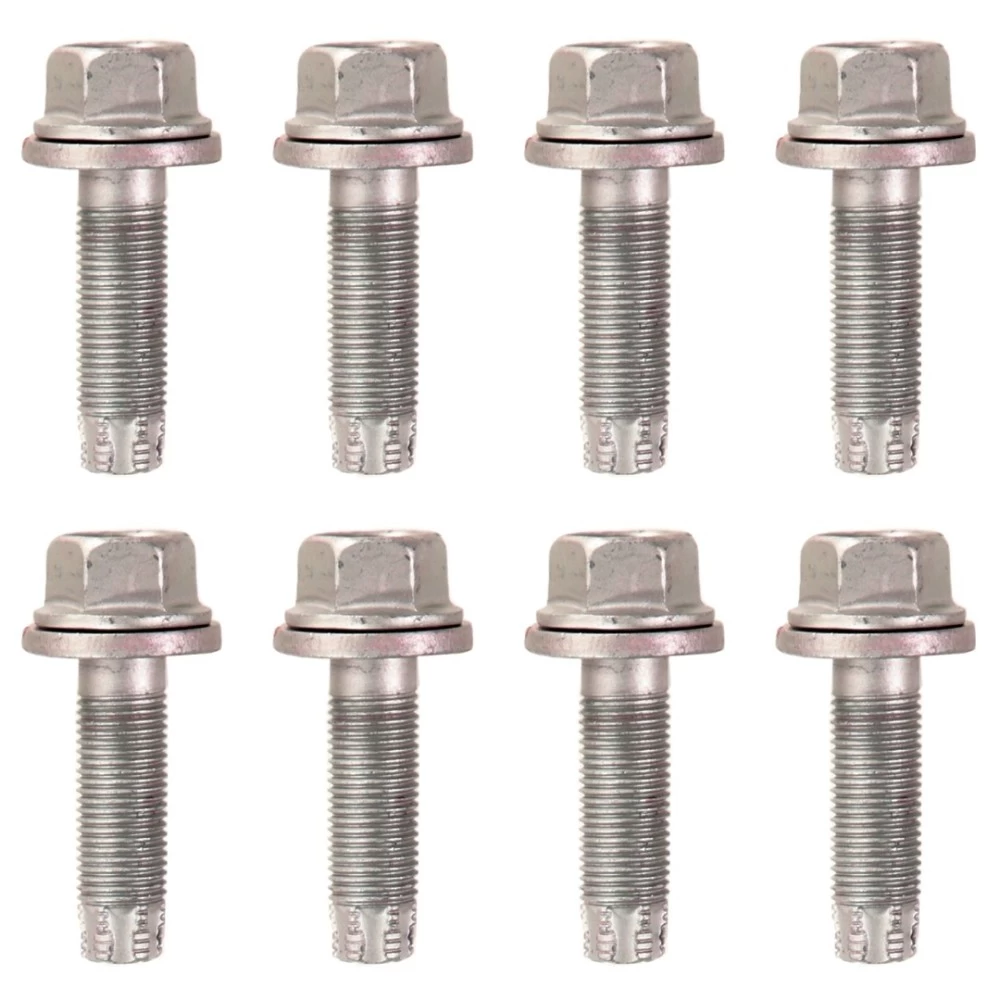

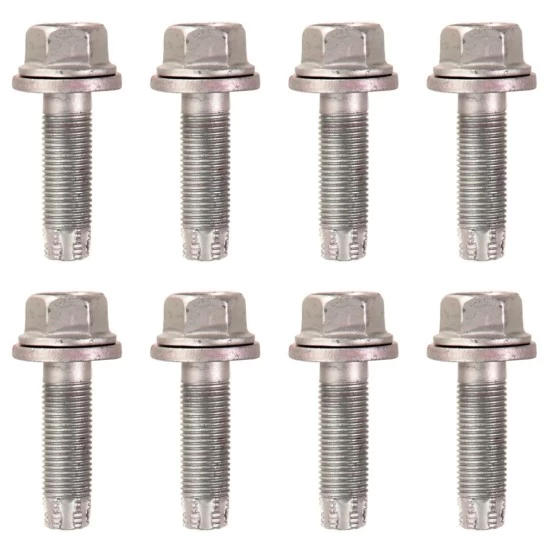

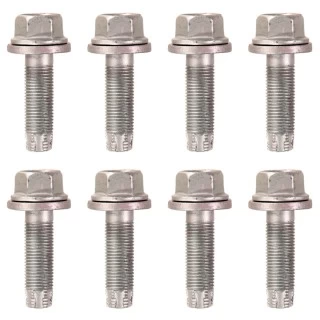

- Qty (8): Hex Bolt – M12 x 1.25 x 39mm CL10.9
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,535 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 7,500 lbs (3,401 kg)
- Max Tongue Weight: 1,125 lbs (510 kg)
Manufacturer Notes:
- Tighten all M12 fasteners to 76 lb-ft (103 N*m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions
Part Numbers:
- 44664
- 75715
- 87610
Tools Required:
- Wrenches: 17mm
- Drill Bits: None
Step-by-Step Instructions:
- Raise the hitch into position, aligning the holes in the hitch with existing weldnuts in the bottom of the frame.
- Install M12 bolts into the weldnuts (8 places) and tighten to the specified torque below.
Hardware List:
- Qty (8): Hex Bolt – M12 x 1.25 x 39mm CL10.9
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 10,000 lbs (4,535 kg)
- Max Tongue Weight: 1,000 lbs (454 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 7,500 lbs (3,401 kg)
- Max Tongue Weight: 1,125 lbs (510 kg)
Manufacturer Notes:
- Tighten all M12 fasteners to 76 lb-ft (103 N·m) using a torque wrench.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
