Trailer Hitch w/ 4 Bike Rack For 19‑23 RAM 1500 (New Body Style) Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable
Model: 84328 63124Includes Everything Pictured:

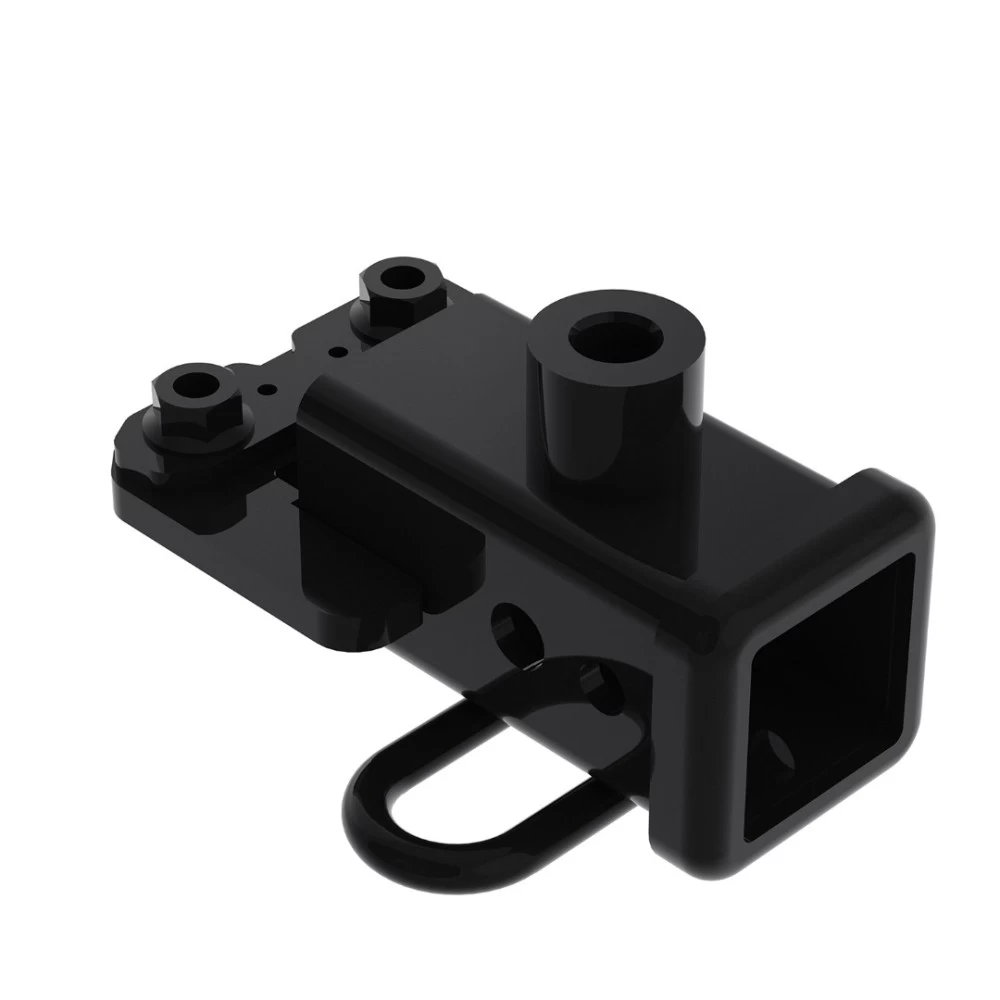

Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2025 RAM, 1500, (New Body Style)
Trailer Hitch Specs:
| Part Number | 84328 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 25 2019 2020 2021 2022 2023 2024 2025
$248 62 $470.76 47% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$470.76 $248 62
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Reese
- Model: 84328 63124
- Includes: Class 4 Trailer Tow Hitch, Eclipse Trailer Tow Hitch Bike Carrier
Compatibility Chart

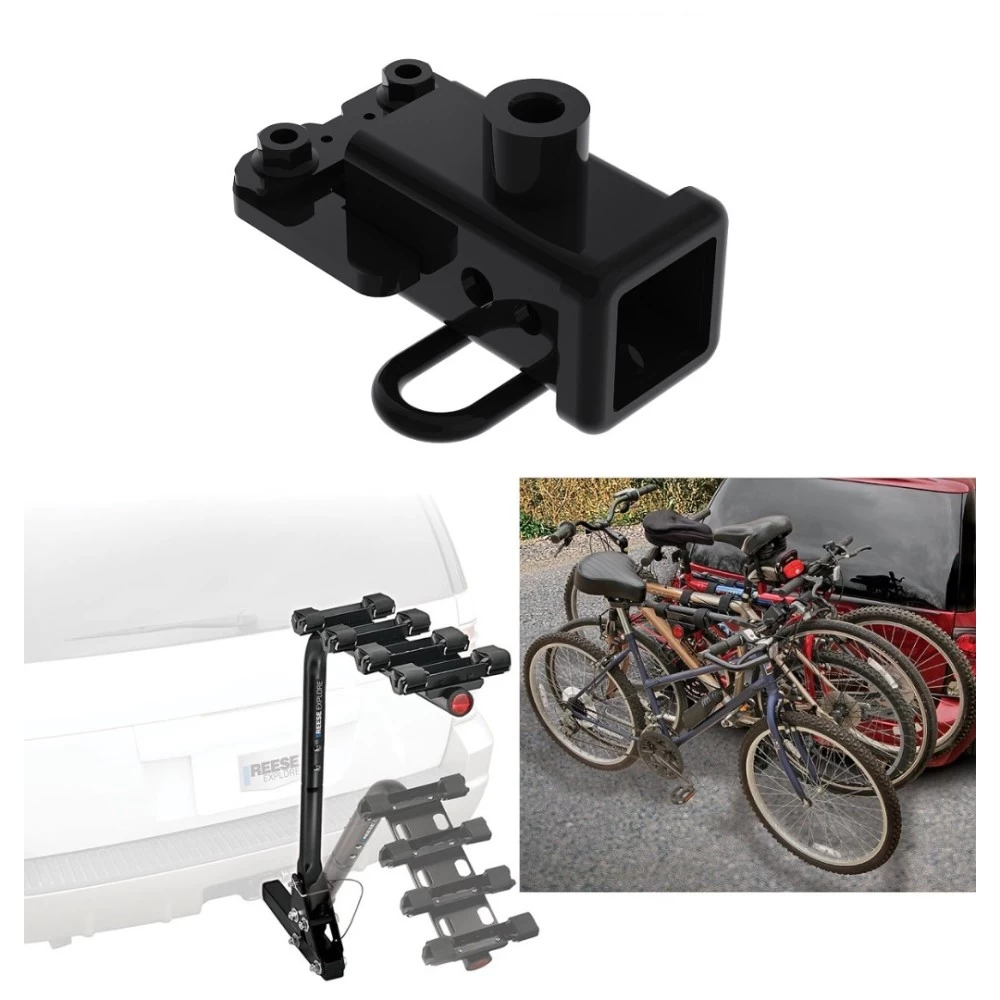

Includes Everything Pictured:
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Pro Series Eclipse 4 Bike Rack Carrier Foldable Approved for Trailers RVs Trucks SUV Offroad 2" Receivers
Traditional, sport, mountain, racing, men's and women's; no matter the type of bike being transported, Pro Series offers a wide variety of bike carriers to fit your needs Designed with stylish function, these carriers have everything you would expect from an industry leader.
This Hitch and Bike Rack Fits The Following Vehicles:
2019 - 2025 RAM, 1500, (New Body Style)
Trailer Hitch Specs:
| Part Number | 84328 |
| Brand | Reese |
| Finish | Black Powdercoat |
| Class | IV |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Carrier Specs:
| Part Number | 63124 |
| Brand |
Pro Series |
| Finish |
Black Powder Coat |
| Capacity | 120 lbs |
| Carrying Amount |
4 Bikes |
| Fits | 2" Receiver |
| Warranty | 1 Year |
| Install Intructions | |
Thank you for choosing Reese the most powerful name in towing industry bar none. Manufactured by the same people that brought you Draw-Tite and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 19 20 21 22 23 24 25 2019 2020 2021 2022 2023 2024 2025
Get Expert Help
Trailer Hitch w/ 4 Bike Rack For 19-23 RAM 1500 (New Body Style) Approved for Recreational & Offroad Use Carrier for Adult Woman or Child Bicycles Foldable Install Notes
Installation Instructions for 2019-Current Dodge RAM 1500
Part Numbers:
- 76328
- 84328
- CQT76328
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 1-1/8", 3/4"
Step-by-Step Instructions:
-
Remove Plug:
- Remove the plug from the center of the rear bumper fascia by hand.
-
Insert Plate Support:
- Use a 3/4" socket to remove two hex bolts and conical washers holding the support plate on the hitch.
- Insert the support plate into the opening above the safety chain loop of the bumper beam. Keep the weld nuts of the plate support on top while inserting.
-
Install Hitch:
- Raise the hitch into position and loosely install one 3/4" bolt with one flat washer.
-
Install Bolts for Plate Support:
- Loosely install two 1/2" bolts with two conical washers (teeth side toward hitch) from the bottom of the hitch into the weld nuts of the plate support.
-
Tighten Fasteners:
- Tighten the 3/4"-10 x 3.00 GR8 fastener to 380 ft-lbs using a torque wrench.
- Tighten the 1/2"-13 x 1.75 GR5 fasteners to 75 ft-lbs.
-
Install Bolt Cap:
- Install the provided bolt cap onto the head of the 3/4" bolt.
Hardware List:
- (2) Hex Bolt 1/2"-13 x 1.75 GR5
- (2) Conical Washer 1/2"
- (1) Hex Bolt 3/4"-10 x 3.00 GR8
- (1) Flat Washer 3/4"
- (1) Bolt Cap (Black Rubber, Part No. 116133)
- (1) Support Plate
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- Replace damaged hitches or balls immediately.
- Observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,722 kg) trailer weight, 600 lbs (272 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Installation Instructions for Vehicle Models (2019-Present)
Part Numbers:
- 76328
- 84328
- CQT76328
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 1-1/8", 3/4"
Step-by-Step Instructions:
-
Remove Plug:
- Remove the plug from the center of the rear bumper fascia by hand.
-
Insert Plate Support:
- Use a 3/4" socket to remove two hex bolts and conical washers holding the support plate on the hitch.
- Insert the support plate into the opening above the safety chain loop of the bumper beam. Keep the weld nuts of the plate support on top while inserting.
-
Install Hitch:
- Raise the hitch into position and loosely install one 3/4" bolt with one flat washer.
-
Install Bolts for Plate Support:
- Loosely install two 1/2" bolts with two conical washers (teeth side toward hitch) from the bottom of the hitch into the weld nuts of the plate support.
-
Tighten Fasteners:
- Tighten the 3/4"-10 x 3.00 GR8 fastener to 380 ft-lbs using a torque wrench.
- Tighten the 1/2"-13 x 1.75 GR5 fasteners to 75 ft-lbs.
-
Install Bolt Cap:
- Install the provided bolt cap onto the head of the 3/4" bolt.
Hardware List:
- (2) Hex Bolt 1/2"-13 x 1.75 GR5
- (2) Conical Washer 1/2"
- (1) Hex Bolt 3/4"-10 x 3.00 GR8
- (1) Flat Washer 3/4"
- (1) Bolt Cap (Black Rubber, Part No. 116133)
- (1) Support Plate
Safety Notes:
- Always wear safety glasses during installation.
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- Replace damaged hitches or balls immediately.
- Observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying Capacity: 6,000 lbs (2,722 kg) trailer weight, 600 lbs (272 kg) tongue weight.
- Weight Distributing Capacity: Not applicable.
- Product complies with V.E.S.C. Regulation V-5 and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- Duration: 1-year limited warranty from the date of purchase.
- Coverage: Covers defects in materials and workmanship under normal use conditions.
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
