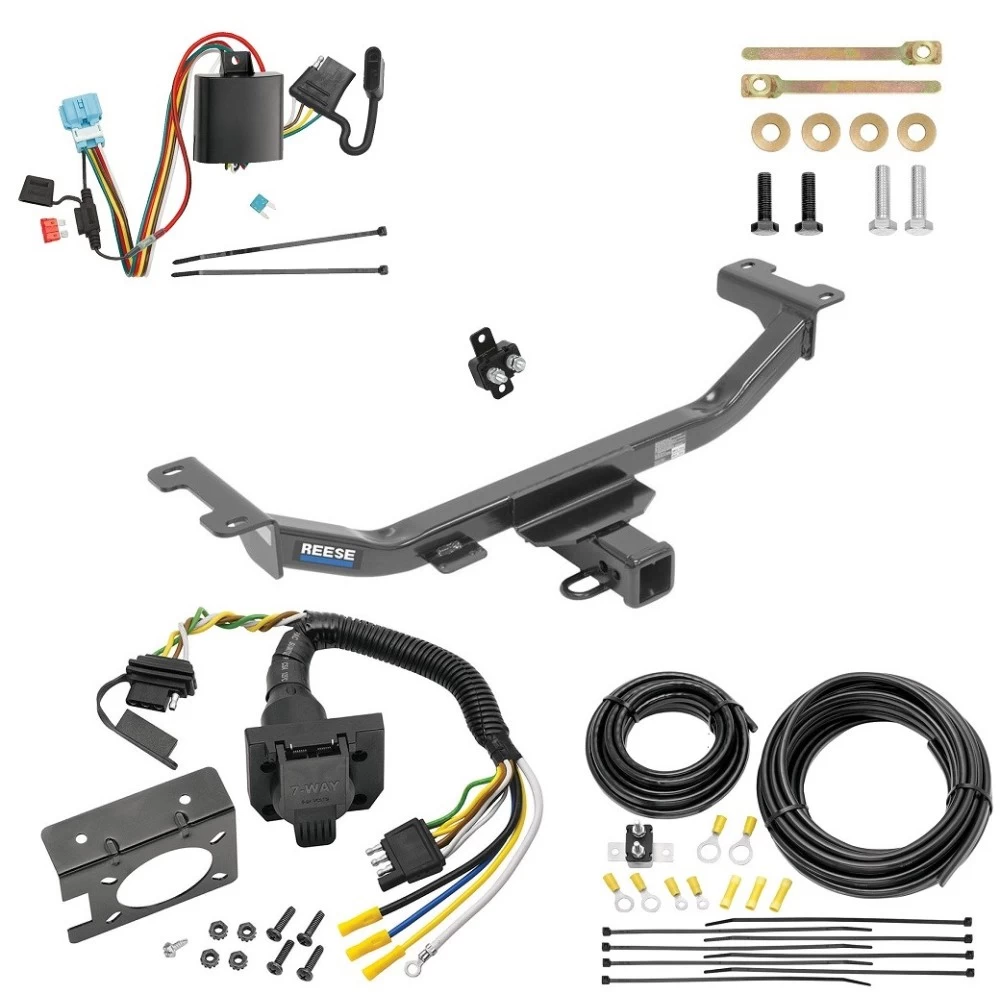

Installation Instructions for Acura RDX

Part Numbers:

• 75784
• 87642
• 44695

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 3/4", 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare the Hitch:

   • For 2010–2012 models, item 5 is not required (see Figure 1).
   • For 2013 and later models, tape item 5 into position at the top of the hitch near the rear-most hole before proceeding (see Figure 2).

2. Raise the Hitch:

   • Lift the hitch into position and align its slots with the existing weldnuts in the vehicle frame rails.

3. Install M12 Fasteners:

   • Secure the hitch using the M12 x 1.25 x 40mm bolts and conical toothed washers through the hitch and into the frame weldnuts.

4. Insert Handle Nuts:

   • Insert the handle nuts into the large holes in the frame rails as shown in Figures 1 and 2.

5. Install 1/2" Fasteners:

   • Attach the hitch using 1/2"-13 x 1.75 bolts and conical toothed washers. Tighten all fasteners to the specified torque values.

6. Final Adjustments:

   • Gently pull down and rearward at the fascia attachment bracket if additional clearance is needed around the hitch cross tube. Be careful not to distort the fascia.

Hardware List:

• Qty (2): Hex Bolt – 1/2"-13 x 1.75 GR5
• Qty (2): Hex Bolt – M12 x 1.25 x 40mm CL8.8
• Qty (4): Conical Toothed Washer – 1/2"
• Qty (2): Handle Nut – 1/2"
• Qty (2): Block – 3/8" x 1.50" x 2.00"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 400 lbs (182 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Tighten all M12 x 1.25 CL8.8 fasteners to 76 lb-ft (103 N*m).
• Tighten all 1/2"-13 GR5 fasteners to 50 lb-ft (68 N*m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions

Part Numbers:

• 75784
• 87642
• 44695

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Wrenches: 3/4", 19mm
• Drill Bits: None

Step-by-Step Instructions:

1. Prepare the Hitch:

   • For 2010–2012 models, item 5 is not required (see Figure 1).
   • For 2013 and later models, tape item 5 into position at the top of the hitch near the rear-most hole before proceeding (see Figure 2).

2. Raise the Hitch:

   • Lift the hitch into position and align its slots with the existing weldnuts in the vehicle frame rails.

3. Install M12 Fasteners:

   • Secure the hitch using the M12 x 1.25 x 40mm bolts and conical toothed washers through the hitch and into the frame weldnuts.

4. Insert Handle Nuts:

   • Insert the handle nuts into the large holes in the frame rails as shown in Figures 1 and 2.

5. Install 1/2" Fasteners:

   • Attach the hitch using 1/2"-13 x 1.75 bolts and conical toothed washers. Tighten all fasteners to the specified torque values.

6. Final Adjustments:

   • Gently pull down and rearward at the fascia attachment bracket if additional clearance is needed around the hitch cross tube. Be careful not to distort the fascia.

Hardware List:

• Qty (2): Hex Bolt – 1/2"-13 x 1.75 GR5
• Qty (2): Hex Bolt – M12 x 1.25 x 40mm CL8.8
• Qty (4): Conical Toothed Washer – 1/2"
• Qty (2): Handle Nut – 1/2"
• Qty (2): Block – 3/8" x 1.50" x 2.00"

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
  • Max Tongue Weight: 400 lbs (182 kg)
• Weight Distributing: Not compatible with spring bars.

Manufacturer Notes:

• Tighten all M12 x 1.25 CL8.8 fasteners to 76 lb-ft (103 N·m).
• Tighten all 1/2"-13 GR5 fasteners to 50 lb-ft (68 N·m).
• Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

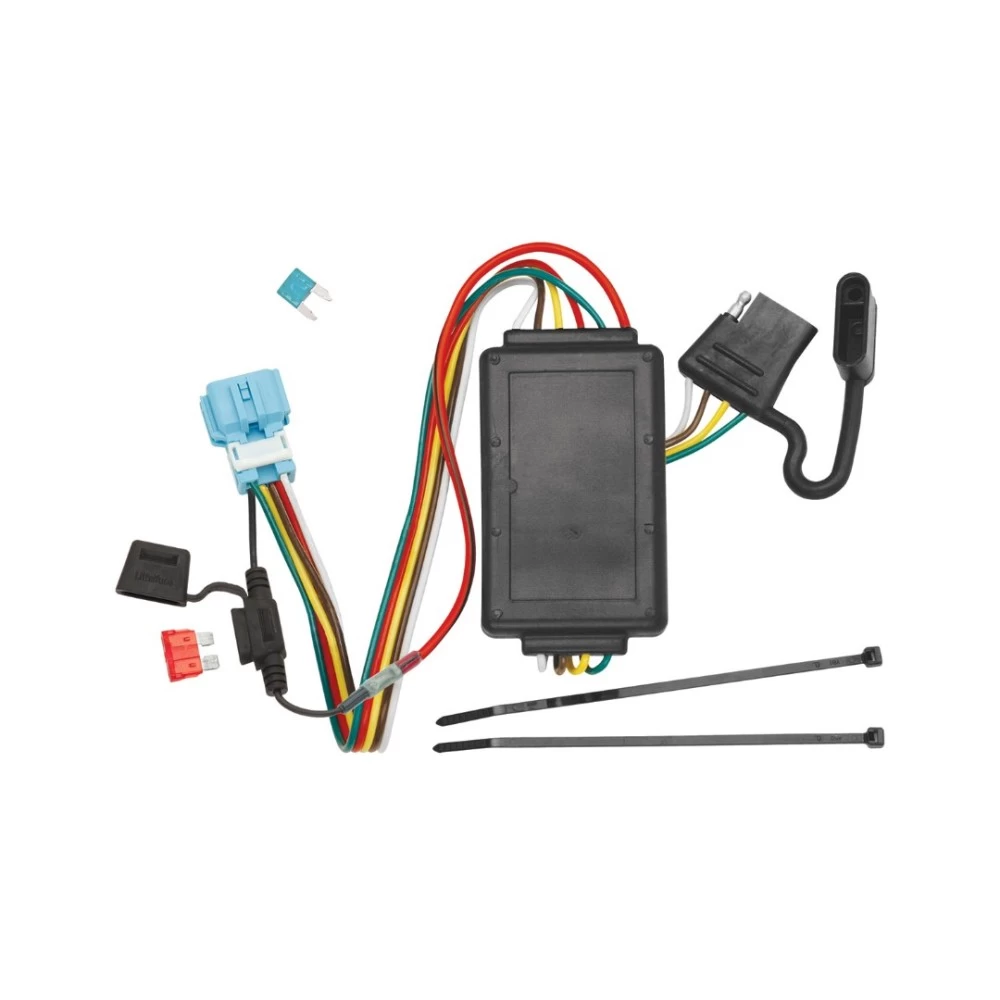

Installation Instructions for T-Connector Adapter for Honda Crosstour and Acura RDX

Part Numbers:

• 118500

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Test Probe

Step-by-Step Instructions:

For Honda Crosstour:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove all floor coverings and the center storage bin.

2. Locate the Tow Plug:

   • Locate the blue tow plug at the rear of the vehicle under the driver’s side trim panel. The plug is taped to the wire harness with blue tape.
   • Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.

3. Insert the Fuse:

   • Open the hood and locate the fuse box on the driver’s side.
   • Insert the 15-amp fuse provided into the empty fuse slot.

4. Route the 4-Flat Connector:

   • Route the 4-flat connector through the driver’s side trim panel into the side storage compartment. Store the connector there when not in use.

5. Mount the T-Connector Black Box:

   • On the driver’s side, locate a flat surface in an out-of-the-way location.
   • Mount the T-Connector’s black converter box using the provided double-sided tape.

For Acura RDX:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove all floor coverings, exposing the spare tire compartment.
   • Remove the spare tire.

2. Locate the Tow Plug:

   • Locate the blue 6-pin tow plug near the foam cargo tray. It is taped to the vehicle's electrical harness with blue tape.
   • Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.

3. Mount the T-Connector Black Box:

   • Locate a flat surface under the foam cargo tray.
   • Mount the T-Connector’s black converter box using the provided double-sided tape.

4. Store the 4-Flat Connector:

   • Store the 4-flat connector in the spare tire compartment when not in use.

Both Honda Crosstour and Acura RDX:

1. Test the Installation:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

2. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Be careful not to pinch or cut the wires.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual and instruction sheet for additional information.

Manufacturer Notes:

• Follow all warnings and installation instructions carefully.
• Store the 4-flat connector in the appropriate compartment when not in use.

Installation Instructions for T-Connector Adapter for Vehicle

Part Numbers:

• 118500

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or Wrench
• Test Probe

Step-by-Step Instructions:

For Honda Crosstour:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove all floor coverings and the center storage bin.

2. Locate the Tow Plug:

   • Locate the blue tow plug at the rear of the vehicle under the driver’s side trim panel. The plug is taped to the wire harness with blue tape.
   • Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.

3. Insert the Fuse:

   • Open the hood and locate the fuse box on the driver’s side.
   • Insert the 15-amp fuse provided into the empty fuse slot.

4. Route the 4-Flat Connector:

   • Route the 4-flat connector through the driver’s side trim panel into the side storage compartment. Store the connector there when not in use.

5. Mount the T-Connector Black Box:

   • On the driver’s side, locate a flat surface in an out-of-the-way location.
   • Mount the T-Connector’s black converter box using the provided double-sided tape.

For Acura RDX:

1. Prepare the Rear Cargo Area:

   • Open the rear hatch.
   • Temporarily remove all floor coverings, exposing the spare tire compartment.
   • Remove the spare tire.

2. Locate the Tow Plug:

   • Locate the blue 6-pin tow plug near the foam cargo tray. It is taped to the vehicle's electrical harness with blue tape.
   • Insert the T-Connector harness into the vehicle’s tow plug harness and lock it into place.

3. Mount the T-Connector Black Box:

   • Locate a flat surface under the foam cargo tray.
   • Mount the T-Connector’s black converter box using the provided double-sided tape.

4. Store the 4-Flat Connector:

   • Store the 4-flat connector in the spare tire compartment when not in use.

Both Honda Crosstour and Acura RDX:

1. Test the Installation:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

2. Reassemble the Vehicle:

   • Reinstall the plastic trim panels, threshold, storage covers, floor covering, and other items removed during installation.
   • Be careful not to pinch or cut the wires.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Refer to the vehicle owner’s manual and instruction sheet for additional information.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Follow all warnings and installation instructions carefully.
• Store the 4-flat connector in the appropriate compartment when not in use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
