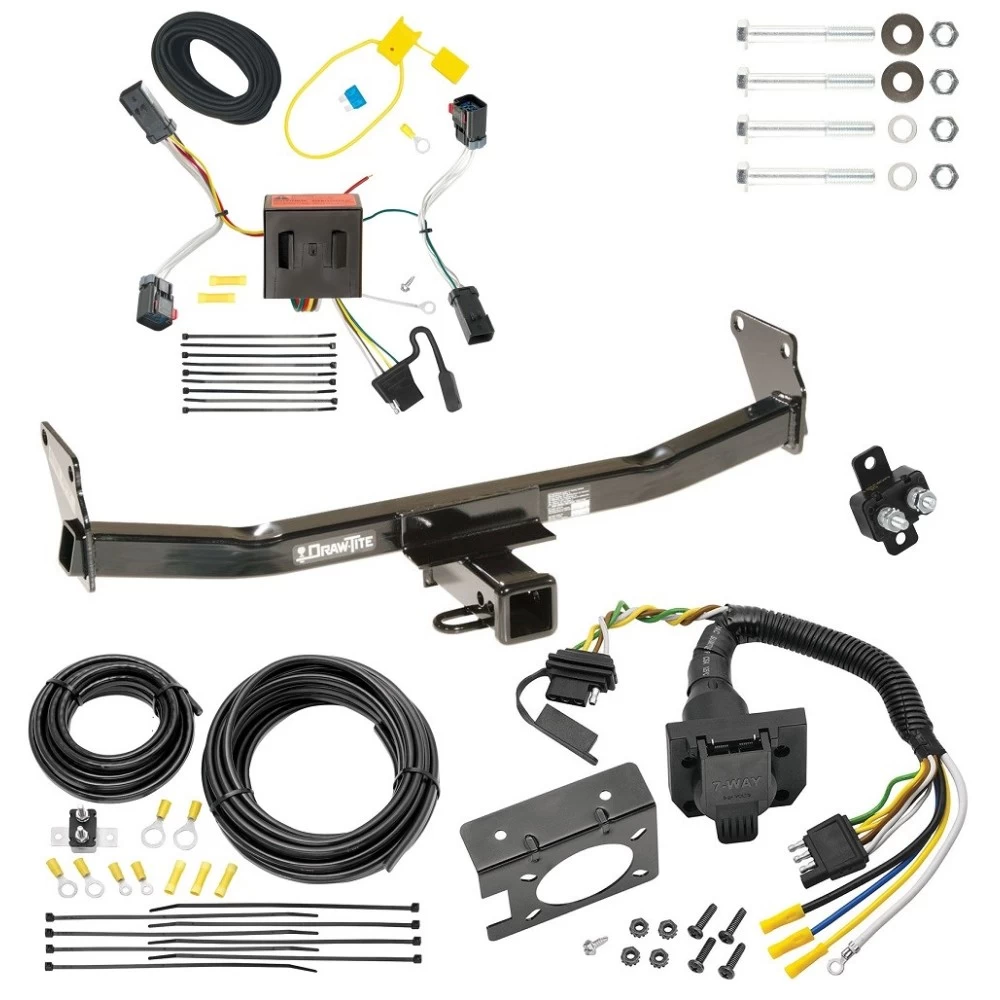

Installation Instructions for Jeep Compass (Rallye Package) and Jeep Patriot (Optional Tow Hook)

Part Numbers:

• 75712
• 87606
• 44661

Wiring Access Location:

• SUV1
• SUV2

Tools Required:

• Wrenches: 22mm, 16mm (tow hook option)
• Drill Bits: 5/8” (only required for reinstalling tow hook on Patriot with optional tow hook)
• Cutting Tool: Required for trimming bumper fascia on Compass Rallye and 2011 & later Patriot/Compass.

Step-by-Step Instructions:

1. Place M14 hex bolts into vehicle bushings from the outboard side of the frame rails. Leave bolt ends flush with the inboard side of frame rails.
2. Raise the hitch into position and push M14 hex bolts through hitch frame brackets to support the hitch.
3. Attach the remaining hardware as shown in the included diagrams.
4. For Compass Rallye Package: Use the hitch receiver tube as a guide to cut a 2 1/4” wide by 2” high section from the bumper fascia for ball mount clearance.
5. Raise the exhaust back into position if it was lowered before the hitch installation.

Hardware List:

• Qty (4): M14 x 120 x 2 Hex Bolt
• Qty (2): 5/8” Conical Washer
• Qty (2): 5/8” Lock Washer
• Qty (4): M14 x 2.0 Hex Nut

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not use a torch to cut access or attachment holes.
• Ensure compliance with state safety specifications, including SAE J684.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 525 lbs (238 kg)
• Weight Distribution: Not compatible with spring bars.

Manufacturer Notes:

• Jeep Patriot with an optional tow hook requires removing the tow hook. If reinstalling, press/drive existing knurled neck bolts out of the hook, drill out with a 5/8” drill bit, and reattach using supplied M14 bolts.
• 2011 & Later Jeep Patriot and Compass models require fascia trimming for hitch installation. Obtain vehicle owner approval before cutting.
• Tighten all M14-2 fasteners to 100 lb-ft (136 N*m) using a torque wrench.

Additional Information:

• For Jeep Compass Rallye Package: Obtain owner approval before cutting plastic fascia.
• 2011 models require a 2” vertical fascia trim, measured from the bottom of the fascia lip.

Installation Instructions

Part Numbers:

• 75712
• 87606
• 44661

Wiring Access Location:

• SUV1
• SUV2

Tools Required:

• Wrenches: 22mm, 16mm (tow hook option)
• Drill Bits: 5/8” (only required for reinstalling tow hook on Patriot with optional tow hook)
• Cutting Tool: Required for trimming bumper fascia on Compass Rallye and 2011 & later Patriot/Compass.

Step-by-Step Instructions:

1. Place M14 hex bolts into vehicle bushings from the outboard side of the frame rails. Leave bolt ends flush with the inboard side of frame rails.
2. Raise the hitch into position and push M14 hex bolts through hitch frame brackets to support the hitch.
3. Attach the remaining hardware as shown in the included diagrams.
4. For Compass Rallye Package: Use the hitch receiver tube as a guide to cut a 2 1/4” wide by 2” high section from the bumper fascia for ball mount clearance.
5. Raise the exhaust back into position if it was lowered before the hitch installation.

Hardware List:

• Qty (4): M14 x 120 x 2 Hex Bolt
• Qty (2): 5/8” Conical Washer
• Qty (2): 5/8” Lock Washer
• Qty (4): M14 x 2.0 Hex Nut

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not use a torch to cut access or attachment holes.
• Ensure compliance with state safety specifications, including SAE J684.

Specifications:

• Hitch Type: Weight Carrying (Ball Mount)
  • Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
  • Max Tongue Weight: 525 lbs (238 kg)
• Weight Distribution: Not compatible with spring bars.

Manufacturer Notes:

• Jeep Patriot with an optional tow hook requires removing the tow hook. If reinstalling, press/drive existing knurled neck bolts out of the hook, drill out with a 5/8” drill bit, and reattach using supplied M14 bolts.
• 2011 & Later Jeep Patriot and Compass models require fascia trimming for hitch installation. Obtain vehicle owner approval before cutting.
• Tighten all M14-2 fasteners to 100 lb-ft (136 N·m) using a torque wrench.

Additional Information:

• For Jeep Compass Rallye Package: Obtain owner approval before cutting plastic fascia.
• 2011 models require a 2” vertical fascia trim, measured from the bottom of the fascia lip.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-Connector Adapter for Jeep Compass

Part Numbers:

• 118539

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and remove the vehicle's taillight assemblies by removing the two clips securing them in place.
   • Carefully pry the taillight housing away from the vehicle, ensuring not to break the alignment tabs.

2. Disconnect the Wiring Harness:

   • Locate the vehicle's wiring harness connectors behind the taillight housing.
   • Unlock the red locking tab and disconnect the wire harness from both taillight sockets.

3. Connect the Driver-Side T-Connector:

   • On the driver's side, insert the T-Connector end with the yellow wire between the vehicle's wiring connectors.
   • Slide the red locking tab into the locked position.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector harness containing the green wire and the 4-flat connector through the opening behind the driver’s side taillight.
   • Route the 4-flat connector to the center of the vehicle and the green wire underneath to the passenger side.
   • Insert the green wire connector into the passenger-side wiring harness.

5. Ground the White Wire:

   • Locate a suitable grounding point near the adapter, such as the vehicle's frame or crossmember.
   • Drill a 3/32” hole, clean the area, and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Attach the black 12-gauge wire to the red power wire from the T-Connector black box.
   • Route the black wire through the taillight socket, behind the bumper, and along the vehicle frame to the engine compartment.

7. Connect to the Battery:

   • Disconnect the vehicle's negative (-) battery cable.
   • Attach the yellow fuse holder with the provided ring terminal to the vehicle’s positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

8. Reconnect the Battery:

   • Reconnect the negative (-) battery cable and insert the 15-amp fuse into the fuse holder.

   Warning:

   • Ensure all connections are complete for the T-Connector to function properly. Test with a test light or trailer.

9. Mount the Black Box:

   • Clean a flat area behind the driver's side taillight and mount the T-Connector black box using cable ties or the provided double-sided tape.
   • Ensure the epoxy side of the module faces downward to prevent water buildup.

10. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and all items removed during installation, ensuring no wires are pinched or cut.

11. Secure the Wiring:

    • Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that may pinch, cut, or melt the wiring.

12. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle.

    Specifications:

    • Max. stop/turn light: 2 per side (4.2 amps)
    • Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Jeep Compass

Part Numbers:

• 118539

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the tailgate and remove the vehicle's taillight assemblies by removing the two clips securing them in place.
   • Carefully pry the taillight housing away from the vehicle, ensuring not to break the alignment tabs.

2. Disconnect the Wiring Harness:

   • Locate the vehicle's wiring harness connectors behind the taillight housing.
   • Unlock the red locking tab and disconnect the wire harness from both taillight sockets.

3. Connect the Driver-Side T-Connector:

   • On the driver's side, insert the T-Connector end with the yellow wire between the vehicle's wiring connectors.
   • Slide the red locking tab into the locked position.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector harness containing the green wire and the 4-flat connector through the opening behind the driver’s side taillight.
   • Route the 4-flat connector to the center of the vehicle and the green wire underneath to the passenger side.
   • Insert the green wire connector into the passenger-side wiring harness.

5. Ground the White Wire:

   • Locate a suitable grounding point near the adapter, such as the vehicle's frame or crossmember.
   • Drill a 3/32” hole, clean the area, and secure the white wire using the provided eyelet and screw.

   Caution:

   • Verify the area behind the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Attach the black 12-gauge wire to the red power wire from the T-Connector black box.
   • Route the black wire through the taillight socket, behind the bumper, and along the vehicle frame to the engine compartment.

7. Connect to the Battery:

   • Disconnect the vehicle's negative (-) battery cable.
   • Attach the yellow fuse holder with the provided ring terminal to the vehicle’s positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

8. Reconnect the Battery:

   • Reconnect the negative (-) battery cable and insert the 15-amp fuse into the fuse holder.

   Warning:

   • Ensure all connections are complete for the T-Connector to function properly. Test with a test light or trailer.

9. Mount the Black Box:

   • Clean a flat area behind the driver's side taillight and mount the T-Connector black box using cable ties or the provided double-sided tape.
   • Ensure the epoxy side of the module faces downward to prevent water buildup.

10. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and all items removed during installation, ensuring no wires are pinched or cut.

11. Secure the Wiring:

    • Secure the remaining T-Connector harness with the provided cable ties, avoiding areas that may pinch, cut, or melt the wiring.

12. Mount the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle.

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum circuit ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information: For complete warranty instructions, please download the full installation PDF.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
