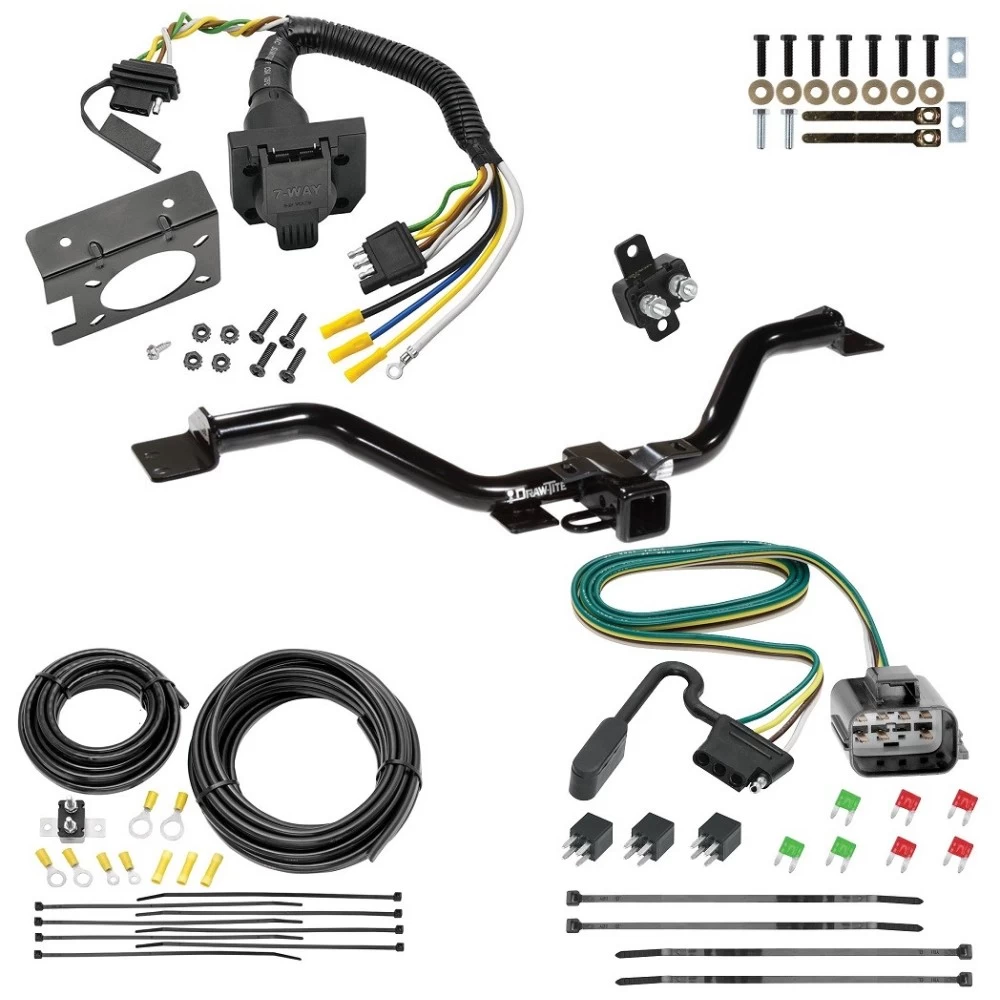

Installation Instructions for GMC Acadia, Saturn Outlook, Buick Enclave, and Chevrolet Traverse

Part Numbers:

• 75528
• 87435
• 44569
• 78218 (U-Haul)

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Plastic Trim Tools
• Sockets: 7mm, 18mm, 3/4”
• Star Drivers: T15
• Flat Head Screwdriver

Wiring Access Location:

• SUV1, SUV2

Step-by-Step Instructions:

1. Remove the Fascia Door:

   • Remove and return the fascia door to the vehicle owner.

2. Remove Rear Fascia (if equipped with integrated exhaust outlets):

   • Remove (5) screws inside each wheel well toward the rear.
   • Remove (1) screw on the bottom of the fascia near the wheel well.
   • Detach the rear side of the wheel well trim using fascia removal tools.
   • Remove (1) bolt in the corner of the rear fascia above the wheel well.
   • Underneath the vehicle, remove (1) plastic rivet from the fascia near the center.
   • Open the tailgate, remove (2) bolts and (1) screw along the tailgate seal below the tail lights.
   • Carefully remove the fascia, starting from one wheel well and working around.

3. Lower the Exhaust:

   • Detach the rubber exhaust hangers to lower the rear portion of the exhaust:
     • (2) hangers for single exhaust
     • (4) hangers for dual exhaust.
   • Support the exhaust to prevent damage.

4. Raise the Hitch into Position:

   • Raise the hitch over the exhaust pipes, aligning the slots in the hitch with the weldnuts in the frame rails.

5. Install Side Fasteners:

   • Loosely install M12 bolts and 1/2” conical washers into the existing weldnuts on each side.

6. Install Central Fasteners:

   • Install fasteners in the central receiver bracket with spacers sandwiched between the bracket and bumper:
     • With Bumper Weldnuts: Use (2) M12 bolts and (2) 1/2” conical washers.
     • Without Bumper Weldnuts: Use (2) 1/2” bolts, (2) 1/2” conical washers, and (2) handle nuts.

7. Tighten Fasteners:

   • Tighten all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).
   • Tighten all 1/2"-13 GR5 fasteners to 50 lb-ft (68 N·m).

8. Reattach Exhaust:

   • Raise the exhaust back into position and reattach the hangers:
     • (2) hangers for single exhaust
     • (4) hangers for dual exhaust.

9. Reinstall Rear Fascia (if removed):

   • Reverse the steps from Step 2 to reinstall the rear fascia.

Hardware List:

• (6) M12 x 1.75 x 45mm CL10.9 Hex Bolts
• (2) 1/4” x 1” x 2” Spacers
• (6) 1/2” Conical Washers
• (2) 1/2” Handle Nuts
• (2) 1/2”-13 x 1-3/4” Hex Bolts

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
  • Weight Distributing: Max Trailer Weight 7,500 lbs (3,405 kg), Max Tongue Weight 750 lbs (341 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

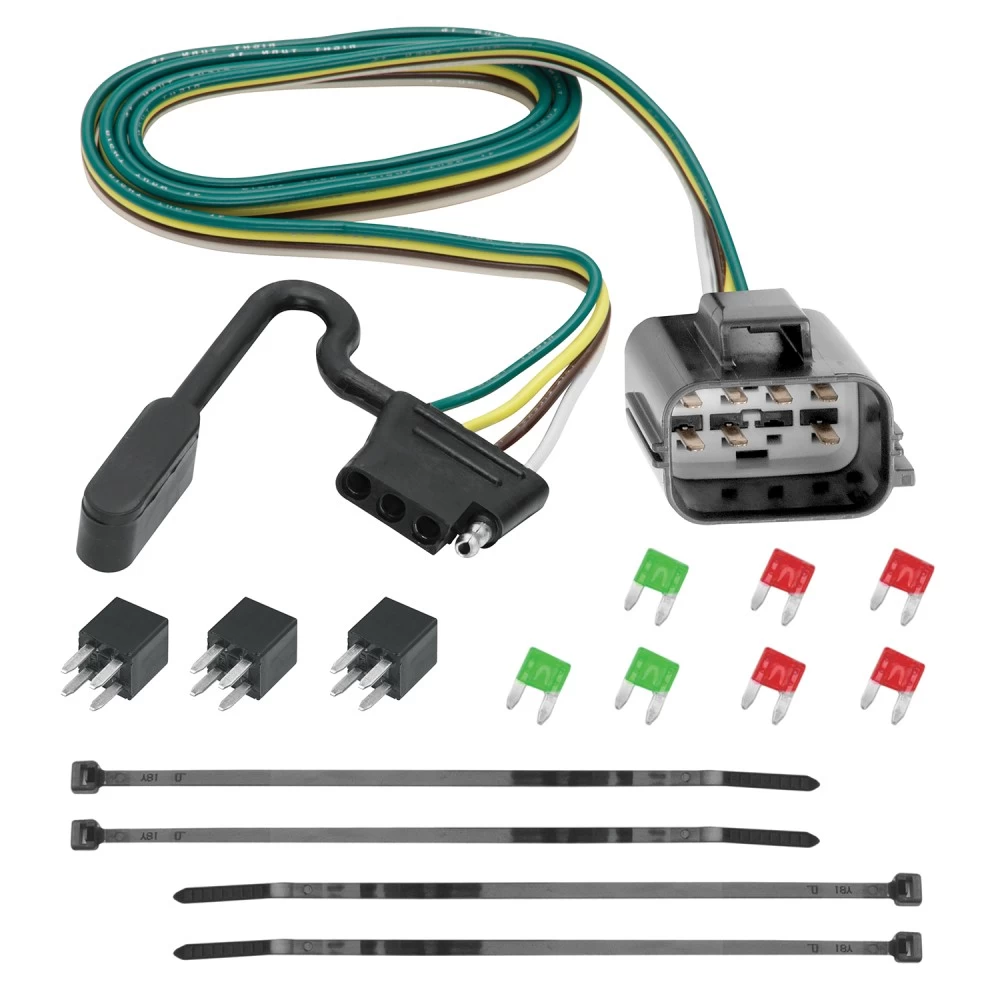

Installation Instructions for T-Connector Adapter for Buice Enclave, Chervorlet Traverse and GMC Acadia

Part Numbers:

• 118270

Tools Required:

• Test Probe

Step-by-Step Instructions:

1. Install Fuses and Relays in the Fuse Box:

   • Open the vehicle hood and locate the fuse box.
   • Insert the provided fuses into the following positions:
     • 10 Amp Fuses:
       • Trailer Park Lamp: Position F41
       • Left Turn Trailer Stop/Turn: Position F21
       • Right Turn Trailer Stop/Turn: Position F17
       • Trailer Back Up: Position F8
     • 30 Amp Fuses:
       • Trailer Brake: Position F34
       • Trailer Power: Position F30
   • Insert the provided relays into the following positions:
     • Right Turn Trailer Stop/Turn: Position R16
     • Left Turn Trailer Stop/Turn: Position R15

   Note: Use only the relays included in the kit. Using different relays may damage the unit or vehicle.

2. Locate and Connect the Tow Plug Harness:

   • Locate the vehicle's tow plug under the passenger side, near the muffler opening.
   • Disconnect the protective cover from the tow plug and connect the provided tow plug harness.
   • Ensure all connector surfaces are clean and the locking tabs are securely in place.

3. Route the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the bumper fascia.
   • Secure the harness with the provided cable ties.

   Warning: Avoid routing the wire near hot pipes, heat shields, the fuel tank, or any areas that may pinch or damage the wire.

4. Secure the 4-Flat Connector:

   • Secure the 4-flat tow harness to the hitch. (Bracket not included.)

5. Test the Installation:

   • Verify the installation with a test light or trailer.
   • For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.

Specifications:

• Max. stop/turn light: 7.5 amps
• Max. tail lights: 7.5 amps

Safety Notes:

• All connections must be completed for the T-Connector to function properly.
• Overloading circuits can cause fires. Do not exceed the lower of the vehicle manufacturer rating or the specified amperage ratings.
• Refer to the vehicle owner’s manual for additional information.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• For additional details, refer to the instruction sheet and the vehicle owner’s manual.

Installation Instructions for 4-Way to 7-Way Adapter and Brake Control Wiring

Tools Required:

• Phillips Head Screwdriver
• Drill with 3/32" Drill Bit
• 10mm Socket & Ratchet or Wrench
• Wire Crimpers
• Wire Cutters
• Test Light or Multimeter
• Cable Ties

Part 1: Install the 4-Way to 7-Way Adapter

Step-by-Step Instructions:

1. Mount the Adapter:

   • Choose a suitable mounting point on the vehicle, typically near the hitch.
   • Use the provided bracket and screws to secure the adapter.

2. Connect the 4-Flat Plug:

   • Plug the 4-flat connector on the adapter into the existing 4-flat plug on the vehicle.
   • This connection enables tail lights, left turn, and right turn signals.

3. Ground the Adapter:

   • Locate a clean, solid grounding point near the adapter.
   • Drill a 3/32" hole if necessary and secure the white ground wire from the adapter using the provided screw and eyelet.

4. Leave Additional Wires Disconnected:

   • The following wires will remain disconnected until Part 2:
     • Black Wire: Power from the battery.
     • Blue Wire: Brake control output.
     • Yellow Wire: Reverse light (optional; leave disconnected unless needed).

5. Test Initial Connection:

   • Use a test light or trailer to verify functionality of the 4-way connections (tail lights, turn signals).

Part 2: Install Brake Control Wiring

Step-by-Step Instructions:

1. Mount Circuit Breakers:

   • Install two 30A circuit breakers on the firewall or another suitable location near the battery.
   • Use self-tapping screws to mount them securely.

2. Route Power Wires:

   • Connect the black 12-gauge wire from the 7-way adapter to the auxiliary side of one circuit breaker (this powers the 7-way socket).
   • Run a heavy-gauge wire from the battery's positive terminal to the battery side of this circuit breaker, using a ring terminal.
   • Run another heavy-gauge wire from the battery's positive terminal to the auxiliary side of the second circuit breaker (for the brake controller).

3. Install the Brake Controller:

   • Mount the brake controller under the dash on a firm surface.
   • Use the following connections:
     • Red Wire: Connect to the cold side of the brake switch (active only when the brake pedal is pressed).
     • Blue Wire: Connect to the blue wire on the 7-way adapter for trailer brakes.
     • White Wire: Connect to a solid ground point on the vehicle body.
     • Black Wire: Connect to the auxiliary side of the second 30A circuit breaker (provides power to the brake controller).

4. Optional: Connect Reverse Light Circuit:

   • If the trailer has a reverse light circuit, connect the yellow wire from the 7-way adapter to the vehicle’s reverse light circuit.

5. Reconnect the Battery:

   • Reattach the negative battery cable and ensure all connections are secure.
   • Insert the fuses into both circuit breakers.

6. Secure All Wires:

   • Use cable ties to secure all loose wires and prevent damage or rattling.

7. Test the System:

   • Verify functionality of all circuits (running lights, turn signals, brake lights, and brake controller output).
   • If applicable, test the reverse light circuit.

Notes:

• Most installations will only require connecting the black and blue wires from the 7-way adapter.
• Leave the yellow wire disconnected unless the trailer has a reverse light or surge brake lockout circuit.
• Always adhere to safety guidelines and verify all connections before use.

Warning: Incorrect wiring can cause damage to the vehicle or trailer. Test all connections carefully before use.
