Product Details
- Brand: Reese
- Model: 77300 119178

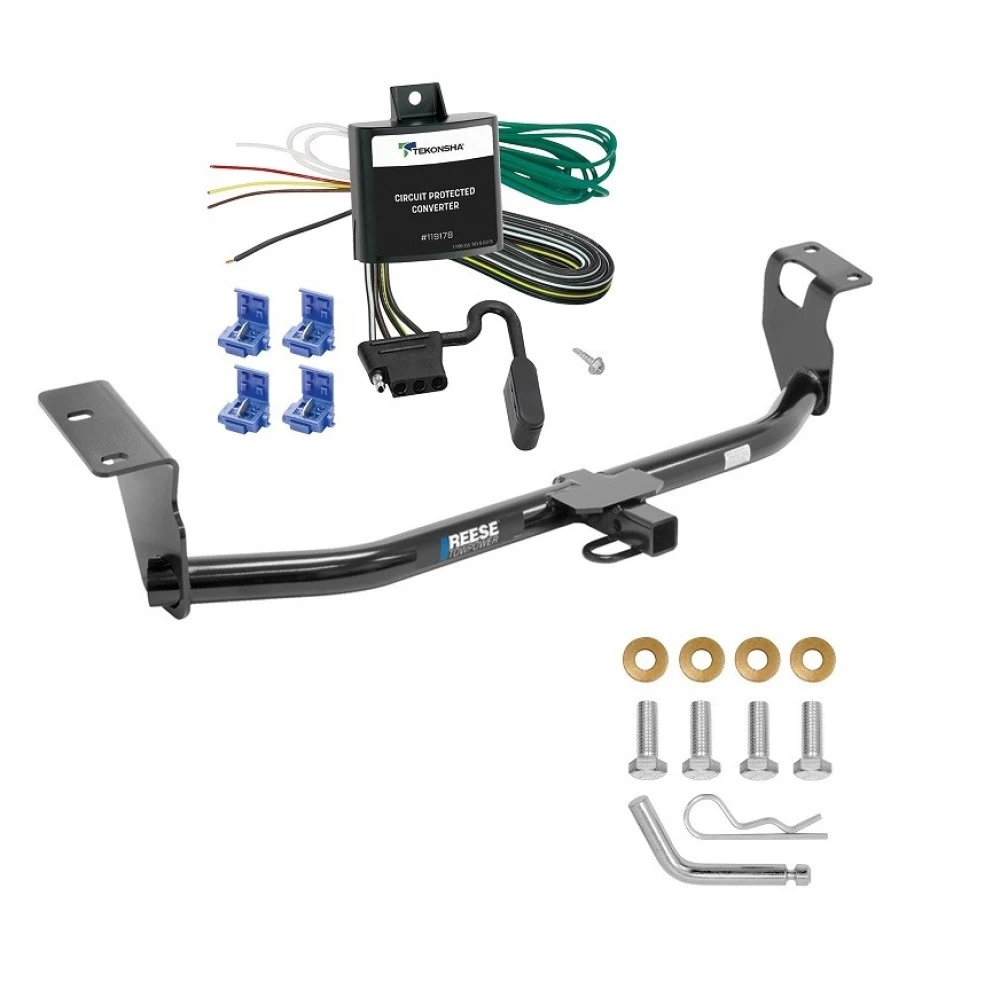

- Includes: Class 1 Trailer Tow Hitch, Taillight Converter with Integrated Circuit Protection
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help
Trailer Hitch w/ Wiring For 04-07 Toyota Corolla Class I 1-1/4" Tow Receiver Reese Tekonsha Install Notes

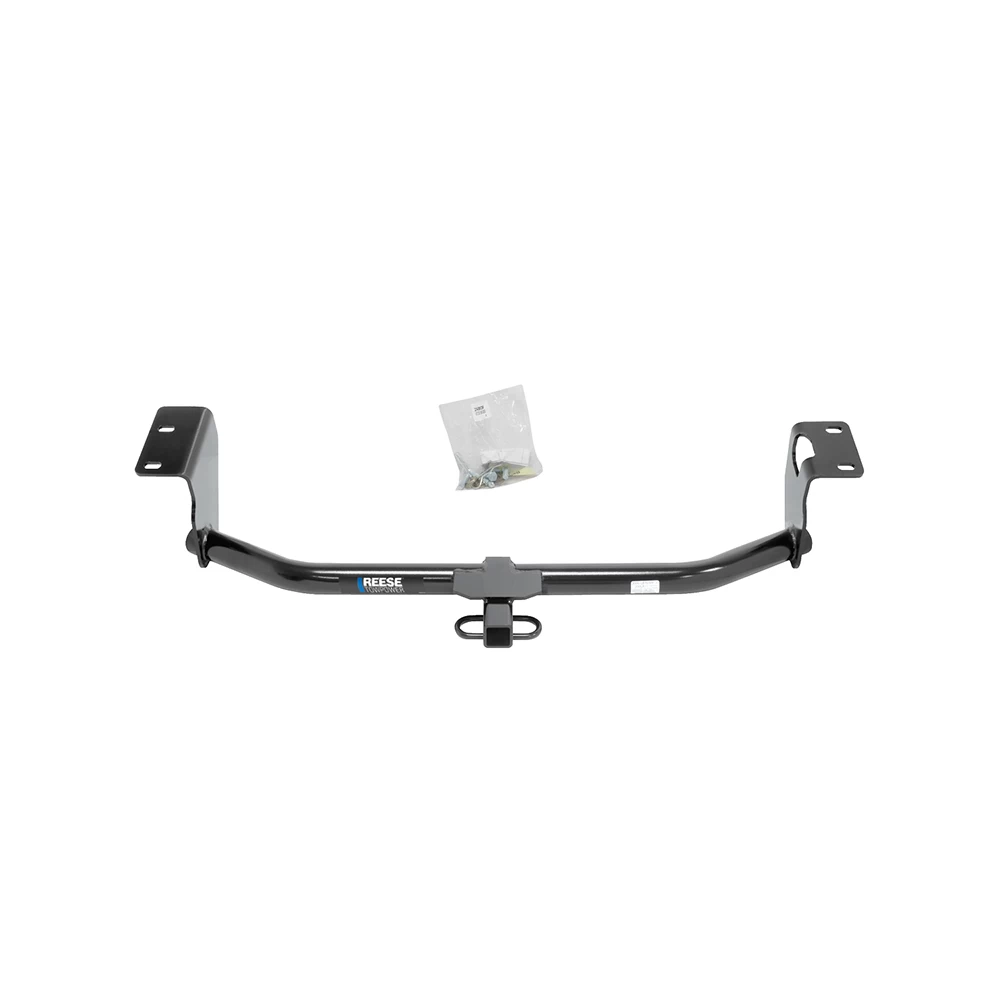

Installation Instructions for Toyota Corolla
Part Numbers:
- 24913
- 60345
- 77300
Wiring Access Location:
- PC3, PC4
Tools Required:
- Wrenches: 17mm, 19mm
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove Tie-Down Brackets:
- If present, remove the tie-down brackets from the vehicle frame rails.
- Return bolts and tie-down brackets to the owner.
-
Position Hitch:
- Raise the hitch into position.
-
Install Fasteners:
- Install the provided fasteners into the existing weld nuts on the frame rails.
- Tighten all M12 CL8.8 fasteners to 68 Lb.-Ft. (92 N*M) using a torque wrench.
-
For Vehicles with Appearance Panels:
- Remove the appearance panel covering the trunk pan by detaching the two 10mm plastic rivets fastening it to the fascia.
- Carefully remove the rivet centers with a flat-head screwdriver. Retain the rivets for reinstallation.
- Return the appearance panel and fasteners to the owner if not reinstalled.

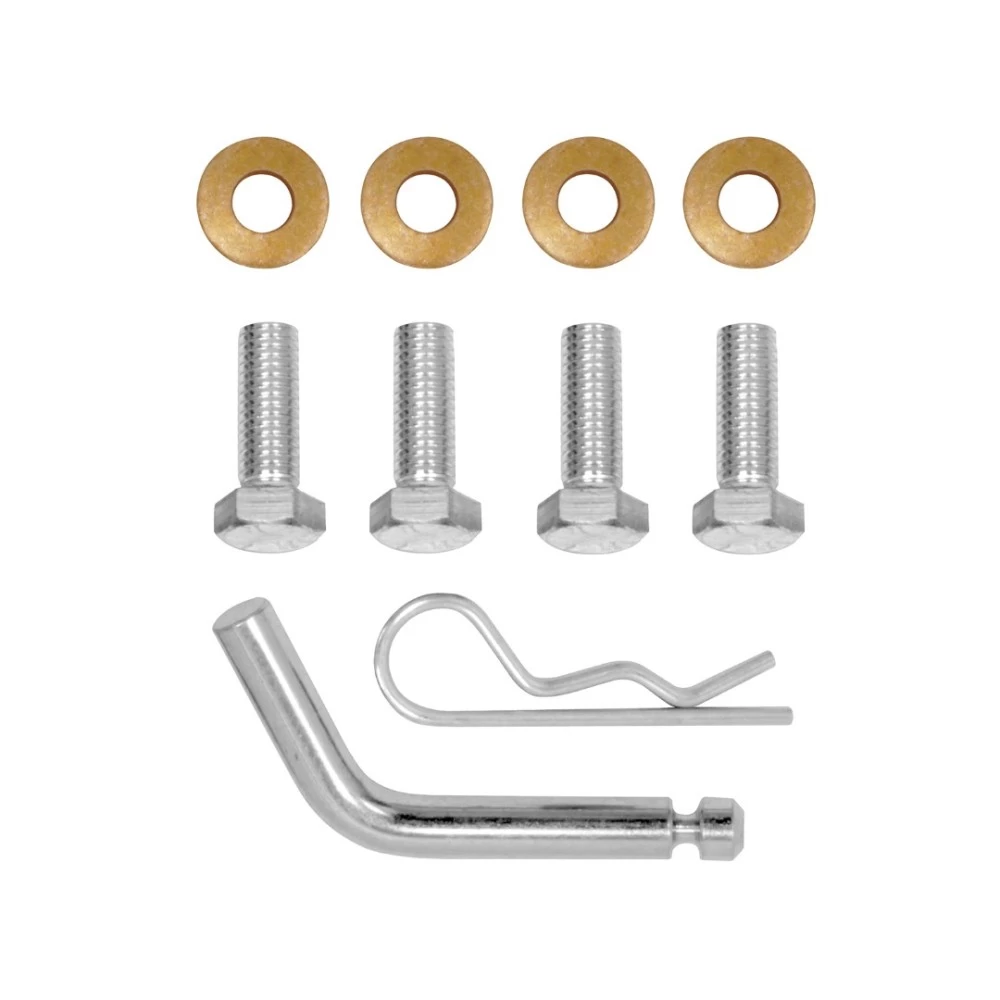

Hardware List:
- (4) Hex Bolts: M12 x 1.25 x 35 CL8.8
- (4) Conical Washers
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.

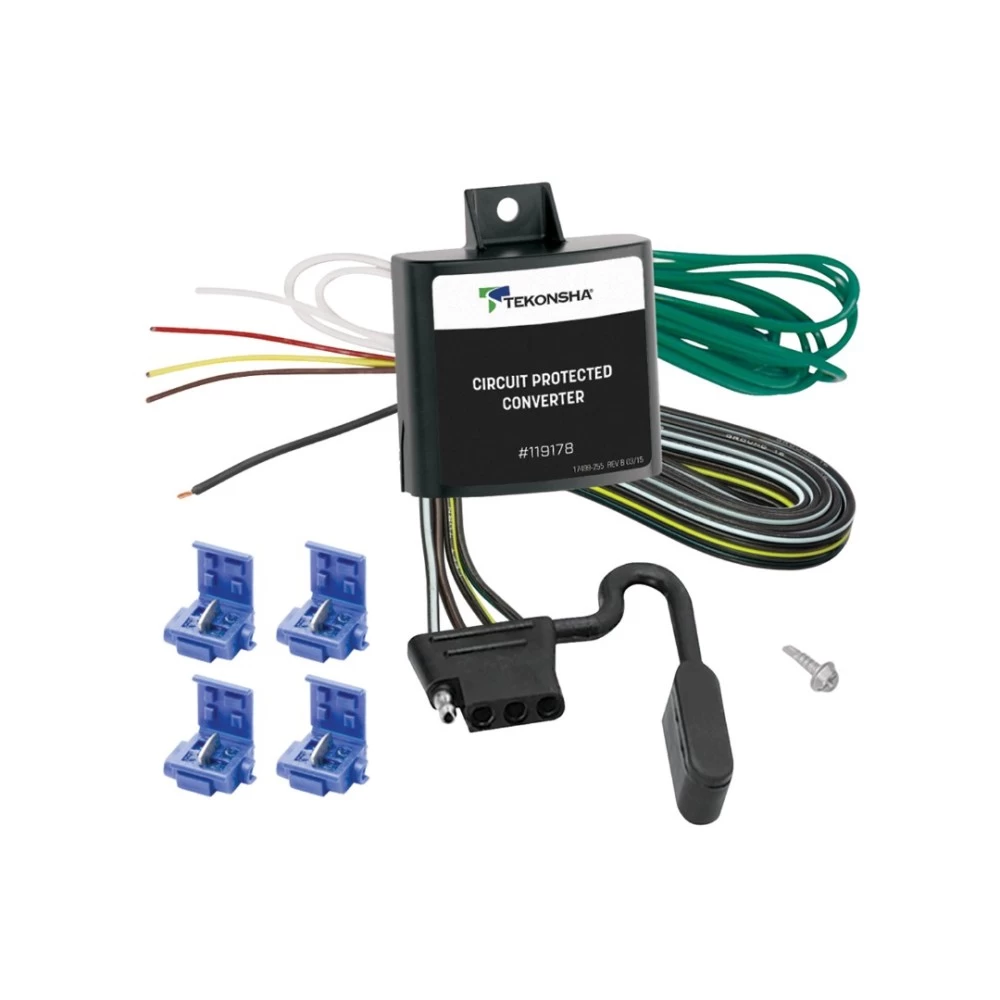

Installation Instructions for Circuit Protected Converter
Part Numbers:
- 119178
Wiring Access Location:
- Not specified in the document.
Tools Required:
- Drill (3/32” Drill Bit)
- Wire Crimpers
- Philips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Using a circuit tester, carefully probe one wire at a time to determine vehicle functions.
- Caution: Do not probe across two wires or across a wire and vehicle structure to avoid damaging electronic components.
-
Disconnect and isolate the vehicle's negative (-) battery terminal.
- Warning: Follow all warnings and precautions printed on the tow vehicle’s battery.
-
Attach the trailer wiring to the vehicle as shown in the illustration using splices.
-
Locate a suitable grounding point.
- Caution: Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Mount the circuit-protected converter near the left tail light in the trunk or on the frame rail under the vehicle.
- Mount with the wiring directed downward or sideways if downward is not possible.
-
Reconnect the vehicle's negative (-) battery terminal.
-
Testing Procedure:
- Attach the ground lead of a circuit tester to the exposed ground terminal of the 4-flat end.
- Activate the tow vehicle’s left turn, right turn, tail, and stop lights one at a time. Test each to confirm proper functionality.
- Warning: Ensure all connections are complete for proper function. Test installation with a trailer or test light.
-
Secure all loose wires with cable ties.
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Warning: Do not overload circuits to prevent fires. Adhere to these limits:
Hardware List:
- Not detailed in the document.
Safety Notes:
- Wear safety glasses and follow safety precautions.
- Disconnect the negative (-) cable before wiring.
- Securely ground to the vehicle chassis or an existing ground stud.
- Use on 12-volt negative ground systems only.
Specifications:
- Max stop/turn light: 1 per side (2.1 amps)
- Max tail lights: (7.5 amps)
- Secure wiring with cable ties after installation.
Manufacturer Notes:
- Read and follow all vehicle warnings and instructions.
- Refer to the vehicle's owner manual and manufacturer materials for additional guidance.
