Product Details
- Brand: Reese
- Model: 44661 118428

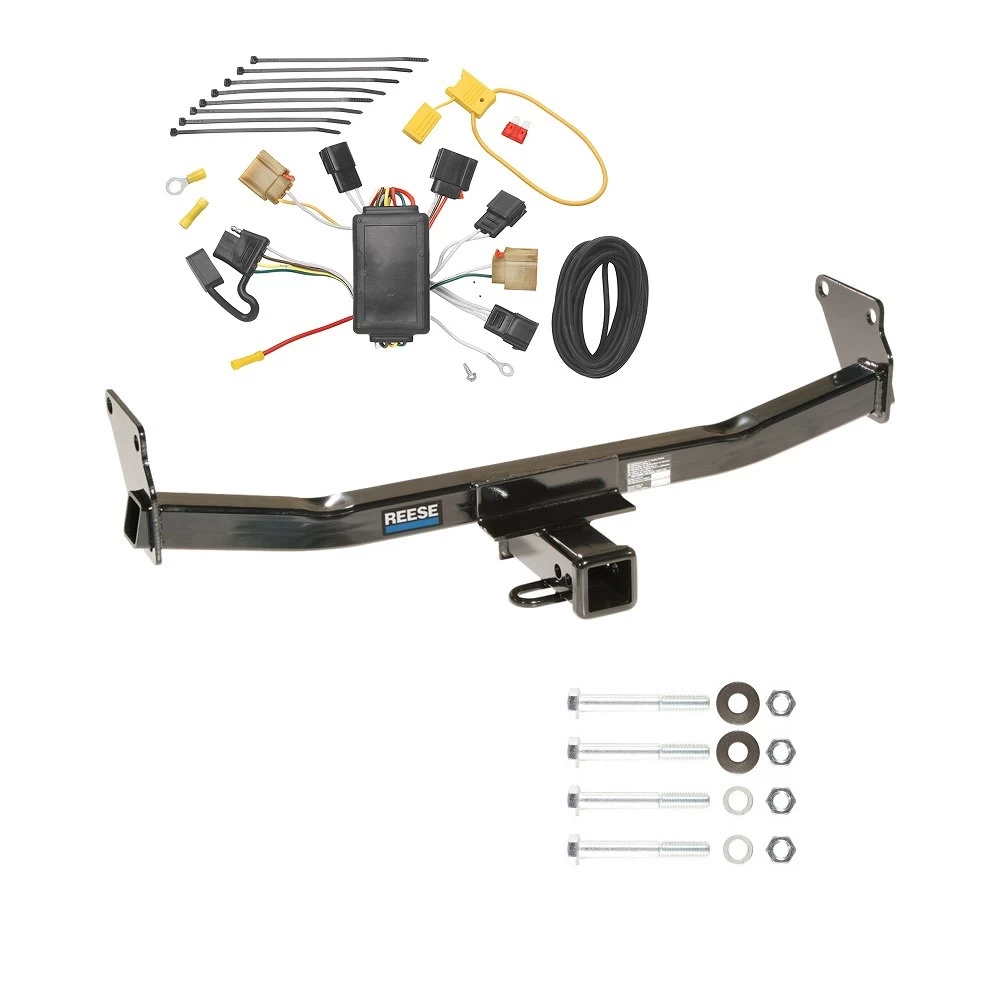

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Get Expert Help
Trailer Hitch w/ Wiring For 07-10 Jeep Compass 07-07 Patriot Class 3 2" Tow Receiver Reese Tekonsha Install Notes
Installation Instructions for Jeep Compass (Rallye Package) and Jeep Patriot (Optional Tow Hook)
Part Numbers:
- 75712
- 87606
- 44661
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 22mm, 16mm (tow hook option)
- Drill Bits: 5/8” (only required for reinstalling tow hook on Patriot with optional tow hook)
- Cutting Tool: Required for trimming bumper fascia on Compass Rallye and 2011 & later Patriot/Compass.
Step-by-Step Instructions:
- Place M14 hex bolts into vehicle bushings from the outboard side of the frame rails. Leave bolt ends flush with the inboard side of frame rails.
- Raise the hitch into position and push M14 hex bolts through hitch frame brackets to support the hitch.
- Attach the remaining hardware as shown in the included diagrams.
- For Compass Rallye Package: Use the hitch receiver tube as a guide to cut a 2 1/4” wide by 2” high section from the bumper fascia for ball mount clearance.
- Raise the exhaust back into position if it was lowered before the hitch installation.
Hardware List:
- Qty (4): M14 x 120 x 2 Hex Bolt
- Qty (2): 5/8” Conical Washer
- Qty (2): 5/8” Lock Washer
- Qty (4): M14 x 2.0 Hex Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not use a torch to cut access or attachment holes.
- Ensure compliance with state safety specifications, including SAE J684.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distribution: Not compatible with spring bars.
Manufacturer Notes:
- Jeep Patriot with an optional tow hook requires removing the tow hook. If reinstalling, press/drive existing knurled neck bolts out of the hook, drill out with a 5/8” drill bit, and reattach using supplied M14 bolts.
- 2011 & Later Jeep Patriot and Compass models require fascia trimming for hitch installation. Obtain vehicle owner approval before cutting.
- Tighten all M14-2 fasteners to 100 lb-ft (136 N*m) using a torque wrench.
Additional Information:
- For Jeep Compass Rallye Package: Obtain owner approval before cutting plastic fascia.
- 2011 models require a 2” vertical fascia trim, measured from the bottom of the fascia lip.
Installation Instructions
Part Numbers:
- 75712
- 87606
- 44661
Wiring Access Location:
- SUV1
- SUV2
Tools Required:
- Wrenches: 22mm, 16mm (tow hook option)
- Drill Bits: 5/8” (only required for reinstalling tow hook on Patriot with optional tow hook)
- Cutting Tool: Required for trimming bumper fascia on Compass Rallye and 2011 & later Patriot/Compass.
Step-by-Step Instructions:
- Place M14 hex bolts into vehicle bushings from the outboard side of the frame rails. Leave bolt ends flush with the inboard side of frame rails.
- Raise the hitch into position and push M14 hex bolts through hitch frame brackets to support the hitch.
- Attach the remaining hardware as shown in the included diagrams.
- For Compass Rallye Package: Use the hitch receiver tube as a guide to cut a 2 1/4” wide by 2” high section from the bumper fascia for ball mount clearance.
- Raise the exhaust back into position if it was lowered before the hitch installation.
Hardware List:
- Qty (4): M14 x 120 x 2 Hex Bolt
- Qty (2): 5/8” Conical Washer
- Qty (2): 5/8” Lock Washer
- Qty (4): M14 x 2.0 Hex Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not use a torch to cut access or attachment holes.
- Ensure compliance with state safety specifications, including SAE J684.
Specifications:
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distribution: Not compatible with spring bars.
Manufacturer Notes:
- Jeep Patriot with an optional tow hook requires removing the tow hook. If reinstalling, press/drive existing knurled neck bolts out of the hook, drill out with a 5/8” drill bit, and reattach using supplied M14 bolts.
- 2011 & Later Jeep Patriot and Compass models require fascia trimming for hitch installation. Obtain vehicle owner approval before cutting.
- Tighten all M14-2 fasteners to 100 lb-ft (136 N·m) using a torque wrench.
Additional Information:
- For Jeep Compass Rallye Package: Obtain owner approval before cutting plastic fascia.
- 2011 models require a 2” vertical fascia trim, measured from the bottom of the fascia lip.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Wiring Harness
Product Information:
- Part Number: N118428
- Application: T-Connector wiring for trailer lights
Tools Required:
- Trim Panel Remover
- Drill (3/32” drill bit)
- 1/4" Socket
- Wire Crimpers
- Wire Cutters
- Test Light/Probe
Step-by-Step Instructions:
-
Disconnect Battery:
- Disconnect and isolate the vehicle’s negative battery terminal.
- Caution: Follow all vehicle battery safety warnings.
-
Remove Taillight Assemblies:
- Open the tailgate.
- Remove the two clips holding the right-side taillight assembly in place.
- Carefully pry the housing away without breaking the alignment tabs.
- Repeat for the left-side taillight assembly.
-
Locate Wiring Connectors:
- On both sides (driver and passenger), locate the vehicle’s taillight wiring harness.
- Disconnect the harness by carefully releasing the locking tabs.
-
Install T-Connector Harness:
- Starting on the driver’s side, connect the T-Connector with the yellow wire between the vehicle connectors.
- Repeat this step for the passenger side using the T-Connector with the green wire.
-
Route Wires:
- Route the T-Connector with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Carefully route the green wire up through the opening on the passenger side.
- Avoid contact with hot pipes, heat shields, the fuel tank, or any sharp edges.
-
Ground White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member.
- Do not drill into exposed or sensitive areas.
- Clean the surface of dirt and rustproofing.
- Drill a 3/32” hole and attach the white wire with the provided eyelet and screw.
-
Mount the T-Connector Black Box:
- Behind the driver’s side taillight assembly, clean a flat area with a 50/50 mixture of rubbing alcohol and water.
- Mount the black box using the double-sided tape provided.
-
Route Battery Wire:
- Locate the red battery wire from the T-Connector black box.
- Crimp the black 12-gauge battery wire to the red wire.
- Route the black wire to the engine compartment following the vehicle’s frame.
- Avoid hot pipes, heat shields, fuel tanks, or sharp edges.
-
Install the Fuse Holder:
- Remove the fuse from the yellow fuse holder.
- Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle’s Positive (+) battery terminal.
- Connect the other end of the fuse holder to the black wire using the provided butt connector.
-
Reconnect Battery and Install Fuse:
- Reconnect the vehicle’s Negative (-) battery terminal.
- Insert the 10-amp fuse into the fuse holder.
-
Test the System:
- Verify all connections using a test light or connect a trailer to ensure the system functions properly.
-
Secure Wires:
- Use the provided cable ties to secure the remainder of the T-Connector harness.
- Ensure wires are routed away from areas that could pinch, cut, or melt the wiring.
-
Reinstall Taillight Assemblies:
- Reattach the taillight assemblies removed in Step 2.
Warnings:
- Overloading circuits can cause fires.
- Max Stop/Turn Light: 2.1 amps per side
- Max Taillights: 4.2 amps
- Refer to the vehicle’s owner’s manual for towing ratings and guidelines.
- Always test the installation before towing.
Technical Notes:
- Verify all connections are secure and free of dirt or debris before completing the installation.
- Periodically inspect the wiring harness for wear, corrosion, or damage.
Technical Support:
For assistance, contact Technical Support or refer to the manufacturer’s website for additional resources.
Installation Instructions for T-Connector Wiring Harness
Product Information:
- Part Number: N118428
- Application: T-Connector wiring for trailer lights
Tools Required:
- Trim Panel Remover
- Drill (3/32” drill bit)
- 1/4" Socket
- Wire Crimpers
- Wire Cutters
- Test Light/Probe
Step-by-Step Instructions:
-
Disconnect Battery:
- Disconnect and isolate the vehicle’s negative battery terminal.
- Caution: Follow all vehicle battery safety warnings.
-
Remove Taillight Assemblies:
- Open the tailgate.
- Remove the two clips holding the right-side taillight assembly in place.
- Carefully pry the housing away without breaking the alignment tabs.
- Repeat for the left-side taillight assembly.
-
Locate Wiring Connectors:
- On both sides (driver and passenger), locate the vehicle’s taillight wiring harness.
- Disconnect the harness by carefully releasing the locking tabs.
-
Install T-Connector Harness:
- Starting on the driver’s side, connect the T-Connector with the yellow wire between the vehicle connectors.
- Repeat this step for the passenger side using the T-Connector with the green wire.
-
Route Wires:
- Route the T-Connector with the green wire and the 4-flat connector down through the opening between the bumper and body.
- Carefully route the green wire up through the opening on the passenger side.
- Avoid contact with hot pipes, heat shields, the fuel tank, or any sharp edges.
-
Ground White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle's frame or cross member.
- Do not drill into exposed or sensitive areas.
- Clean the surface of dirt and rustproofing.
- Drill a 3/32” hole and attach the white wire with the provided eyelet and screw.
-
Mount the T-Connector Black Box:
- Behind the driver’s side taillight assembly, clean a flat area with a 50/50 mixture of rubbing alcohol and water.
- Mount the black box using the double-sided tape provided.
-
Route Battery Wire:
- Locate the red battery wire from the T-Connector black box.
- Crimp the black 12-gauge battery wire to the red wire.
- Route the black wire to the engine compartment following the vehicle’s frame.
- Avoid hot pipes, heat shields, fuel tanks, or sharp edges.
-
Install the Fuse Holder:
- Remove the fuse from the yellow fuse holder.
- Cut the fuse holder wire, attach the ring terminal, and secure it to the vehicle’s Positive (+) battery terminal.
- Connect the other end of the fuse holder to the black wire using the provided butt connector.
-
Reconnect Battery and Install Fuse:
- Reconnect the vehicle’s Negative (-) battery terminal.
- Insert the 10-amp fuse into the fuse holder.
-
Test the System:
- Verify all connections using a test light or connect a trailer to ensure the system functions properly.
-
Secure Wires:
- Use the provided cable ties to secure the remainder of the T-Connector harness.
- Ensure wires are routed away from areas that could pinch, cut, or melt the wiring.
-
Reinstall Taillight Assemblies:
- Reattach the taillight assemblies removed in Step 2.
Warnings:
- Overloading circuits can cause fires.
- Max Stop/Turn Light: 2.1 amps per side
- Max Taillights: 4.2 amps
- Refer to the vehicle’s owner’s manual for towing ratings and guidelines.
- Always test the installation before towing.
Technical Notes:
- Verify all connections are secure and free of dirt or debris before completing the installation.
- Periodically inspect the wiring harness for wear, corrosion, or damage.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
