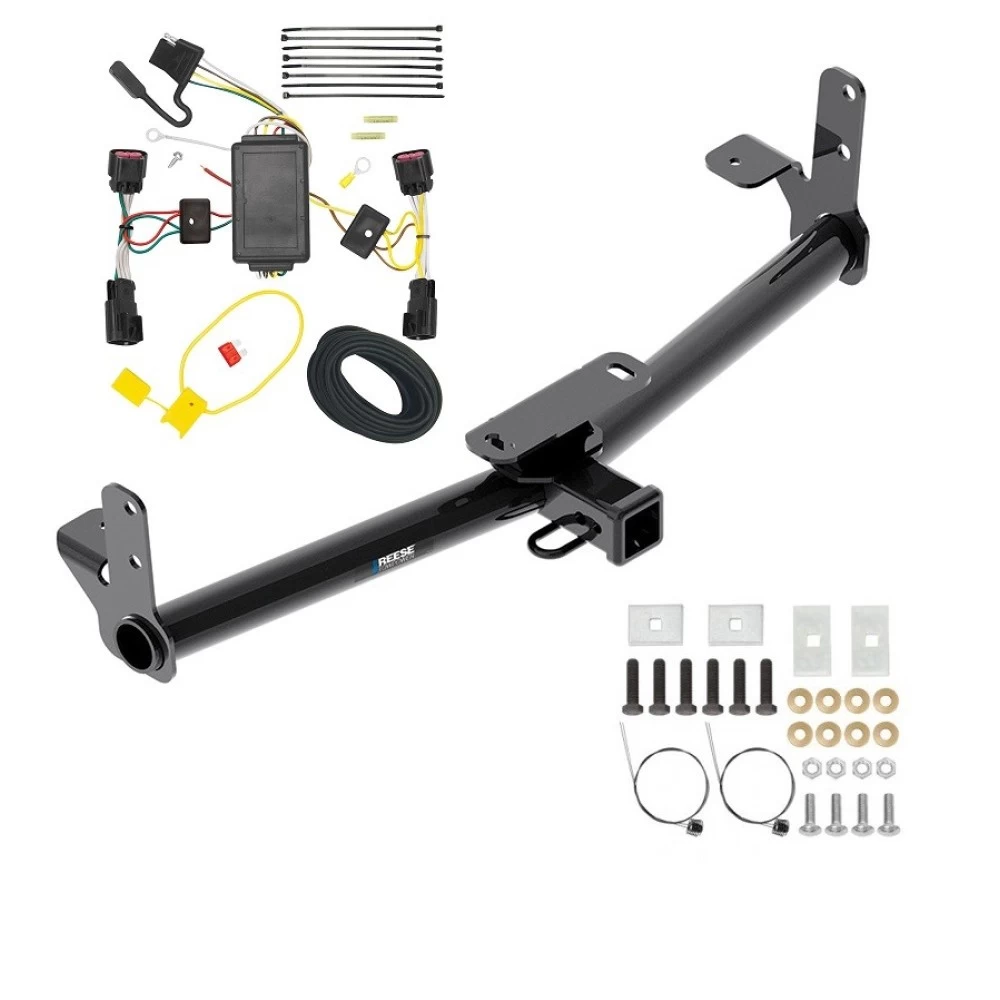

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76028, #84028, and #CQT76028

Part Numbers:

• 76028
• 84028
• CQT76028

Applications:

• Years: 2005-Current (Chevrolet Equinox), 2010-Current (GMC Terrain), 2006-2009 (Pontiac Torrent), 2002-2007 (Saturn Vue, except Redline)
• Make and Models: Chevrolet Equinox, GMC Terrain, Pontiac Torrent, Saturn Vue

For the most up-to-date application years and trim levels, refer to the manufacturer's website.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 18 mm, 19 mm, 3/4"
• 6" Socket Extension
• Utility Knife
• Tape Measure

Step-by-Step Instructions:

1. Remove the Fascia Door:

• If present, remove the fascia door.

2. Install Carriage Bolts and Blocks:

• Feed the carriage bolt and large block through slots on the bottom of the frame rails using the pull wire as shown in Figure 3.

3. Position the Hitch:

• Raise the hitch into position, lifting the bumper mounting bracket over the fascia where necessary.
• Secure the hitch using M12 bolts and conical washers into the existing weld nuts. Be cautious not to push the bolts into the frame (Figure 1).

4. Install Hardware:

• Thread the conical washer over the pull wire to hold the bolt in place, remove the pull wire, and attach the hex nut.
• Hand-tighten all bolts.

5. Secure to Bumper:

• For vehicles without weld nuts:
  Pull carriage bolts and small blocks through the end of the bumper and the bumper mounting bracket using the pull wire. Attach the conical washer and nut.
• For vehicles with weld nuts:
  Install the M12 bolts and conical washers into the existing weld nuts on the bumper (Figure 2).

6. Tighten Fasteners:

• Torque all 1/2-13 GR5 fasteners to 75 lb-ft (102 N·m).
• Torque all M12 CL10.9 fasteners to 92 lb-ft (125 N·m).

7. Replace or Modify Fascia Door:

• Replace the fascia door for 2005-2015 Equinox models.
• For 2016 and newer models, trim the fascia door as shown in Figure 4 (obtain the owner's permission before trimming).
• Return fascia doors to the owner for other models.

Hardware List:

• 4 × Carriage Bolt (1/2-13 × 1.50 GR5)
• 2 × Spacer Block (.250 × 1.50 × 3.00)
• 8 × Conical Washer (1/2")
• 4 × Hex Nut (1/2-13 GR2)
• 6 × Bolt (M12 × 1.75 × 45 CL10.9)
• 2 × Small Spacer Block (.250 × 1.50 × 2.0)
• 4 × Pull Wire (1/2-13)

Safety Notes:

• Always wear safety glasses during installation.
• Ensure proper torque for all fasteners to keep the hitch secure while towing.
• Do not cut access or attachment holes with a torch.
• Plug all holes in the trunk pan or body panels if the hitch is removed to prevent water or exhaust entry.
• Periodically check all fasteners for tightness.

Specifications:

• Max Gross Trailer Weight (Weight Carrying/Weight Distributing): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying/Weight Distributing): 675 lbs (306 kg)
• Installation Time: Approximately 30 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.

Installation Instructions for T-Connector Adapter for Chevrolet Equinox

Part Numbers:

• 118494

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear liftgate.
   • On both the driver and passenger sides, remove two screws securing the taillight assemblies.
   • Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.

2. Disconnect the Wiring Harness:

   • Disconnect the wire harness from both taillight sockets.
   • Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.

3. Route the T-Connector Wiring:

   • On the driver’s side, route the T-Connector end with the green wire and the 4-flat connector down through the opening between the bumper and vehicle body.
   • Route the green wire across to the passenger side and the 4-flat connector underneath the bumper.

   Warning:

   • Avoid routing near hot pipes, heat shields, the fuel tank, or areas that could pinch or damage the wiring.

4. Install the Passenger-Side T-Connector:

   • Route the green wire up through the opening on the passenger side.
   • Repeat step 2 for the passenger-side T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Clean the area to remove dirt and rustproofing.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or any exposed surfaces.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

7. Route the Black Wire:

   • Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail to the rear driver’s side.
   • Route the wire up through the opening behind the driver-side taillight and connect it to the red wire from the T-Connector black box using the yellow butt connector.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, or areas that could pinch or break the wire.

8. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Insert the 10-amp fuse into the fuse holder.

   Warning:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

9. Mount the Black Box:

   • Behind the driver’s side taillight assembly, clean a flat area with a mixture of rubbing alcohol and water.
   • Mount the T-Connector black box using the provided double-sided tape.

10. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and all removed panels, positioning the vehicle wiring harness securely.
    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that may cut or pinch the wiring.

    Note:

    • Mount the 4-flat connector in a suitable location under the vehicle. A bracket is not included.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Always follow all installation instructions and safety precautions.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.

Installation Instructions for T-Connector Adapter for Vehicle

Part Numbers:

• 118494

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• Test Probe

Step-by-Step Instructions:

1. Remove the Taillight Assemblies:

   • Open the rear liftgate.
   • On both the driver and passenger sides, remove two screws securing the taillight assemblies.
   • Carefully pull the taillights away from the vehicle, ensuring not to damage the alignment pins.

2. Disconnect the Wiring Harness:

   • Disconnect the wire harness from both taillight sockets.
   • Plug the T-Connector end with the yellow wire between the driver’s side taillight socket and the vehicle wiring harness.

3. Route the T-Connector Wiring:

   • On the driver’s side, route the T-Connector end with the green wire and the 4-flat connector down through the opening between the bumper and vehicle body.
   • Route the green wire across to the passenger side and the 4-flat connector underneath the bumper.

   Warning:

   • Avoid routing near hot pipes, heat shields, the fuel tank, or areas that could pinch or damage the wiring.

4. Install the Passenger-Side T-Connector:

   • Route the green wire up through the opening on the passenger side.
   • Repeat step 2 for the passenger-side T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud, or drill a 3/32” hole.
   • Secure the white wire using the provided eyelet and screw. Clean the area to remove dirt and rustproofing.

   Caution:

   • Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or any exposed surfaces.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

7. Route the Black Wire:

   • Starting from the front of the vehicle, route the black 12-gauge wire rearward along the frame rail to the rear driver’s side.
   • Route the wire up through the opening behind the driver-side taillight and connect it to the red wire from the T-Connector black box using the yellow butt connector.

   Warning:

   • Avoid routing the wire near hot pipes, heat shields, or areas that could pinch or break the wire.

8. Reconnect the Battery:

   • Reconnect the negative (-) battery cable.
   • Insert the 10-amp fuse into the fuse holder.

   Warning:

   • Ensure all connections are complete for the T-Connector to function properly.
   • Test and verify the installation with a test light or trailer.

9. Mount the Black Box:

   • Behind the driver’s side taillight assembly, clean a flat area with a mixture of rubbing alcohol and water.
   • Mount the T-Connector black box using the provided double-sided tape.

10. Reassemble the Vehicle:

    • Reinstall the taillight assemblies and all removed panels, positioning the vehicle wiring harness securely.
    • Use the provided cable ties to secure the T-Connector harness, avoiding areas that may cut or pinch the wiring.

    Note:

    • Mount the 4-flat connector in a suitable location under the vehicle. A bracket is not included.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5.6 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or the specified maximum ratings.
• Always follow all installation instructions and safety precautions.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty Information:

• This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional details.
