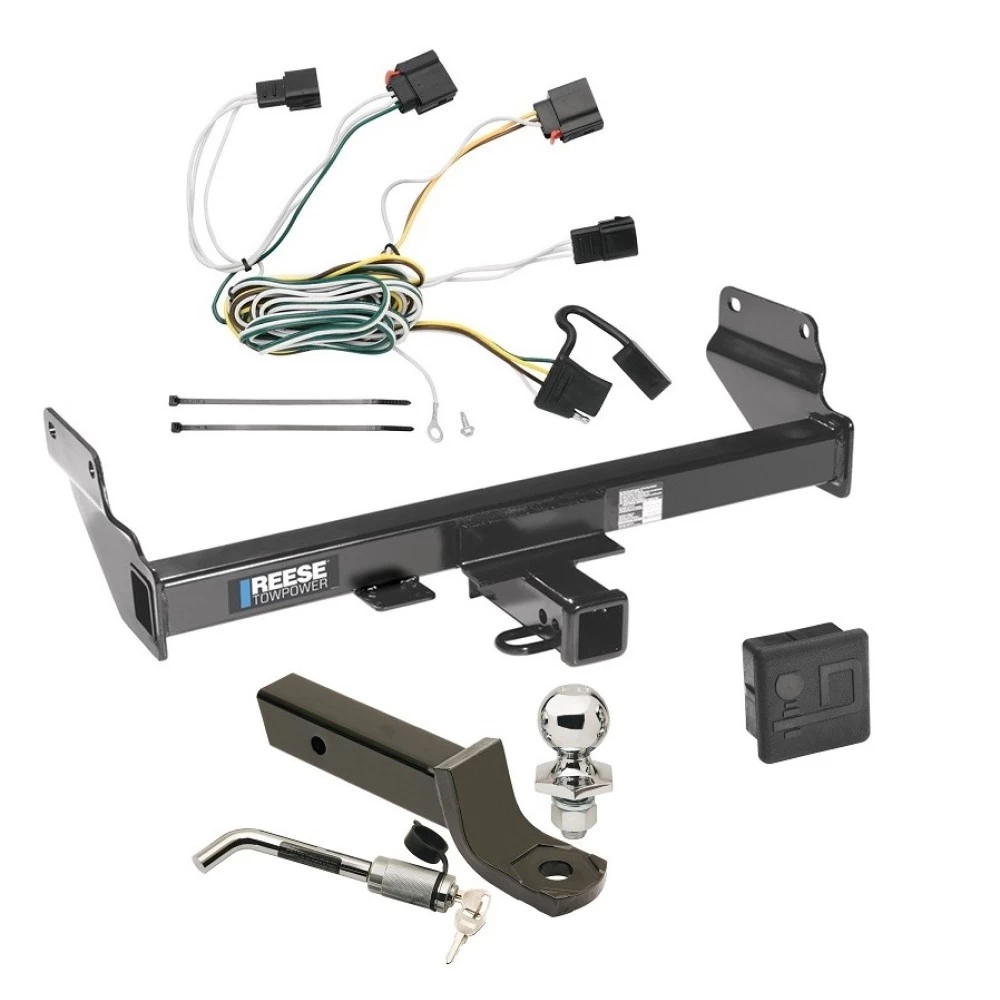

Installation Instructions for Jeep Grand Cherokee (Excluding EcoDiesel Models)

Part Numbers:

• 75699
• 87595
• 44650

Tools Required:

• Wrench: 21mm

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 500 lbs (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 7,500 lbs (3,405 kg)
  • Max Tongue Weight: 750 lbs (341 kg)

Wiring Access Location:

• 2011-2013: SUV 1, 2
• 2014-Present: SUV 3, 4

Step-by-Step Instructions:

1. Remove Tow Hook (if equipped):

• If the vehicle has an OEM tow hook, it must be permanently removed before installing the hitch.

2. Remove Factory Bolts:

• Remove (4) existing M14 bolts from the frame rail weld nuts.
• Important: Do not clean the threads. Retain the bolts for reinstallation.

3. Install Hitch:

• Raise the hitch into position under the vehicle’s frame rails.
• Align the hitch holes with the existing weld nuts on the frame.
• If excess caulking interferes with hitch installation, lower the hitch and scrape off the excess caulking from the frame rails.

4. Secure Fasteners:

• Reinstall the retained M14 bolts to secure the hitch to the frame.

5. Tighten Fasteners:

• Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).

Safety Notes:

• Regularly inspect the hitch and ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Installation Instructions

Part Numbers:

• 75699
• 87595
• 44650

Tools Required:

• Wrench: 21mm

Weight Capacities:

• Weight Carrying (Ball Mount):
  • Max Gross Trailer Weight: 5,000 lbs (2,270 kg)
  • Max Tongue Weight: 500 lbs (227 kg)
• Weight Distributing:
  • Max Gross Trailer Weight: 7,500 lbs (3,405 kg)
  • Max Tongue Weight: 750 lbs (341 kg)

Wiring Access Location:

• 2011-2013: SUV 1, 2
• 2014-Present: SUV 3, 4

Step-by-Step Instructions:

1. Remove Tow Hook (if equipped):

• If the vehicle has an OEM tow hook, it must be permanently removed before installing the hitch.

2. Remove Factory Bolts:

• Remove (4) existing M14 bolts from the frame rail weld nuts.
• Important: Do not clean the threads. Retain the bolts for reinstallation.

3. Install Hitch:

• Raise the hitch into position under the vehicle’s frame rails.
• Align the hitch holes with the existing weld nuts on the frame.
• If excess caulking interferes with hitch installation, lower the hitch and scrape off the excess caulking from the frame rails.

4. Secure Fasteners:

• Reinstall the retained M14 bolts to secure the hitch to the frame.

5. Tighten Fasteners:

• Use a torque wrench to tighten all M14 fasteners to 115 lb-ft (156 N·m).

Safety Notes:

• Regularly inspect the hitch and ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water or exhaust fume entry.
• Replace any damaged hitch or ball immediately.
• Always wear safety glasses and observe precautions when working beneath a vehicle.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type: Class III
• Compliance: This product meets safety specifications and requirements per V.E.S.C. Regulation V-5 and SAE J684.

Note: Always adhere to the towing vehicle manufacturer’s weight rating or the hitch’s maximum load rating, whichever is lower.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-Connector Adapter for Jeep Grand Cherokee

Part Numbers:

• 118425

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Taillight Assemblies:

   • Open the tailgate.
   • On both the driver’s and passenger’s sides, locate and remove the clips holding the taillight assemblies in place.

2. Disconnect the Taillight Wiring Harness:

   • Carefully disconnect the vehicle wiring harness from the taillight sockets on both sides.
   • Avoid breaking the locking tabs and set the taillights aside.

3. Route the T-Connector on the Driver’s Side:

   • Underneath the vehicle, route the T-Connector harness with the yellow wire up through the opening between the bumper and body into the driver’s side taillight pocket.
   • Tip: Use a fish wire to assist in pulling the harness through the taillight pocket and rear fascia.

4. Connect the T-Connector on the Driver’s Side:

   • Insert the T-One® T-Connector with the yellow wire between the vehicle’s taillight connector and wiring harness.
   • Ensure all connector surfaces are clean and the connectors are fully inserted with locking tabs secured.

5. Route the Green Wire and 4-Flat Connector:

   • Route the green wire and the 4-flat connector down along the rear bumper fascia toward the center of the vehicle.
   • Continue routing the green wire to the passenger’s side taillight pocket.

6. Connect the T-Connector on the Passenger’s Side:

   • Repeat Steps 3 and 4 for the passenger’s side, using the T-Connector end with the green wire.

   Warning:

   • If routing the wires through a grommet or along the exterior of the vehicle, avoid hot pipes, heat shields, the fuel tank, or areas that may pinch or break the wires.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Alternatively, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or injury.

8. Mount the 4-Flat Connector:

   • Mount the 4-flat connector at the center of the vehicle in a suitable location.
   • Note: A mounting bracket is not included.

9. Secure the Wiring:

   • Secure all loose wires using the provided cable ties to prevent damage or rattling.

10. Test the Installation:

    • Test and verify the installation with a test light or trailer to ensure functionality.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5 amps)

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.
• Overloading circuits can cause fires.

Manufacturer Notes:

• Read and understand all warnings and instructions provided with the product.
• Always wear safety glasses and take necessary precautions during installation.
• Refer to the vehicle owner’s manual for additional information.

Installation Instructions for T-Connector Adapter for Jeep Grand Cherokee

Part Numbers:

• 118425

Tools Required:

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Taillight Assemblies:

   • Open the tailgate.
   • On both the driver’s and passenger’s sides, locate and remove the clips holding the taillight assemblies in place.

2. Disconnect the Taillight Wiring Harness:

   • Carefully disconnect the vehicle wiring harness from the taillight sockets on both sides.
   • Avoid breaking the locking tabs and set the taillights aside.

3. Route the T-Connector on the Driver’s Side:

   • Underneath the vehicle, route the T-Connector harness with the yellow wire up through the opening between the bumper and body into the driver’s side taillight pocket.
   • Tip: Use a fish wire to assist in pulling the harness through the taillight pocket and rear fascia.

4. Connect the T-Connector on the Driver’s Side:

   • Insert the T-One® T-Connector with the yellow wire between the vehicle’s taillight connector and wiring harness.
   • Ensure all connector surfaces are clean and the connectors are fully inserted with locking tabs secured.

5. Route the Green Wire and 4-Flat Connector:

   • Route the green wire and the 4-flat connector down along the rear bumper fascia toward the center of the vehicle.
   • Continue routing the green wire to the passenger’s side taillight pocket.

6. Connect the T-Connector on the Passenger’s Side:

   • Repeat Steps 3 and 4 for the passenger’s side, using the T-Connector end with the green wire.

   Warning:

   • If routing the wires through a grommet or along the exterior of the vehicle, avoid hot pipes, heat shields, the fuel tank, or areas that may pinch or break the wires.

7. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as an existing ground stud.
   • Alternatively, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or injury.

8. Mount the 4-Flat Connector:

   • Mount the 4-flat connector at the center of the vehicle in a suitable location.
   • Note: A mounting bracket is not included.

9. Secure the Wiring:

   • Secure all loose wires using the provided cable ties to prevent damage or rattling.

10. Test the Installation:

    • Test and verify the installation with a test light or trailer to ensure functionality.
    • Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

    Specifications:

    • Max. stop/turn light: 1 per side (2.1 amps)
    • Max. tail lights: (5 amps)

Safety Notes:

• Do not exceed the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.
• Overloading circuits can cause fires.

Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:
For complete warranty instructions, please download the full installation PDF.
