Product Details
- Brand: Reese
- Model: 77302 118431

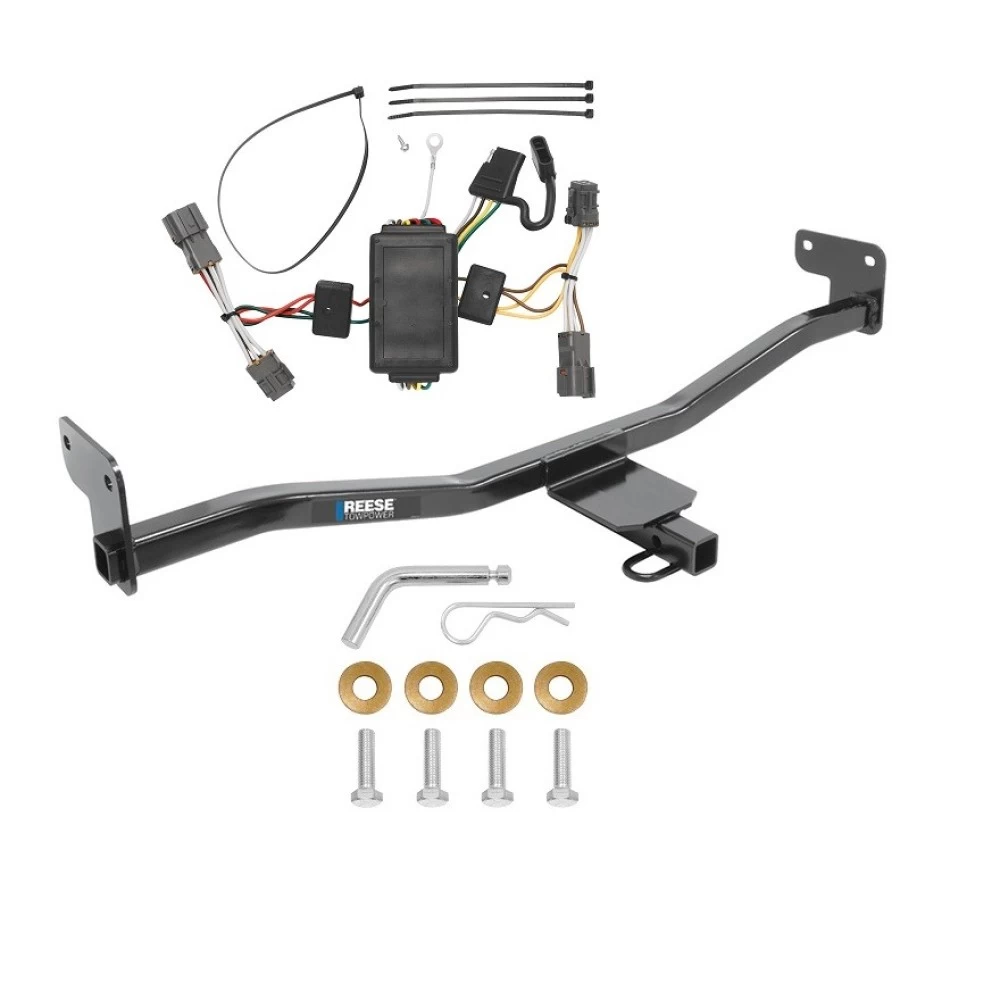

- Includes: Class 1 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Year Range | Make | Model | Style |
---|
Description
Get Expert Help

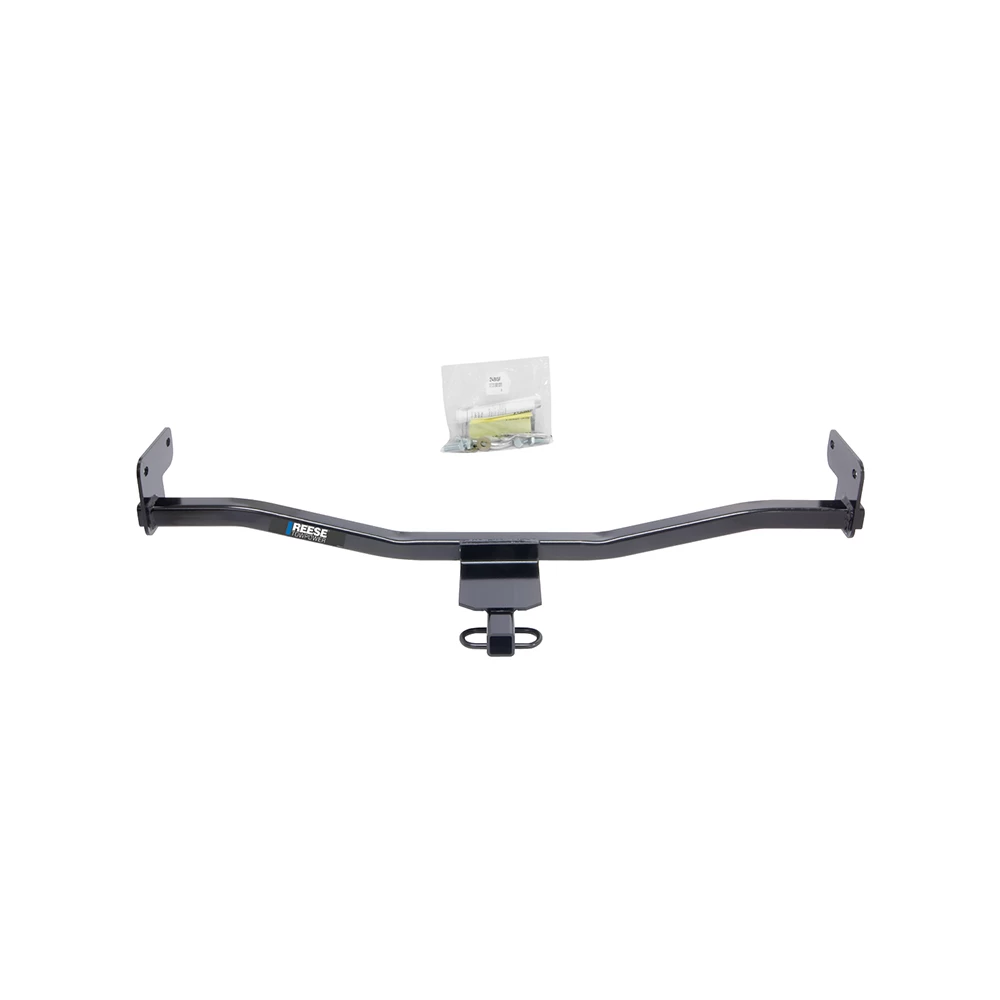

Trailer Hitch w/ Wiring For 14-19 KIA Soul Except w/LED Taillights Class I 1-1/4" Tow Receiver Reese Tekonsha Install Notes
Installation Instructions for Kia Soul
Part Numbers:
- 24915
- 60347
- 77302
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Torque Wrench
- Wrenches/Sockets: 17mm
- Phillips Screwdriver
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the rubber exhaust hanger to lower the exhaust.
-
Remove Inner Wheel Well and Splash Guards:
- Detach the inner wheel well and splash guards on both sides of the vehicle.
-
Remove Tow Hook:
- Remove the tow hook from the passenger-side frame rail and return it to the vehicle owner.
-
Raise Hitch into Position:
- Raise the hitch into position and loosely install the M10 bolts and conical toothed washers as shown in the diagram.
-
Pull Hitch Rearward and Tighten Fasteners:
- Pull the hitch rearward and tighten all fasteners using a torque wrench to the specifications below:
- Torque all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N*M).
- Pull the hitch rearward and tighten all fasteners using a torque wrench to the specifications below:
-
Reinstall Muffler Hanger:
- Reattach the muffler hanger.
-
Reinstall Inner Wheel Well and Splash Guards:
- Reinstall the inner wheel well and splash guards that were removed earlier.

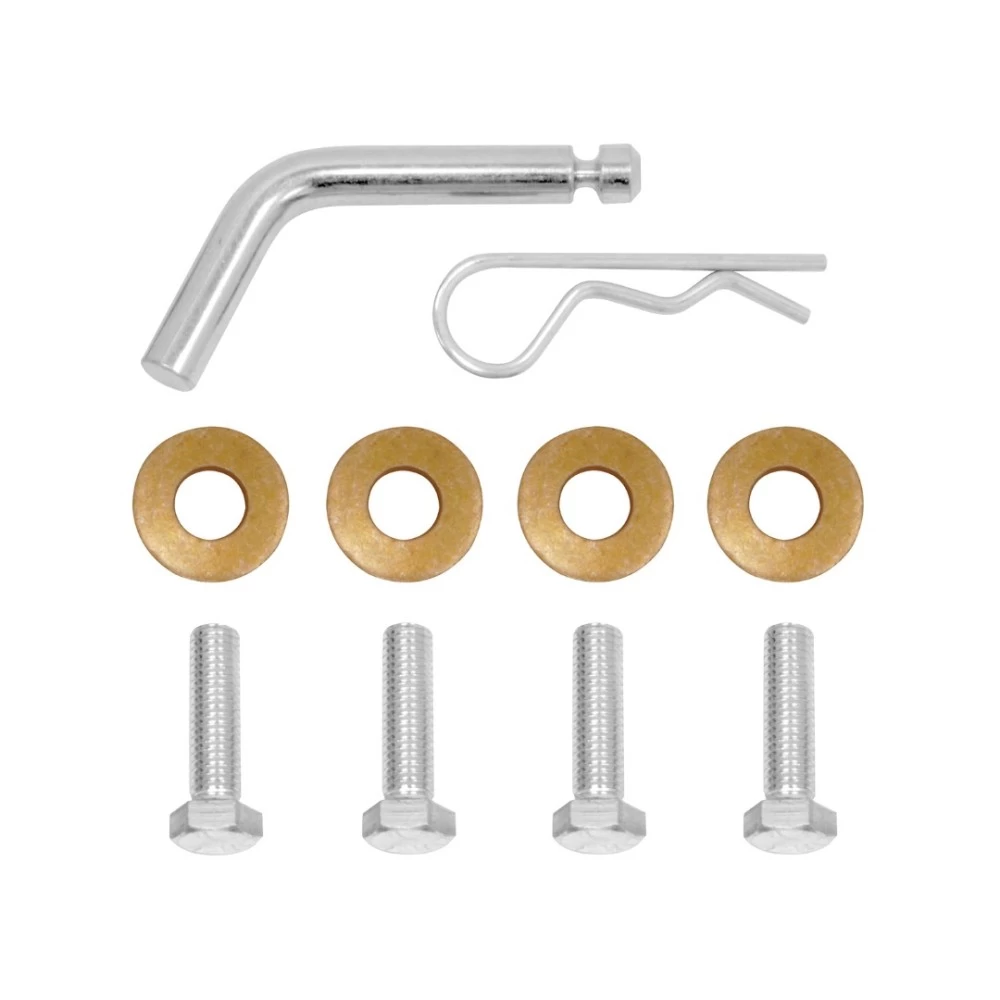

Hardware List:
- (4) Hex Bolts: M10 x 1.25 x 30mm CL8.8
- (4) Conical Toothed Washers: 3/8”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions for Vehicle (All Models)
Part Numbers:
- 24915
- 60347
- 77302
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Torque Wrench
- Wrenches/Sockets: 17mm
- Phillips Screwdriver
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed the towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Lower Exhaust:
- Remove the rubber exhaust hanger to lower the exhaust.
-
Remove Inner Wheel Well and Splash Guards:
- Detach the inner wheel well and splash guards on both sides of the vehicle.
-
Remove Tow Hook:
- Remove the tow hook from the passenger-side frame rail and return it to the vehicle owner.
-
Raise Hitch into Position:
- Raise the hitch into position and loosely install the M10 bolts and conical toothed washers as shown in the diagram.
-
Pull Hitch Rearward and Tighten Fasteners:
- Pull the hitch rearward and tighten all fasteners using a torque wrench to the specifications below:
- Torque all M10 CL8.8 fasteners to 42 Lb.-Ft. (57 N*M).
- Pull the hitch rearward and tighten all fasteners using a torque wrench to the specifications below:
-
Reinstall Muffler Hanger:
- Reattach the muffler hanger.
-
Reinstall Inner Wheel Well and Splash Guards:
- Reinstall the inner wheel well and splash guards that were removed earlier.
Hardware List:
- (4) Hex Bolts: M10 x 1.25 x 30mm CL8.8
- (4) Conical Toothed Washers: 3/8”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not use a torch to cut access or attachment holes.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

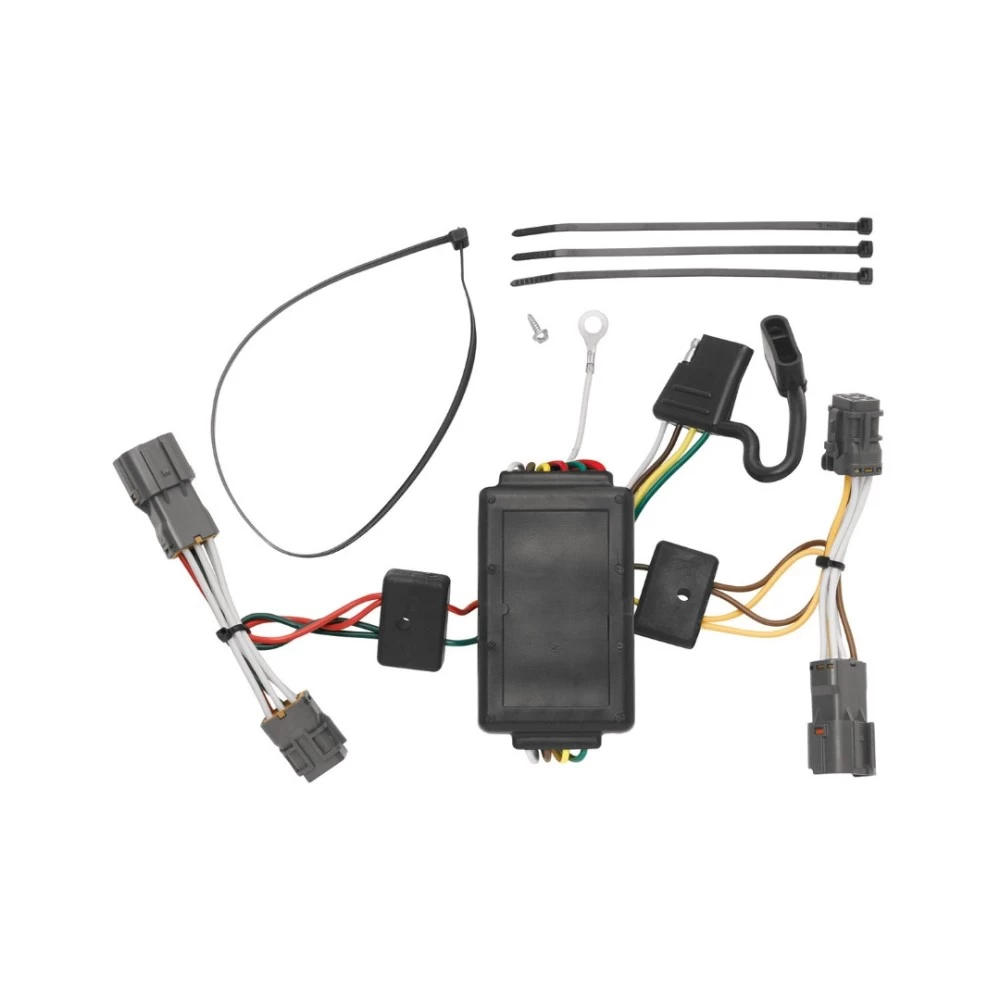

Installation Instructions for T-Connector Adapter for Kia Rondo and Kia Soul
Part Numbers:
- 118431
Tools Required:
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear liftgate.
- On both the driver and passenger sides, remove three screws securing the taillight assemblies.
- Carefully pull the taillight away from the vehicle, ensuring not to damage the alignment pins.
-
Disconnect the Vehicle Wiring Harness:
- Locate the vehicle's taillight wiring harness on both sides.
- Separate the connectors, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs engaged.
-
Route the T-Connector Wiring:
- Route the harness containing the green wire and the 4-flat connector down through the opening behind the driver’s side taillight.
- Continue routing the green wire under the vehicle to the passenger’s side taillight opening.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 on the passenger’s side, using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or any exposed surfaces.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housing assemblies, ensuring the vehicle wiring harness is positioned between the housing and the vehicle body.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional information.
Installation Instructions for T-Connector Adapter for Kia Rondo and Kia Soul
Part Numbers:
- 118431
Tools Required:
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
Step-by-Step Instructions:
-
Remove the Taillight Assemblies:
- Open the rear liftgate.
- On both the driver and passenger sides, remove three screws securing the taillight assemblies.
- Carefully pull the taillight away from the vehicle, ensuring not to damage the alignment pins.
-
Disconnect the Vehicle Wiring Harness:
- Locate the vehicle's taillight wiring harness on both sides.
- Separate the connectors, ensuring not to break the locking tabs. Clean all connector surfaces to remove dirt.
-
Install the Driver-Side T-Connector:
- Insert the T-Connector end with the yellow wire between the vehicle wiring connectors and lock it into place.
- Ensure the connectors are fully inserted with locking tabs engaged.
-
Route the T-Connector Wiring:
- Route the harness containing the green wire and the 4-flat connector down through the opening behind the driver’s side taillight.
- Continue routing the green wire under the vehicle to the passenger’s side taillight opening.
-
Install the Passenger-Side T-Connector:
- Repeat step 3 on the passenger’s side, using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or cross member.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind any surface before drilling to avoid damage or injury. Do not drill into the vehicle floor or any exposed surfaces.
-
Mount the Black Box:
- On the driver’s side, mount the T-Connector’s black box using the provided double-sided tape.
- Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may cut or pinch the wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight housing assemblies, ensuring the vehicle wiring harness is positioned between the housing and the vehicle body.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all warnings and installation instructions provided.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional information.
- For detailed diagrams and step-by-step visuals, download the complete installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
