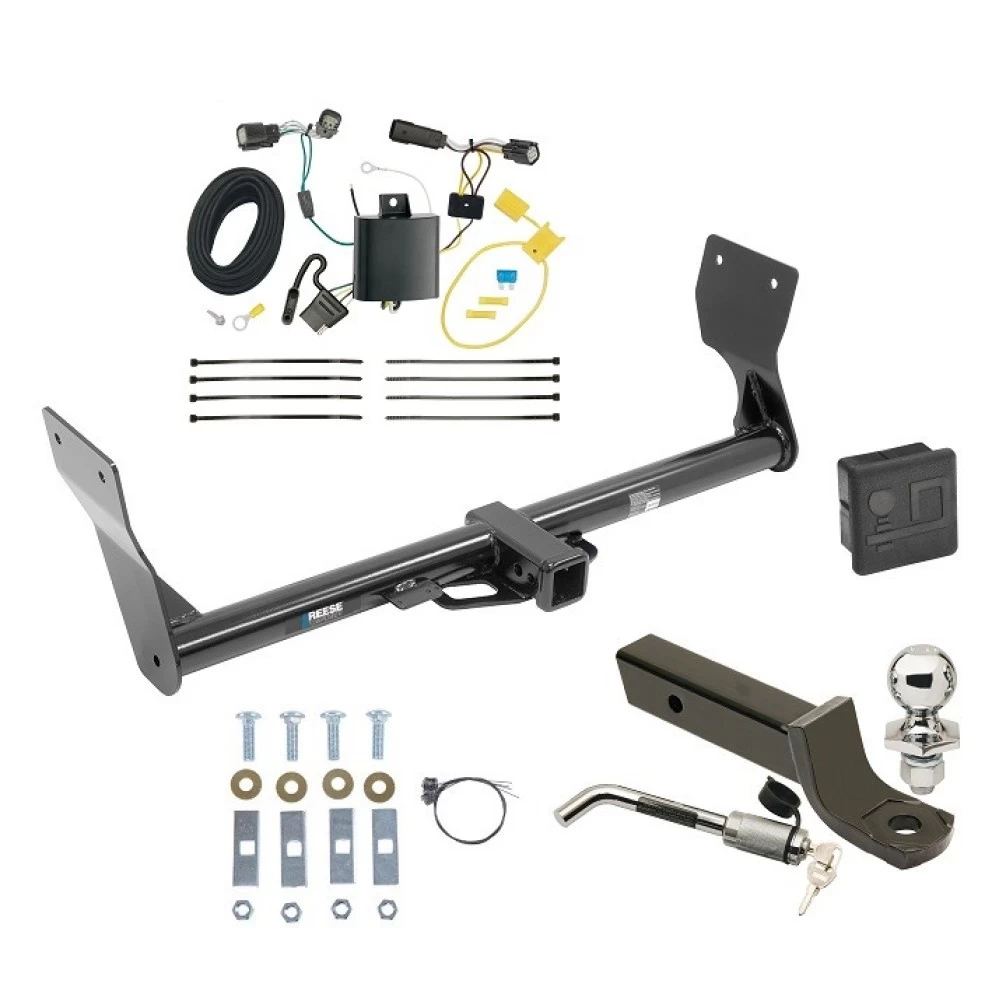

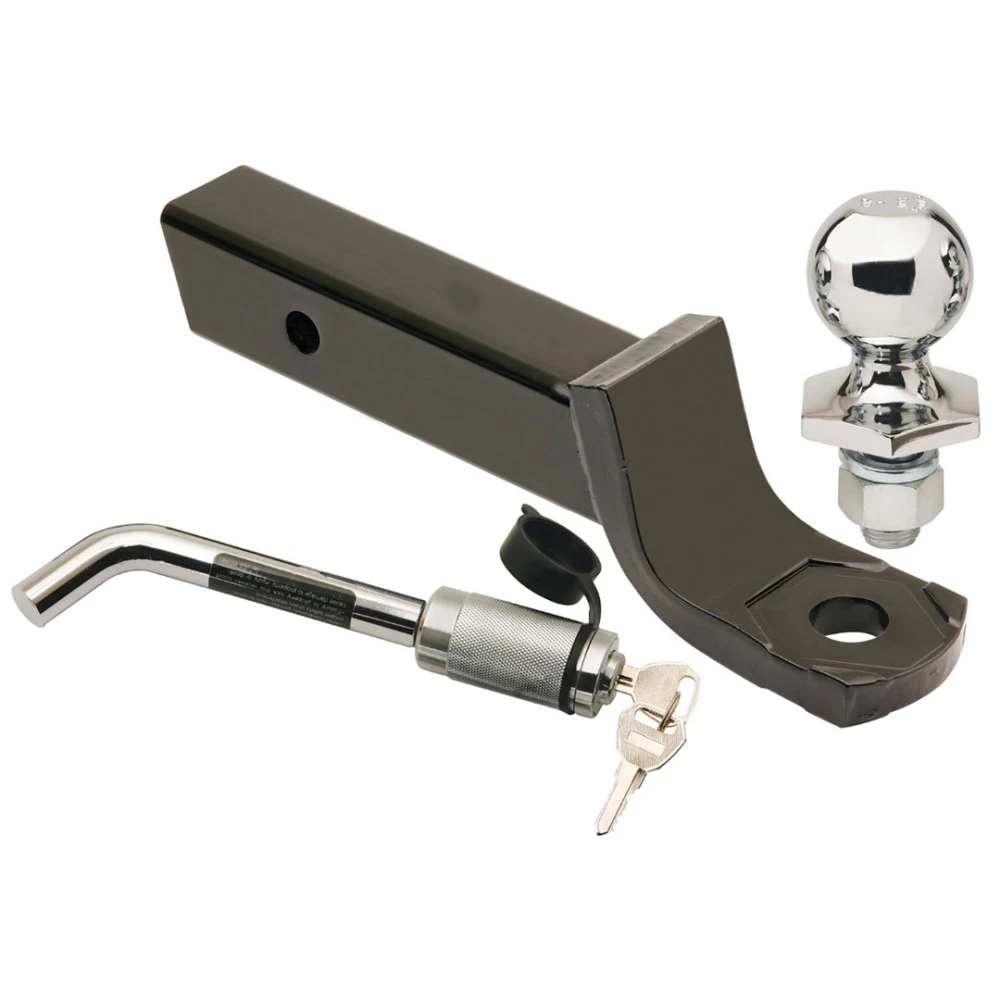

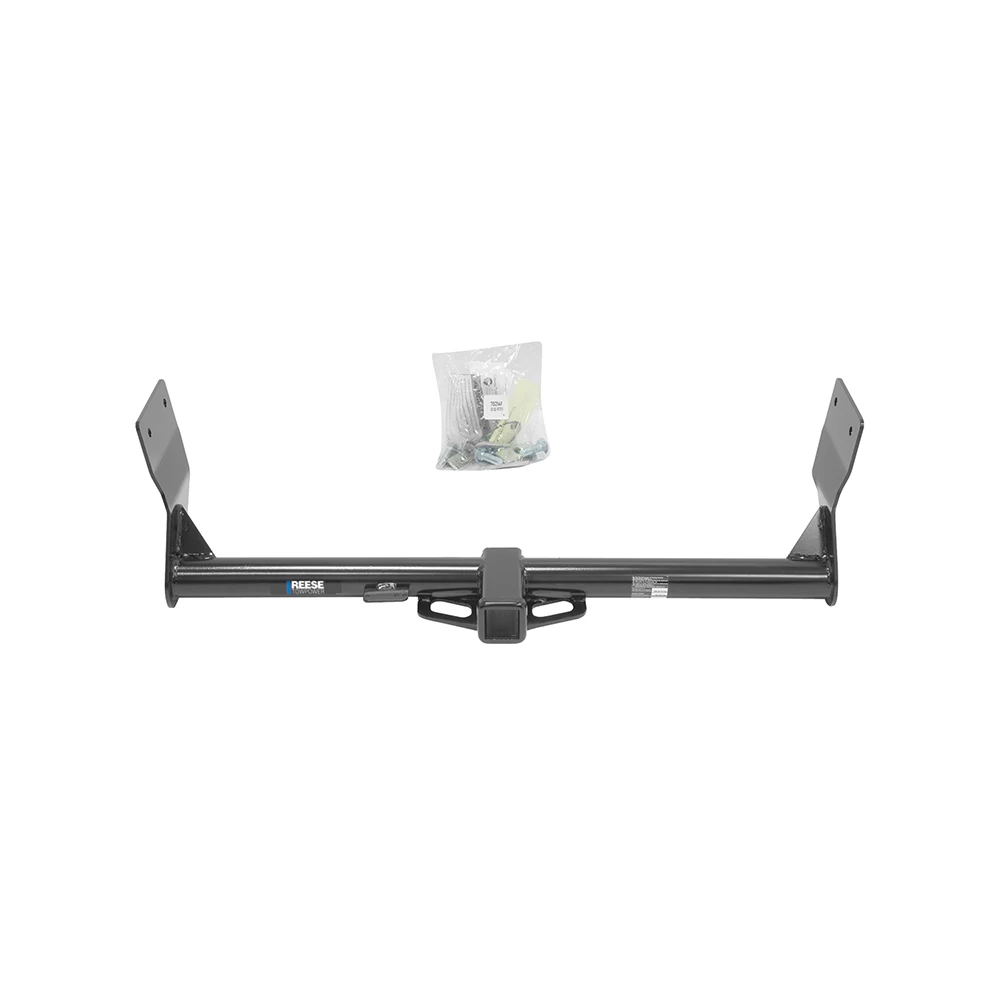

Installation Instructions for Ford Edge

Part Numbers:

• 75214
• 87684
• 44766

Applications:

• 2015-Current Ford Edge (Visit the manufacturer's website for the most up-to-date information regarding application years and trim levels.)

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Ratchet
• Torque Wrench
• Sockets: 5.5mm, 10mm, 3/4"
• Flat Head Screwdriver
• Utility Knife
• Lubricant or Soapy Water
• Marker
• Tape Measure
• File

Installation Time:

• Approximately 30 minutes (for professional installers)

Step-by-Step Instructions:

1. Remove Appearance Panels:

   • On both sides near the wheel well, remove the panels covering the frame rails.
   • Remove (2) hex nuts (M10 socket) and (2) hex nuts (M5.5 socket) from the bottom of the frame rails on each side.
   • Trim or remove the panels once the hitch is in place.

2. Lower the Exhaust:

   • Disconnect the rubber isolators on both sides of the exhaust. Support the exhaust to prevent damage.
   • Note: Spraying a lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal.

3. Install Fasteners:

   • Feed the coiled end of the pull wire through the rearward hole and out the access hole.
   • Attach the spacer and carriage bolt to the pull wire, then feed the fasteners into position through the hole.
   • Repeat the process for both frame rails. For forward holes, repeat as necessary.
   • If the carriage bolt is a tight fit, use a file or wrench to widen the access hole (see Figure 3).

4. Position the Fasteners:

   • Pull the pull wire with fasteners into position. Leave the pull wires attached.
   • Push the fasteners back into the frame rails with the pull wires to allow the hitch to go into position.

5. Raise the Hitch:

   • Feed the pull wires through the hitch holes, then pull the fasteners back through the frame rails and hitch brackets.

6. Secure the Hitch:

   • Feed a conical washer over the pull wire, then use the washer to hold the bolt in place.
   • Remove the pull wires and attach the hex nuts. Tighten to hold the hitch in place.
   • Push the hitch upward into the frame and tighten all fasteners.

7. Torque Specifications:

   • Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).

8. Reinstall the Exhaust:

   • Raise the exhaust back into position, using lubricant or soapy water on the metal hanger rod.
   • Work on one side at a time. Push the rubber isolator outward while attaching the remaining metal rod into position.

9. Trim Appearance Panels:

   • If necessary, trim the panels removed in step 1 or return them to the owner.
   • Use a marker to outline the area to be trimmed, then use a utility knife to trim. Reinstall the panels.

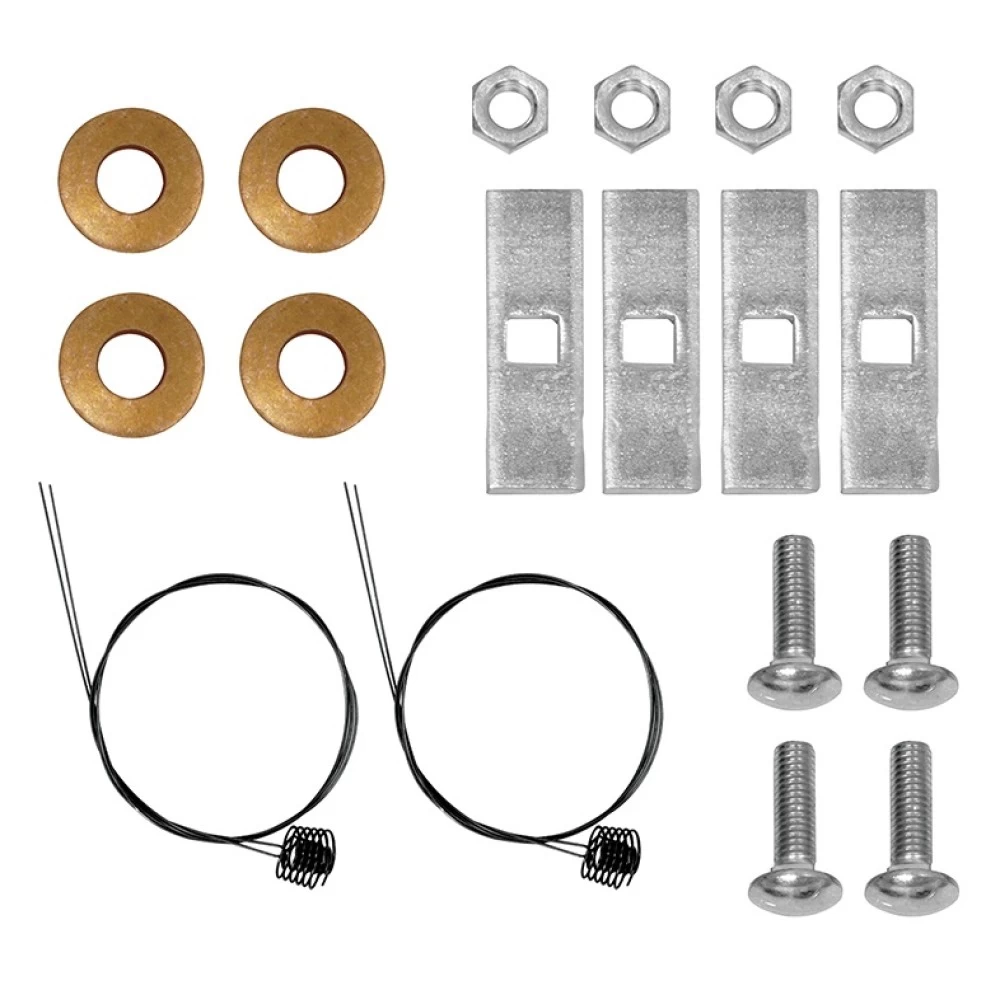

Hardware List:

• (4) 1/2-13 x 1.75 GR5 Carriage Bolts
• (4) 0.250 x 1 x 3 Spacers
• (4) 1/2” Conical Washers
• (4) 1/2-13 GR2 Hex Nuts
• (4) 1/2-13 Pull Wires

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
  • Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Ford Edge

Part Numbers:

• 75214
• 87684
• 44766

Applications:

• 2015-Current Ford Edge
  (Visit the manufacturer's website for the most up-to-date information regarding application years and trim levels.)

Wiring Access Location:

• SUV3, SUV4

Tools Required:

• Ratchet
• Torque Wrench
• Sockets: 5.5mm, 10mm, 3/4"
• Flat Head Screwdriver
• Utility Knife
• Lubricant or Soapy Water
• Marker
• Tape Measure
• File

Installation Time:

• Approximately 30 minutes (for professional installers)

Step-by-Step Instructions:

1. Remove Appearance Panels:

   • On both sides near the wheel well, remove the panels covering the frame rails.
   • Remove (2) hex nuts (M10 socket) and (2) hex nuts (M5.5 socket) from the bottom of the frame rails on each side.
   • Trim or remove the panels once the hitch is in place.

2. Lower the Exhaust:

   • Disconnect the rubber isolators on both sides of the exhaust. Support the exhaust to prevent damage.
   • Note: Spraying a lubricant or soapy water on the metal hanger rod and rubber isolator helps with removal.

3. Install Fasteners:

   • Feed the coiled end of the pull wire through the rearward hole and out the access hole.
   • Attach the spacer and carriage bolt to the pull wire, then feed the fasteners into position through the hole.
   • Repeat the process for both frame rails. For forward holes, repeat as necessary.
   • If the carriage bolt is a tight fit, use a file or wrench to widen the access hole (see Figure 3).

4. Position the Fasteners:

   • Pull the pull wire with fasteners into position. Leave the pull wires attached.
   • Push the fasteners back into the frame rails with the pull wires to allow the hitch to go into position.

5. Raise the Hitch:

   • Feed the pull wires through the hitch holes, then pull the fasteners back through the frame rails and hitch brackets.

6. Secure the Hitch:

   • Feed a conical washer over the pull wire, then use the washer to hold the bolt in place.
   • Remove the pull wires and attach the hex nuts. Tighten to hold the hitch in place.
   • Push the hitch upward into the frame and tighten all fasteners.

7. Torque Specifications:

   • Tighten all 1/2-13 GR5 fasteners with a torque wrench to 75 lb-ft (102 N·m).

8. Reinstall the Exhaust:

   • Raise the exhaust back into position, using lubricant or soapy water on the metal hanger rod.
   • Work on one side at a time. Push the rubber isolator outward while attaching the remaining metal rod into position.

9. Trim Appearance Panels:

   • If necessary, trim the panels removed in step 1 or return them to the owner.
   • Use a marker to outline the area to be trimmed, then use a utility knife to trim. Reinstall the panels.

Hardware List:

• (4) 1/2-13 x 1.75 GR5 Carriage Bolts
• (4) 0.250 x 1 x 3 Spacers
• (4) 1/2” Conical Washers
• (4) 1/2-13 GR2 Hex Nuts
• (4) 1/2-13 Pull Wires

Safety Notes:

• Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Follow all safety precautions when working beneath the vehicle, and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Hitch Type and Weight Ratings:
  • Weight Carrying: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
  • Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 600 lbs (272 kg).
• Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Installation Instructions for T-One® T-Connector for Ford Edge

Part Numbers:

• 118669

Tools Required:

• 2 Phillips Screwdriver

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Remove Taillight Assemblies:

   • Open the tailgate and remove the vehicle’s taillight assemblies using a trim panel remover to expose the taillight screws.
   • Remove the screws and carefully pull the taillight away from the vehicle without damaging alignment pins.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • On the driver’s side, route the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket.

3. Install the Driver-Side T-Connector:

   • Plug the T-Connector with the yellow wire between the mating plugs on the driver-side taillight socket and vehicle wiring harness.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire to the passenger side under the bumper.
   • Insert the green wire through the opening on the passenger side and connect it to the taillight socket, following the same procedure as the driver side.

   Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or areas where wires could be pinched.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.

   Caution: Verify the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black 12-gauge wire to the other end of the fuse holder using the yellow butt connector.
   • Route the black wire along the frame rail to the rear driver’s side.

7. Attach the Black Wire:

   • Route the black wire through the opening between the vehicle’s rear bumper and body.
   • Connect the black wire to the T-Connector black box using the supplied yellow butt connector.

8. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

9. Mount the Black Box:

   • Locate a flat surface near the driver’s side taillight and mount the T-Connector’s black converter box using the double-sided tape provided.

   Warning: Ensure the epoxy side of the module faces downward to prevent water accumulation.

10. Secure the Harness:

    • Use the provided cable ties to secure the remainder of the T-Connector harness under the bumper, avoiding areas that may cut or pinch the wire.

11. Reinstall Components:

    • Reinstall the taillight housing assemblies, ensuring the wiring is positioned properly between the housing and vehicle body.
    • Replace any panels or trim pieces removed during installation.

12. Store the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the vehicle manufacturer’s ratings or stated product specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Ford Edge

Part Numbers:

• 118669

Tools Required:

• 2 Phillips Screwdriver

• Trim Panel Remover
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Test Probe

Step-by-Step Instructions:

1. Remove Taillight Assemblies:

   • Open the tailgate and remove the vehicle’s taillight assemblies using a trim panel remover to expose the taillight screws.
   • Remove the screws and carefully pull the taillight away from the vehicle without damaging alignment pins.

2. Disconnect the Wiring Harness:

   • Disconnect the vehicle wiring harness from both taillight sockets.
   • On the driver’s side, route the T-Connector end with yellow wires up between the bumper and vehicle body into the taillight pocket.

3. Install the Driver-Side T-Connector:

   • Plug the T-Connector with the yellow wire between the mating plugs on the driver-side taillight socket and vehicle wiring harness.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector with the green wire to the passenger side under the bumper.
   • Insert the green wire through the opening on the passenger side and connect it to the taillight socket, following the same procedure as the driver side.

   Warning: Avoid routing near hot pipes, heat shields, fuel tanks, or areas where wires could be pinched.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector.
   • Clean the area of dirt and rustproofing, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.

   Caution: Verify the surface before drilling to avoid damage or injury.

6. Connect the Power Wire:

   • Disconnect the vehicle’s negative (-) battery cable.
   • Attach the fuse holder to the positive (+) battery cable using the provided ring terminal.
   • Connect the black 12-gauge wire to the other end of the fuse holder using the yellow butt connector.
   • Route the black wire along the frame rail to the rear driver’s side.

7. Attach the Black Wire:

   • Route the black wire through the opening between the vehicle’s rear bumper and body.
   • Connect the black wire to the T-Connector black box using the supplied yellow butt connector.

8. Reconnect the Battery:

   • Reconnect the vehicle’s negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation with a test light or trailer.

9. Mount the Black Box:

   • Locate a flat surface near the driver’s side taillight and mount the T-Connector’s black converter box using the double-sided tape provided.

   Warning: Ensure the epoxy side of the module faces downward to prevent water accumulation.

10. Secure the Harness:

    • Use the provided cable ties to secure the remainder of the T-Connector harness under the bumper, avoiding areas that may cut or pinch the wire.

11. Reinstall Components:

    • Reinstall the taillight housing assemblies, ensuring the wiring is positioned properly between the housing and vehicle body.
    • Replace any panels or trim pieces removed during installation.

12. Store the 4-Flat Connector:

    • Mount the 4-flat connector in a suitable location under the vehicle. (Bracket not included.)

Specifications:

• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: 7.5 amps

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the vehicle manufacturer’s ratings or stated product specifications.
• Always wear safety glasses and follow safety precautions during installation.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual for additional information.
• Store these instructions for future reference.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:

For complete warranty instructions, please download the full installation PDF.
