Product Details
- Brand: Reese
- Model: 84020 118278
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness
Compatibility Chart
Description
Get Expert Help

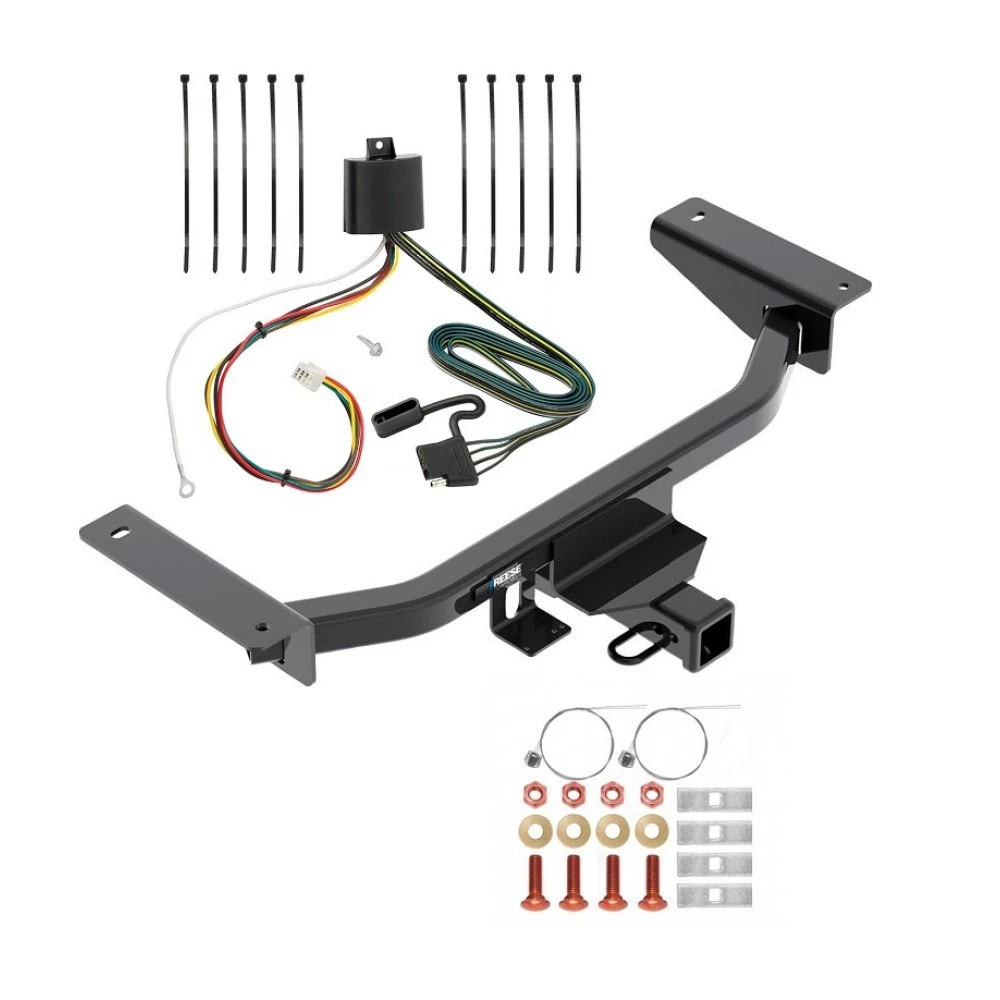

Trailer Hitch w/ Wiring For 16-23 Mazda CX-9 Class 3 2" Tow Receiver Reese Tekonsha Install Notes

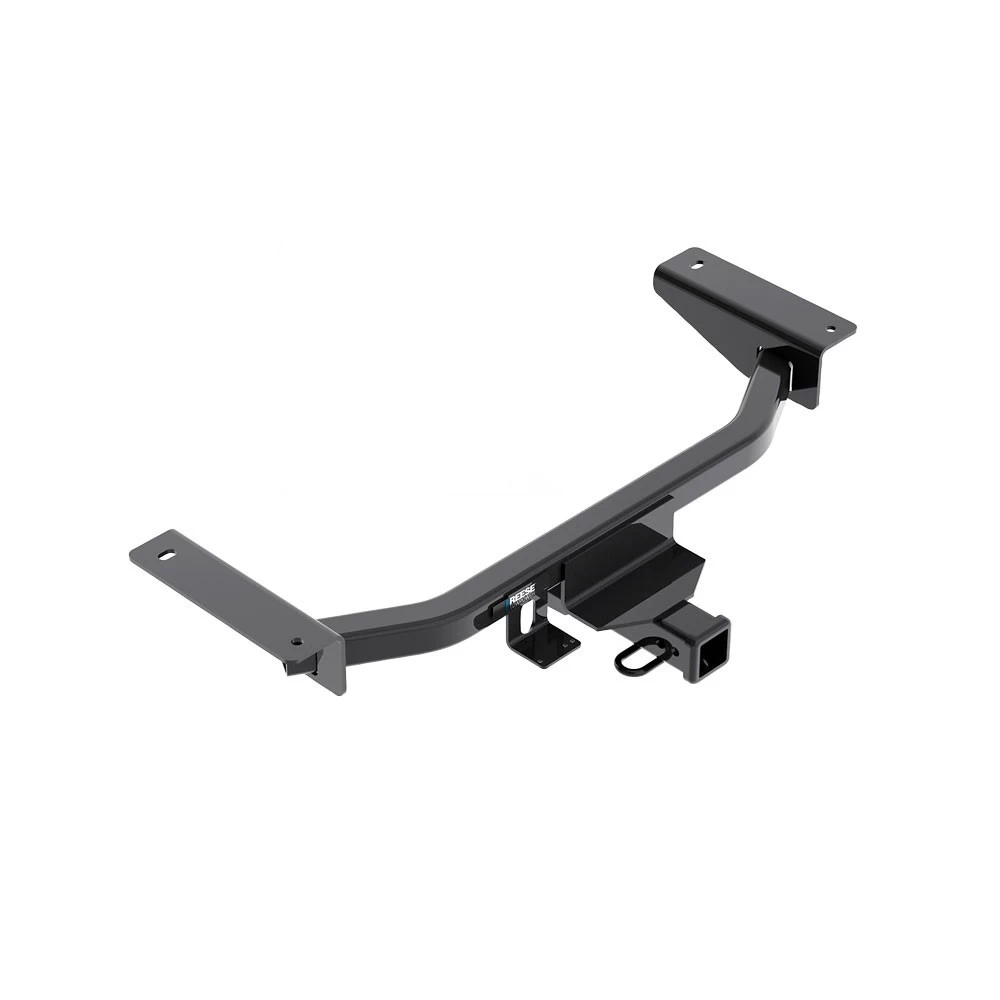

Installation Instructions for Mazda CX-9 (2016-Current)
Part Numbers:
- 76020
- 84020
- CQT76020
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7/8”, 10mm
- Flat Head Screwdriver
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Remove Lower Trim Panel:
- Remove plastic expanding fasteners and detach the lower trim panel.
- Return the panel to the vehicle owner.
-
Lower the Exhaust:
- Use exhaust removal pliers to pry off four (4) rubber exhaust hangers.
- Spray with soapy water to ease removal and ensure the exhaust system is properly supported during the process.
-
Fishwire Forward Bolts:
- Using the fishwire method, insert carriage bolts and spacer blocks through the access hole into the forward attachment holes.
- Leave the pull wires attached.
-
Fishwire Rearward Bolts:
- Using the reverse fishwire method, insert the carriage bolts and blocks into the rearward attachment holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position and guide the fishwire ends through the attachment holes.
- Remove the pull wires and secure the hitch using conical washers (teeth side toward hitch) and 1/2" hex nuts.
- Ensure no wires or components are pinched between the hitch and the vehicle frame.
-
Tighten Fasteners:
- Use a torque wrench to tighten all hitch fasteners to 110 lb-ft (149 N·m).
-
Reinstall Exhaust Hangers:
- Raise the exhaust back into position and reinstall all exhaust hangers securely.

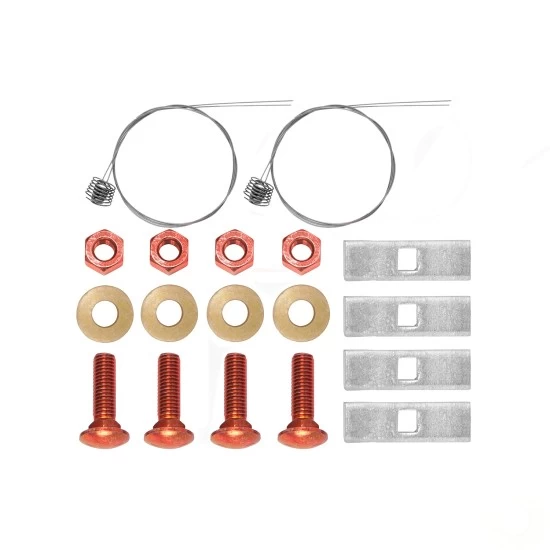

Hardware List:
- (4) 1/2”-13 x 1.75” Grade 8 Carriage Bolts
- (4) 1/2” Conical Washers
- (4) 1/4” x 1” x 3” Spacer Blocks
- (4) 1/2”-13 Grade 8 Hex Nuts
- (4) 1/2” Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 30 minutes for a professional installer.
- If you are not comfortable performing the installation, contact a professional installer.
Installation Instructions for Vehicle (2016-Current)
Part Numbers:
- 76020
- 84020
- CQT76020
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 7/8”, 10mm
- Flat Head Screwdriver
- Exhaust Removal Pliers
- 6” Socket Extension
Wiring Access Location:
- N/A
Step-by-Step Instructions:
-
Remove Lower Trim Panel:
- Remove plastic expanding fasteners and detach the lower trim panel.
- Return the panel to the vehicle owner.
-
Lower the Exhaust:
- Use exhaust removal pliers to pry off four (4) rubber exhaust hangers.
- Spray with soapy water to ease removal and ensure the exhaust system is properly supported during the process.
-
Fishwire Forward Bolts:
- Using the fishwire method, insert carriage bolts and spacer blocks through the access hole into the forward attachment holes.
- Leave the pull wires attached.
-
Fishwire Rearward Bolts:
- Using the reverse fishwire method, insert the carriage bolts and blocks into the rearward attachment holes.
- Leave the pull wires attached.
-
Install Hitch:
- Raise the hitch into position and guide the fishwire ends through the attachment holes.
- Remove the pull wires and secure the hitch using conical washers (teeth side toward hitch) and 1/2" hex nuts.
- Ensure no wires or components are pinched between the hitch and the vehicle frame.
-
Tighten Fasteners:
- Use a torque wrench to tighten all hitch fasteners to 110 lb-ft (149 N·m).
-
Reinstall Exhaust Hangers:
- Raise the exhaust back into position and reinstall all exhaust hangers securely.
Hardware List:
- (4) 1/2”-13 x 1.75” Grade 8 Carriage Bolts
- (4) 1/2” Conical Washers
- (4) 1/4” x 1” x 3” Spacer Blocks
- (4) 1/2”-13 Grade 8 Hex Nuts
- (4) 1/2” Pull Wires
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Installation time is approximately 30 minutes for a professional installer.
- If you are not comfortable performing the installation, contact a professional installer.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.

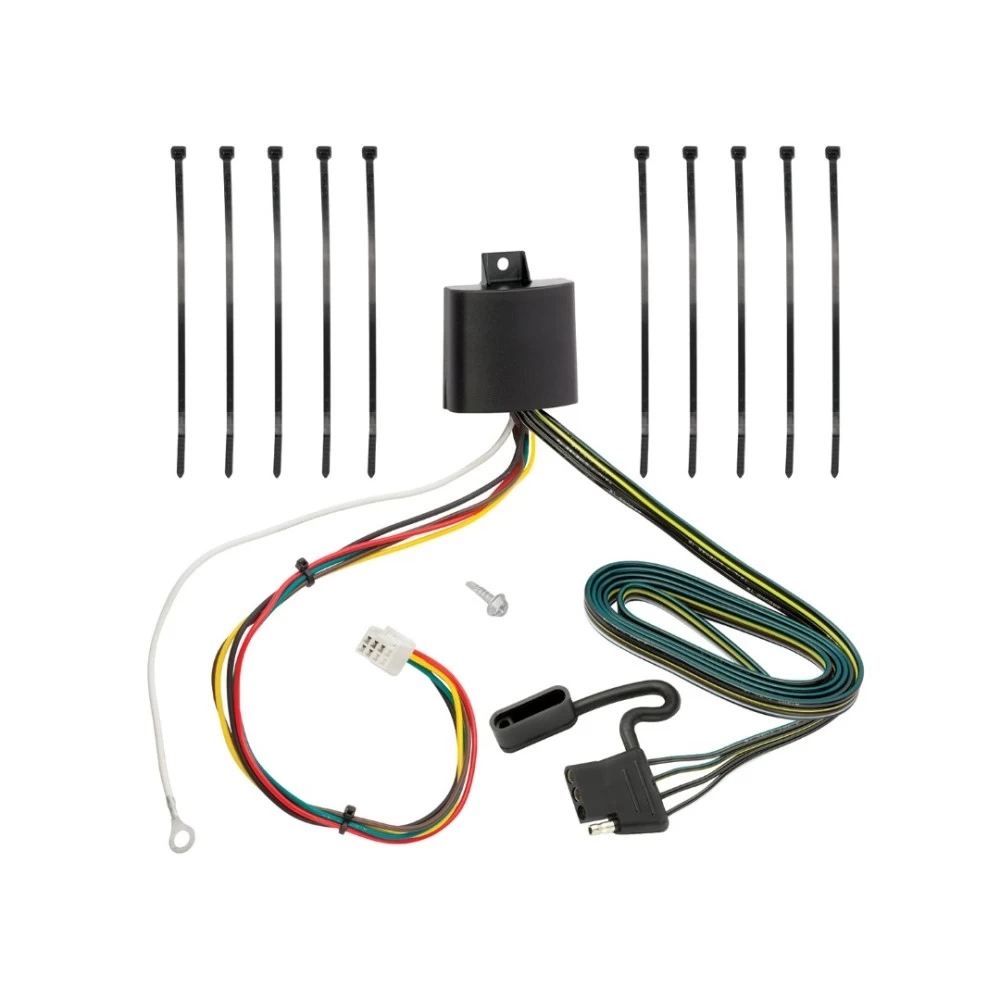

Installation Instructions for T-One® T-Connector for Mazda CX-9
Part Numbers:
- 118278
Tools Required:
- Trim Panel Puller
- Test Probe
- 10mm Socket or Wrench
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- Temporarily remove all floor coverings to expose the spare tire compartment.
-
Remove the Threshold Plate:
- Using a trim panel tool, carefully pry the threshold plate away from the vehicle, being cautious not to damage any clips.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on the passenger side of the vehicle only.
- Remove several trim panel fasteners to allow panel removal.
-
Connect the T-One® Harness:
- Locate the vehicle’s trailer tow plug behind the trim panel removed in Step 3.
- Insert the 8-pin tow plug adapter and lock it into place. Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate the existing ground stud near the tow plug connector.
- Loosen the nut, place the T-One® Connector’s white wire with the ring terminal on the stud, and retighten the nut.
- Ensure all existing ground connections are still attached.
-
Mount the Black Box Module:
- Locate a flat surface in an out-of-the-way place and mount the T-One® Connector’s black box module to prevent damage or rattling.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.
-
Test the Installation:
- Verify all connections are complete and test the installation with a test light or trailer.
- For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector
Part Numbers:
- 118278
Tools Required:
- Trim Panel Puller
- Test Probe
- 10mm Socket or Wrench
Step-by-Step Instructions:
-
Prepare the Vehicle:
- Open the rear tailgate and remove cargo nets and the cargo floor hatch to access the spare tire area.
- Temporarily remove all floor coverings to expose the spare tire compartment.
-
Remove the Threshold Plate:
- Using a trim panel tool, carefully pry the threshold plate away from the vehicle, being cautious not to damage any clips.
-
Remove Interior Trim Panels:
- Partially remove the lower interior trim panels on the passenger side of the vehicle only.
- Remove several trim panel fasteners to allow panel removal.
-
Connect the T-One® Harness:
- Locate the vehicle’s trailer tow plug behind the trim panel removed in Step 3.
- Insert the 8-pin tow plug adapter and lock it into place. Ensure the connectors are fully inserted with locking tabs in place.
-
Ground the White Wire:
- Locate the existing ground stud near the tow plug connector.
- Loosen the nut, place the T-One® Connector’s white wire with the ring terminal on the stud, and retighten the nut.
- Ensure all existing ground connections are still attached.
-
Mount the Black Box Module:
- Locate a flat surface in an out-of-the-way place and mount the T-One® Connector’s black box module to prevent damage or rattling.
-
Secure the Wiring Harness:
- Use the provided cable ties to secure the T-One® Connector harness, avoiding areas that may pinch, cut, or melt the wire.
-
Reassemble the Vehicle:
- Reinstall the plastic trim panels, threshold, storage covers, floor covering, and any other items removed during installation, ensuring no wires are pinched or damaged.
-
Test the Installation:
- Verify all connections are complete and test the installation with a test light or trailer.
- For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
- Always wear safety glasses and follow safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For warranty duration and coverage details, please download the full installation PDF.
