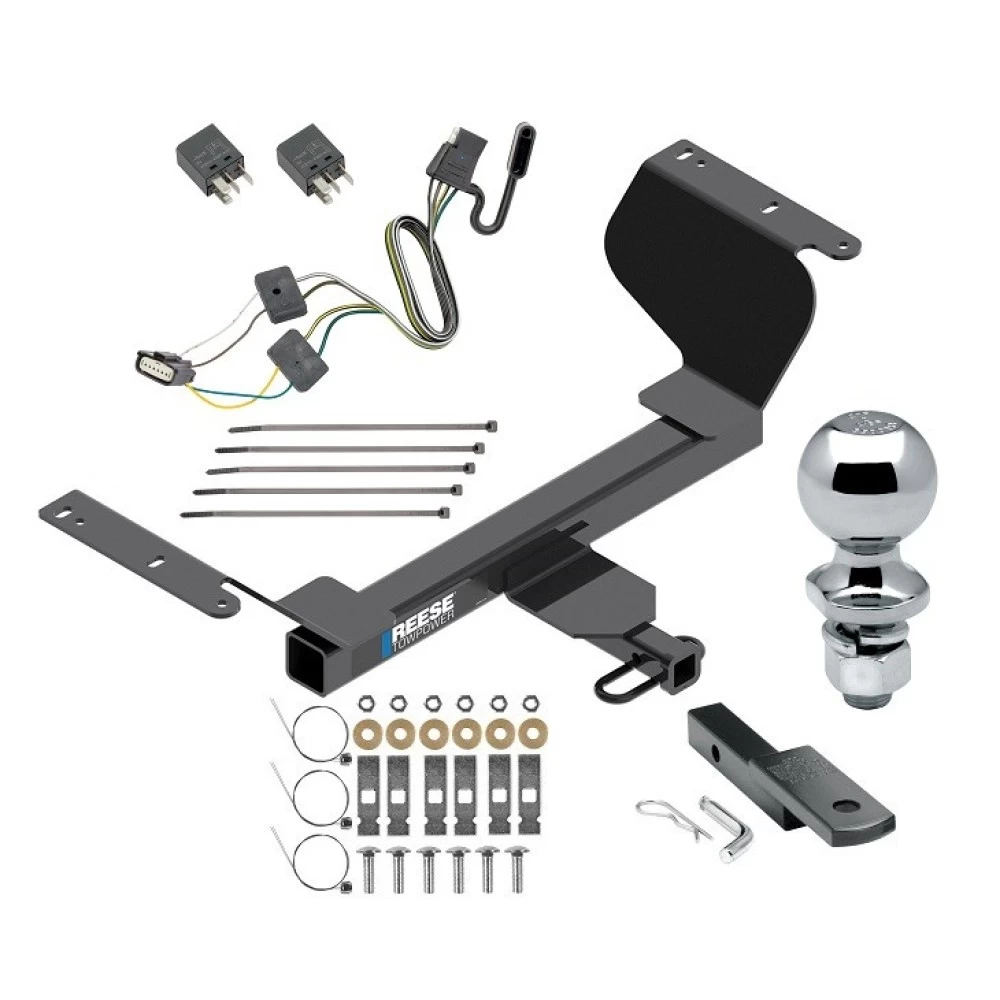

Installation Instructions for Chevrolet Equinox and GMC Terrain (2018-Current)

Part Numbers:

• 36642
• 06180
• CQT36642

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 15mm Socket
• T15 Torx Bit
• 6" Socket Extension
• Pliers
• Lubricant or Soapy Water

Installation Time:

• Estimated: 35 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Muffler:

   • Spray lubricant on the rubber isolators to make them easier to remove.
   • Remove two (2) screws from the bottom of the rear fascia using a T15 Torx bit.
   • Remove two (2) bolts per exhaust hanger bracket using a 15mm socket and detach the brackets from the hanger tabs.
   • Remove the rubber isolator from the hanger in front of the muffler.
   • Lower the exhaust one side at a time by pulling on the rear fascia for clearance.
   • On the passenger side, if additional clearance is needed, pull the wire harness off the frame and reinstall it after hitch installation.

2. Install Hardware:

   • Feed the coiled end of the pull wire through an attachment hole in the frame and out of the access hole.
   • Attach a spacer and carriage bolt to the pull wire and pull the hardware into position (three per side).
   • Leave the pull wires attached until the hitch is in place to prevent the hardware from being pushed back into the frame.

3. Position and Secure the Hitch:

   • Raise the hitch into position, being careful not to push the hardware back into the frame.
   • Loosely install the provided conical washers (teeth side facing the hitch) and hex nuts onto the carriage bolts.

4. Reattach Exhaust:

   • Raise the muffler back into place and reattach the brackets and rubber isolators by reversing the steps from Step 1.

5. Tighten Fasteners:

   • Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Torque Specifications:

• 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)

Hardware List:

• (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
• (6) Spacer Blocks, 1/4" x 7/8" x 3"
• (6) Conical Washers, 7/16"
• (6) Hex Nuts, 7/16"-14
• (6) Pull Wires, 7/16"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36061 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36642F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Installation Instructions for Vehicles (Excluding Quad Exhaust Models)

Part Numbers:

• 36642
• 06180
• CQT36642

Wiring Access Location:

• SUV1, SUV2

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Flat Head Screwdriver
• 15mm Socket
• T15 Torx Bit
• 6" Socket Extension
• Pliers
• Lubricant or Soapy Water

Installation Time:

• Estimated: 35 minutes (for professional installers)

Step-by-Step Instructions:

1. Lower Muffler:

   • Spray lubricant on the rubber isolators to make them easier to remove.
   • Remove two (2) screws from the bottom of the rear fascia using a T15 Torx bit.
   • Remove two (2) bolts per exhaust hanger bracket using a 15mm socket and detach the brackets from the hanger tabs.
   • Remove the rubber isolator from the hanger in front of the muffler.
   • Lower the exhaust one side at a time by pulling on the rear fascia for clearance.
   • On the passenger side, if additional clearance is needed, pull the wire harness off the frame and reinstall it after hitch installation.

2. Install Hardware:

   • Feed the coiled end of the pull wire through an attachment hole in the frame and out of the access hole.
   • Attach a spacer and carriage bolt to the pull wire and pull the hardware into position (three per side).
   • Leave the pull wires attached until the hitch is in place to prevent the hardware from being pushed back into the frame.

3. Position and Secure the Hitch:

   • Raise the hitch into position, being careful not to push the hardware back into the frame.
   • Loosely install the provided conical washers (teeth side facing the hitch) and hex nuts onto the carriage bolts.

4. Reattach Exhaust:

   • Raise the muffler back into place and reattach the brackets and rubber isolators by reversing the steps from Step 1.

5. Tighten Fasteners:

   • Use a torque wrench to tighten all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m).

Torque Specifications:

• 7/16"-14 GR5 bolts: 50 ft-lb (68 N*m)

Hardware List:

• (6) Carriage Bolts, 7/16"-14 x 1.50" GR5
• (6) Spacer Blocks, 1/4" x 7/8" x 3"
• (6) Conical Washers, 7/16"
• (6) Hex Nuts, 7/16"-14
• (6) Pull Wires, 7/16"

Safety Notes:

• Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Observe safety precautions when working beneath the vehicle and wear eye protection.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight: 3,500 lb (1,589 kg)
• Max Tongue Weight: 350 lb (159 kg)

Additional Notes:

• Authorized Drawbar Kit: 36061 (sold separately; must be used in the RISE position only)
• Fastener Kit: 36642F
• This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Warranty: This product is backed by a limited warranty. For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

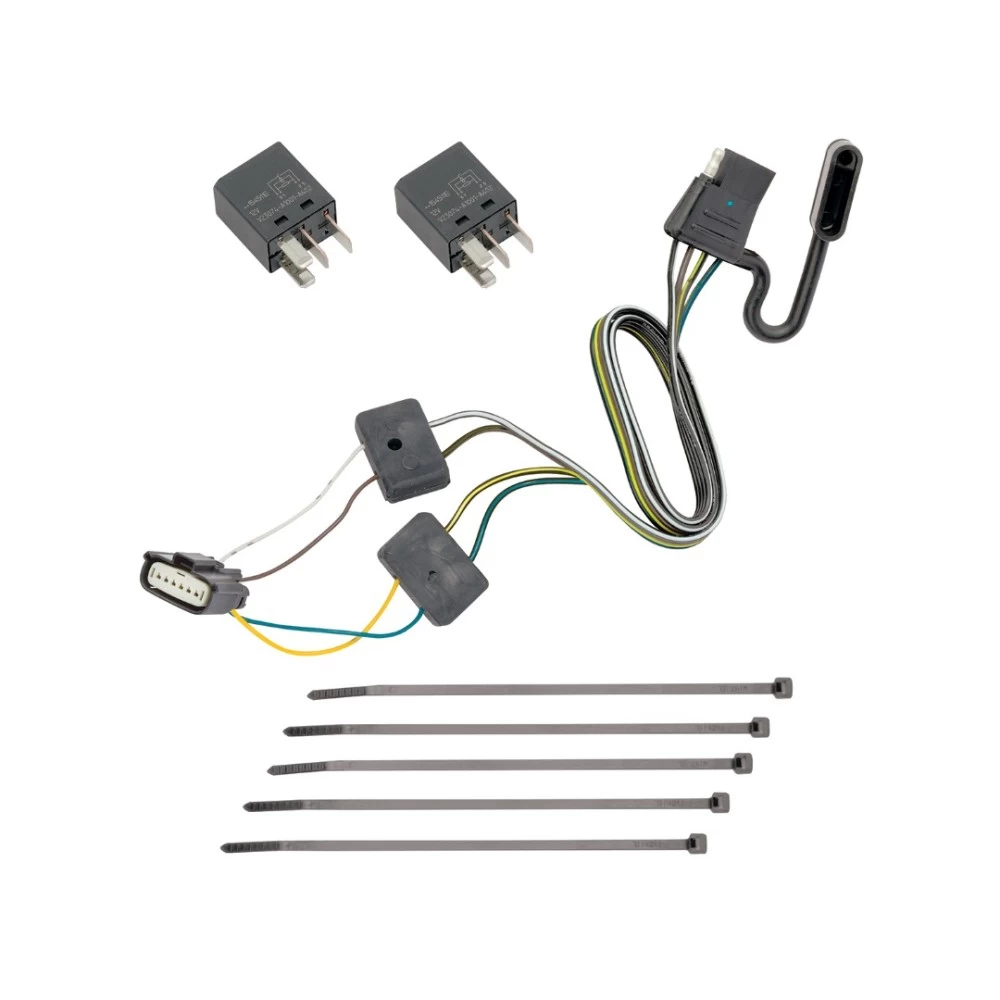

Installation Instructions for T-One® T-Connector for GMC Terrain and Chevrolet Equinox

Part Numbers:

• 118285

Tools Required:

• Trim Panel Puller
• Test Probe

Step-by-Step Instructions:

1. Access the Fuse and Relay Panel:

   • Open the rear lift gate and remove the access panel on the driver’s side to locate the fuse and relay panel.
   • Locate relay positions K1 and K3:
     • If relays are present, the included relays will not be used.
     • If no relays are present, install the included relays into positions K1 (Trailer Stop/Turn) and K3 (Trailer Stop/Turn).

   Note: If no relay provisions are present (terminals missing from the relay cavity), the T-One without the tow prep package is required.

2. Locate the Trailer Harness Connector:

   • Under the vehicle, behind the rear bumper on the driver’s side, locate the trailer harness connector.

3. Remove the Protective Cap:

   • Remove the protective cap from the connector and store it in the glove compartment along with the installation instructions.
   • Ensure the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.

4. Connect the 6-Pin Tow-Plug Adapter:

   • Insert the 6-pin tow-plug adapter into the connector and lock it into place.
   • Ensure all connectors are fully inserted and the locking tabs are secure.

5. Route and Secure the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the bumper fascia.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wire.

6. Mount the 4-Flat Connector:

   • Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).

7. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® Connector to function properly.
   • Test the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or the towing capacity specified in the vehicle owner’s manual.
• Always wear safety glasses and follow all safety precautions during installation.
• Read and follow all warnings and instructions included with the purchase and those printed on the tow vehicle’s battery.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector

Part Numbers:

• 118285

Tools Required:

• Trim Panel Puller
• Test Probe

Step-by-Step Instructions:

1. Access the Fuse and Relay Panel:

   • Open the rear lift gate and remove the access panel on the driver’s side to locate the fuse and relay panel.
   • Locate relay positions K1 and K3:
     • If relays are present, the included relays will not be used.
     • If no relays are present, install the included relays into positions K1 (Trailer Stop/Turn) and K3 (Trailer Stop/Turn).
   • Note: If no relay provisions are present (terminals missing from the relay cavity), the T-One without the tow prep package is required.

2. Locate the Trailer Harness Connector:

   • Under the vehicle, behind the rear bumper on the driver’s side, locate the trailer harness connector.

3. Remove the Protective Cap:

   • Remove the protective cap from the connector and store it in the glove compartment along with the installation instructions.
   • Ensure the mating surfaces of the connectors are clean and free of dirt. Clean if necessary.

4. Connect the 6-Pin Tow-Plug Adapter:

   • Insert the 6-pin tow-plug adapter into the connector and lock it into place.
   • Ensure all connectors are fully inserted and the locking tabs are secure.

5. Route and Secure the T-Connector Harness:

   • Route the T-Connector harness rearward to the back of the bumper fascia.
   • Secure the remainder of the T-One® Connector harness with the provided cable ties, avoiding areas that could pinch, cut, or melt the wire.

6. Mount the 4-Flat Connector:

   • Mount the 4-flat connector end in an accessible location using a bracket or electrical box (not included).

7. Test and Verify Installation:

   • Ensure all connections are complete for the T-One® Connector to function properly.
   • Test the installation with a test light or trailer. For the initial test, reset the vehicle electrical system by temporarily removing the key from the ignition.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or the towing capacity specified in the vehicle owner’s manual.
• Always wear safety glasses and follow all safety precautions during installation.
• Read and follow all warnings and instructions included with the purchase and those printed on the tow vehicle’s battery.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
