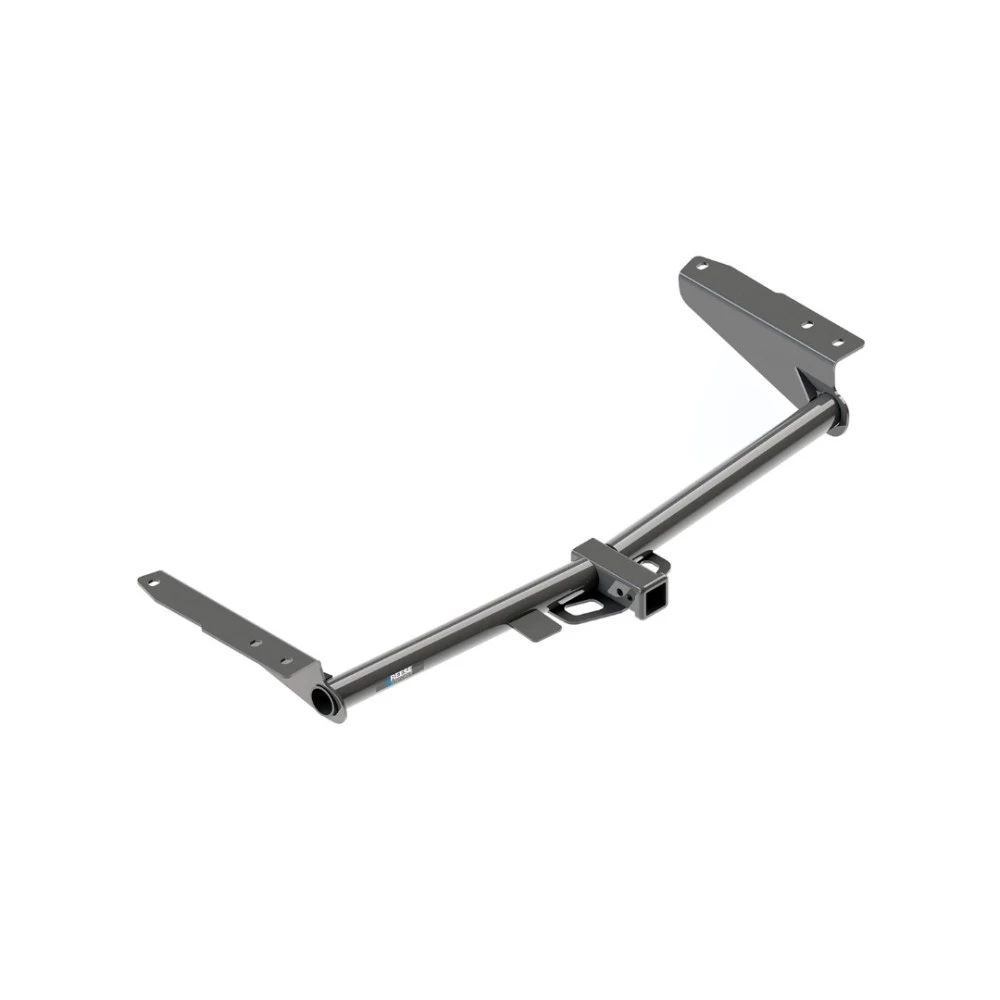

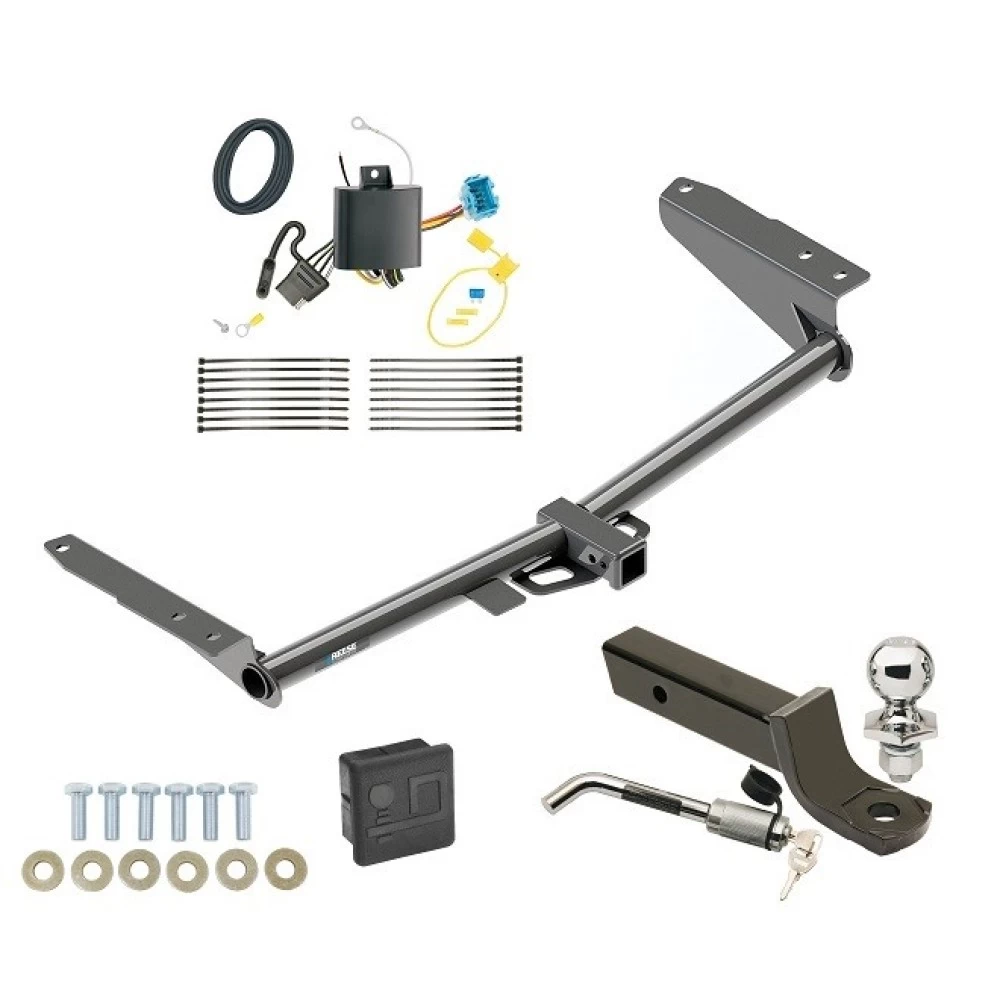

Installation Instructions for Trailer Hitch

Part Numbers:

• 76171
• 84171
• CQT76171

Applications:

• Years: 2018-Current
  • Make and Models: Honda Odyssey

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10 mm, 19 mm
• 6" Socket Extension
• Panel Removal Tool
• Phillips Screwdriver
• Utility Knife
• Exhaust Removal Pliers
• Tape

Step-by-Step Instructions:

1. Remove Mud Flap and Bottom Appearance Panels:

• Remove the mud flap on the driver side if present.
• Use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove (4) rivets and (2) screws from the bottom appearance panel on the driver side.
• Use the panel removal tool to remove (2) rivets from the small plastic panel above the exhaust tip on the passenger side.
• Retain all fasteners and panels for reinstallation.

2. Lower Exhaust Pipe:

• Use exhaust removal pliers to lower the exhaust pipe on the passenger side temporarily.
• Use a support or bungee cord to prevent damage to the muffler.

3. Install Hitch:

• Raise the hitch into position and carefully slide it over the passenger-side exhaust pipe first.
• Loosely install M12 bolts and conical washers into the hitch.

4. Tighten Fasteners:

• Tighten all M12 fasteners with a torque wrench to 76 lb-ft (103 N·m).

5. Trim Bottom Appearance Panel:

• Trim the bottom appearance panel as shown in the provided diagram.

6. Reinstall Components:

• Reinstall all fasteners, exhaust, appearance panels, and mud flaps removed in Steps 1 and 2.

Hardware List:

• 6 × Conical Washers (1/2”)
• 6 × M12 Bolts (1.25 × 35 mm, CL8.8)

Safety Notes:

• Always wear safety glasses during installation.
• Proper torque is essential to secure the hitch to the vehicle.
• Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
• If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball before use.
• Do not cut access or attachment holes with a torch.

Specifications:

• Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
• Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
• Max Gross Trailer Weight (Weight Distributing): 5,000 lbs (2,270 kg)
• Max Tongue Weight (Weight Distributing): 675 lbs (306 kg)
• Installation Time: Approximately 25 minutes

This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for T-One® T-Connector for Honda Odyssey

Part Numbers:

• 118753

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Trailer Wiring Harness:

   • Open the rear hatch and push forward the rear seat.
   • Temporarily remove the vehicle’s access panel on the passenger side to access the vehicle’s trailer wiring harness.

2. Locate the Tow Plug:

   • Locate the blue tow plug inside the storage compartment, taped to the vehicle wiring harness.
   • Insert the tow plug into the connector. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs in place.

3. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.

4. Mount the Black Box:

   • On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may pinch or cut the wire.

5. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

6. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

   Warning: Follow all warnings and cautions printed on the tow vehicle’s battery.

7. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

8. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-One® T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

9. Store the 4-Flat Connector:

   • Near the access panel, push the trim panel out slightly to route the 4-flat connector into the cargo area, underneath the trim panel.

   Note: Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Honda Odyssey

Part Numbers:

• 118753

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Trailer Wiring Harness:

   • Open the rear hatch and push forward the rear seat.
   • Temporarily remove the vehicle’s access panel on the passenger side to access the vehicle’s trailer wiring harness.

2. Locate the Tow Plug:

   • Locate the blue tow plug inside the storage compartment, taped to the vehicle wiring harness.
   • Insert the tow plug into the connector. Be careful not to damage the locking tabs and ensure the connectors are fully inserted with the locking tabs in place.

3. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface prior to drilling to avoid damage to the vehicle or personal injury.

4. Mount the Black Box:

   • On the driver’s side, mount the T-Connector black box using the provided double-sided tape.
   • Secure the remainder of the T-Connector harness with the provided cable ties, avoiding areas that may pinch or cut the wire.

5. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-Connector box.
   • Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding hot pipes, heat shields, the fuel tank, or any other points that may pinch or break the wire.

6. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder.
   • Attach the ring terminal to the Positive (+) battery cable and secure it.
   • Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.

   Warning: Follow all warnings and cautions printed on the tow vehicle’s battery.

7. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Install the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.

8. Secure the Wiring Harness:

   • Use the provided cable ties to secure the T-One® T-Connector harness, avoiding areas that may pinch, cut, or melt the wire.

9. Store the 4-Flat Connector:

   • Near the access panel, push the trim panel out slightly to route the 4-flat connector into the cargo area, underneath the trim panel.

   Note: Store the 4-flat connector in the rear cargo area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
• Refer to the vehicle owner’s manual for additional details.
• Store these instructions for future reference.

Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty:
For complete warranty instructions, please download the full installation PDF.
