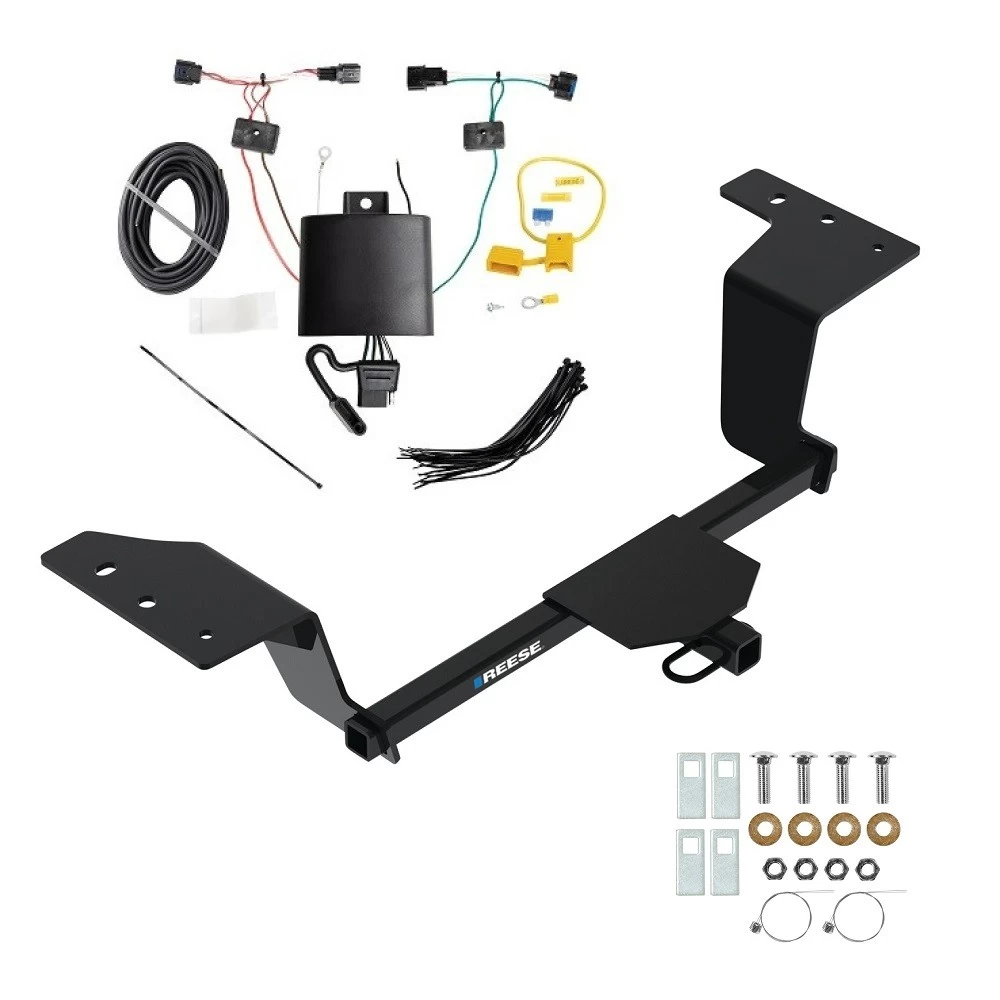

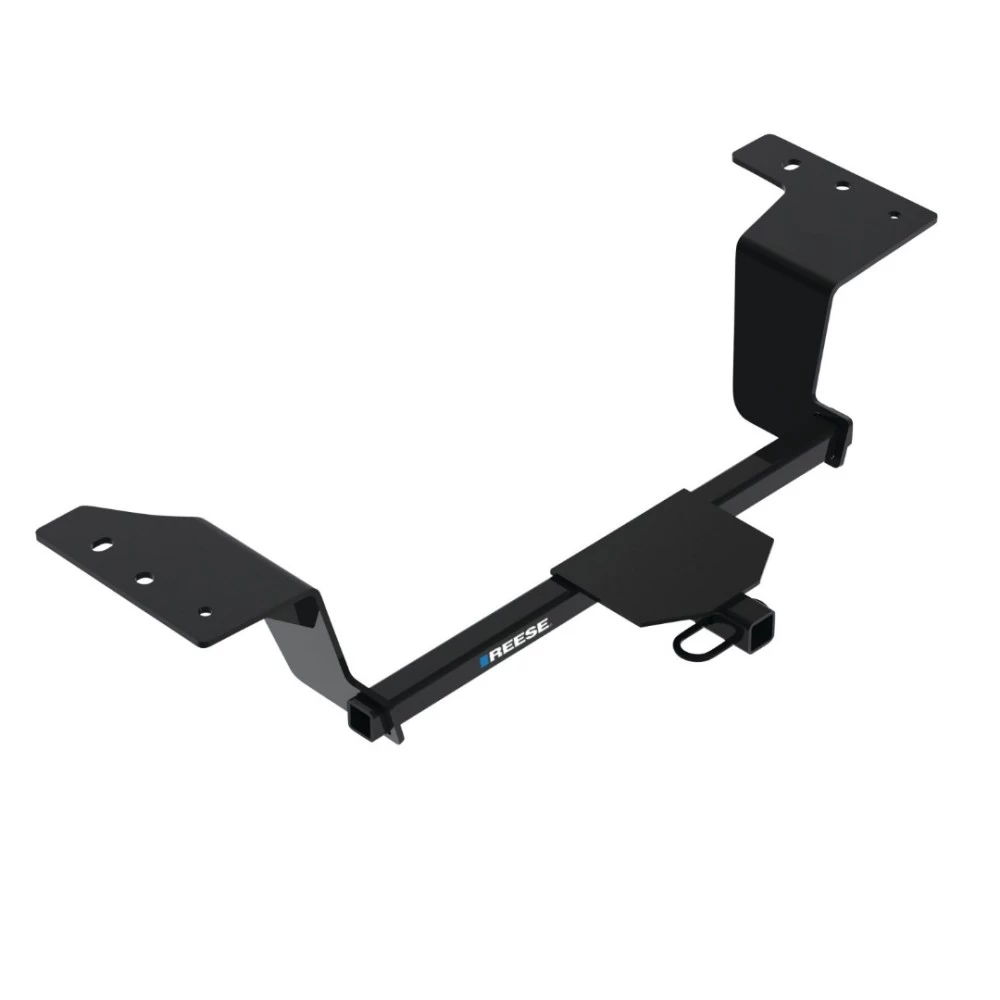

Installation Instructions for Kia Forte (2019-Current)

Part Numbers:

• 25000
• 78293
• CQT25000

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 12mm, 11/16"
• Drill with 1/2" Drill Bit
• Exhaust Removal Pliers
• Tin Snips
• Flat Head Screwdriver
• Utility Knife
• Marker
• Tape Measure

Step-by-Step Instructions:

1. Remove Underbody Panel:

   • Using a flat head screwdriver, a 10mm socket, and a 12mm socket, remove (5) rivets, (2) nuts, and (1) nut from the driver-side underbody panel.
   • Remove the panel and set it aside.

2. Lower Exhaust:

   • Use exhaust removal pliers to detach (2) rubber hangers from the rearmost points of the muffler.
   • Spray lubricant or soapy water on the hangers to ease removal.
   • Ensure the exhaust is properly supported before removing the hangers.

3. Remove Heat Shield:

   • Using a 10mm socket, remove (5) nuts securing the exhaust heat shield.
   • Remove the heat shield.

4. Install Forward Fasteners:

   • Using a flat head screwdriver, remove the plastic cover from the frame's access holes on both sides.
   • Feed the 7/16" carriage bolts and spacers into the forward attachment holes through the access holes using pull wires. Leave the pull wires attached.

5. Drill Rearward Holes:

   • Raise the hitch into position and align it with the forward attachment holes and carriage bolts.
   • Use a marker to mark the drill points for the rearward hole centers on both sides.
   • Lower the hitch and drill 1/2" holes at the marked points on both sides.

6. Trim Underbody Panel and Heat Shield:

   • Measure, mark, and trim the underbody panel and heat shield using a tape measure, marker, tin snips, and utility knife as shown in the provided instructions.

7. Install Hitch:

   • Feed the remaining carriage bolts and spacers into the drilled holes using the pull wires.
   • Reinstall the heat shield with (4) nuts.
   • Raise the hitch into position, guiding the pull wires through the bracket holes.
   • Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the hitch.

8. Tighten Fasteners:

   • Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.

9. Reinstall Exhaust and Underbody Panel:

   • Reattach the exhaust by reinstalling the rubber hangers.
   • Reinstall the underbody panel. Note: The rearmost fasteners of the underbody panel will not be reinstalled after trimming.

Hardware List:

• (4) Carriage Bolt, 7/16"-14 x 1.50 GR5
• (4) Spacer, 0.88 x 2.00 x 0.109 (Part No. 1204)
• (4) Conical Washer, 7/16" (Part No. 01292007)
• (4) Hex Nut, 7/16"-14 GR2
• (4) Pull Wire, 7/16"-14 (Part No. 5481)

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
• Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Do not cut access or attachment holes with a torch.

Specifications:

• Installation Time: 60 minutes
• Max Gross Trailer Weight: 2,000 lb (907 kg)
• Max Tongue Weight: 200 lb (90.7 kg)
• Complies with SAE J684 and VESC Regulation V-5 standards.

Installation Instructions for Vehicle (2019-Current)

Part Numbers:

• 25000
• 78293
• CQT25000

Tools Required:

• Ratchet
• Torque Wrench
• Safety Glasses
• Sockets: 10mm, 12mm, 11/16"
• Drill with 1/2" Drill Bit
• Exhaust Removal Pliers
• Tin Snips
• Flat Head Screwdriver
• Utility Knife
• Marker
• Tape Measure

Step-by-Step Instructions:

1. Remove Underbody Panel:

   • Using a flat head screwdriver, a 10mm socket, and a 12mm socket, remove (5) rivets, (2) nuts, and (1) nut from the driver-side underbody panel.
   • Remove the panel and set it aside.

2. Lower Exhaust:

   • Use exhaust removal pliers to detach (2) rubber hangers from the rearmost points of the muffler.
   • Spray lubricant or soapy water on the hangers to ease removal.
   • Ensure the exhaust is properly supported before removing the hangers.

3. Remove Heat Shield:

   • Using a 10mm socket, remove (5) nuts securing the exhaust heat shield.
   • Remove the heat shield.

4. Install Forward Fasteners:

   • Using a flat head screwdriver, remove the plastic cover from the frame's access holes on both sides.
   • Feed the 7/16" carriage bolts and spacers into the forward attachment holes through the access holes using pull wires. Leave the pull wires attached.

5. Drill Rearward Holes:

   • Raise the hitch into position and align it with the forward attachment holes and carriage bolts.
   • Use a marker to mark the drill points for the rearward hole centers on both sides.
   • Lower the hitch and drill 1/2" holes at the marked points on both sides.

6. Trim Underbody Panel and Heat Shield:

   • Measure, mark, and trim the underbody panel and heat shield using a tape measure, marker, tin snips, and utility knife as shown in the provided instructions.

7. Install Hitch:

   • Feed the remaining carriage bolts and spacers into the drilled holes using the pull wires.
   • Reinstall the heat shield with (4) nuts.
   • Raise the hitch into position, guiding the pull wires through the bracket holes.
   • Remove the pull wires and loosely install conical washers (teeth side toward hitch) and hex nuts onto the hitch.

8. Tighten Fasteners:

   • Torque all 7/16"-14 GR5 fasteners to 50 ft-lb (68 N*m) using a torque wrench.

9. Reinstall Exhaust and Underbody Panel:

   • Reattach the exhaust by reinstalling the rubber hangers.
   • Reinstall the underbody panel. Note: The rearmost fasteners of the underbody panel will not be reinstalled after trimming.

Hardware List:

• (4) Carriage Bolt, 7/16"-14 x 1.50 GR5
• (4) Spacer, 0.88 x 2.00 x 0.109 (Part No. 1204)
• (4) Conical Washer, 7/16" (Part No. 01292007)
• (4) Hex Nut, 7/16"-14 GR2
• (4) Pull Wire, 7/16"-14 (Part No. 5481)

Safety Notes:

• Always wear safety glasses during installation.
• Check the hitch frequently to ensure all fasteners and the ball are securely tightened.
• Plug any removed holes in the trunk pan or body panels to prevent water or exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Do not cut access or attachment holes with a torch.

Specifications:

• Installation Time: 60 minutes
• Max Gross Trailer Weight: 2,000 lb (907 kg)
• Max Tongue Weight: 200 lb (90.7 kg)
• Complies with SAE J684 and VESC Regulation V-5 standards.

Warranty:

• This product is covered by a limited warranty.
• For complete warranty instructions, please download the full installation PDF.

Technical Support:

• For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

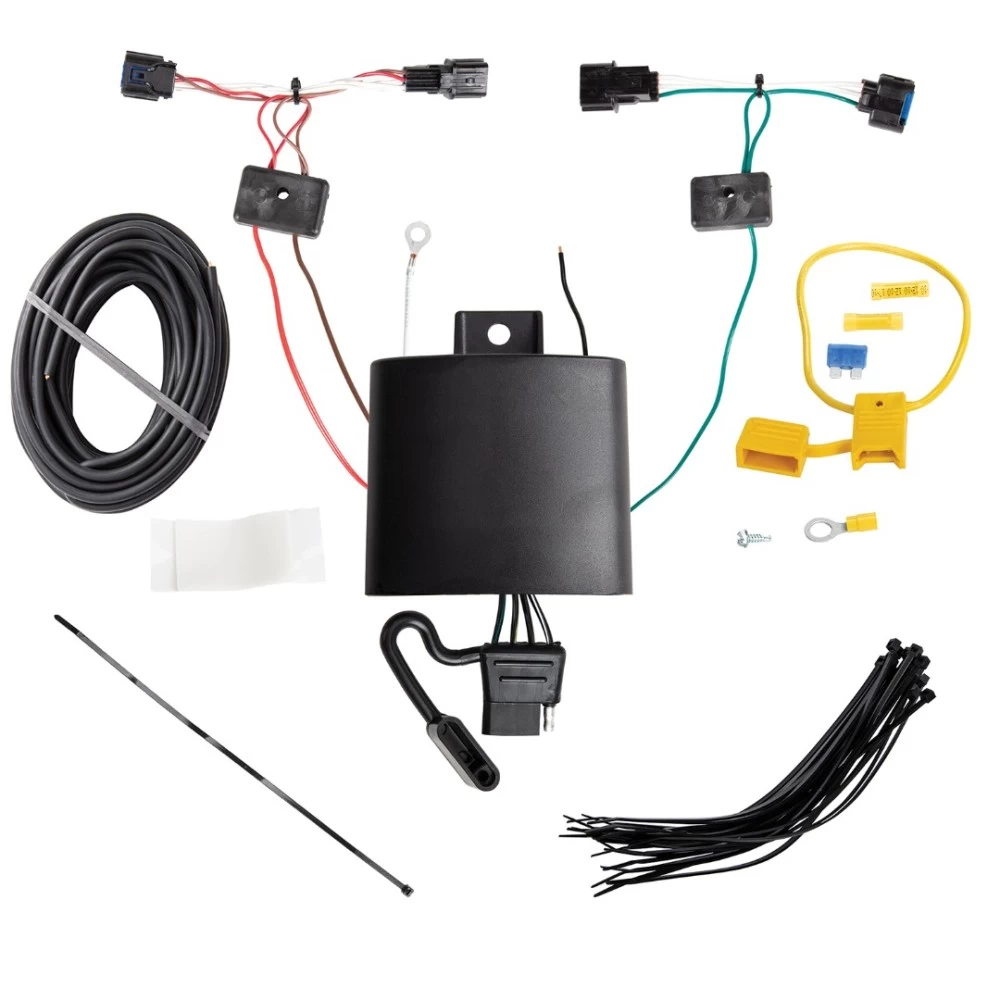

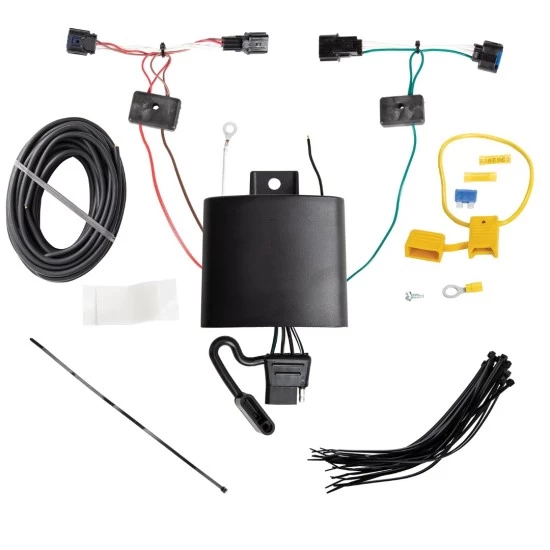

Installation Instructions for T-One® T-Connector for Kia Forte Sedan

Part Numbers:

• 118814

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the driver-side taillight to access the wiring harness.

2. Locate the Taillight Wiring Harness:

   • On the driver’s side of the vehicle, locate the taillight wiring harness.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the red wire between the vehicle wiring connectors.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the connector containing the green wire through the center grommet inside the trunk.
   • Push the green wire connector through the exposed hole to the underside of the vehicle and route it to the passenger side.
   • Insert the green wire connector between the passenger-side taillight socket and the vehicle wiring harness.

5. Secure the Wiring Underneath the Vehicle:

   • Use the provided cable ties to secure the wiring underneath the vehicle.
   • Avoid areas that could pinch, cut, or melt the wire.
   • Slit the grommet with a utility knife, place the wires through the middle, and reseat the grommet. Seal the grommet with electrical tape or silicone glue (not included).

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

7. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-One® Connector box.
   • Attach the provided black wire and route it along the exterior frame or existing wiring to the vehicle’s engine compartment.

   Warning: Avoid routing near hot pipes, heat shields, or other points that may pinch or break the wire.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder and attach the ring terminal to the Positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer.

10. Mount the Black Box:

    • Locate a flat surface and mount the T-One® Connector black box using the provided double-sided tape.
    • Secure the harness with the provided cable ties, avoiding areas that may pinch or cut the wire.

11. Reassemble the Vehicle:

    • Reinstall the felt trunk liner, threshold plate, and any other components removed during installation.
    • Ensure no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Installation Instructions for T-One® T-Connector for Various Vehicles

Part Numbers:

• 118814

Tools Required:

• Trim Panel Remover
• 10mm Socket & Ratchet or 10mm Wrench
• Drill (3/32” Drill Bit)
• 1/4” Socket
• Wire Crimpers
• Wire Cutters
• Phillips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Open the Trunk:

   • Temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the driver-side taillight to access the wiring harness.

2. Locate the Taillight Wiring Harness:

   • On the driver’s side of the vehicle, locate the taillight wiring harness.
   • Separate the connectors carefully, ensuring not to break the locking tabs.
   • Ensure all connector surfaces are clean and free of dirt.

3. Connect the Driver-Side T-Connector:

   • Insert the T-One® Connector end with the red wire between the vehicle wiring connectors.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the connector containing the green wire through the center grommet inside the trunk.
   • Push the green wire connector through the exposed hole to the underside of the vehicle and route it to the passenger side.
   • Insert the green wire connector between the passenger-side taillight socket and the vehicle wiring harness.

5. Secure the Wiring Underneath the Vehicle:

   • Use the provided cable ties to secure the wiring underneath the vehicle.
   • Avoid areas that could pinch, cut, or melt the wire.
   • Slit the grommet with a utility knife, place the wires through the middle, and reseat the grommet. Seal the grommet with electrical tape or silicone glue (not included).

6. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean the area of dirt and rustproofing.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.

   Caution: Verify what is behind any surface before drilling to avoid damage or injury.

7. Route the Power Wire:

   • Locate the black 12-gauge power wire from the T-One® Connector box.
   • Attach the provided black wire and route it along the exterior frame or existing wiring to the vehicle’s engine compartment.

   Warning: Avoid routing near hot pipes, heat shields, or other points that may pinch or break the wire.

8. Connect to the Vehicle Battery:

   • Disconnect the vehicle’s Negative (-) battery cable.
   • Remove the fuse from the yellow fuse holder and attach the ring terminal to the Positive (+) battery cable.
   • Connect the other end of the fuse holder to the black 12-gauge wire using the provided yellow butt connector.

9. Reconnect the Battery and Test:

   • Reconnect the Negative (-) battery cable.
   • Insert the 15-amp fuse into the fuse holder.
   • Test the installation using a test light or trailer.

10. Mount the Black Box:

    • Locate a flat surface and mount the T-One® Connector black box using the provided double-sided tape.
    • Secure the harness with the provided cable ties, avoiding areas that may pinch or cut the wire.

11. Reassemble the Vehicle:

    • Reinstall the felt trunk liner, threshold plate, and any other components removed during installation.
    • Ensure no wires are pinched or damaged.

12. Store the 4-Flat Connector:

    • Store the 4-flat connector in the trunk area when not in use.

Safety Notes:

• Overloading circuits can cause fires. Do not exceed stated product ratings or vehicle manufacturer specifications.
• Always wear safety glasses and follow safety precautions during installation.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and the instruction sheet for additional details.
• Store these instructions for future reference.

Warranty Information:

• For complete warranty instructions, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
