Trailer Hitch Wiring Harness Kit For 20‑24 Lincoln Aviator Plug & Play
Model: 118817Wiring Harness (Plug & Play)
Installation Instructions
Fits The Following Vehicles
Wiring Kit Specs:
| Part Number | 118817 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
$78 91 $118.10 33% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$118.10 $78 91
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $19.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Tekonsha
- Model: 118817

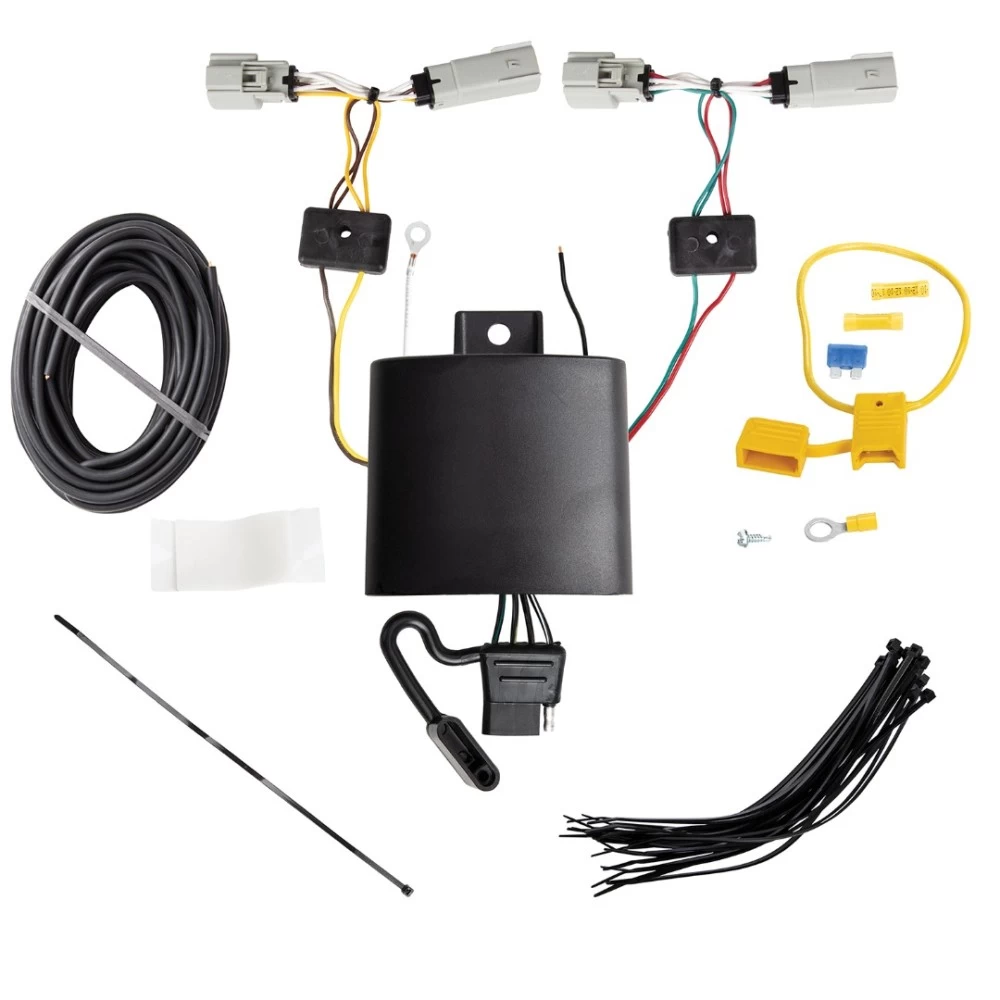

- Includes: T-One T-Connector Custom Harness
Compatibility Chart
Description
Wiring Harness (Plug & Play)
Installation Instructions
Fits The Following Vehicles
Wiring Kit Specs:
| Part Number | 118817 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 20 21 22 23 24 2020 2021 2022 2023 2024
Get Expert Help
Trailer Hitch Wiring Harness Kit For 20-24 Lincoln Aviator Plug & Play Install Notes
Installation Instructions for T-One® T-Connector for Lincoln Aviator
Part Numbers:
- 118817
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Hatch:
- Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
- Open the rear door and fold the rear seat forward.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the necessary trim panel fasteners to access the taillight wiring harness.
- Set aside all removed items carefully to avoid damage.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both sides of the vehicle, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle’s wiring connectors.
- Lock the connectors securely into place.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire down the threshold to the passenger side of the vehicle.
- Insert the T-One® Connector end with the green wire between the vehicle’s wiring connectors.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding areas that may pinch, cut, or melt the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Warning: Follow all warnings printed on the vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.
-
Secure the Harness:
- Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.
-
Reassemble the Vehicle:
- Replace all panels, clips, and floor coverings removed during installation.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Various Vehicles
Part Numbers:
- 118817
Tools Required:
- Trim Panel Remover
- 10mm Socket & Ratchet or Wrench
- Drill (3/32” Drill Bit)
- 1/4” Socket
- Wire Crimpers
- Wire Cutters
- Phillips Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Open the Rear Hatch:
- Temporarily remove the rear threshold plate, privacy screen, storage covers, and floor covering.
- Open the rear door and fold the rear seat forward.
-
Remove Interior Trim Panels:
- Partially remove the rear interior trim panels on both the driver and passenger sides.
- Remove the necessary trim panel fasteners to access the taillight wiring harness.
- Set aside all removed items carefully to avoid damage.
-
Locate the Vehicle’s Taillight Wiring Harness:
- On both sides of the vehicle, locate the vehicle’s taillight wiring harness.
- Disconnect the connectors carefully, ensuring not to break the locking tabs.
- Ensure all connector surfaces are clean and free of dirt.
-
Connect the Driver-Side T-Connector:
- Insert the T-One® Connector end with the yellow wire between the vehicle’s wiring connectors.
- Lock the connectors securely into place.
-
Route the Passenger-Side T-Connector:
- Route the connector containing the green wire down the threshold to the passenger side of the vehicle.
- Insert the T-One® Connector end with the green wire between the vehicle’s wiring connectors.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
- Clean dirt and rustproofing from the grounding area.
- Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
Caution: Verify the area behind any surface before drilling to avoid damage or injury.
-
Route the Power Wire:
- Locate the black 12-gauge power wire from the T-One® T-Connector box on the driver’s side.
- Attach the provided black wire and route it along the vehicle’s exterior frame to the engine compartment, avoiding areas that may pinch, cut, or melt the wire.
-
Connect to the Vehicle Battery:
- Disconnect the vehicle’s Negative (-) battery cable.
- Remove the fuse from the yellow fuse holder (provided).
- Attach the ring terminal to the Positive (+) battery cable and secure it.
- Connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
Warning: Follow all warnings printed on the vehicle’s battery.
-
Reconnect the Battery and Test:
- Reconnect the Negative (-) battery cable.
- Insert the 15-amp fuse into the fuse holder.
- Test the installation using a test light or trailer. Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
-
Mount the T-One® Black Box:
- Locate a flat surface in an out-of-the-way location and mount the black box module using the provided double-sided tape.
-
Secure the Harness:
- Use the provided cable ties to secure the remaining T-One® T-Connector harness, avoiding areas where it could pinch, cut, or melt.
-
Reassemble the Vehicle:
- Replace all panels, clips, and floor coverings removed during installation.
-
Store the 4-Flat Connector:
- Store the 4-flat connector in the rear cargo area when not in use.
- When in use, pull the 4-flat connector through the door and close carefully, avoiding pinching the harness in the door latch.
Safety Notes:
- Overloading circuits can cause fires. Do not exceed stated product ratings.
- Always wear safety glasses and follow all safety precautions during installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and the instruction sheet for additional details.
- Store these instructions for future reference.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
