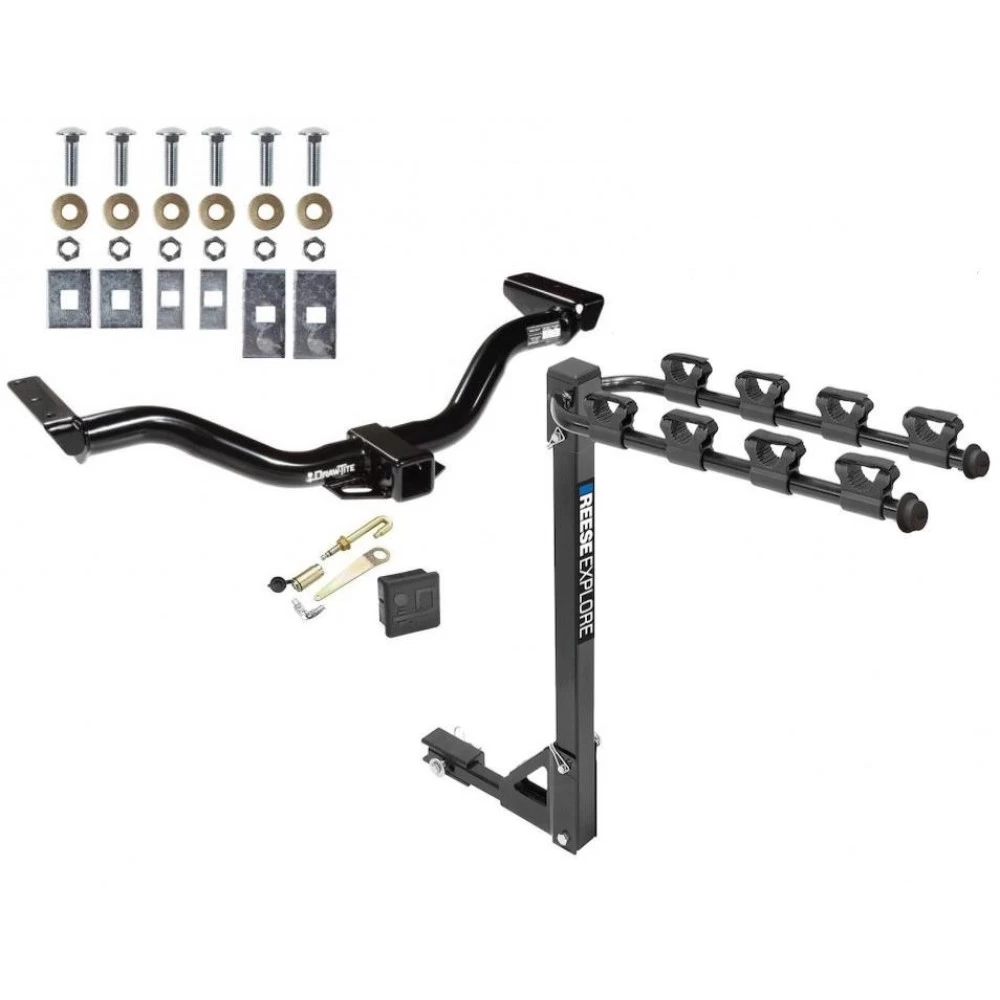

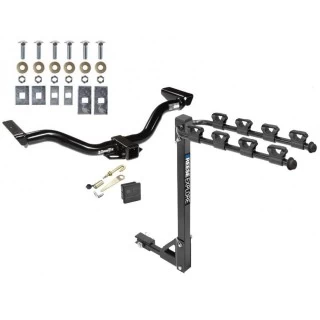

Trailer Tow Hitch w/ 4 Bike Rack For 00‑04 Nissan Xterra All Styles tilt away adult or child arms fold down carrier
Model: 75107 1393100GCustom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2004 Nissan, Xterra, All Styles
Trailer Hitch Specs:
| Part Number | 75107 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 350/550 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 2000 2001 2002 2003 2004
$382 17 $606.02 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$606.02 $382 17
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $95.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75107 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2000 - 2004 Nissan, Xterra, All Styles
Trailer Hitch Specs:
| Part Number | 75107 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,500 lbs |
| Max Tongue Weight | 350/550 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 00 01 02 03 04 2000 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 00-04 Nissan Xterra All Styles tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Nissan Xterra
Part Numbers:
- 75107
- 44717
- 78193 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
Step-by-Step Instructions:
-
Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
-
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware kit:
- Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
- Secure the hitch using the provided hardware kit:
-
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks, 1/4" x 1" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (6) Conical Toothed Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR2
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
- Ensure all fasteners are properly torqued before towing.
Installation Instructions for Nissan Xterra
Part Numbers:
- 75107
- 44717
- 78193 U-Haul
Wiring Access Location:
- SUV1, SUV2
Tools Required:
- Wrenches: 7/8"
Step-by-Step Instructions:
-
Loosen Spare Tire:
- Loosen the spare tire to allow sufficient clearance for hitch installation.
-
Raise Hitch into Position:
- Position the hitch against the vehicle frame, aligning the mounting holes with the factory-drilled holes.
-
Install Fasteners:
- Secure the hitch using the provided hardware kit:
- Carriage bolts, spacer blocks, conical toothed washers, and hex nuts.
- Refer to the diagram for the correct placement of each fastener.
- Secure the hitch using the provided hardware kit:
-
Tighten Spare Tire:
- Tighten the spare tire back into place after the hitch is fully secured.
-
Tighten Fasteners:
- Torque all 1/2"-13 GR5 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- 1/2"-13 GR5 Fasteners: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 1/2"-13 x 1-3/4" GR5
- (2) Spacer Blocks, 1/4" x 1" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 2"
- (2) Spacer Blocks, 1/4" x 1-1/2" x 3"
- (6) Conical Toothed Washers, 1/2"
- (6) Hex Nuts, 1/2"-13 GR2
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are securely tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug any holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always observe proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,500 lb (2,497 kg)
- Max Tongue Weight: 550 lb (250 kg)
Additional Notes:
- This product complies with safety specifications and requirements for connecting devices and towing systems, including V.E.S.C. Regulation V-5 and SAE J684.
- Ensure all fasteners are properly torqued before towing.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
