Trailer Tow Hitch w/ 4 Bike Rack For 01‑04 Ford Escape Mazda Tribute tilt away adult or child arms fold down carrier
Model: 75118 1393100GCustom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2004 Ford, Escape, All Styles
2001 - 2004 Mazda, Tribute, All Styles
Trailer Hitch Specs:
| Part Number | 75118 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 2001 2002 2003 2004
$363 63 $576.99 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$576.99 $363 63
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $90.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75118 1393100G

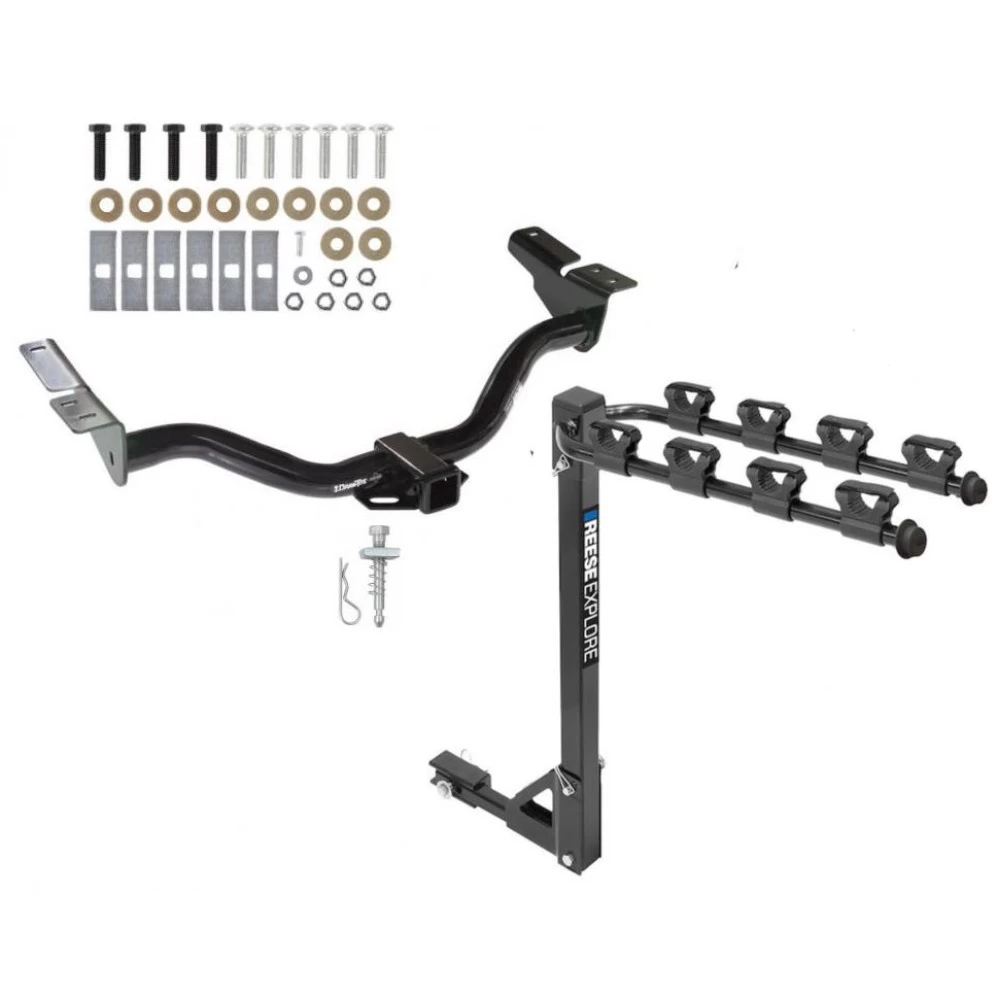

- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2004 Ford, Escape, All Styles
2001 - 2004 Mazda, Tribute, All Styles
Trailer Hitch Specs:
| Part Number | 75118 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 350/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 2001 2002 2003 2004
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 01-04 Ford Escape Mazda Tribute tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Ford Escape and Mazda Tribute
Part Numbers:
- 75118
- 87635
- 44723
- 70636
- 78219 (U-Haul)
Wiring Access Location:
- SUV, SUV2
Tools Required:
- Tin Snips
- Wrenches: 10mm, 11/16", 18mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Heat Shield:
- Remove the heat shield on 2002 and earlier models.
-
Fishwire Bolts:
- Fishwire the carriage bolts and spacer blocks through the access hole at the end of the frame.
- Keep carriage bolts and blocks independent while fishwiring.
-
Raise the Hitch:
- Lift the hitch into position and secure it with conical toothed washers and hex nuts.
- Ensure fasteners are not pushed back into the frame.
-
Trim Heat Shield:
- Trim the heat shield as per the provided diagram.
-
Reinstall Heat Shield:
- Reattach the heat shield using existing fasteners. Over the hitch bracket, use the supplied M6 hex bolt and flat washer.
-
Tighten Fasteners:
- Torque M6 x 1.00 fasteners to 10 lb-ft (14 N·m).
- Torque all 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
Optional Installation with OEM Class 2 Hitch/Bumper:
- Remove the heat shield on 2002 and earlier models.
- Raise the hitch into position and loosely install hex bolts into existing weldnuts.
- Using the hitch as a template, drill a 7/16" hole through the center attachment slot at a slight angle toward the center of the vehicle.
- Lower the aftermarket hitch and enlarge the drilled hole to 1/2".
- Open the slot forward of the foremost bolt hole to accept a 1" x 3" block.
- Fishwire the block and carriage bolt through the access hole into the drilled hole.
- Raise the hitch into position and secure with new fasteners.
- Tighten all fasteners:
- Torque 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
- Torque M12 x 1.75 CL10.9 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- M6 x 1.00: 10 lb-ft (14 N·m)
- 7/16-14 GR5: 50 lb-ft (68 N·m)
- M12 x 1.75 CL10.9: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 7/16-14 x 1-3/4" GR5
- (6) Hex Nuts, 7/16-14
- (6) Spacer Blocks, 1/4" x 1" x 3"
- (6) Conical Toothed Washers, 7/16"
- (1) Hex Bolt, M6 x 1.00 x 20mm CL8.8
- (1) Flat Washer, 1/4"
Safety Notes:
- Regularly inspect the hitch and ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes to prevent water or exhaust fumes from entering.
- Wear eye protection and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Ford Escape and Mazda Tribute
Part Numbers:
- 75118
- 87635
- 44723
- 70636
- 78219 (U-Haul)
Wiring Access Location:
- SUV, SUV2
Tools Required:
- Tin Snips
- Wrenches: 10mm, 11/16", 18mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Heat Shield:
- Remove the heat shield on 2002 and earlier models.
-
Fishwire Bolts:
- Fishwire the carriage bolts and spacer blocks through the access hole at the end of the frame.
- Keep carriage bolts and blocks independent while fishwiring.
-
Raise the Hitch:
- Lift the hitch into position and secure it with conical toothed washers and hex nuts.
- Ensure fasteners are not pushed back into the frame.
-
Trim Heat Shield:
- Trim the heat shield as per the provided diagram.
-
Reinstall Heat Shield:
- Reattach the heat shield using existing fasteners. Over the hitch bracket, use the supplied M6 hex bolt and flat washer.
-
Tighten Fasteners:
- Torque M6 x 1.00 fasteners to 10 lb-ft (14 N·m).
- Torque all 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
Optional Installation with OEM Class 2 Hitch/Bumper:
- Remove the heat shield on 2002 and earlier models.
- Raise the hitch into position and loosely install hex bolts into existing weldnuts.
- Using the hitch as a template, drill a 7/16" hole through the center attachment slot at a slight angle toward the center of the vehicle.
- Lower the aftermarket hitch and enlarge the drilled hole to 1/2".
- Open the slot forward of the foremost bolt hole to accept a 1" x 3" block.
- Fishwire the block and carriage bolt through the access hole into the drilled hole.
- Raise the hitch into position and secure with new fasteners.
- Tighten all fasteners:
- Torque 7/16-14 GR5 fasteners to 50 lb-ft (68 N·m).
- Torque M12 x 1.75 CL10.9 fasteners to 75 lb-ft (102 N·m).
Torque Specifications:
- M6 x 1.00: 10 lb-ft (14 N·m)
- 7/16-14 GR5: 50 lb-ft (68 N·m)
- M12 x 1.75 CL10.9: 75 lb-ft (102 N·m)
Hardware List:
- (6) Carriage Bolts, 7/16-14 x 1-3/4" GR5
- (6) Hex Nuts, 7/16-14
- (6) Spacer Blocks, 1/4" x 1" x 3"
- (6) Conical Toothed Washers, 7/16"
- (1) Hex Bolt, M6 x 1.00 x 20mm CL8.8
- (1) Flat Washer, 1/4"
Safety Notes:
- Regularly inspect the hitch and ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes to prevent water or exhaust fumes from entering.
- Wear eye protection and observe proper safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 3,500 lb (1,589 kg)
- Max Tongue Weight: 350 lb (159 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lb (2,270 kg)
- Max Tongue Weight: 500 lb (227 kg)
Compliance:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
