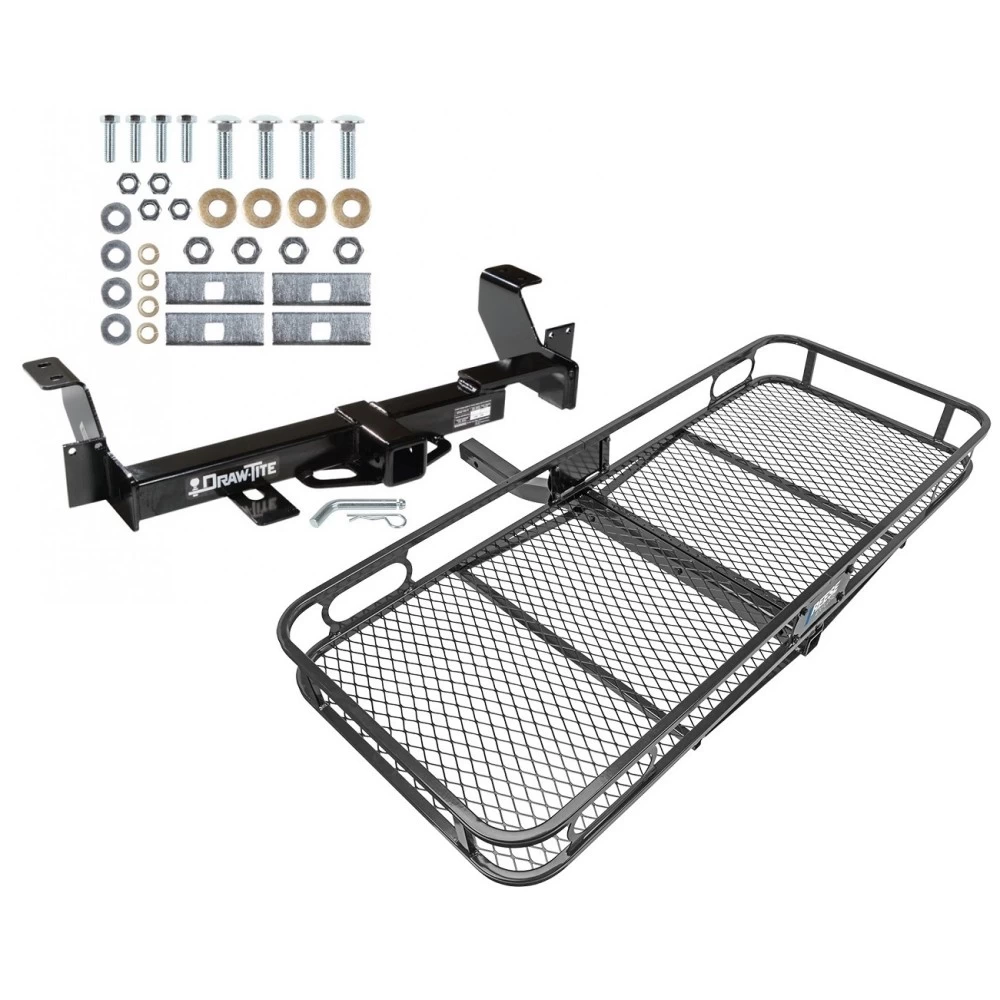

Trailer Tow Hitch For 01‑07 Pontiac Aztek Buick Rendezvous Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75430 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2005 Pontiac, Aztek, All Styles
2002 - 2007 Buick, Rendezvous, All Styles

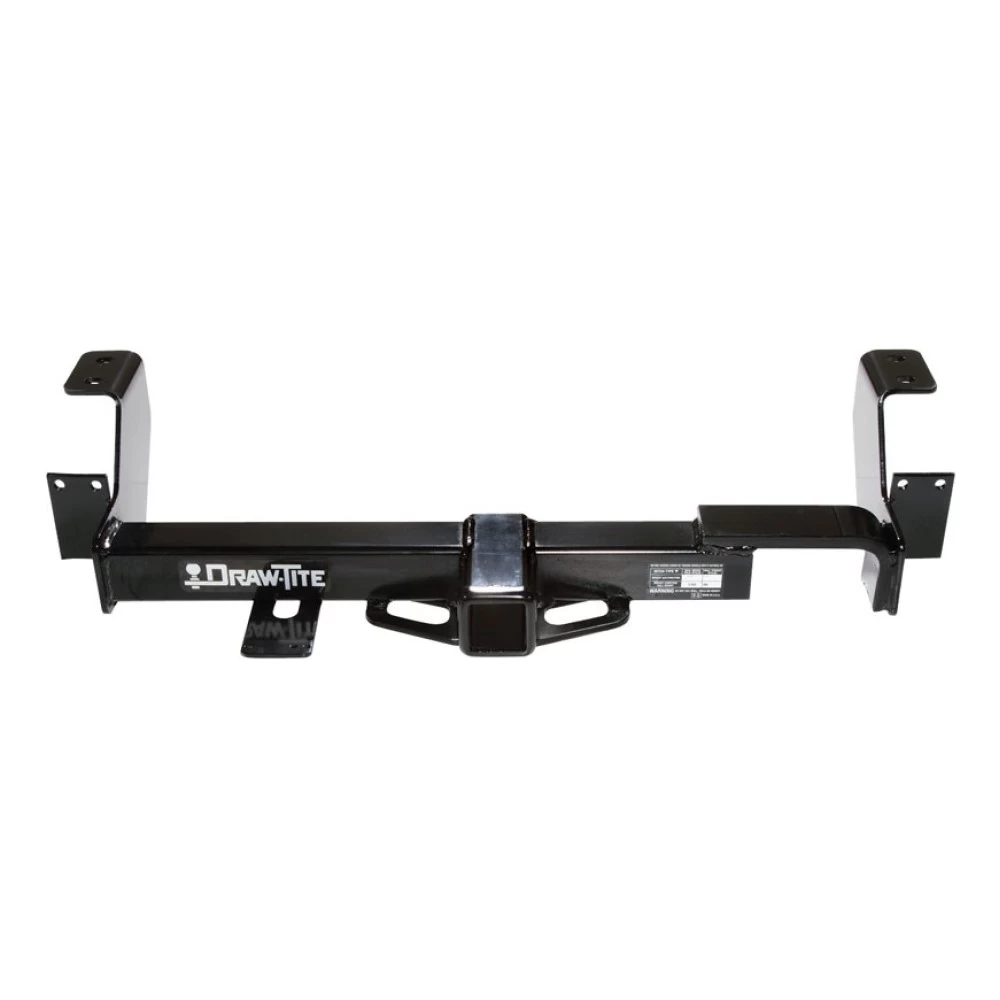

Trailer Hitch Specs:
| Part Number | 75430 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 2001 2002 2003 2004 2005 2006 2007
$497 40 $798.44 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$798.44 $497 40
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $124.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75430 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2001 - 2005 Pontiac, Aztek, All Styles
2002 - 2007 Buick, Rendezvous, All Styles
Trailer Hitch Specs:
| Part Number | 75430 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 350 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 2001 2002 2003 2004 2005 2006 2007
Get Expert Help
Trailer Tow Hitch For 01-07 Pontiac Aztek Buick Rendezvous Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Pontiac Aztek and Buick Rendezvous
Part Numbers:
- 44538
- 75430
- 87004
Tools Required:
- Wrenches: 9/16", 11/16", 3/4"
- Drill Bits: 3/8"
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the rubber exhaust hanger from the hanger bracket to lower the exhaust, which may ease installation.
-
Install Carriage Bolts:
- Install a block and carriage bolt up through the rearmost slot in the vehicle frame rail and down through the forward slot in the frame rail on both sides.
- Install another block and carriage bolt up through the rearmost slot and back down through the same slot on both sides.
- Note: Ensure that blocks installed in Steps 1 and 2 do not overlap inside the frame.
-
Position Hitch:
- Raise the hitch into position on the carriage bolts.
- Ensure the rear face of the hitch end plate contacts the lip of the vehicle end panel as shown in the diagram.
- Install conical toothed washers and nuts finger-tight.
-
Drill Holes:
- Using a 3/8” drill bit, drill through the holes in the hitch end plate into the lip of the vehicle end panel (two places on each side).
-
Install Fasteners:
- Insert 3/8”-16 hex bolts with flat washers, lock washers, and nuts into the drilled holes as shown.
- Tighten all 3/8”-16 fasteners to 30 lb-ft using a torque wrench.
-
Reattach Exhaust:
- If the exhaust was lowered, raise it back into position.
- Note: If additional exhaust clearance is required, bend the welded exhaust hanger bracket downward.
-
Final Tightening:
- Tighten all 1/2”-13 fasteners to 75 lb-ft using a torque wrench.
Hardware List:
- (4) 1/2”-13 x 1-3/4” Carriage Bolts
- (4) 3/8”-16 x 1-1/4” Hex Bolts
- (4) 1/2” Conical Toothed Washers
- (4) 3/8” Flat Washers
- (4) 3/8” Lock Washers
- (4) 3/8”-16 Hex Nuts
- (4) 1/4” x 1” x 3” Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 3,500 lbs (1,588 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 44538
- 75430
- 87004
Tools Required:
- Wrenches: 9/16", 11/16", 3/4"
- Drill Bits: 3/8"
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Lower Exhaust:
- Detach the rubber exhaust hanger from the hanger bracket to lower the exhaust, which may ease installation.
-
Install Carriage Bolts:
- Install a block and carriage bolt up through the rearmost slot in the vehicle frame rail and down through the forward slot in the frame rail on both sides.
- Install another block and carriage bolt up through the rearmost slot and back down through the same slot on both sides.
- Note: Ensure that blocks installed in Steps 1 and 2 do not overlap inside the frame.
-
Position Hitch:
- Raise the hitch into position on the carriage bolts.
- Ensure the rear face of the hitch end plate contacts the lip of the vehicle end panel as shown in the diagram.
- Install conical toothed washers and nuts finger-tight.
-
Drill Holes:
- Using a 3/8” drill bit, drill through the holes in the hitch end plate into the lip of the vehicle end panel (two places on each side).
-
Install Fasteners:
- Insert 3/8”-16 hex bolts with flat washers, lock washers, and nuts into the drilled holes as shown.
- Tighten all 3/8”-16 fasteners to 30 lb-ft using a torque wrench.
-
Reattach Exhaust:
- If the exhaust was lowered, raise it back into position.
- Note: If additional exhaust clearance is required, bend the welded exhaust hanger bracket downward.
-
Final Tightening:
- Tighten all 1/2”-13 fasteners to 75 lb-ft using a torque wrench.
Hardware List:
- (4) 1/2”-13 x 1-3/4” Carriage Bolts
- (4) 3/8”-16 x 1-1/4” Hex Bolts
- (4) 1/2” Conical Toothed Washers
- (4) 3/8” Flat Washers
- (4) 3/8” Lock Washers
- (4) 3/8”-16 Hex Nuts
- (4) 1/4” x 1” x 3” Spacer Blocks
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 3,500 lbs (1,588 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
