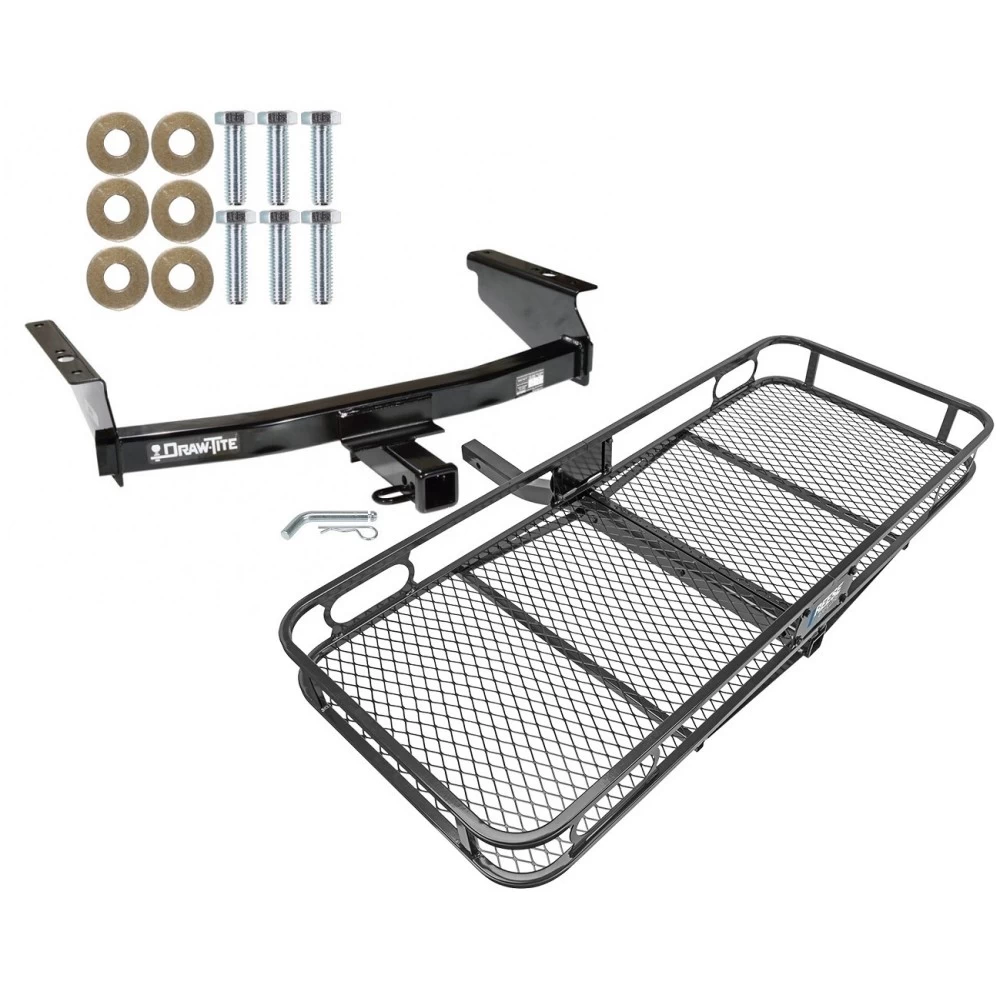

Trailer Tow Hitch For 02‑07 Jeep Liberty All Styles Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75128 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2002 - 2007 Jeep, Liberty, All Styles
Trailer Hitch Specs:
| Part Number | 75128 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 06 07 2002 2003 2004 2005 2006 2007
$479 81 $770.95 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$770.95 $479 81
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $119.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75128 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2002 - 2007 Jeep, Liberty, All Styles
Trailer Hitch Specs:
| Part Number | 75128 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 7,500 lbs |
| Max Tongue Weight | 500/750 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 02 03 04 05 06 07 2002 2003 2004 2005 2006 2007
Get Expert Help
Trailer Tow Hitch For 02-07 Jeep Liberty All Styles Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Jeep Liberty
Part Numbers:
- 75128
- 87006
Wiring Access Location:
- None
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Skid Shield (If Equipped):
- If the vehicle is equipped with a fuel tank skid shield, remove six (6) M12 fasteners holding the shield to the vehicle frame rails.
- Discard the bolts and retain the skid shield for reinstallation.
-
Raise Hitch into Position:
- Raise the hitch into position and install six (6) M12 x 1.75 x 40mm CL8.8 bolts with conical toothed washers into the existing weldnuts in the vehicle frame.
- Ensure the fuel tank skid shield is sandwiched between the hitch and the vehicle frame rails during reinstallation.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (6) M12 x 1.75 x 40mm CL8.8 Bolts
- (6) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 750 lb (340 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Installation Instructions for Jeep Liberty
Part Numbers:
- 75128
- 87006
Wiring Access Location:
- None
Tools Required:
- Wrenches: 18mm, 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Skid Shield (If Equipped):
- If the vehicle is equipped with a fuel tank skid shield, remove six (6) M12 fasteners holding the shield to the vehicle frame rails.
- Discard the bolts and retain the skid shield for reinstallation.
-
Raise Hitch into Position:
- Raise the hitch into position and install six (6) M12 x 1.75 x 40mm CL8.8 bolts with conical toothed washers into the existing weldnuts in the vehicle frame.
- Ensure the fuel tank skid shield is sandwiched between the hitch and the vehicle frame rails during reinstallation.
-
Tighten Fasteners:
- Torque all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Torque Specifications:
- M12 CL8.8 Fasteners: 68 lb-ft (92 N·m)
Hardware List:
- (6) M12 x 1.75 x 40mm CL8.8 Bolts
- (6) Conical Toothed Washers
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the vehicle’s frame or body panels to prevent water or exhaust fumes from entering.
- Always follow proper safety precautions when working beneath the vehicle, including wearing eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lb (2,268 kg)
- Max Tongue Weight: 750 lb (340 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 7,500 lb (3,402 kg)
- Max Tongue Weight: 750 lb (340 kg)
Compliance:
- This product complies with SAE J684 and V.E.S.C. Regulation V-5 standards.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
