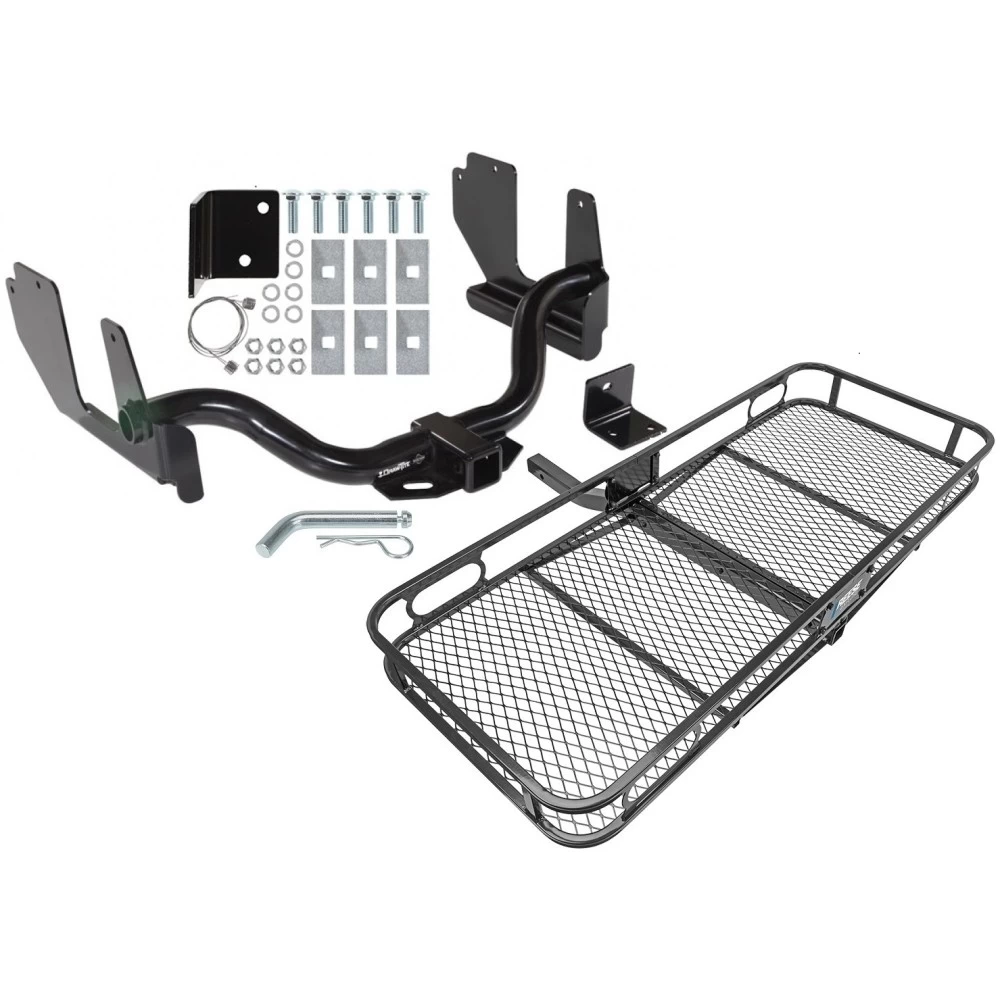

Trailer Tow Hitch For 04‑06 Ford F‑150 All Styles Lincoln Mark LT Basket Cargo Carrier Platform w/ Hitch Pin
Model: 41549 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2005 Ford, F-150, All Styles
2006 Lincoln, Mark LT, (Built Before 8/2005)
Trailer Hitch Specs:
| Part Number | 41549 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 2004 2005 2006
$601 70 $961.42 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$961.42 $601 70
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $150.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41549 63153 63240
- Includes: Class 4 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description

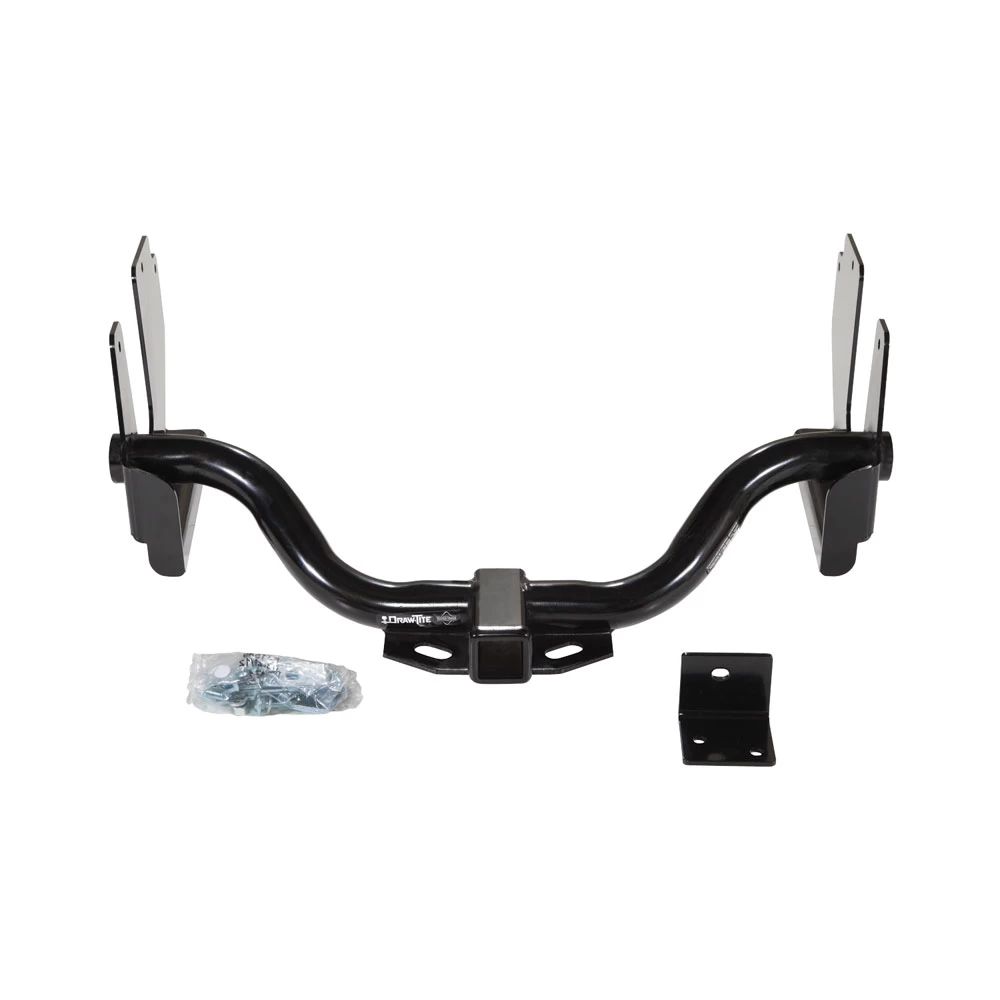

Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2005 Ford, F-150, All Styles
2006 Lincoln, Mark LT, (Built Before 8/2005)
Trailer Hitch Specs:
| Part Number | 41549 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 6,000 lbs |
| Max GTW w/ weight distribution | 10,000 lbs |
| Max Tongue Weight | 600/1,000lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 2004 2005 2006
Get Expert Help
Trailer Tow Hitch For 04-06 Ford F-150 All Styles Lincoln Mark LT Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Ford F-150 and Lincoln Mark LT
Part Numbers:
- 37090
- 41549
- 82595
Wiring Access Location:
- PU3
Tools Required:
- Drill with 7/16" Drill Bit
- Wrenches: 3/4"
- Fishwire (provided)
Step-by-Step Instructions:
-
Prepare Vehicle:
- Lower the spare tire to ease installation.
- For vehicles with a vibration dampener assembly mounted on the driver’s side frame rail:
- Remove and retain the dampener and its fasteners for reinstallation later (refer to Figure 2).
- Note: Vibration dampeners cannot be reinstalled on Flareside models.
-
Position Hitch:
- Raise the hitch into position, aligning the holes in the hitch side brackets with the holes in the vehicle frame.
-
Install Rear Fasteners:
- Insert a 1/2"-13 carriage bolt and 1/4" x 3" block through the end of the frame and into the rearmost slot on each side.
- Secure with 1/2" lock washers and nuts. Finger-tighten only at this stage.
-
Fishwire Forward Bolts:
- Fishwire two (2) 1/2"-13 carriage bolts and 1/4" x 3" blocks through the forward square hole in the side of the frame rail and into the aligned holes in the hitch side bracket on both sides.
- Secure with 1/2" lock washers and nuts.
Notes:
- Ensure blocks do not overlap inside the frame before tightening.
- On vehicles with a vibration dampener, reinstall the dampener (see Figure 2) before tightening fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft.
-
Raise Spare Tire:
- Reinstall the spare tire.
Reinstalling Vibration Dampener (if applicable):
-
Attach the dampener bracket to the dampener using two (2) existing M10 fasteners. Tighten to 38 lb-ft.
-
Raise the dampener with the bracket attached and secure it with 1/2" fasteners at the rearmost driver’s side attachment point.
-
Drill a 7/16" hole through the spring shackle bracket and the adjoining face of the dampener bracket. Secure with the existing M10 fastener.
Torque Specifications:
- M10 fasteners: 38 lb-ft
- 1/2"-13 GR5 fasteners: 75 lb-ft

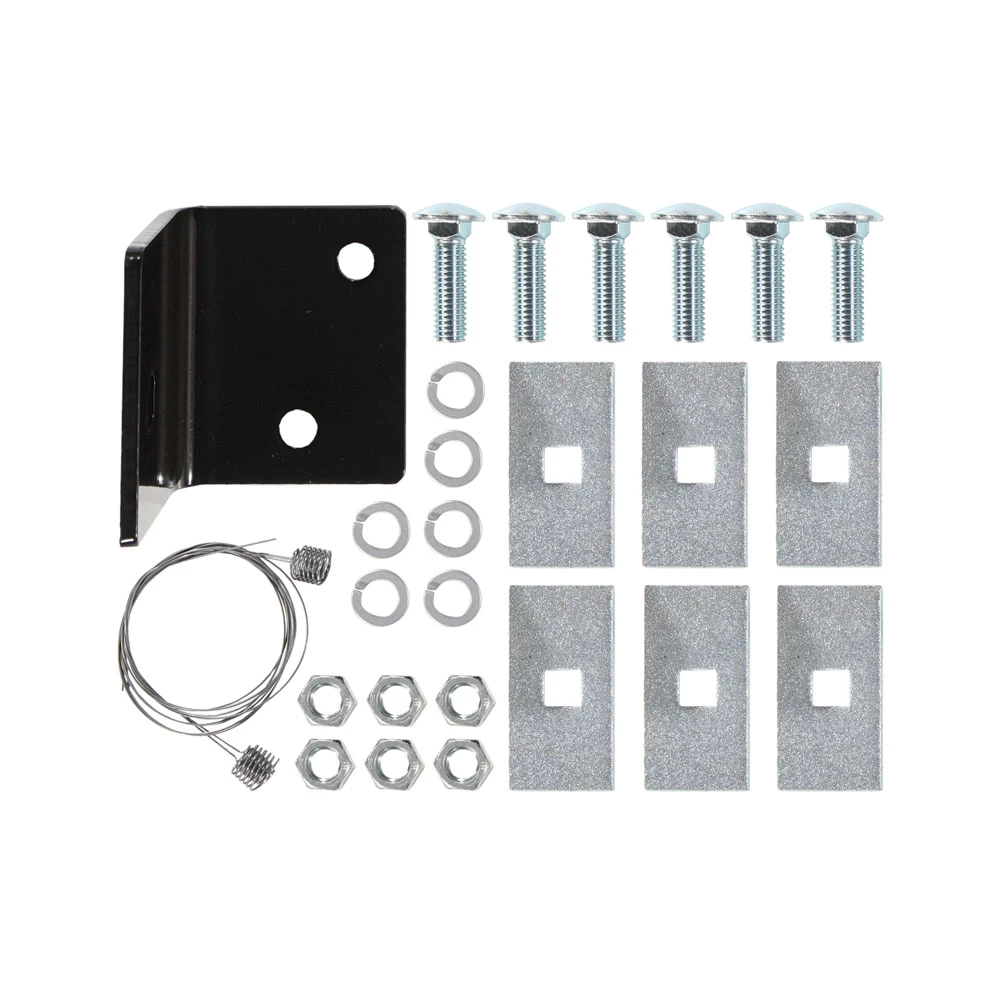

Hardware List:
- (6) Carriage Bolts, 1/2"-13
- (6) Blocks, 1/4" x 3"
- (6) Lock Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Pickup Trucks
Part Numbers:
- 37090
- 41549
- 82595
Wiring Access Location:
- PU3
Tools Required:
- Drill with 7/16" Drill Bit
- Wrenches: 3/4"
- Fishwire (provided)
Step-by-Step Instructions:
-
Prepare Vehicle:
- Lower the spare tire to ease installation.
- For vehicles with a vibration dampener assembly mounted on the driver’s side frame rail:
- Remove and retain the dampener and its fasteners for reinstallation later (refer to Figure 2).
- Note: Vibration dampeners cannot be reinstalled on certain models.
-
Position Hitch:
- Raise the hitch into position, aligning the holes in the hitch side brackets with the holes in the vehicle frame.
-
Install Rear Fasteners:
- Insert a 1/2"-13 carriage bolt and 1/4" x 3" block through the end of the frame and into the rearmost slot on each side.
- Secure with 1/2" lock washers and nuts. Finger-tighten only at this stage.
-
Fishwire Forward Bolts:
- Fishwire two (2) 1/2"-13 carriage bolts and 1/4" x 3" blocks through the forward square hole in the side of the frame rail and into the aligned holes in the hitch side bracket on both sides.
- Secure with 1/2" lock washers and nuts.
Notes:
- Ensure blocks do not overlap inside the frame before tightening.
- On vehicles with a vibration dampener, reinstall the dampener (see Figure 2) before tightening fasteners.
-
Tighten Fasteners:
- Use a torque wrench to tighten all 1/2"-13 GR5 fasteners to 75 lb-ft.
-
Raise Spare Tire:
- Reinstall the spare tire.
Reinstalling Vibration Dampener (if applicable):
-
Attach the dampener bracket to the dampener using two (2) existing M10 fasteners. Tighten to 38 lb-ft.
-
Raise the dampener with the bracket attached and secure it with 1/2" fasteners at the rearmost driver’s side attachment point.
-
Drill a 7/16" hole through the spring shackle bracket and the adjoining face of the dampener bracket. Secure with the existing M10 fastener.
Torque Specifications:
- M10 fasteners: 38 lb-ft
- 1/2"-13 GR5 fasteners: 75 lb-ft
Hardware List:
- (6) Carriage Bolts, 1/2"-13
- (6) Blocks, 1/4" x 3"
- (6) Lock Washers, 1/2"
- (6) Hex Nuts, 1/2"-13
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath a vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 6,000 lb
- Max Tongue Weight: 600 lb
- Weight Distributing:
- Max Gross Trailer Weight: 10,000 lb
- Max Tongue Weight: 1,000 lb
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
This product is covered by a limited warranty. For complete warranty instructions, please download the full installation PDF.
