Trailer Tow Hitch For 04-06 Ford F-150 Lincoln Mark LT Basket Cargo Carrier Platform Hitch Lock and Cover

Trailer Tow Hitch For 04‑06 Ford F‑150 Lincoln Mark LT Basket Cargo Carrier Platform Hitch Lock and Cover

Model: 75156 63153 63201 7010

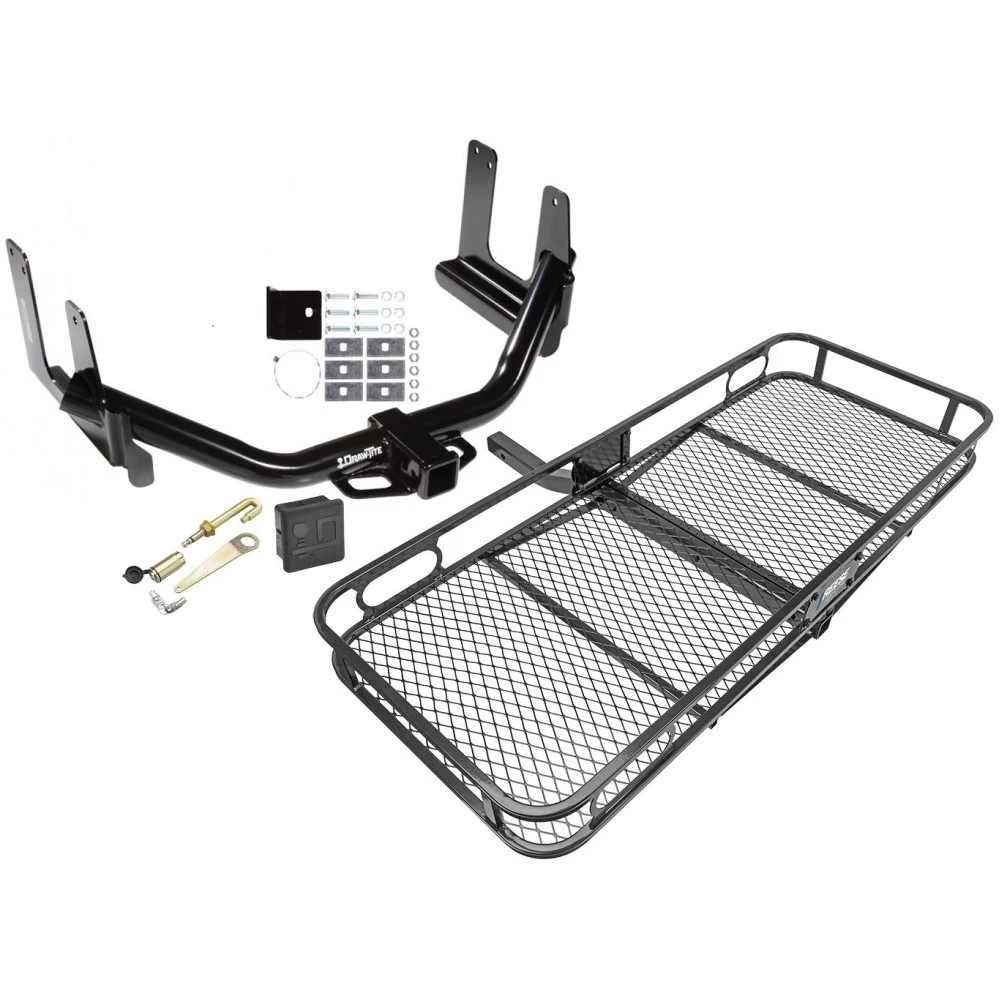

Includes Everything Pictured:
Custom Fit Trailer Hitch
Cargo Hitch Basket
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions

Fits The Following Vehicles

2004-2005 Ford, F-150, All Styles
2006 Lincoln, Mark LT, (Built Before 8/2005)

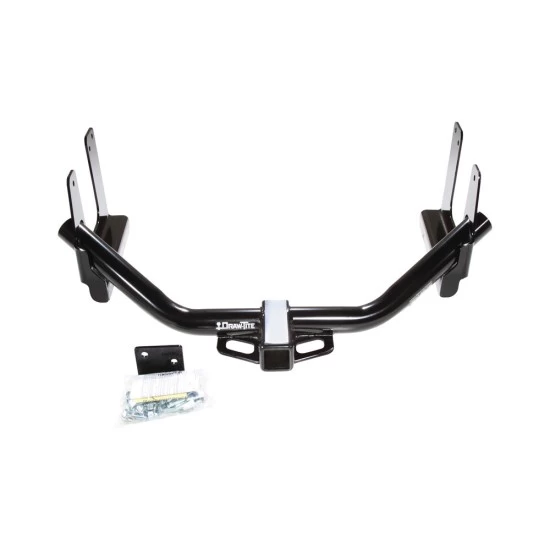

Trailer Hitch Specs:

Part Number	75156
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	600/800 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.

For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use

STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head

Questions or Comments? Call 702-374-8999

Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999

Partial list of fitment years: 04 05 06 2004 2005 2006

See Full Description

$618 ⁸⁷ $997.03 38% OFF

Best Price on Web Guarantee
Fastest Shipping
FREE Shipping
In Stock

Best Price on Web Guarantee

We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.

Please see our full terms for details.

Applies to this product only

Please wait...

Verify Fitment

Year

Make

Model

Add to Wish List

$997.03 $618 ⁸⁷

Pay in 4 interest-free installments of $154.50 with

Learn more

Questions? Call our Auto Experts at (877) 869-6690

Get it now, pay later

Select installments at checkout to split your purchase into 4 interest-free payments of $154.50 every 2 weeks.

No fees, ever.
No impact on your credit score.

Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.

Fits Vehicle Styles

Product Details

Brand: Draw-Tite
Model: 75156 63153 63201 7010
Includes: Class 4 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover

Compatibility Chart

Description

Part Number	75156
Brand	Draw-Tite
Finish	Black Powdercoat
Class	3
Receiver size opening	2"
Max gross trailer weight	6,000 lbs
Max GTW w/ weight distribution	8,000 lbs
Max Tongue Weight	600/800 lbs
Warranty	Lifetime
Installation Instructions

Rubber Hitch Plug Specs:

Part Number	7010
Fits	2" Receiver
Brand	Draw-Tite
Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand
Warranty	1 Year

When your gear is essential, these hitch baskets help you pack it in.

5.5" side rails to retain cargo
Fits 2" trailer hitch receives
2-1/2"" Shank Rise elevates the platform
12-3/4" Distance from hitch pin to the edge of carrier
Mesh floor for easy cleanup
Up to 500 lbs. capacity
Up to 60" x 24" (inside dimensions) cargo platform
Black powder coat finish resists corrosion
Bikes clips and fully functional light systems available
1 Year Warranty

More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.

Specifications

Specification
Attachment Location	Rear
Ball Mount Included	No
Color	Black
Drilling Required	No
Gross Towing Weight	6,000 lbs.
Gross Towing Weight w/ Weight Distribution Kit	8,000 lbs.
Hitch Class	IV
Material	Steel
Maximum Tongue Weight	600 lbs.
Maximum Tongue Weight w/ Weight Distribution Kit	800 lbs.
Mounting Hardware Included	Yes
Mounting Type	Vehicle Frame
Receiver Size	2 in.
Receiver Type	Round Tube

Questions & Answers

Be the first to ask a question.

Reviews

Tags: 75156 , 63153 , 63201 , 7010 , Draw-Tite , Trailer , Tow , Hitch , 04-06 , F-150 , Lincoln , Mark , LT , Basket , Cargo , Carrier , Platform , Hitch , Lock , and , Cover , 04 , 05 , 06 , 2004 , 2005 , 2006

Get Expert Help

Trailer Tow Hitch For 04-06 Ford F-150 Lincoln Mark LT Basket Cargo Carrier Platform Hitch Lock and Cover Install Notes

Installation Instructions for Ford F-150 and Lincoln Mark LT

Part Numbers:

44655
75156
87195

Wiring Access Location:

Tools Required:

Fishwire (provided)
Wrenches: 3/4"
Drill Bits: 7/16"

Notes:

Does not fit F-150 pickups with previously installed OEM hitches.
On Flareside models, the vibration dampener assembly cannot be re-installed and must be permanently removed.
Lowering the spare tire may ease installation.

Step-by-Step Instructions:

Raise the hitch into position, aligning holes in the hitch side brackets with holes in the vehicle frame.
Install 1/4 x 3 block and carriage bolt through the end of the frame into the rearmost slot on each side. Secure with lock washers and nuts. Finger-tighten only.
Fishwire 1/4 x 3 blocks and carriage bolts (2 on each side) through the forwardmost square hole in the side of the frame rail and align with holes in the hitch side bracket. Secure with lock washers and nuts.
- Ensure blocks do not overlap inside the frame before tightening.
Re-install the vibration dampener assembly (if applicable):
- Attach the dampener bracket to the dampener using (2) existing M10 fasteners.
- Tighten M10 fasteners to 38 lb-ft.
- Secure the assembly with 1/2” fasteners at the rearmost driver-side attachment point.
- Drill a 7/16” hole through the spring shackle bracket and the adjoining face of the dampener bracket.
- Install and tighten the existing M10 fastener to 38 lb-ft.
Tighten all 1/2-13 GR5 fasteners to 75 lb-ft.
Raise the spare tire back into position.

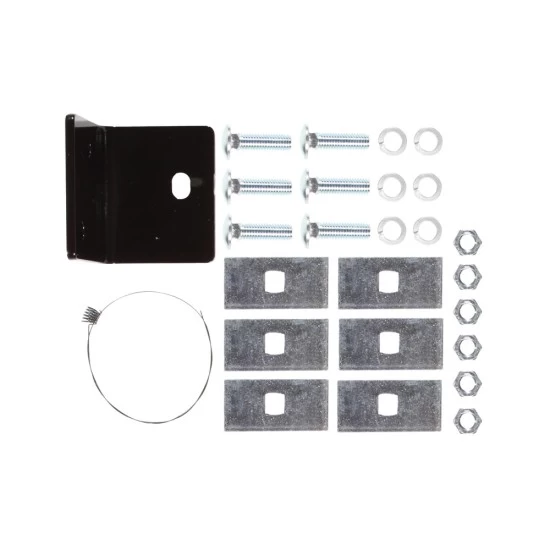

Hardware List:

(6) 1/2-13 Carriage Bolts
(6) 1/4 x 3 Blocks
(6) 1/2” Lock Washers
(6) 1/2-13 Hex Nuts

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Specifications:

Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs, Max Tongue Weight 800 lbs.
- Weight Carrying (Ball Mount): Max Trailer Weight 6,000 lbs, Max Tongue Weight 600 lbs.
Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.

Installation Instructions for Ford F-150 and Lincoln Mark LT

Part Numbers:

44655
75156
87195

Wiring Access Location:

Tools Required:

Fishwire (provided)
Wrenches: 3/4"
Drill Bits: 7/16"

Notes:

Does not fit F-150 pickups with previously installed OEM hitches.
On Flareside models, the vibration dampener assembly cannot be re-installed and must be permanently removed.
Lowering the spare tire may ease installation.

Step-by-Step Instructions:

Raise the hitch into position, aligning holes in the hitch side brackets with holes in the vehicle frame.
Install 1/4 x 3 block and carriage bolt through the end of the frame into the rearmost slot on each side. Secure with lock washers and nuts. Finger-tighten only.
Fishwire 1/4 x 3 blocks and carriage bolts (2 on each side) through the forwardmost square hole in the side of the frame rail and align with holes in the hitch side bracket. Secure with lock washers and nuts.
- Ensure blocks do not overlap inside the frame before tightening.
Re-install the vibration dampener assembly (if applicable):
- Attach the dampener bracket to the dampener using (2) existing M10 fasteners.
- Tighten M10 fasteners to 38 lb-ft.
- Secure the assembly with 1/2” fasteners at the rearmost driver-side attachment point.
- Drill a 7/16” hole through the spring shackle bracket and the adjoining face of the dampener bracket.
- Install and tighten the existing M10 fastener to 38 lb-ft.
Tighten all 1/2-13 GR5 fasteners to 75 lb-ft.
Raise the spare tire back into position.

Hardware List:

(6) 1/2-13 Carriage Bolts
(6) 1/4 x 3 Blocks
(6) 1/2” Lock Washers
(6) 1/2-13 Hex Nuts

Safety Notes:

Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
Replace any damaged hitch or ball immediately.
Follow safety precautions when working beneath the vehicle, and wear eye protection.
Do not cut access or attachment holes with a torch.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.
