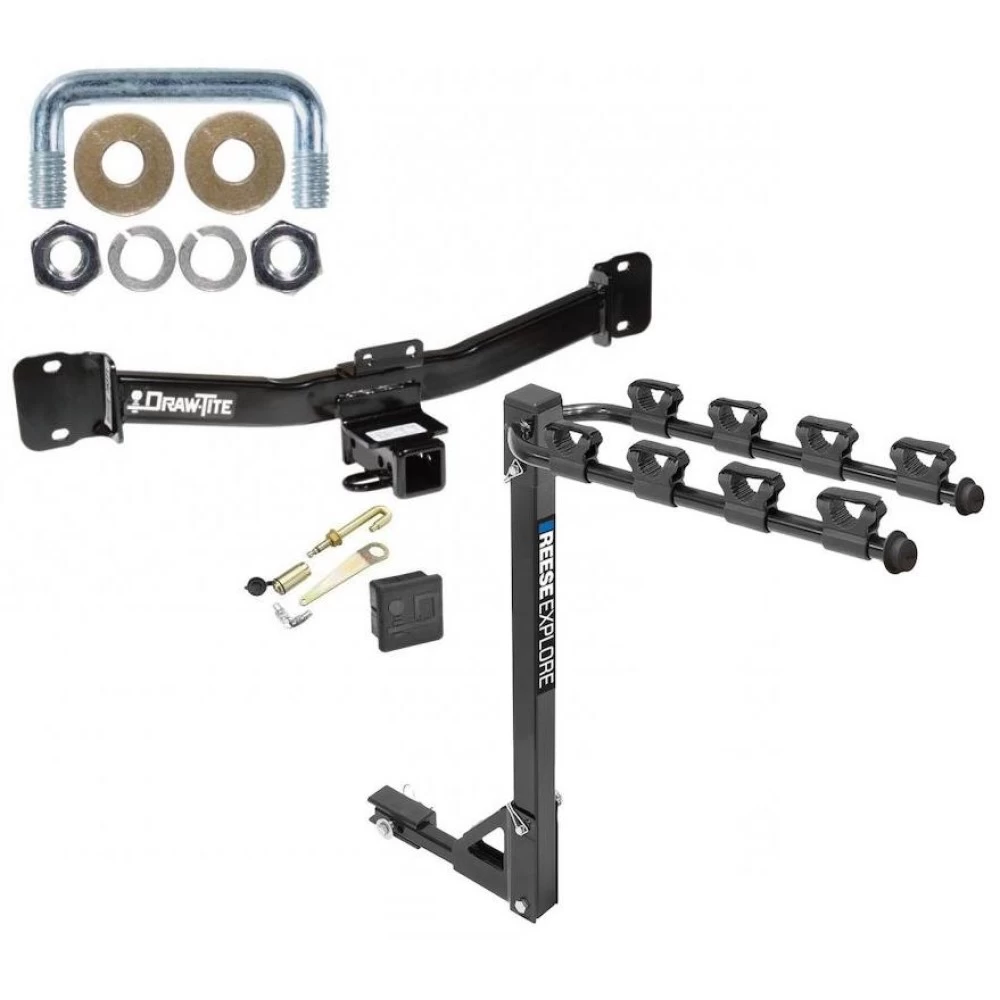

Trailer Tow Hitch w/ 4 Bike Rack For 04‑10 BMW X3 tilt away adult or child arms fold down carrier w/ Lock and Cover
Model: 75371 1393100G 63201 7010Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2010 BMW, X3, All Styles
Trailer Hitch Specs:
| Part Number | 75371 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350/400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 2004 2005 2006 2007 2008 2009 2010
$362 23 $584.85 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$584.85 $362 23
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $90.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75371 1393100G 63201 7010
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier, J-Pin Anti-Rattle Device, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Custom Fit Trailer Hitch
4 Bike Carrier
Security J-Pin
Rubber Hitch Plug Cover
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2004 - 2010 BMW, X3, All Styles
Trailer Hitch Specs:
| Part Number | 75371 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 350/400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Bike Rack Specs:
| Part Number | 1393100G |
| Brand | Reese |
| Finish | Black Powdercoat |
| Number of Bikes | 4 |
| Capacity | 120 lbs |
| Application | Fits 1-1/4" and 2" receivers |
| Weight | 28 lbs. |
| Warranty | 90 Day |
| Installation Instructions | |
Rubber Hitch Plug Specs:
| Part Number | 7010 |
| Fits | 2" Receiver |
| Brand | Draw-Tite |
| Attaches to any 2" receiver Rubber construction tightly seals tube opening Pin or clips are not required, simply push the cover into your 2" x 2" hitch opening Prevents any buildup of dirt and debris Raised "D" Logo to distinguish the Draw-Tite brand |
|
| Warranty | 1 Year |
More than just a hitch pin, J-Pin® quickly and confidently secures ball mounts and other hitch-mounted accessories, eliminating the sway and rattle caused by part clearance issues.
J-Pin® ready receiver design allows for the most confident and secure hookup in today’s towing market by compressing the hitch-mounted accessory against the inner side wall of the hitch receiver tube. Once attached, the hitch and towing components seem virtually welded together.
Packaged complete with its integral ball mount lock, J-Pin® makes your towing system complete.
For 2” receivers only
Ideal for bike racks and hitch-mounted cargo carriers
Attachment wrench included
Attractive point-of-purchase packaging
Requires hitch with additional 17/32” hole in receiver tube
Convenient 1/4” turn key for ease of use
STEP 1:
Insert J-Pin® through large hole in receiver hitch
Step 2: Tighten Nut on J-Pin Shaft STEP 2:
Tighten nut on J-Pin® shaft, compressing ball mount or hitch-mounted accessory against receiver tube
Step 3: Secure Ball Mount with Locking Head STEP 3:
Secure ball mount or hitch-mounted accessory with locking head
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 04 05 06 07 08 09 10 2004 2005 2006 2007 2008 2009 2010
Get Expert Help
Trailer Tow Hitch w/ 4 Bike Rack For 04-10 BMW X3 tilt away adult or child arms fold down carrier w/ Lock and Cover Install Notes
Installation Instructions for BMW X3
Part Numbers:
- 75371
- 44531
- 87403
Applications:
- 2004-2005 Models
- 2006 and Newer Models
Tools Required:
- Wrenches: 8mm, 10mm, 18mm, 11/16", T-20 Torx
- Drill Bits: 1/2"
- Utility Knife
Step-by-Step Instructions:
-
Remove Rear Fascia:
- For 2004-2005 Models:
- Remove the access door at the bottom of the fascia and return it to the vehicle owner.
- Open the tailgate, remove corner trim pieces, and unscrew two fasteners, one on each side.
- Remove two screws from each wheel well, pull the plastic trim away from the fascia, and remove three additional screws per side.
- Detach one screw and two plastic nuts from the bottom of the fascia.
- Pull the fascia straight back to remove.
- For 2006 and Newer Models:
- Follow similar steps, ensuring the fascia is detached carefully.
- For 2004-2005 Models:
-
Trim Fascia (if required):
- For 2004-2005 Models:
- Trim the inner fascia to match the profile of the access door.
- For 2006 and Newer Models:
- Trim both the inner and outer fascia. Use a 9.5” wide profile for hitches with electrical brackets and 6.5” wide for hitches without them. Ensure measurements are taken from the centerline of the fascia.
- For 2004-2005 Models:
-
Remove Bumper:
- Detach two nuts on each side to remove the bumper. Retain these nuts for reinstallation.
-
Align Hitch and Bumper:
- Clamp the hitch and bumper together off the vehicle.
- Align the mounting holes, ensuring the threaded hole in the bumper is on the passenger side.
- Drill two holes in the bumper using the hitch bracket as a template.
-
Install U-Bolt:
- Feed the U-bolt through the bumper bracket and bumper. Secure it finger-tight.
-
Attach Hitch and Bumper:
- Raise the hitch and bumper into position, sandwiching the hitch between the vehicle's end panel and bumper.
- Reattach using the nuts removed earlier.
-
Reinstall Fascia:
- Reattach the fascia, ensuring all fasteners are secure.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 lb-ft (41 N·m).
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (1) 3/8" U-Bolt
- (2) 3/8" Conical Washers
- (2) 3/8" Lock Washers
- (2) 3/8"-16 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75371
- 44531
- 87403
Applications:
- 2004-2005 Models
- 2006 and Newer Models
Tools Required:
- Wrenches: 8mm, 10mm, 18mm, 11/16", T-20 Torx
- Drill Bits: 1/2"
- Utility Knife
Step-by-Step Instructions:
-
Remove Rear Fascia:
- For 2004-2005 Models:
- Remove the access door at the bottom of the fascia and return it to the vehicle owner.
- Open the tailgate, remove corner trim pieces, and unscrew two fasteners, one on each side.
- Remove two screws from each wheel well, pull the plastic trim away from the fascia, and remove three additional screws per side.
- Detach one screw and two plastic nuts from the bottom of the fascia.
- Pull the fascia straight back to remove.
- For 2006 and Newer Models:
- Follow similar steps, ensuring the fascia is detached carefully.
- For 2004-2005 Models:
-
Trim Fascia (if required):
- For 2004-2005 Models:
- Trim the inner fascia to match the profile of the access door.
- For 2006 and Newer Models:
- Trim both the inner and outer fascia. Use a 9.5” wide profile for hitches with electrical brackets and 6.5” wide for hitches without them. Ensure measurements are taken from the centerline of the fascia.
- For 2004-2005 Models:
-
Remove Bumper:
- Detach two nuts on each side to remove the bumper. Retain these nuts for reinstallation.
-
Align Hitch and Bumper:
- Clamp the hitch and bumper together off the vehicle.
- Align the mounting holes, ensuring the threaded hole in the bumper is on the passenger side.
- Drill two holes in the bumper using the hitch bracket as a template.
-
Install U-Bolt:
- Feed the U-bolt through the bumper bracket and bumper. Secure it finger-tight.
-
Attach Hitch and Bumper:
- Raise the hitch and bumper into position, sandwiching the hitch between the vehicle's end panel and bumper.
- Reattach using the nuts removed earlier.
-
Reinstall Fascia:
- Reattach the fascia, ensuring all fasteners are secure.
-
Torque Fasteners:
- Tighten all 3/8"-16 GR5 fasteners to 30 lb-ft (41 N·m).
- Tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (1) 3/8" U-Bolt
- (2) 3/8" Conical Washers
- (2) 3/8" Lock Washers
- (2) 3/8"-16 Hex Nuts
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,814 kg), Max Tongue Weight 400 lbs (181 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
