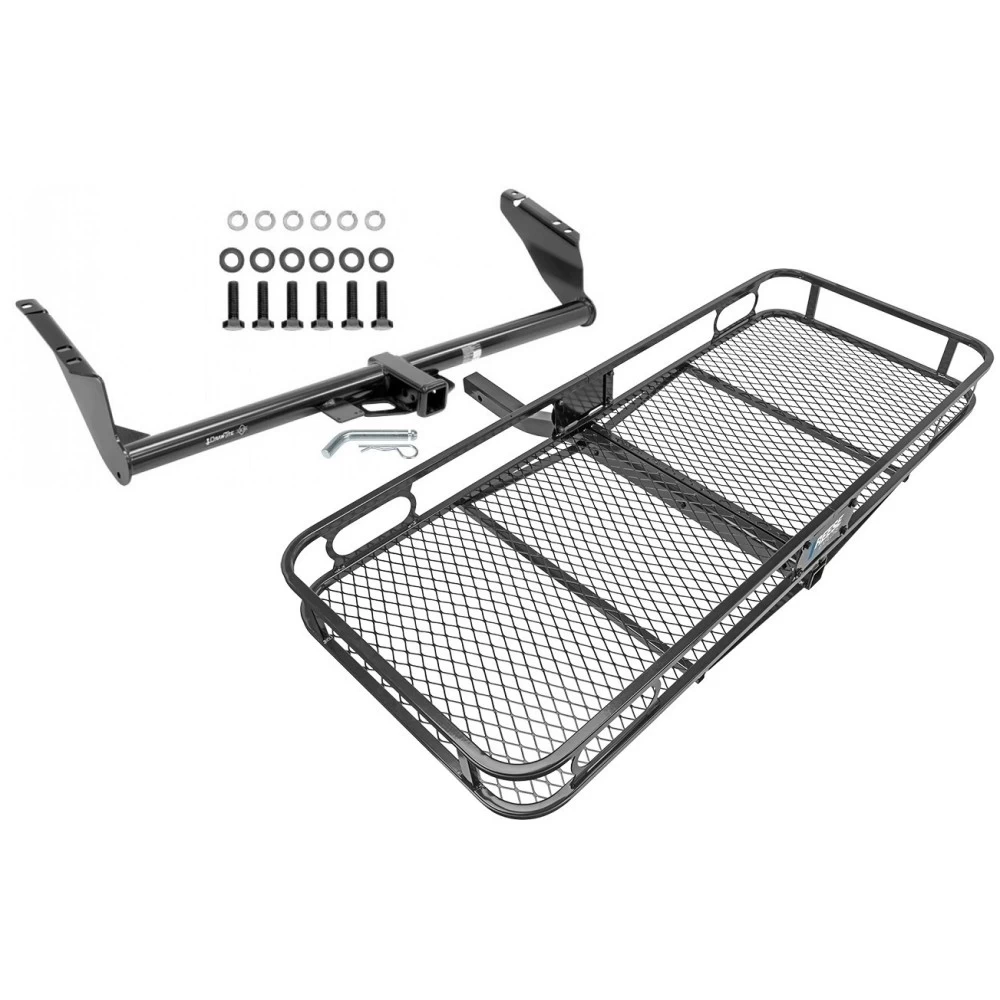

- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 04-20 Toyota Sienna Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Toyota Sienna
(2011 and Newer Models)
Part Numbers:
- 75237
- 87698
- 44786
- 78270 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Torque Wrench
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Appearance Panel Removal:
- If the vehicle is equipped with an appearance panel covering the trunk pan, remove it.
- Decide with the vehicle owner whether the panel will be trimmed or left off entirely after installation. (Refer to Figure 2 for the area to be trimmed.)
-
Lower the Exhaust:
- Detach the exhaust from the rubber isolator to lower it.
-
Raise Hitch Into Position:
- Lift the hitch into place and install M12 hex bolts, lock washers, and flat washers into the existing weldnuts in the frame as shown in Figure 1.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach it to the rubber isolator.
-
Reinstall or Return Appearance Panel:
- If trimmed, reinstall the appearance panel. If untrimmed, return it to the vehicle owner.
Hardware List:
- (6) M12 x 1.25 x 40mm Hex Bolts
- (6) 1/2" Lock Washers
- (6) 1/2" Flat Washers
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Toyota Sienna
(2011 and Newer Models)
Part Numbers:
- 75237
- 87698
- 44786
- 78270 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Torque Wrench
- Drill Bits: None
Wiring Access Location:
- SUV1, SUV2
Step-by-Step Instructions:
-
Appearance Panel Removal:
- If the vehicle is equipped with an appearance panel covering the trunk pan, remove it.
- Decide with the vehicle owner whether the panel will be trimmed or left off entirely after installation. (Refer to Figure 2 for the area to be trimmed.)
-
Lower the Exhaust:
- Detach the exhaust from the rubber isolator to lower it.
-
Raise Hitch Into Position:
- Lift the hitch into place and install M12 hex bolts, lock washers, and flat washers into the existing weldnuts in the frame as shown in Figure 1.
-
Reinstall the Exhaust:
- Raise the exhaust back into position and reattach it to the rubber isolator.
-
Reinstall or Return Appearance Panel:
- If trimmed, reinstall the appearance panel. If untrimmed, return it to the vehicle owner.
Hardware List:
- (6) M12 x 1.25 x 40mm Hex Bolts
- (6) 1/2" Lock Washers
- (6) 1/2" Flat Washers
Torque Specifications:
- Tighten all M12 CL10.9 fasteners to 75 lb-ft (102 N·m) using a torque wrench.
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 4,500 lbs (2,043 kg), Max Tongue Weight 675 lbs (306 kg).
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 675 lbs (306 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
