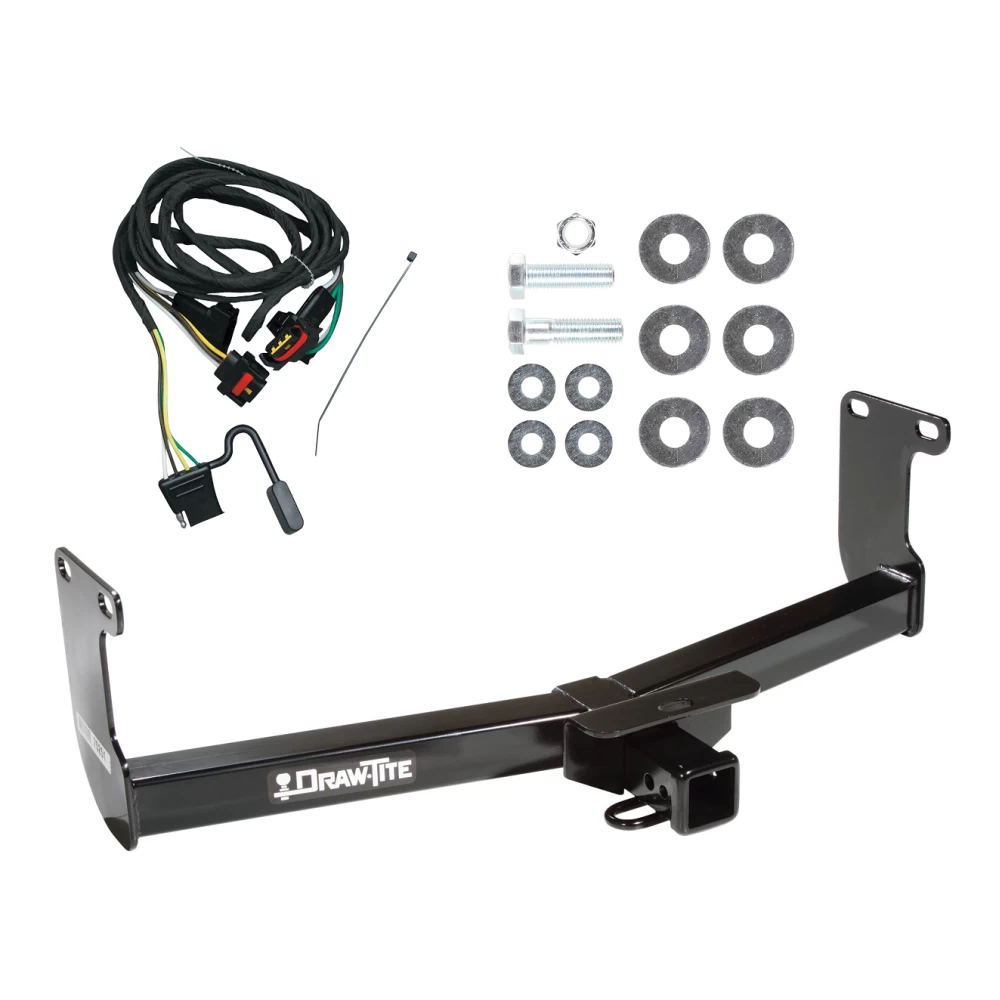

Product Details
- Brand: Draw-Tite
- Model: 75251 118323
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 05-11 Dodge Dakota RAM Mitsubishi Raider w/ Wiring Harness Kit Install Notes
Installation Instructions for Dodge Dakota
Part Numbers:
- 75251
- 87753
- 44747
Applications:
- Dodge Dakota
Tools Required:
- Tape
- Wrenches: 1-1/8”, 22mm
- Drill Bits: None
Wiring Access Location:
- PU1, PU2
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the lower bolts from the frame mounting brackets, (2) per side.
- Retain these bolts for hitch installation.
-
Attach Flat Washers:
- Use tape to attach flat washers to the underside of the bumper (see Figure 2).
-
Insert Bumper Bracket:
- Insert the bumper bracket mounting structure between the flat washers installed in Step 2 and the bumper.
-
Position the Hitch:
- Swivel the hitch into position.
- Loosely reinstall the fasteners removed in Step 1 along with additional flat washers.
-
Secure Fasteners:
- Install the fasteners for the bumper bracket mounting structure as shown in the diagram.
-
Tighten Fasteners:
- Torque all 3/4-10 GR5 fasteners to 260 lb-ft (353 N·m).
- Torque all M14 CL8.8 fasteners to 89 lb-ft (121 N·m).
Hardware List:
- (1) 3/4-10 x 2.75 GR5 Hex Bolt
- (1) 3/4-10 Lock Nut (with Nylon Insert)
- (6) 3/4” Flat Washers
- (8) 1/2” Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Dodge Dakota
Part Numbers:
- 75251
- 87753
- 44747
Applications:
- Dodge Dakota
Tools Required:
- Tape
- Wrenches: 1-1/8”, 22mm
- Drill Bits: None
Wiring Access Location:
- PU1, PU2
Step-by-Step Instructions:
-
Remove Existing Bolts:
- Remove the lower bolts from the frame mounting brackets, (2) per side.
- Retain these bolts for hitch installation.
-
Attach Flat Washers:
- Use tape to attach flat washers to the underside of the bumper (see Figure 2).
-
Insert Bumper Bracket:
- Insert the bumper bracket mounting structure between the flat washers installed in Step 2 and the bumper.
-
Position the Hitch:
- Swivel the hitch into position.
- Loosely reinstall the fasteners removed in Step 1 along with additional flat washers.
-
Secure Fasteners:
- Install the fasteners for the bumper bracket mounting structure as shown in the diagram.
-
Tighten Fasteners:
- Torque all 3/4-10 GR5 fasteners to 260 lb-ft (353 N·m).
- Torque all M14 CL8.8 fasteners to 89 lb-ft (121 N·m).
Hardware List:
- (1) 3/4-10 x 2.75 GR5 Hex Bolt
- (1) 3/4-10 Lock Nut (with Nylon Insert)
- (6) 3/4” Flat Washers
- (8) 1/2” Flat Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118323
Vehicle Compatibility:
- Chrysler Town & Country
- Dodge Caravan
- Plymouth Voyager
- Dodge Dakota
Tools Required:
- None specified.
Step-by-Step Instructions:
For Chrysler Town & Country, Dodge Caravan, Plymouth Voyager:
- Remove the right taillight assembly from the vehicle.
- Disconnect the wire harness from the upper taillight socket.
- Caution: Be careful not to damage the connector locking tabs.
- Lay the T-Connector harness on the top of the bumper.
- Route the connectors with green, brown, and white wires to the right side of the vehicle.
- Plug the T-Connector harness connectors into the mating plugs on the taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs in place.
- Repeat this procedure for the left side of the vehicle.
- Push the 4-flat plug of the T-Connector harness behind the bumper fascia at the center of the vehicle.
- Route the remainder of the harness behind the bumper as well.
- Reinstall the taillight assemblies, positioning the wire harness between the housing and the body.
- Caution: Ensure the wires are not pinched. Secure the harness under the bumper.
- Test the installation with a test light or trailer.
For Dodge Dakota:
-
Remove both taillight assemblies to access the taillight connectors.
- Beginning on the left (driver’s) side, route the T-Connector harness containing the yellow wire from under the vehicle through the taillight opening.
-
Disconnect the vehicle’s wiring harness connector from the taillight assembly.
- Plug the T-Connector between these separated halves, ensuring the connectors are fully inserted.
-
Route the connector with the green wire across the vehicle along the frame.
- Run the wire out from under the vehicle through the right (passenger) side taillight opening. Repeat step 2 using the connector containing the green wire.
-
Reinstall the taillight assemblies removed in step 1.
Specifications:
- This unit is rated for 7.5 amps per circuit.
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly to verify functionality.
- Do not exceed the specified amperage rating.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118323
Vehicle Compatibility:
- Chrysler Town & Country
- Dodge Caravan
- Plymouth Voyager
- Dodge Dakota
Tools Required:
- None specified
Step-by-Step Instructions:
For Chrysler Town & Country, Dodge Caravan, Plymouth Voyager:
-
Remove the Right Taillight Assembly:
- Remove the right taillight assembly from the vehicle.
-
Disconnect the Wire Harness:
- Disconnect the wire harness from the upper taillight socket.
- Caution: Be careful not to damage the connector locking tabs.
-
Lay the T-Connector Harness:
- Lay the T-Connector harness on the top of the bumper.
- Route the connectors with green, brown, and white wires to the right side of the vehicle.
-
Plug the T-Connector Harness:
- Plug the T-Connector harness connectors into the mating plugs on the taillight socket and the vehicle wiring harness.
- Ensure the connectors are fully inserted with locking tabs in place.
-
Repeat for the Left Side:
- Repeat this procedure for the left side of the vehicle.
-
Route the 4-Flat Plug:
- Push the 4-flat plug of the T-Connector harness behind the bumper fascia at the center of the vehicle.
- Route the remainder of the harness behind the bumper as well.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies, positioning the wire harness between the housing and the body.
- Caution: Ensure the wires are not pinched. Secure the harness under the bumper.
-
Test the Installation:
- Test the installation with a test light or trailer.
For Dodge Dakota:
-
Remove Both Taillight Assemblies:
- Remove both taillight assemblies to access the taillight connectors.
- Begin on the left (driver’s) side and route the T-Connector harness containing the yellow wire from under the vehicle through the taillight opening.
-
Disconnect the Vehicle’s Wiring Harness:
- Disconnect the vehicle’s wiring harness connector from the taillight assembly.
- Plug the T-Connector between these separated halves, ensuring the connectors are fully inserted.
-
Route the Connector with the Green Wire:
- Route the connector with the green wire across the vehicle along the frame.
- Run the wire out from under the vehicle through the right (passenger) side taillight opening.
- Repeat step 2 using the connector containing the green wire.
-
Reinstall the Taillight Assemblies:
- Reinstall the taillight assemblies removed in step 1.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Safety Notes:
- Ensure all connections are clean and securely fastened.
- Test the installation thoroughly to verify functionality.
- Do not exceed the specified amperage rating.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Note: Follow all warnings and instructions provided with the product. Use a test light or trailer to confirm proper installation.
