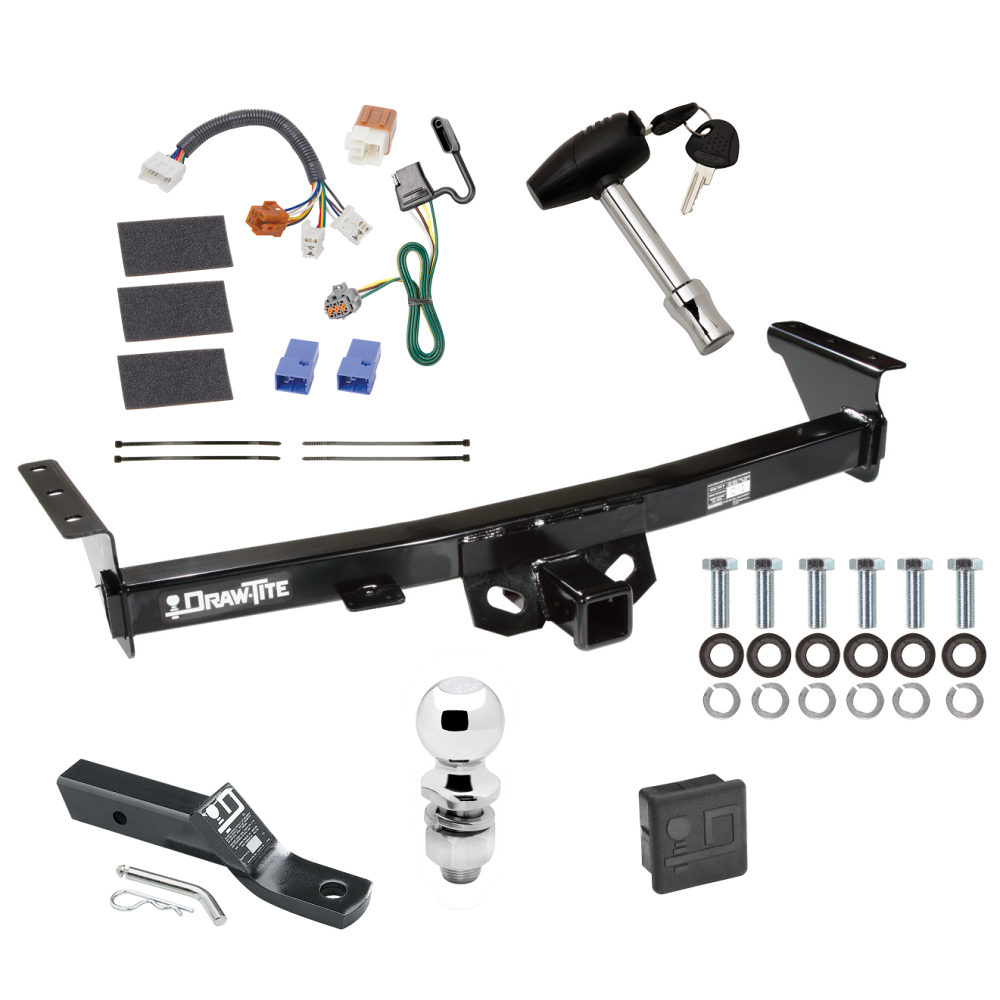

- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball, Trailer Tow Hitch Lock, Trailer Tow Hitch Tube Cover
Compatibility Chart
Description
Get Expert Help
Trailer Tow Hitch For 05-23 Nissan Frontier 09-12 Suzuki Equator Deluxe Package Wiring 2" Ball and Lock Install Notes
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 750 lbs (341 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Nissan Frontier and Suzuki Equator
Part Numbers:
- 75282
- 44526
- 87539
- 75990 (U-Haul)
Applications:
- Nissan Frontier
- Suzuki Equator
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- PU3
Step-by-Step Instructions:
-
Raise Hitch Into Position:
- Lift the hitch into place, aligning it with the existing weldnuts in the frame rail.
-
Install Fasteners:
- Secure the hitch using the provided hardware:
- Insert and tighten six (6) M12 x 1.25 x 35mm bolts with flat washers and lock washers.
- Secure the hitch using the provided hardware:
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
Hardware List:
- (6) M12 x 1.25 x 35mm Hex Bolts
- (6) 1/2" Flat Washers
- (6) 1/2" Lock Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Pathfinder, Xterra and Frontier/Equator
Part Numbers:
- 118525
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation
-
Insert Relays:
- Insert the relays provided with the kit.
- Note: Using relays other than those included may cause the unit to malfunction or damage the vehicle or trailer.
-
Locate the Vehicle's Jumper Plug:
- Find the 12-pin jumper plug located in the vehicle cab on the passenger’s side, behind the kick panel.
-
Remove Passenger Side Floor Sill and Kick Panel:
- Use a trim panel puller to remove the passenger side floor sill by pulling upwards (1) and then outward toward the rear of the vehicle (2). Be careful not to damage the panel fasteners.
- Remove the passenger side kick panel. The 12-pin jumper plug is located behind this panel.
-
Connect the Jumper Harness:
- Insert the jumper harness with relays into the vehicle’s 12-pin harness and lock it into place.
- Secure the remaining jumper harness with the provided cable ties and foam tape to prevent damage or rattling.
- Avoid areas where the wire may be pinched or cut.
-
Reassemble Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation
-
Locate the Trailer Harness Connector:
- Find the gray 6-pin plug located under the vehicle, behind the rear bumper on the driver’s side along the frame rail.
-
Remove the Protective Cap:
- Remove the protective cap from the connector. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Plug the T-Connector into the vehicle’s mating connector.
- Ensure the connectors are fully inserted and the locking tabs are secured.
Testing and Final Steps
-
Test the Installation:
- Use a test light or trailer to verify that the installation is functioning correctly.
- Ensure all connections are complete for the T-Connector to operate properly.
-
Warnings:
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
- Refer to the vehicle owner’s manual for additional information.
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Read and follow all warnings and installation instructions provided.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter for Generic Vehicle
Part Numbers:
- 118525
Tools Required:
- Test Probe
- Trim Panel Puller
Step-by-Step Instructions:
Jumper Harness Installation
-
Insert Relays:
- Insert the relays provided with the kit.
- Note: Using relays other than those included may cause the unit to malfunction or damage the vehicle or trailer.
-
Locate the Vehicle's Jumper Plug:
- Find the 12-pin jumper plug located in the vehicle cab on the passenger’s side, behind the kick panel.
-
Remove Passenger Side Floor Sill and Kick Panel:
- Use a trim panel puller to remove the passenger side floor sill by pulling upwards (1) and then outward toward the rear of the vehicle (2). Be careful not to damage the panel fasteners.
- Remove the passenger side kick panel. The 12-pin jumper plug is located behind this panel.
-
Connect the Jumper Harness:
- Insert the jumper harness with relays into the vehicle’s 12-pin harness and lock it into place.
- Secure the remaining jumper harness with the provided cable ties and foam tape to prevent damage or rattling.
- Avoid areas where the wire may be pinched or cut.
-
Reassemble Panels:
- Replace the passenger side kick panel and floor sill to their original positions.
Tow Plug Harness Installation
-
Locate the Trailer Harness Connector:
- Find the gray 6-pin plug located under the vehicle, behind the rear bumper on the driver’s side along the frame rail.
-
Remove the Protective Cap:
- Remove the protective cap from the connector. Ensure all connector surfaces are clean and free of dirt.
-
Connect the T-Connector:
- Plug the T-Connector into the vehicle’s mating connector.
- Ensure the connectors are fully inserted and the locking tabs are secured.
Testing and Final Steps
-
Test the Installation:
- Use a test light or trailer to verify that the installation is functioning correctly.
- Ensure all connections are complete for the T-Connector to operate properly.
-
Warnings:
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
- Max. stop/turn light: 1 per side (7.5 amps)
- Max. tail lights: (7.5 amps)
- Refer to the vehicle owner’s manual for additional information.
- Overloading the circuit can cause fires. DO NOT exceed the towing manufacturer’s rating or:
Safety Notes:
- Follow all vehicle warnings and installation instructions.
- Wear safety glasses and follow safety precautions during installation.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Note: Read and follow all warnings and installation instructions provided. Refer to the vehicle owner’s manual for additional details.
