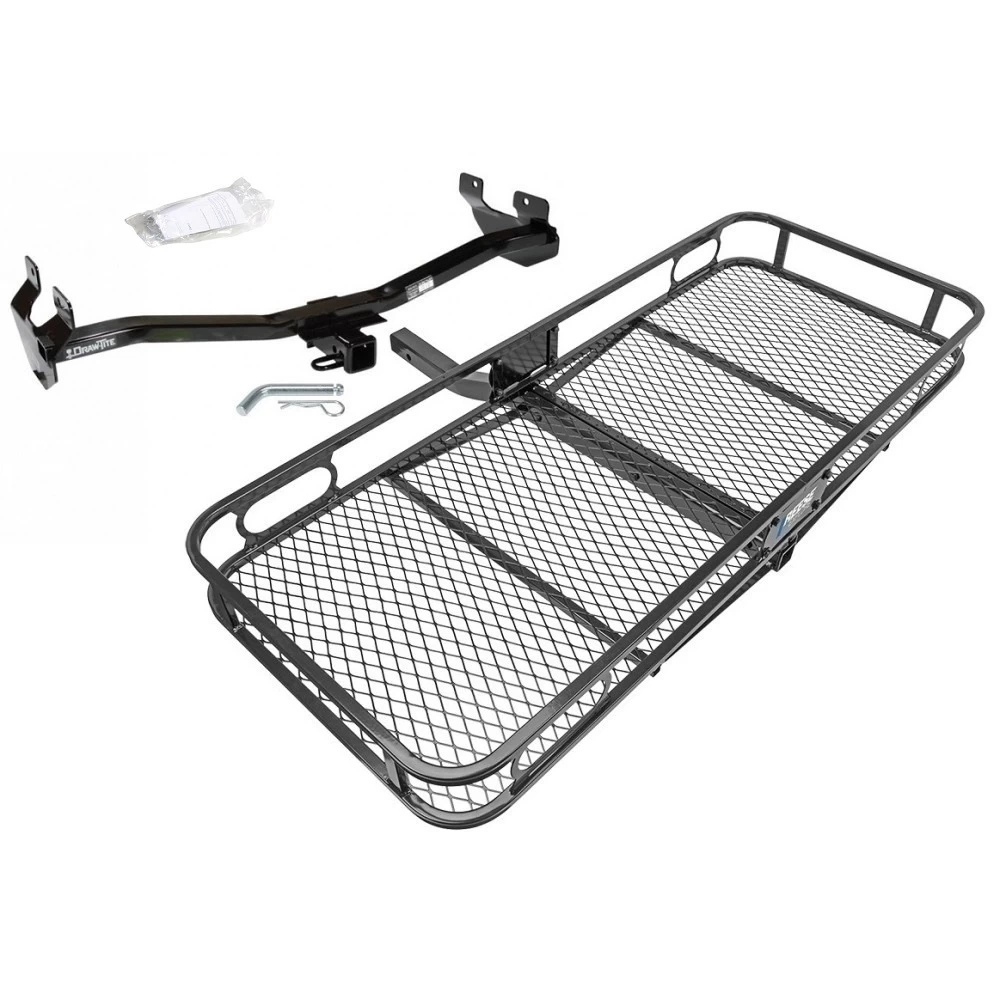

Trailer Tow Hitch For 06‑10 Hummer H3 Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75382 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2006 - 2010 Hummer, H3, All Styles

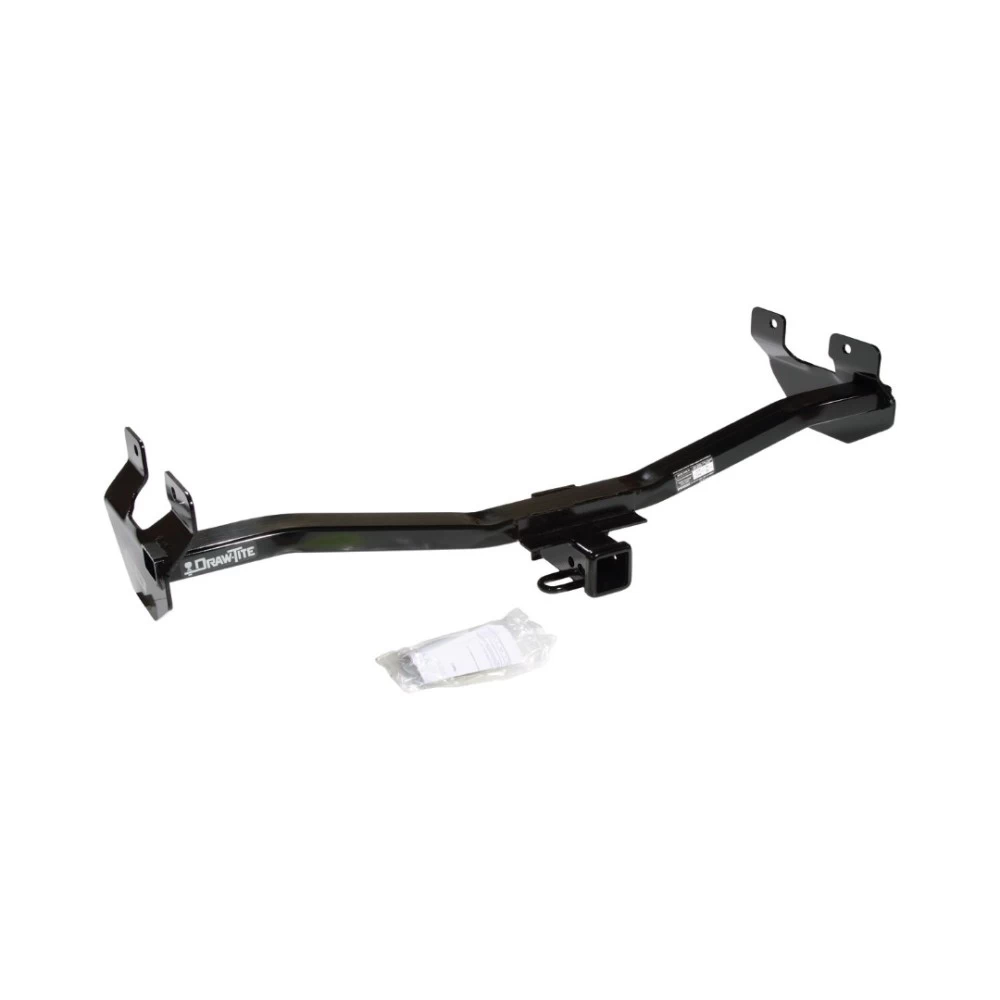

Trailer Hitch Specs:
| Part Number | 75382 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 2006 2007 2008 2009 2010
$557 56 $892.44 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$892.44 $557 56
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $139.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75382 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2006 - 2010 Hummer, H3, All Styles
Trailer Hitch Specs:
| Part Number | 75382 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 5,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 500/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 06 07 08 09 10 2006 2007 2008 2009 2010
Get Expert Help
Trailer Tow Hitch For 06-10 Hummer H3 Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Hummer H3
Part Numbers:
- 44177
- 75382
- 87406
Tools Required:
- Wrench: 21mm
- Drill Bits: None
Weight Capacities:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lbs (2,268 kg)
- Max Tongue Weight: 500 lbs (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lbs (2,268 kg)
- Max Tongue Weight: 500 lbs (227 kg)
Wiring Access Location:
- SUV6
Step-by-Step Instructions:
1. Remove Factory Bolts:
- Remove (2) bolts from the outside of each frame rail as shown in Figure 2. Retain the bolts for the hitch installation.
2. Install Hitch:
- Raise the hitch into position under the frame rails.
- Optional Step: Lowering the exhaust system may ease the installation process.
3. Reattach Bolts:
- Reinstall the M14 fasteners removed in Step 1 to secure the hitch.
4. Tighten Fasteners:
- Use a torque wrench to tighten all M14 CL10.9 fasteners to 148 lb-ft (200 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water or exhaust fumes.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s towing rating or the hitch’s maximum load rating, whichever is lower.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 44177
- 75382
- 87406
Tools Required:
- Wrench: 21mm
- Drill Bits: None
Weight Capacities:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 5,000 lbs (2,268 kg)
- Max Tongue Weight: 500 lbs (227 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 5,000 lbs (2,268 kg)
- Max Tongue Weight: 500 lbs (227 kg)
Wiring Access Location:
- SUV6
Step-by-Step Instructions:
1. Remove Factory Bolts:
- Remove (2) bolts from the outside of each frame rail as shown in the diagram. Retain the bolts for the hitch installation.
2. Install Hitch:
- Raise the hitch into position under the frame rails.
- Optional Step: Lowering the exhaust system may ease the installation process.
3. Reattach Bolts:
- Reinstall the M14 fasteners removed in Step 1 to secure the hitch.
4. Tighten Fasteners:
- Use a torque wrench to tighten all M14 CL10.9 fasteners to 148 lb-ft (200 N·m).
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent the entry of water or exhaust fumes.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and follow safety precautions when working under the vehicle.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type: Class III
- Compliance: This product meets safety specifications and requirements as per V.E.S.C. Regulation V-5 and SAE J684.
Note: Always adhere to the vehicle manufacturer’s towing rating or the hitch’s maximum load rating, whichever is lower.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
