Installation Instructions for Acura CSX and Acura ILX

Part Numbers:

• 24861
• 60277
• 77247
• 24888 (U-Haul)

Wiring Access Location:

• CSX: PC3, PC4
• ILX: PC1, PC2

Tools Required:

• Small Screwdriver
• Tape
• Utility Knife
• Tape Measure
• Marking Pencil
• Wrenches: 3/4”, 7/8”, 10mm

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions for Acura CSX:

1. Lower Exhaust:

   • Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.

2. Remove Heat Shield:

   • On the passenger side, remove the four (4) bolts securing the exhaust heat shield. Retain the bolts for reinstallation.

3. Remove Plastic Shroud:

   • On the driver’s side, remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain these for reinstallation.

4. Position Hitch:

   • Raise the hitch into position with the frame bracket flanges between the frame rail and the plastic shroud (driver’s side) and between the frame rail and the exhaust heat shield (passenger side).
   • Ensure the tailpipe tangs are above the hitch bar.

5. Install Handle Nuts and Fasteners:

   • Insert the 1/2”-13 handle nuts through the large holes in the vehicle frame rails and secure the hitch using the provided bolts and conical washers.

6. Attach Tow Hook Fastener:

   • Insert the 1/2”-13 x 2-1/4” bolt and toothed washer through the slot in the hitch, the vehicle tow hook, and back through the hitch. Secure with a toothed washer and locknut.

7. Adjust and Tighten Hitch:

   • Pull the hitch rearward as far as possible to allow muffler clearance with the hitch bar on the passenger side. Tighten all fasteners to the torque specifications.

8. Reinstall Components:

   • Reinstall the trimmed heat shield, reattach the exhaust, and replace the plastic rivet and nut holding the driver-side shroud.

Step-by-Step Instructions for Acura ILX:

1. Remove Appearance Panel:

   • Detach the appearance panel by removing four (4) plastic rivets and three (3) bolts. Return the panel to the owner.

2. Trim and Reinstall Heat Shield:

   • Remove the heat shield bolts and trim the shield as necessary. Reinstall the trimmed heat shield.

3. Install Handle Nuts:

   • Insert 1/2”-13 handle nuts into the frame rails through the large holes, bending the handles as required.

4. Position Hitch:

   • Starting on the passenger side, slide the hitch over the exhaust tailpipe and into position. Avoid scratching the fascia.

5. Install Fasteners:

   • Secure the hitch using the provided bolts and conical washers. Attach the tow hook bolt and fasteners as described for the CSX.

6. Tighten All Fasteners:

   • Pull the hitch rearward and torque all fasteners to the specified values.

7. Reinstall Components:

   • Replace the trimmed heat shield.

Torque Specifications:

• Tighten 1/2”-13 x 1-1/4” hex bolts to 50 Lb.-Ft. (68 N*M).
• Tighten 1/2”-13 x 2-1/4” hex bolt to 75 Lb.-Ft. (102 N*M).

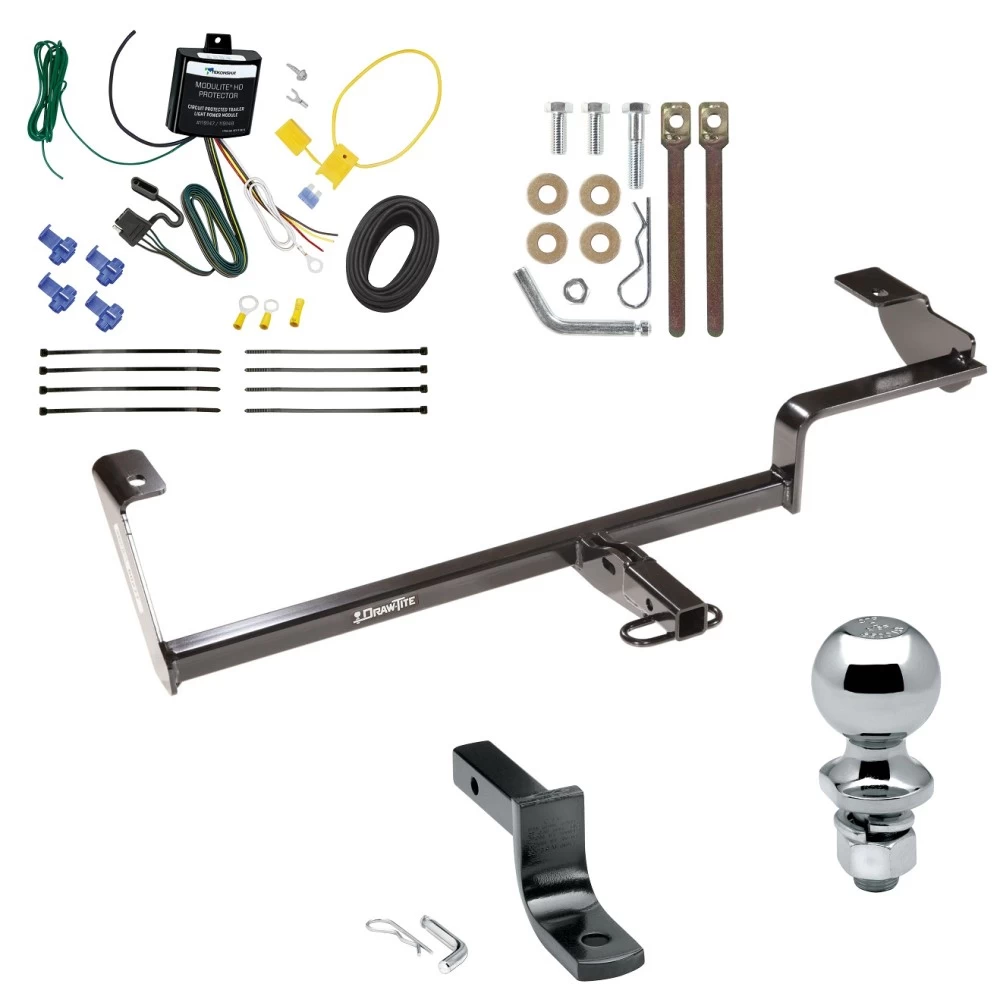

Hardware List:

• (2) 1/2”-13 x 1-1/4” Hex Bolts (GR5)
• (1) 1/2”-13 x 2-1/4” Hex Bolt (GR5)
• (4) 1/2” Conical Toothed Washers
• (1) 1/2”-13 Lock Nut
• (2) 1/2”-13 Handle Nuts

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Heat shield trimming may be required for some models.

Installation Instructions

Part Numbers:

• 24861
• 60277
• 77247
• 24888 (U-Haul)

Wiring Access Location:

• CSX: PC3, PC4
• ILX: PC1, PC2

Tools Required:

• Small Screwdriver
• Tape
• Utility Knife
• Tape Measure
• Marking Pencil
• Wrenches: 3/4”, 7/8”, 10mm

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (90.8 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions for Acura CSX:

1. Lower Exhaust:

   • Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.

2. Remove Heat Shield:

   • On the passenger side, remove the four (4) bolts securing the exhaust heat shield. Retain the bolts for reinstallation.

3. Remove Plastic Shroud:

   • On the driver’s side, remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain these for reinstallation.

4. Position Hitch:

   • Raise the hitch into position with the frame bracket flanges between the frame rail and the plastic shroud (driver’s side) and between the frame rail and the exhaust heat shield (passenger side).
   • Ensure the tailpipe tangs are above the hitch bar.

5. Install Handle Nuts and Fasteners:

   • Insert the 1/2”-13 handle nuts through the large holes in the vehicle frame rails and secure the hitch using the provided bolts and conical washers.

6. Attach Tow Hook Fastener:

   • Insert the 1/2”-13 x 2-1/4” bolt and toothed washer through the slot in the hitch, the vehicle tow hook, and back through the hitch. Secure with a toothed washer and locknut.

7. Adjust and Tighten Hitch:

   • Pull the hitch rearward as far as possible to allow muffler clearance with the hitch bar on the passenger side. Tighten all fasteners to the torque specifications.

8. Reinstall Components:

   • Reinstall the trimmed heat shield, reattach the exhaust, and replace the plastic rivet and nut holding the driver-side shroud.

Step-by-Step Instructions for Acura ILX:

1. Remove Appearance Panel:

   • Detach the appearance panel by removing four (4) plastic rivets and three (3) bolts. Return the panel to the owner.

2. Trim and Reinstall Heat Shield:

   • Remove the heat shield bolts and trim the shield as necessary. Reinstall the trimmed heat shield.

3. Install Handle Nuts:

   • Insert 1/2”-13 handle nuts into the frame rails through the large holes, bending the handles as required.

4. Position Hitch:

   • Starting on the passenger side, slide the hitch over the exhaust tailpipe and into position. Avoid scratching the fascia.

5. Install Fasteners:

   • Secure the hitch using the provided bolts and conical washers. Attach the tow hook bolt and fasteners as described for the CSX.

6. Tighten All Fasteners:

   • Pull the hitch rearward and torque all fasteners to the specified values.

7. Reinstall Components:

   • Replace the trimmed heat shield.

Torque Specifications:

• Tighten 1/2”-13 x 1-1/4” hex bolts to 50 Lb.-Ft. (68 N*M).
• Tighten 1/2”-13 x 2-1/4” hex bolt to 75 Lb.-Ft. (102 N*M).

Hardware List:

• (2) 1/2”-13 x 1-1/4” Hex Bolts (GR5)
• (1) 1/2”-13 x 2-1/4” Hex Bolt (GR5)
• (4) 1/2” Conical Toothed Washers
• (1) 1/2”-13 Lock Nut
• (2) 1/2”-13 Handle Nuts

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure they are securely tightened.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Heat shield trimming may be required for some models.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Installation Instructions for Modulite® HD Protector Vehicle Wiring

Part Number:

• 119148

Tools Required:

• Phillips Head #2 Screwdriver
• Wire Cutters
• Wire Strippers/Wire Crimpers
• Tester or Volt Meter
• Socket & Ratchet Set
• Drill with 3/32” Drill Bit
• Double-Sided Tape

Step-by-Step Instructions:

Tow Vehicle Inputs - Determination:

1. Disconnect and isolate the vehicle's negative battery terminal.
   • Warning: Read and follow all warnings and instructions on the tow vehicle's battery.
2. Splice the tow harness input wires to the vehicle as determined.
   • Caution: Use appropriate gauge wire splices. Blue taps are for 16-18 gauge wires only.

Harness Installation:

1. Determine the mounting location of the module and secure it using the double-sided tape provided.
   • Warning: Mount the module with the epoxy side pointed towards the ground to prevent water buildup.
2. Locate a suitable grounding point near the module, such as an existing ground stud, or drill a 3/32” hole to secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind any surface before drilling to avoid damage or personal injury.
3. Route the power wire to the vehicle’s positive battery terminal. Use the provided fuse holder, butt connector, and ring terminal to connect to the battery.
   • Do not insert the 15 amp fuse yet.
   • Caution: Ensure the module is connected to a constant power source and avoid routing the wire near hot pipes, heat shields, fuel tanks, or pinch points.

Completion:

1. Secure the harness with cable ties provided to prevent damage or rattling.
2. Reconnect the vehicle's negative battery cable.
3. Insert the 15 amp fuse into the fuse holder and close the cap.
4. Test the installation using a test light or trailer. Check each function independently and in combination.

Hardware List:

• 8 × Cable Ties, 8.5”
• 1 × 15 AMP Fuse
• 2 × Ring Terminals
• 1 × Fuse Holder
• 2 × Yellow Butt Connectors
• 1 × Self-Tapping Screw
• 4 × Blue Taps
• 1 × Spade Terminal

Wiring Outputs:

• White Wire: Ground
• Brown Wire: Tail
• Yellow Wire: Left Turn/Brake
• Green Wire: Right Turn/Brake
• Red Wire: Stop (for 3-wire systems only)

Safety Notes:

• Always read and follow all warnings and instructions included with the product and the vehicle's manual.
• Do not exceed the manufacturer’s towing capacity or the product’s amperage ratings.
• Wear safety glasses and use all necessary safety precautions during installation.

Troubleshooting Guide:

• 4-Flat Not Functioning: Ensure input wires are correctly installed and repeat testing after removing the 15 amp fuse for 10 seconds.
• No Power to 4-Flat: Check the chassis ground and ensure the module is properly connected to a constant power source.

Specifications:

• Installation Time: Approximately 45 minutes
• Compatibility: Does not work with multiplex vehicles (BM, BT, or BTT). Use part numbers 119190 or 119250 for these systems.

Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

For warranty information, please download the full installation PDF.
