Product Details
- Brand: Draw-Tite
- Model: 75421 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Get Expert Help

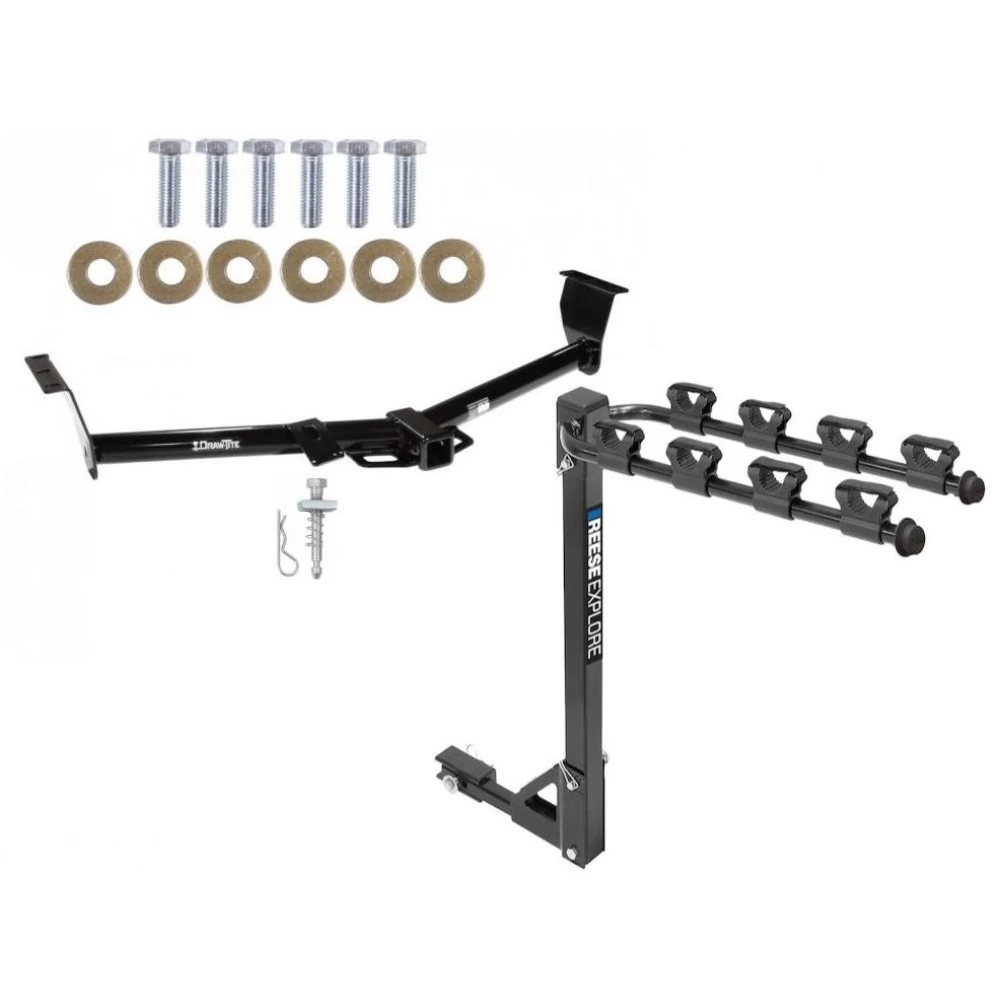

Trailer Tow Hitch w/ 4 Bike Rack For 06-14 Kia Sedona Hyundai Entourage tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Kia Sedona Van and Hyundai Entourage
Part Numbers:
- 75421
- 44537
- 70761
- 78211 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the exhaust from its hangers to provide better access to the frame fastener locations.
-
Position the Hitch:
- Raise the hitch on the passenger side over the exhaust pipe.
- Slowly rotate the hitch into its proper position under the vehicle.
-
Secure the Hitch:
- Loosely install all provided bolts into the existing weldnuts in the frame.
- Push the hitch forward against the installed bolts for proper alignment.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach the Exhaust:
- Reattach the exhaust hangers to their original positions.
Hardware List:
- (6) M12 x 1.25 Hex Bolts
- (6) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicles (Generic)
Part Numbers:
- 75421
- 44537
- 70761
- 78211 (U-Haul)
Tools Required:
- Wrenches: 19mm
- Drill Bits: None
Wiring Access Location:
- SUV1 & SUV2
Step-by-Step Instructions:
-
Lower the Exhaust:
- Remove the exhaust from its hangers to provide better access to the frame fastener locations.
-
Position the Hitch:
- Raise the hitch on the passenger side over the exhaust pipe.
- Slowly rotate the hitch into its proper position under the vehicle.
-
Secure the Hitch:
- Loosely install all provided bolts into the existing weldnuts in the frame.
- Push the hitch forward against the installed bolts for proper alignment.
-
Tighten Fasteners:
- Using a torque wrench, tighten all M12 fasteners to 76 lb-ft (103 N·m).
-
Reattach the Exhaust:
- Reattach the exhaust hangers to their original positions.
Hardware List:
- (6) M12 x 1.25 Hex Bolts
- (6) Conical Washers
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
