Installation Instructions for Honda Civic (Including SI & Hybrid Models)

Part Numbers:

• 77139
• 24763
• 60822

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 9/16", 10mm
• Drill Bits: 1/2” (Required for some models)

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.

2. Remove Heat Shield (Passenger Side):

   • Detach the four (4) bolts securing the exhaust heat shield to the vehicle. Retain the bolts for reinstallation.

3. Remove Plastic Shroud (Driver Side):

   • Remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain for reinstallation.

4. Position Hitch:

   • Raise the hitch into position with the frame bracket flanges positioned:
     • Between the frame rail and plastic shroud on the driver’s side.
     • Between the frame rail and exhaust heat shield on the passenger’s side.
   • Ensure tailpipe tangs are above the hitch bar. For some vehicles, remove the chrome decorative ring from the tailpipe to slide the muffler toward the vehicle center for better wrench access.

5. Install Handle Nuts and Fasteners:

   • Insert 1/2”-13 handle nuts through the large holes in the frame rails.
   • Install the provided fasteners as shown in the instructions.

6. Install U-Bolt:

   • Insert the 3/8”-16 U-bolt through the tow hook and mount it to the hitch using the provided fasteners.

7. Tighten Fasteners:

   • Torque all 1/2”-13 fasteners to 50 Lb.-Ft. (68 N*M).
   • Torque all 3/8”-16 fasteners to 20 Lb.-Ft. (27 N*M).

8. Reinstall Components:

   • Reinstall the exhaust heat shield over the hitch.
   • Reattach the exhaust to its hanger.
   • Replace the plastic rivet and nut securing the plastic shroud on the driver’s side.
   • Trim the heat shield if required to fit around the hitch.
   • Reinstall the chrome decorative ring to the tailpipe, if removed.

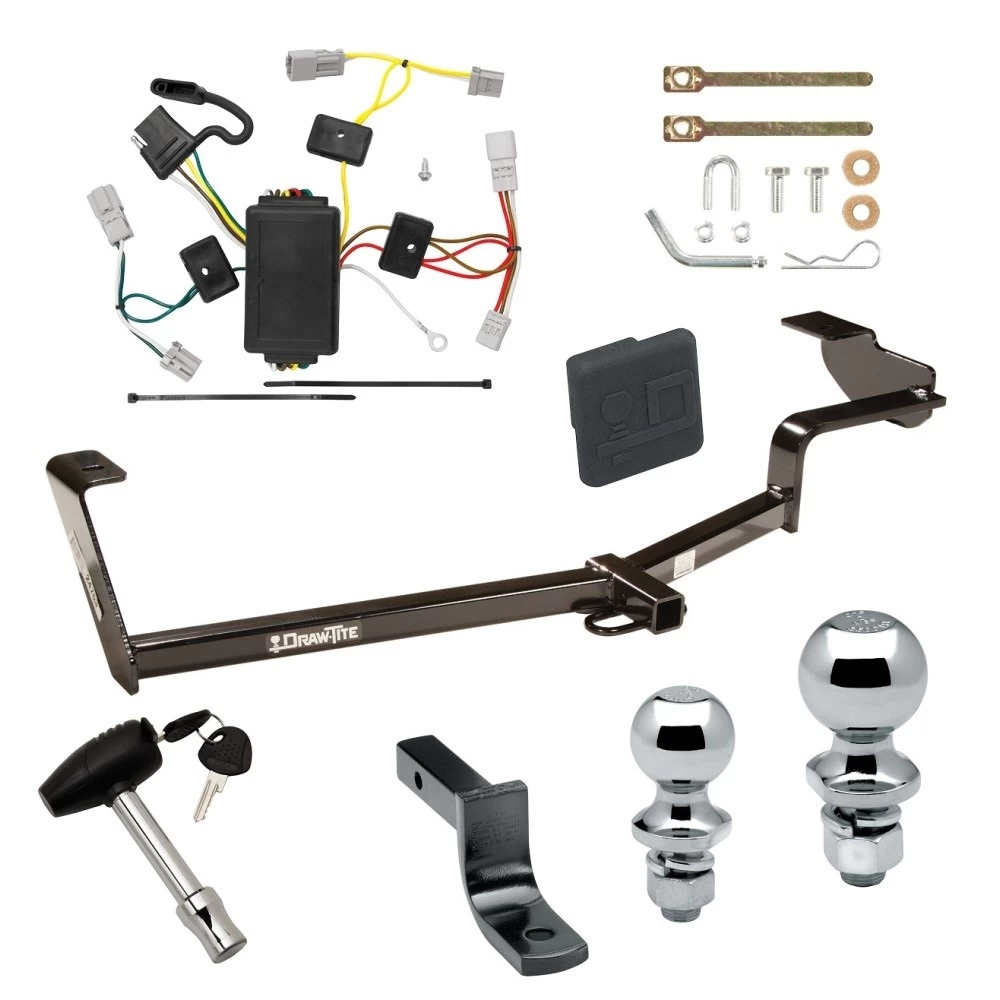

Hardware List:

• (2) 1/2”-13 GR5 Hex Bolts
• (1) 3/8”-16 GR2 U-Bolt
• (2) 1/2” Conical Toothed Washers
• (2) 3/8”-16 Flanged Lock Nuts
• (2) 1/2”-13 Handle Nuts

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593

Installation Instructions for Honda Civic (Including SI & Hybrid Models)

Part Numbers:

• 77139
• 24763
• 60822

Wiring Access Location:

• PC3, PC4

Tools Required:

• Wrenches: 3/4", 9/16", 10mm
• Drill Bits: 1/2” (Required for some models)

Specifications:

• Max Gross Trailer Weight: 2,000 lb. (908 kg)
• Max Tongue Weight: 200 lb. (91 kg)
• Note: Do not exceed towing vehicle manufacturer’s rating.

Step-by-Step Instructions:

1. Lower Exhaust:

   • Remove the tailpipe tangs from the rubber exhaust hanger at the rear of the vehicle.

2. Remove Heat Shield (Passenger Side):

   • Detach the four (4) bolts securing the exhaust heat shield to the vehicle. Retain the bolts for reinstallation.

3. Remove Plastic Shroud (Driver Side):

   • Remove the plastic rivet and nut holding the plastic shroud to the frame rail. Retain for reinstallation.

4. Position Hitch:

   • Raise the hitch into position with the frame bracket flanges positioned:
     • Between the frame rail and plastic shroud on the driver’s side.
     • Between the frame rail and exhaust heat shield on the passenger’s side.
   • Ensure tailpipe tangs are above the hitch bar. For some vehicles, remove the chrome decorative ring from the tailpipe to slide the muffler toward the vehicle center for better wrench access.

5. Install Handle Nuts and Fasteners:

   • Insert 1/2”-13 handle nuts through the large holes in the frame rails.
   • Install the provided fasteners as shown in the instructions.

6. Install U-Bolt:

   • Insert the 3/8”-16 U-bolt through the tow hook and mount it to the hitch using the provided fasteners.

7. Tighten Fasteners:

   • Torque all 1/2”-13 fasteners to 50 Lb.-Ft. (68 N*M).
   • Torque all 3/8”-16 fasteners to 20 Lb.-Ft. (27 N*M).

8. Reinstall Components:

   • Reinstall the exhaust heat shield over the hitch.
   • Reattach the exhaust to its hanger.
   • Replace the plastic rivet and nut securing the plastic shroud on the driver’s side.
   • Trim the heat shield if required to fit around the hitch.
   • Reinstall the chrome decorative ring to the tailpipe, if removed.

Hardware List:

• (2) 1/2”-13 GR5 Hex Bolts
• (1) 3/8”-16 GR2 U-Bolt
• (2) 1/2” Conical Toothed Washers
• (2) 3/8”-16 Flanged Lock Nuts
• (2) 1/2”-13 Handle Nuts

Safety Notes:

• Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
• If the hitch is removed, plug any holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
• Replace any damaged hitch or ball immediately.
• Always observe safety precautions and wear eye protection when working under the vehicle.
• Do not cut access or attachment holes with a torch.

Drawbar:

• Drawbar Kit: 3593
• Important: The drawbar must be used in the rise position only.

Compliance:

• This product complies with SAE J684, V.E.S.C. Regulation V-5, and the safety specifications of the State of New York.

Additional Notes:

• Check the hitch frequently to ensure all fasteners remain tight.
• Do not exceed the towing vehicle’s recommended capacities.

Warranty Information:

For complete warranty instructions, please download the full installation PDF.

Technical Support:

For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.

Attention:

This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.

Revision:

24763 Rev. A 6/25/2014

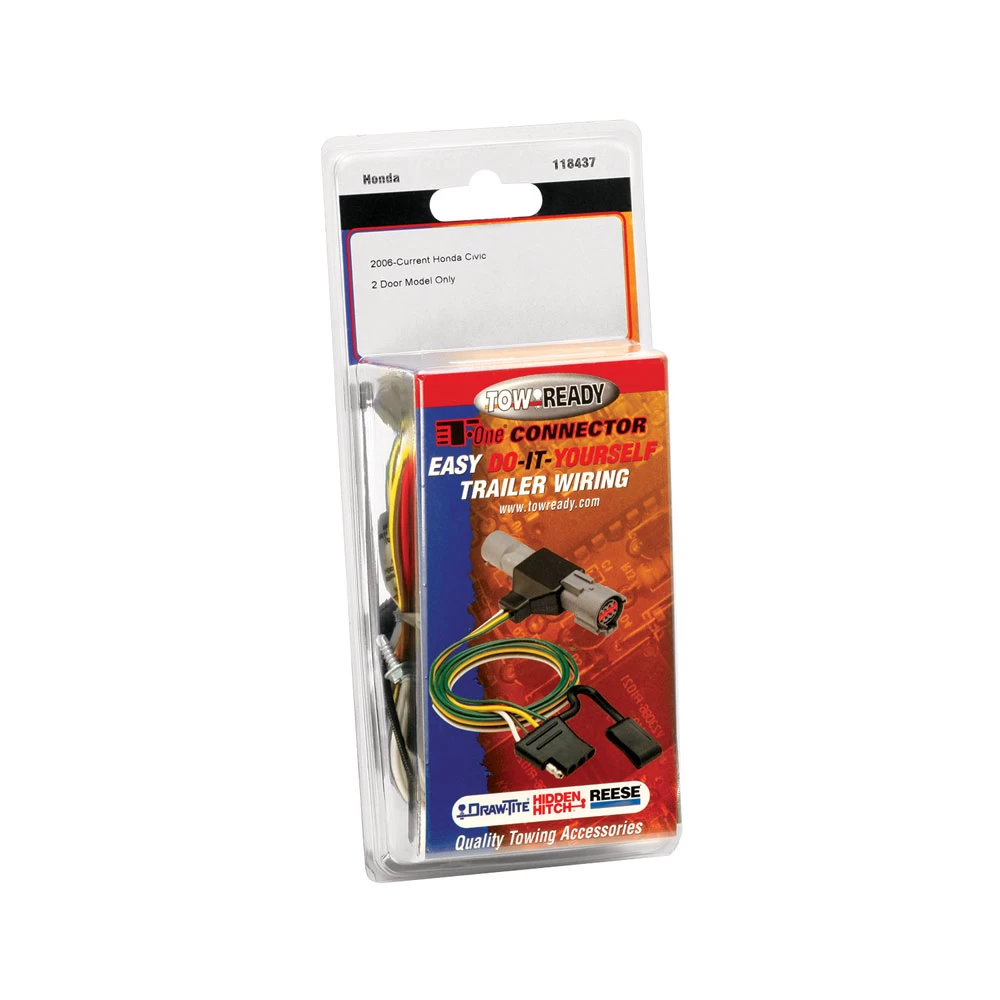

Installation Instructions for T-Connector Adapter for Honda Civic

Part Numbers:

• 118437

Tools Required:

• Trim Panel Remover
• Drill with 3/32” Drill Bit
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Open the trunk and temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides of the vehicle, locate the vehicle's taillight wiring harness.
   • Disconnect the connectors carefully to avoid breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow, brown, and red wires between the vehicle wiring connectors on the driver’s side.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat Step 3 on the passenger’s side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean dirt and rustproofing from the area.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid damage or injury.

6. Mount the T-Connector Black Box:

   • In the driver’s side storage area, clean a flat area using a mixture of rubbing alcohol and water.
   • Mount the T-Connector black box using the provided double-sided tape.

7. Route and Store the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store the connector in the trunk when not in use.

8. Reassemble the Vehicle:

   • Reinstall the felt trunk liner, threshold, and other items removed during installation.
   • Be careful not to pinch or cut the wires.

9. Test the Installation:

   • Test and verify the T-Connector functionality using a test light or trailer.
   • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

   Specifications:

   • Max. stop/turn light: 1 per side (2.1 amps)
   • Max. tail lights: (5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional guidance.

Installation Instructions for T-Connector Adapter for Honda Civic

Part Numbers:

• 118437

Tools Required:

• Trim Panel Remover
• Drill with 3/32” Drill Bit
• Philips Head Screwdriver
• Test Probe

Step-by-Step Instructions:

1. Access the Rear Cargo Area:

   • Open the trunk and temporarily remove the rear threshold plate.
   • Partially remove the felt trunk liner behind the taillights.

2. Locate the Taillight Wiring Harness:

   • On both the driver’s and passenger’s sides of the vehicle, locate the vehicle's taillight wiring harness.
   • Disconnect the connectors carefully to avoid breaking the locking tabs. Ensure all connector surfaces are clean and free of dirt.

3. Install the Driver-Side T-Connector:

   • Insert the T-Connector end with the yellow, brown, and red wires between the vehicle wiring connectors on the driver’s side.
   • Ensure the connectors are fully inserted and the locking tabs are secure.

4. Route the Passenger-Side T-Connector:

   • Route the T-Connector end with the green wire to the passenger side behind the panels and along the threshold.
   • Repeat Step 3 on the passenger’s side using the T-Connector with the green wire.

5. Ground the White Wire:

   • Locate a suitable grounding point near the connector, such as the vehicle’s frame or crossmember.
   • Clean dirt and rustproofing from the area.
   • Drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
   • Caution: Verify what is behind the surface before drilling to avoid damage or injury.

6. Mount the T-Connector Black Box:

   • In the driver’s side storage area, clean a flat area using a mixture of rubbing alcohol and water.
   • Mount the T-Connector black box using the provided double-sided tape.

7. Route and Store the 4-Flat Connector:

   • Route the 4-flat connector from below the threshold plate into the trunk.
   • Store the connector in the trunk when not in use.

8. Reassemble the Vehicle:

   • Reinstall the felt trunk liner, threshold, and other items removed during installation.
   • Be careful not to pinch or cut the wires.

9. Test the Installation:

   • Test and verify the T-Connector functionality using a test light or trailer.
   • For the initial test, reset the vehicle’s electrical system by temporarily removing the key from the ignition.

Specifications:

• Max. Stop/Turn Light: 1 per side (2.1 amps)
• Max. Tail Lights: (5 amps)

Safety Notes:

• Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
• Follow all warnings and installation instructions carefully.

Manufacturer Notes:

• Refer to the vehicle owner’s manual and instruction sheet for additional guidance.
• For technical support, visit www.trailerjacks.com or call 877-869-6690.
• For complete warranty information, please download the full installation PDF.
