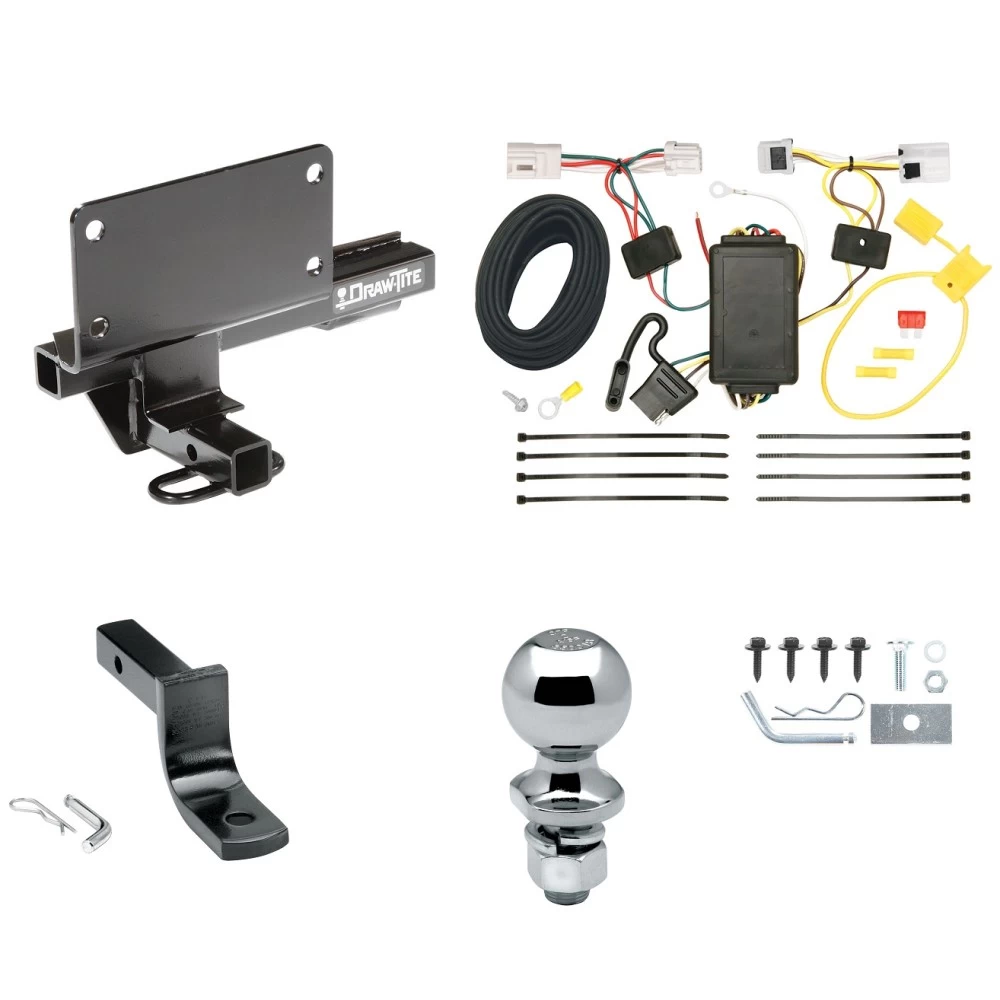

Trailer Tow Hitch For 07-08 Infiniti G35 09-13 G37 4 Dr. Sedan Complete Package w/ Wiring Draw Bar and 1-7/8" Ball Install Notes
Installation Instructions for Infiniti G35 and Infiniti G37
Part Numbers:
- 77204
- 24831
- 60221
Wiring Access Location:
- PC3, PC4
Tools Required:
- Utility Knife
- Wrenches: 13mm, 3/4”
- Drill Bits: 3/4”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove License Plate:
- Take off the license plate to access the fascia area.
-
Cut Access Holes:
- Use a 3/4” drill bit or utility knife to create access holes behind the license plate for the lower bolts. Ensure these holes will be hidden when the license plate is reattached.
-
Remove Black Appearance Panel:
- Detach the black appearance panel from the underside of the vehicle.
-
Trim Plastic Fascia:
- Cut a notch approximately 3-1/4” wide x 2” deep in the plastic fascia, as shown in Figure 2.
-
Remove Aluminum Fascia Support:
- Detach the aluminum fascia support from the rear bumper by removing the four (4) M8 fasteners. Discard these fasteners.
-
Position Hitch and Fascia Support:
- Raise the hitch and aluminum fascia support into position by gently pulling the fascia rearward to access the rear face of the aluminum bumper.
- Attach the components using the provided M8 hex bolts, ensuring the hitch is sandwiched between the aluminum bumper and fascia support.
Note: If a weld is present between the aluminum fascia support and bumper, the weld must be ground off to allow proper installation.
-
Attach Tow Hook Bracket:
- Secure the hitch to the tow hook using the provided 1/2” fasteners.
-
Tighten Fasteners:
- Torque all M8 x 1.25 CL9.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Trim Appearance Panel:
- Mark the black appearance panel for clearance around the hitch, lower it, and trim as needed.
-
Reinstall Appearance Panel:
- Raise and reattach the trimmed appearance panel.
Hardware List:
- (4) Hex Bolts: M8 x 1.25 x 35mm CL9.8
- (1) Hex Bolt: 1/2”-13 x 1.75” GR5
- (1) Lock Washer: 1/2”
- (1) Hex Nut: 1/2”-13
- (1) Spacer: 1/4” x 1.50” x 3.00”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Installation Instructions
Part Numbers:
- 77204
- 24831
- 60221
Wiring Access Location:
- PC3, PC4
Tools Required:
- Utility Knife
- Wrenches: 13mm, 3/4”
- Drill Bits: 3/4”
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Remove License Plate:
- Take off the license plate to access the fascia area.
-
Cut Access Holes:
- Use a 3/4” drill bit or utility knife to create access holes behind the license plate for the lower bolts. Ensure these holes will be hidden when the license plate is reattached.
-
Remove Black Appearance Panel:
- Detach the black appearance panel from the underside of the vehicle.
-
Trim Plastic Fascia:
- Cut a notch approximately 3-1/4” wide x 2” deep in the plastic fascia, as shown in Figure 2.
-
Remove Aluminum Fascia Support:
- Detach the aluminum fascia support from the rear bumper by removing the four (4) M8 fasteners. Discard these fasteners.
-
Position Hitch and Fascia Support:
- Raise the hitch and aluminum fascia support into position by gently pulling the fascia rearward to access the rear face of the aluminum bumper.
- Attach the components using the provided M8 hex bolts, ensuring the hitch is sandwiched between the aluminum bumper and fascia support.
Note: If a weld is present between the aluminum fascia support and bumper, the weld must be ground off to allow proper installation.
-
Attach Tow Hook Bracket:
- Secure the hitch to the tow hook using the provided 1/2” fasteners.
-
Tighten Fasteners:
- Torque all M8 x 1.25 CL9.8 fasteners to 20 Lb.-Ft. (27 N*M).
- Torque all 1/2”-13 GR5 fasteners to 75 Lb.-Ft. (102 N*M).
-
Trim Appearance Panel:
- Mark the black appearance panel for clearance around the hitch, lower it, and trim as needed.
-
Reinstall Appearance Panel:
- Raise and reattach the trimmed appearance panel.
Hardware List:
- (4) Hex Bolts: M8 x 1.25 x 35mm CL9.8
- (1) Hex Bolt: 1/2”-13 x 1.75” GR5
- (1) Lock Washer: 1/2”
- (1) Hex Nut: 1/2”-13
- (1) Spacer: 1/4” x 1.50” x 3.00”
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug any holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Nissan Rogue and Infiniti G35
Part Numbers:
- 118480
Tools Required:
- Drill (3/32” Drill Bit)
- Philips Head Screwdriver
- Test Probe
- Trim Panel Puller
- Wire Crimpers
- Wire Cutters
Step-by-Step Instructions:
Nissan Rogue:
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove the rear threshold plate, storage covers, and floor covering.
- Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle. Carefully set aside all items removed.
-
Locate the Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
- Disconnect the connectors, ensuring no damage to the locking tabs. Clean all connector surfaces of dirt.
-
Install the Driver-Side T-Connector:
- Plug the T-Connector end with the yellow wire between the driver’s side taillight wiring connectors.
- Lock the connectors into place, ensuring the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
- Repeat Step 3 using the green wire for the passenger-side taillight connectors.
Infiniti G35:
-
Access the Trunk Area:
- Open the trunk.
- Temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.
-
Install the T-Connector:
- Follow Steps 2-4 from the Nissan Rogue instructions for both the driver and passenger sides.
All Vehicles:
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
- Route the black wire through a grommet or along the exterior frame to the vehicle battery.
Warning:
- Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Mount the Black Box:
- Find a flat surface near the driver’s side taillight to mount the T-Connector black box.
- Secure it with the provided double-sided tape and cable ties.
-
Reassemble the Vehicle:
- Replace all trim panels, the threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched or damaged.
-
Test the Installation:
- Test and verify the T-Connector functionality with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or unit specifications.
- Store the 4-flat connector in the rear cargo area when not in use.
Manufacturer Notes:
- Follow all warnings and instructions carefully.
- Refer to the vehicle owner’s manual for additional guidance.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118480
Tools Required:
- Drill (3/32” Drill Bit)
- Philips Head Screwdriver
- Test Probe
- Trim Panel Puller
- Wire Crimpers
- Wire Cutters
Step-by-Step Instructions:
Vehicle 1: Nissan Rogue
-
Prepare the Rear Cargo Area:
- Open the rear hatch.
- Temporarily remove the rear threshold plate, storage covers, and floor covering.
- Partially remove the rear interior trim panels on both the driver and passenger sides of the vehicle. Carefully set aside all items removed.
-
Locate the Taillight Wiring Harness:
- On both the driver’s and passenger’s sides of the vehicle, locate the taillight wiring harness.
- Disconnect the connectors, ensuring no damage to the locking tabs. Clean all connector surfaces of dirt.
-
Install the Driver-Side T-Connector:
- Plug the T-Connector end with the yellow wire between the driver’s side taillight wiring connectors.
- Lock the connectors into place, ensuring the locking tabs are secure.
-
Route the Passenger-Side T-Connector:
- Route the T-Connector end with the green wire to the passenger’s side behind the panels and along the threshold.
- Repeat Step 3 using the green wire for the passenger-side taillight connectors.
Vehicle 2: Infiniti G35
-
Access the Trunk Area:
- Open the trunk.
- Temporarily remove the rear threshold plate and partially remove the felt trunk liner behind the taillights.
-
Install the T-Connector:
- Follow Steps 2-4 from the Nissan Rogue instructions for both the driver and passenger sides.
All Vehicles:
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember. Avoid drilling into the vehicle floor or bed.
- Clean the grounding area and drill a 3/32” hole. Secure the white wire using the provided eyelet and screw.
Caution:
- Verify what is behind the surface before drilling to avoid vehicle damage or personal injury.
-
Connect the Power Wire:
- Inside the vehicle, connect the black 12-gauge wire to the red wire from the T-Connector black box using the provided yellow butt connector.
- Route the black wire through a grommet or along the exterior frame to the vehicle battery.
Warning:
- Avoid routing near hot pipes, heat shields, fuel tanks, or other areas that could damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Attach the yellow fuse holder to the positive (+) battery cable using the ring terminal.
- Connect the other end of the fuse holder to the black wire using the yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Mount the Black Box:
- Find a flat surface near the driver’s side taillight to mount the T-Connector black box.
- Secure it with the provided double-sided tape and cable ties.
-
Reassemble the Vehicle:
- Replace all trim panels, the threshold, storage covers, and floor covering removed during installation. Ensure no wires are pinched or damaged.
-
Test the Installation:
- Test and verify the T-Connector functionality with a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the towing manufacturer’s rating or unit specifications.
- Store the 4-flat connector in the rear cargo area when not in use.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Follow all warnings and instructions carefully.
- Refer to the vehicle owner’s manual for additional guidance.
