Product Details
- Brand: Draw-Tite
- Model: 75658* 1393100G
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Bike Carrier
Compatibility Chart
Description
Get Expert Help

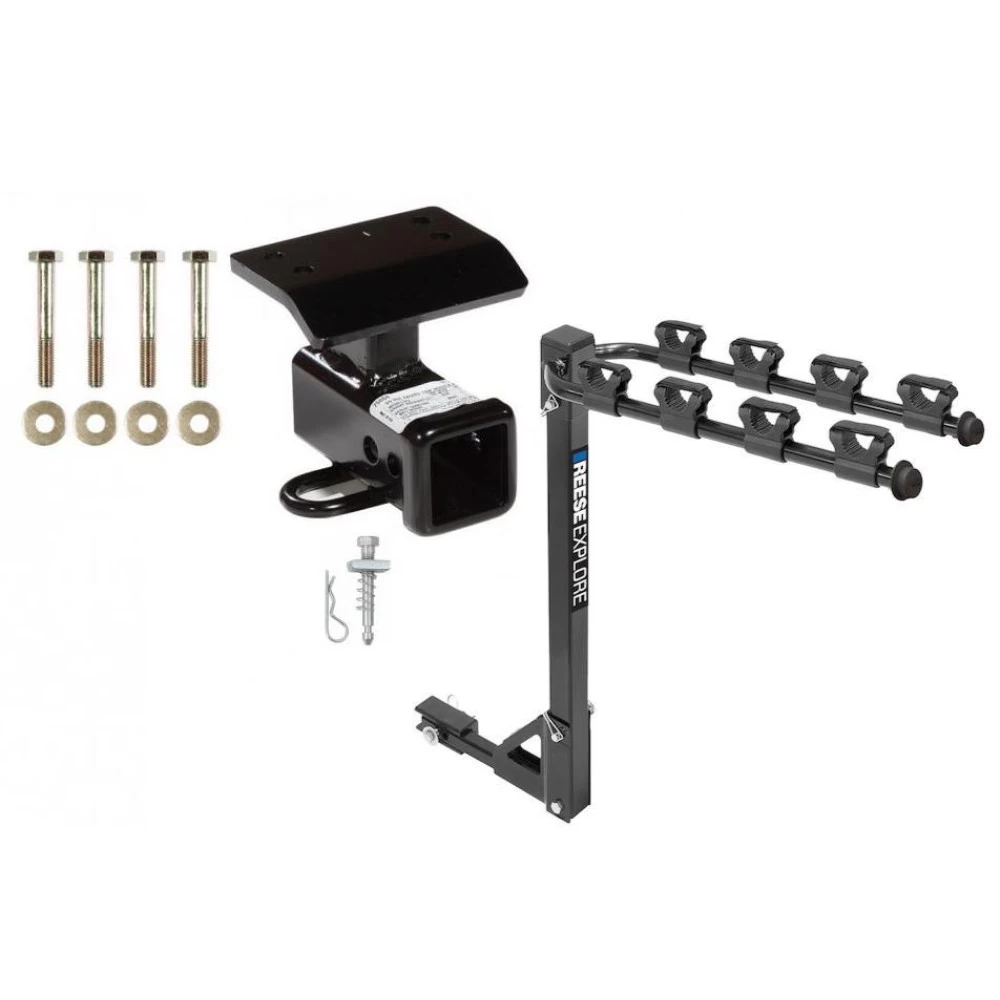

Trailer Tow Hitch w/ 4 Bike Rack For 09-17 Volkswagen Tiguan tilt away adult or child arms fold down carrier Install Notes
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.
Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Fascia trimming is required for this installation. Ensure the cut is precise and approved by the vehicle owner beforehand.
Installation Instructions for Volkswagen Tiguan
Part Numbers:
- 44611
- 75658
- 87600
Tools Required:
- Utility Knife
- Wrench: 17mm
- Drill Bits: None
Wiring Access Location:
- PC1, PC2
Step-by-Step Instructions:
-
Prepare the Fascia for Installation:
- Locate the existing grooved area on the bottom of the fascia as shown in Figure 2.
- Cut the fascia to provide access to the mounting holes in the vehicle cross member.
- Note: Obtain the vehicle owner's approval before cutting.
-
Position the Hitch:
- Raise the hitch into position, aligning the holes in the hitch top plate with the holes in the vehicle cross member.
-
Install Fasteners:
- Secure the hitch using four (4) M10 x 1.50 x 70mm hex bolts and four (4) 3/8” conical toothed washers.
-
Torque Fasteners:
- Tighten all M10 CL8.8 fasteners to 38 lb-ft (52 N·m) using a torque wrench.
Hardware List:
- (4) M10 x 1.50 x 70mm CL8.8 Hex Bolts
- (4) 3/8” Conical Toothed Washers
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Warranty Information:
- For complete warranty instructions, please download the full installation PDF.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying (Ball Mount): Max Trailer Weight 3,500 lbs (1,589 kg), Max Tongue Weight 350 lbs (159 kg).
- Weight Distributing: Not for use with spring bars.
- Complies with safety specifications and requirements for connecting devices and towing systems.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
