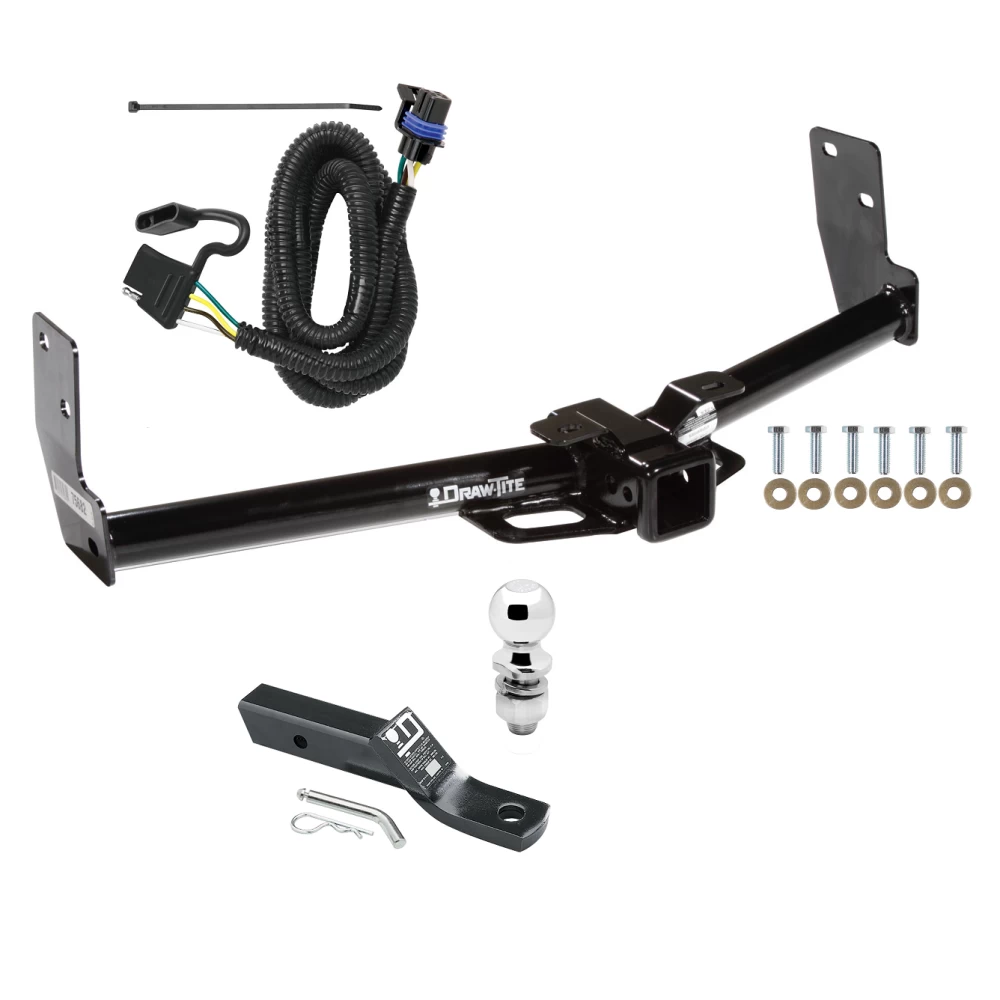

Trailer Tow Hitch For 10‑16 Cadillac SRX w/ Factory Tow Package w/ Wiring and 2" Ball
Model: 75682 118259 23 63845Custom Fit Trailer Hitch
Wiring Harness
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2016 Cadillac, SRX, w/ Factory Tow Package

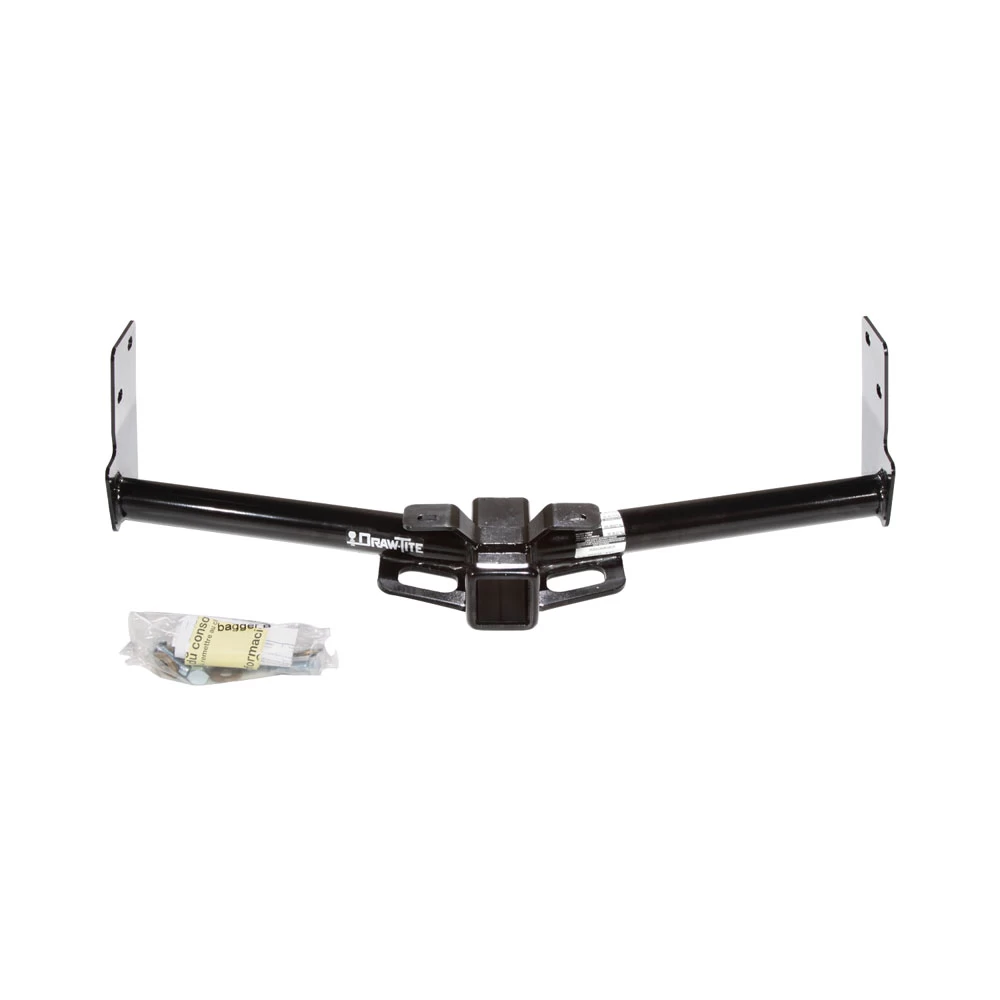

Trailer Hitch Specs:
| Part Number | 75682 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 400/500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118259 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5Cold forged for superior strength
When installing the ball, torgue to 250 ft. lbs
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
$249 51 $380.48 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$380.48 $249 51
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $62.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75682 118259 23 63845
- Includes: Class 3 Trailer Tow Hitch, Tow Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness
2" Drop Ball-Mount w/ Pin/Clip
2" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2010 - 2016 Cadillac, SRX, w/ Factory Tow Package
Trailer Hitch Specs:
| Part Number | 75682 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 5,000 lbs |
| Max Tongue Weight | 400/500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118259 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Kit, 7,500 lbs. GTW, 1" Ball Hole, 8-1/2" Length, 3/4" Rise, 2" Drop, Black
Includes pin and clip
Black powder coat finish over A-Coat
Hitch Ball, 2" x 1" x 2-1/8", 7,500 lbs. GTW Chrome
Solid steel hitch balls engineered to meet all safety requirements of VESC regulation V-5Cold forged for superior strength
When installing the ball, torgue to 250 ft. lbs
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need
Partial list of fitment years: 10 11 12 13 14 15 16 2010 2011 2012 2013 2014 2015 2016
Get Expert Help
Trailer Tow Hitch For 10-16 Cadillac SRX w/ Factory Tow Package w/ Wiring and 2" Ball Install Notes
Installation Instructions for Cadillac SRX
Part Numbers:
- 75682
- 87573
- 44638
- 78187 (U-Haul)
Tools Required:
- Wrenches: 19mm, 10mm (deep well socket)
- Small Flat Head Screwdriver
- Phillips Tip Screwdriver
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Fascia Door:
- Use a Phillips tip screwdriver to remove the fascia door from the bumper fascia (two screws).
- Remove the four (4) plastic rivets fastening the fascia tabs to the plastic spacer block.
- Note: Pull out the center post of each rivet first with a screwdriver, then push the rivet out by hand. Save the rivets for reinstallation.
-
Remove Plastic Spacer Block:
- Use a 10mm socket to remove the plastic spacer block that was attached to the bumper fascia. Save the block for reinstallation.
-
Move Electrical Wiring Harness:
- Carefully pull the electrical wiring harness located inside the driver’s side rail away from the rail during hitch installation.
-
Install the Hitch:
- Raise the hitch into position, lifting it over the fascia as needed.
- Secure the hitch to the impact bumper using M12 bolts and conical washers in the existing weld nuts.
- Install remaining fasteners as shown.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
-
Reinstall Components:
- Reattach the plastic spacer blocks and the four (4) plastic fascia rivets removed in Steps 1 and 2.
Hardware List:
- (6) M12 x 1.75 x 40mm CL8.8 Hex Bolts
- (6) Conical Washers 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Ensure proper reinstallation of all components and verify tightness of fasteners after installation.
Installation Instructions
Part Numbers:
- 75682
- 87573
- 44638
- 78187 (U-Haul)
Tools Required:
- Wrenches: 19mm, 10mm (deep well socket)
- Small Flat Head Screwdriver
- Phillips Tip Screwdriver
Wiring Access Location:
- SUV3, SUV4
Step-by-Step Instructions:
-
Remove Fascia Door:
- Use a Phillips tip screwdriver to remove the fascia door from the bumper fascia (two screws).
- Remove the four (4) plastic rivets fastening the fascia tabs to the plastic spacer block.
- Note: Pull out the center post of each rivet first with a screwdriver, then push the rivet out by hand. Save the rivets for reinstallation.
-
Remove Plastic Spacer Block:
- Use a 10mm socket to remove the plastic spacer block that was attached to the bumper fascia. Save the block for reinstallation.
-
Move Electrical Wiring Harness:
- Carefully pull the electrical wiring harness located inside the driver’s side rail away from the rail during hitch installation.
-
Install the Hitch:
- Raise the hitch into position, lifting it over the fascia as needed.
- Secure the hitch to the impact bumper using M12 bolts and conical washers in the existing weld nuts.
- Install remaining fasteners as shown.
-
Tighten Fasteners:
- Use a torque wrench to tighten all M12 CL8.8 fasteners to 68 lb-ft (92 N·m).
-
Reinstall Components:
- Reattach the plastic spacer blocks and the four (4) plastic fascia rivets removed in Steps 1 and 2.
Hardware List:
- (6) M12 x 1.75 x 40mm CL8.8 Hex Bolts
- (6) Conical Washers 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Distributing: Max Trailer Weight 5,000 lbs (2,270 kg), Max Tongue Weight 500 lbs (227 kg).
- Weight Carrying (Ball Mount): Max Trailer Weight 4,000 lbs (1,816 kg), Max Tongue Weight 400 lbs (182 kg).
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Additional Notes:
- Ensure proper reinstallation of all components and verify tightness of fasteners after installation.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Cadillac SRX w/ Tow Package ONLY
Part Numbers:
- 118259
Tools Required:
- Test Probe
Step-by-Step Instructions:
-
Locate the Vehicle’s Factory Tow Harness Connector:
- The connector is located behind the bumper and will have a connector that matches the tow plug.
-
Prepare and Connect the Tow Plug:
- Remove the protective cap from the factory tow harness connector.
- Ensure the mating surface is clean and free of dirt or debris. Clean if necessary.
- Insert the tow plug into the connector. Ensure the connectors are fully inserted and locked in place.
Warning:
- All connections must be complete for the T-Connector to function properly.
- Test and verify the installation with a test light or trailer after completing the installation.
-
Secure Loose Wires:
- Use the provided cable ties to secure all loose wires and prevent damage.
Warning:
- Overloading circuits can cause fires.
- Do not exceed the lower of the vehicle manufacturer’s ratings or the following specifications:
- Max. stop/turn light: 7.5 amps
- Max. tail lights: 7.5 amps
Safety Notes:
- Always follow all warnings and instructions included with the product before beginning installation.
- Wear safety glasses and use safety precautions during installation.
Additional Notes:
- Refer to the vehicle owner’s manual for additional guidance and specifications.
Warranty and Technical Support:
- For complete warranty instructions, please download the full installation PDF.
- For technical support, visit www.trailerjacks.com or call 877-869-6690.
Attention: This is a summary of the installation procedure. For complete instructions, including diagrams and detailed information, please download the full installation PDF.
