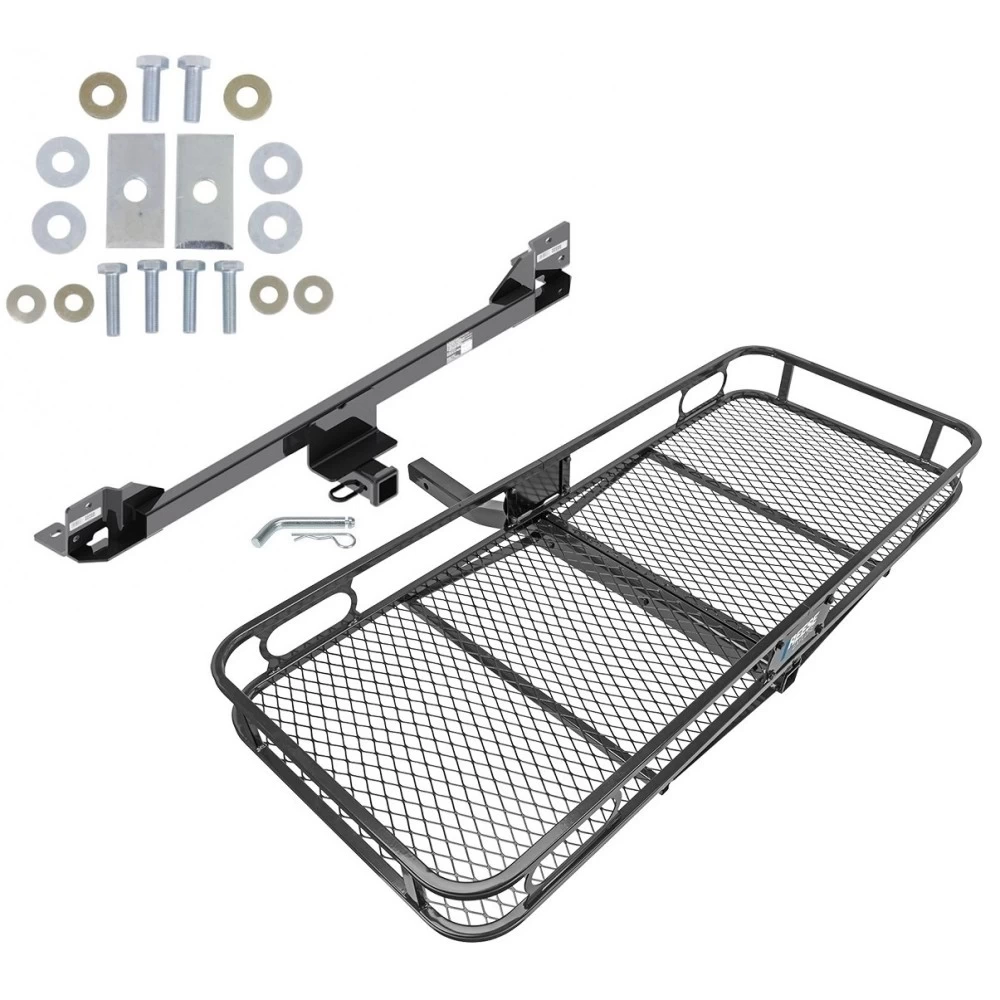

- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Get Expert Help
Trailer Tow Hitch For 11-17 Honda Odyssey Basket Cargo Carrier Platform w/ Hitch Pin Install Notes

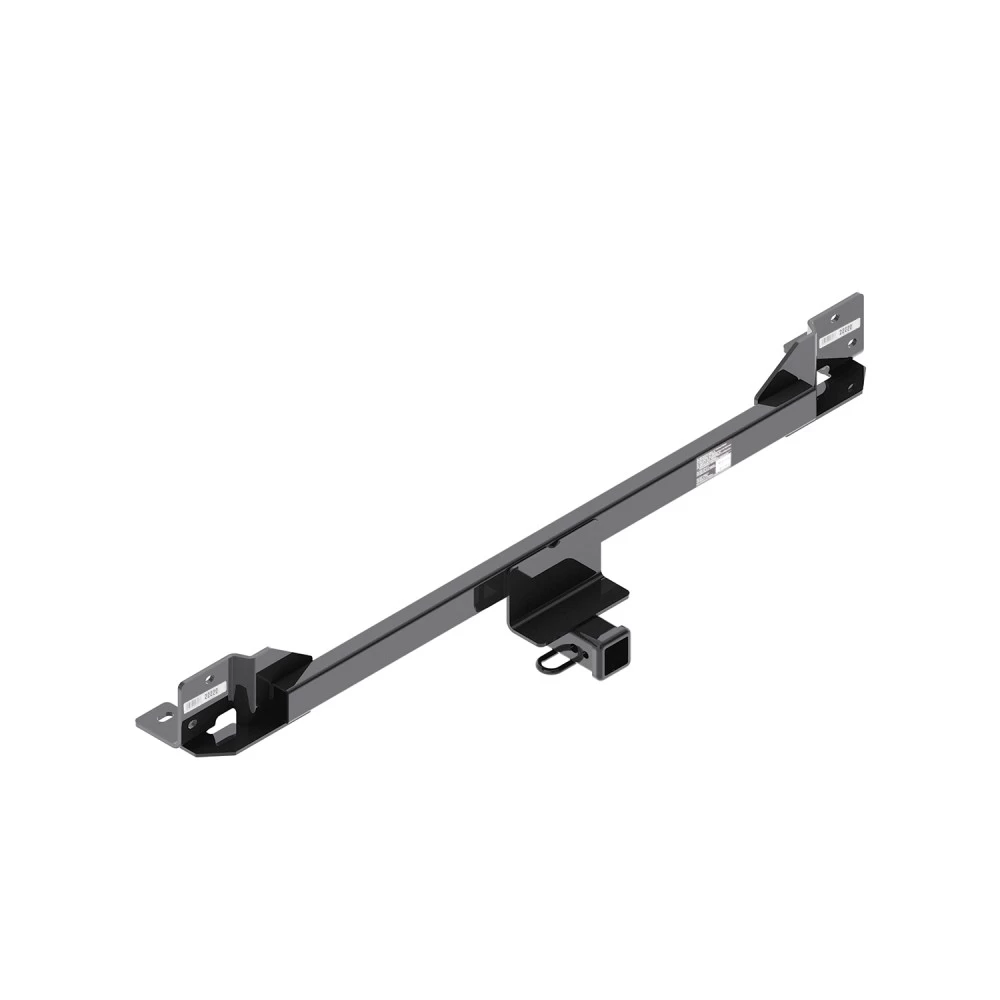

Installation Instructions for Draw-Tite and Reese Trailer Hitch #76025 & #84025
Part Numbers:
- 76025
- 84025
Applications:
- Years: 2011-2016
- Make: Honda
- Model: Odyssey
For updated information on application years and trim levels, refer to the manufacturer's website.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10 mm, 17 mm, 18 mm
- 6" Socket Extension
- Panel Removal Tool
- Plastic Trim Tools
- Phillips Screwdriver
- Utility Knife
- 3/16" Hex Bits
- Hammer
Step-by-Step Instructions:
1. Bottom Panel and Mud Flap Removal:
- Use a Phillips screwdriver, panel removal tool, and 10 mm socket to remove three rivets and two bolts from the bottom panel on the driver side.
- Remove the mud flap on each side, if present.
- Retain the bottom panel and mud flaps for reinstallation.
2. Bumper Fascia Removal:
- Remove two plastic rivets from the center bottom fascia using a panel removal tool.
- Use a Phillips screwdriver and 10 mm socket to remove four bolts from each wheel well liner.
- Open the trunk and remove two screws from each side using 3/16" hex bits.
- Use plastic trim tools to gently remove the plastic fascia, starting from the wheel well edges.
- Disconnect the fascia wiring if equipped.
3. Bumper Beam Removal:
- Use a 14 mm socket to remove four factory bolts from the bumper beam and set them aside for reinstallation.
4. Hitch Installation:
- Tape four flat washers (#1) to the end panel where the holes are located.
- Tape one spacer block (#2) to the hitch tab on each side.
- Raise the hitch above the exhaust pipe and loosely install:
- M10 bolts (#5) and 3/8" conical washers (#6) to the upper attachment holes on the end panel.
- M12 bolts (#3) and 1/2" conical washers (#4) to the frame rails.
- Raise the bumper beam to sandwich the hitch and loosely secure it with the remaining M10 fasteners in the lower attachment holes.
5. Tighten Fasteners:
- Torque all M10 fasteners to 59 lb-ft (80 N·m).
- Torque all M12 fasteners to 76 lb-ft (103 N·m).
6. Bumper Beam Height Adjustment:
- Use a hammer to bend the three raised brackets on the bumper beam, reducing the height by approximately 1/4".
- Trim the foam piece to fit on the bumper beam.
7. Bottom Fascia Trimming:
- Locate the center of the bottom panel and trim an area 3.0" tall by 8.5" wide.
- Trim the fascia area above the muffler.
8. Reinstallation:
- Reinstall all fasteners, fascia, appearance bottom panel, and mud flaps removed in Steps 1 and 2.
Hardware List:
- 4 × Flat Washers (#1) – 1/2"
- 2 × Spacer Blocks (#2) – 0.375" × 1.50" × 3.00"
- 2 × M12 Bolts (#3) – 1.25 × 45 mm, Class 8.8
- 2 × Conical Washers (#4) – 1/2"
- 4 × M10 Bolts (#5) – 1.25 × 40 mm, Class 10.9
- 4 × Conical Washers (#6) – 3/8"
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to keep the hitch secure to the vehicle.
- Do not cut access or attachment holes with a torch.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
Specifications:
- Max Gross Trailer Weight: 3,500 lbs (1,589 kg)
- Max Tongue Weight: 525 lbs (238 kg)
- Weight Distribution: Not Applicable
- Installation Time: Approximately 80 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support, contact us at 877-869-6690 or visit www.trailerjacks.com.
Warning: Improper use or failure to follow instructions may result in property damage, serious injury, or death. Always consult your vehicle and trailer manuals for compatibility and installation guidelines.
