Trailer Tow Hitch For 12‑19 Except Abarth FIAT 500 1‑1/4" Towing Receiver Class 1 w/ Draw Bar Kit
Model: 248730Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2012 - 2019 FIAT, 500, Except Abarth
Trailer Hitch Specs:
| Part Number | 248730 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 2012 2013 2014 2015 2016 2017 2018 2019
$209 77 $365.21 43% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$365.21 $209 77
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $52.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 248730
- UPC: 016118137460

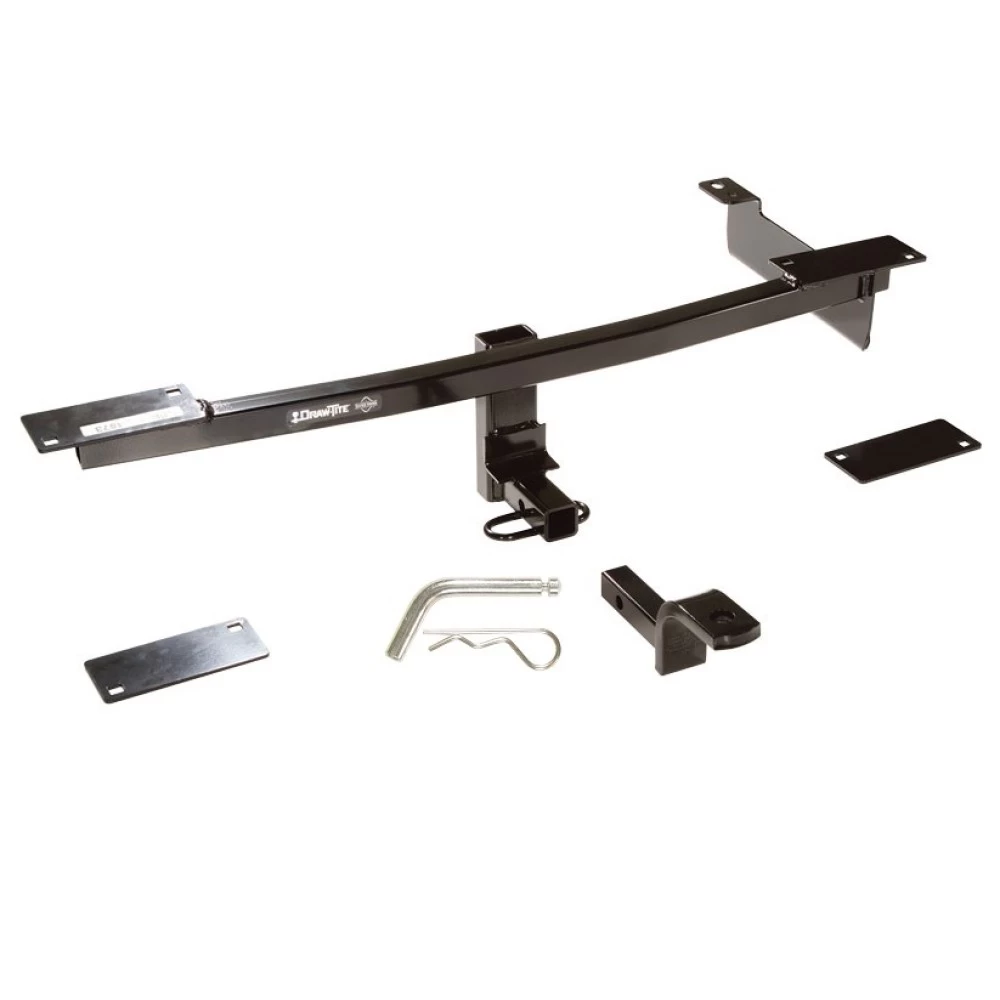

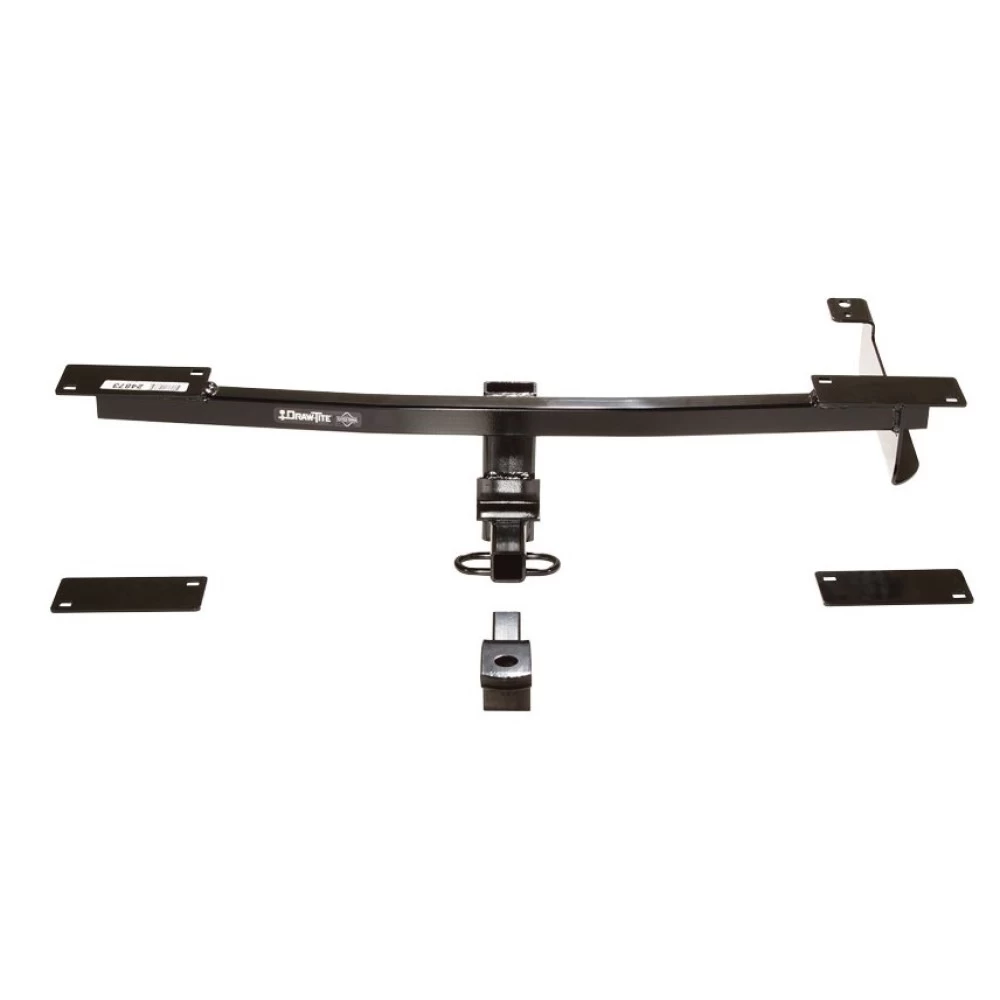

- Includes: Class 1 Trailer Tow Hitch, Trailer Tow Hitch Ball Mount
Compatibility Chart
Description
Custom Fit Trailer Hitch
Draw-Bar w/ Pin/Clip
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2012 - 2019 FIAT, 500, Except Abarth
Trailer Hitch Specs:
| Part Number | 248730 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 1 |
| Receiver size opening | 1-1/4" |
| Max gross trailer weight | 2,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 200 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 12 13 14 15 16 17 18 19 2012 2013 2014 2015 2016 2017 2018 2019
Get Expert Help
Trailer Tow Hitch For 12-19 Except Abarth FIAT 500 1-1/4" Towing Receiver Class 1 w/ Draw Bar Kit Install Notes
Installation Instructions for Fiat 500, 500c (Convertible), and 500 Turbo
Note: Turbo model requires fascia trimming.
Part Numbers:
- 24873
- 60289
- 77255
- 24761 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Fish Wire (included)
- Spray Lubricant
- Wrenches: 7/8", M8, M13
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Prepare Vehicle:
- Lower the spare tire (if present) and raise the vehicle.
-
Remove Spare Tire Lift (if applicable):
- For models with a spare tire, remove the spare tire lift by detaching (2) M8 screws and (1) M8 nut using a M13 socket.
- Remove the rubber plug from the frame and fish wire a carriage bolt and block (Items 5 and 6) through the hole. Replace the rubber plug and spare tire lift, leaving the fish wire attached to the bolt.
-
Remove Fascia Mounting Screws:
- Detach the two fascia mounting screws from the fascia supports using an M8 wrench.
-
Lower Muffler:
- Remove the pins from the two rubber mounts at the rear of the muffler. Apply lubricant and gently pull the exhaust rearward for easier removal.
-
Install Plates on Bumper Support:
- Place the plates (Item 2) on top of the bumper support and install carriage bolts (Item 1).
- Tip: Insert the plate from the center with the outer bolt already in place.
-
Position Hitch:
- Gently pull down the fascia and slide the hitch between the fascia and its support.
- For turbo models, trim the center fin flush and horizontal to the lower edge of the bumper as per the provided diagram.
-
Install Hardware:
- Thread the fish wire through the appropriate hole in the hitch bracket and raise the hitch into position.
- Loosely install washers and nuts to the bolts (Item 1). Pull the fish wire to position the bolt, then remove the fish wire and install the washer and nut.
- Attach the M8 bolt and washer (Items 8 and 9) through the bracket and into the weld nut in the frame.
-
Secure Hitch:
- Push the hitch forward and tighten all fasteners to the specified torque values:
- 1/2" fasteners: 50 Lb.-Ft. (68 N*M)
- M8 fasteners: 20 Lb.-Ft. (27 N*M)
- Push the hitch forward and tighten all fasteners to the specified torque values:
Hardware List:
- (4) 1/2”-13 x 4.00” Carriage Bolts (GR5)
- (1) 1/2”-13 x 1.75” Carriage Bolt (GR5)
- (2) Plates: 3-1/16” x 6-3/4” x 3/16”
- (1) 1 x 3 x 1/4 Block
- (5) 1/2” Conical Toothed Washers
- (2) 1/2” Flat Washers
- (5) 1/2”-13 Hex Nuts
- (1) M8 x 1.25 x 30mm Bolt
- (1) 3/8” Conical Toothed Washer
- (1) Fish Wire
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Turbo models require specific trimming as shown in the fascia trim diagram.
Installation Instructions
Note: Turbo model requires fascia trimming.
Part Numbers:
- 24873
- 60289
- 77255
- 24761 (U-Haul)
Wiring Access Location:
- PC1, PC2
Tools Required:
- Fish Wire (included)
- Spray Lubricant
- Wrenches: 7/8", M8, M13
- Drill Bits: None
Specifications:
- Max Gross Trailer Weight: 2,000 lb. (908 kg)
- Max Tongue Weight: 200 lb. (90.8 kg)
- Note: Do not exceed towing vehicle manufacturer’s rating.
Step-by-Step Instructions:
-
Prepare Vehicle:
- Lower the spare tire (if present) and raise the vehicle.
-
Remove Spare Tire Lift (if applicable):
- For models with a spare tire, remove the spare tire lift by detaching (2) M8 screws and (1) M8 nut using a M13 socket.
- Remove the rubber plug from the frame and fish wire a carriage bolt and block (Items 5 and 6) through the hole. Replace the rubber plug and spare tire lift, leaving the fish wire attached to the bolt.
-
Remove Fascia Mounting Screws:
- Detach the two fascia mounting screws from the fascia supports using an M8 wrench.
-
Lower Muffler:
- Remove the pins from the two rubber mounts at the rear of the muffler. Apply lubricant and gently pull the exhaust rearward for easier removal.
-
Install Plates on Bumper Support:
- Place the plates (Item 2) on top of the bumper support and install carriage bolts (Item 1).
- Tip: Insert the plate from the center with the outer bolt already in place.
-
Position Hitch:
- Gently pull down the fascia and slide the hitch between the fascia and its support.
- For turbo models, trim the center fin flush and horizontal to the lower edge of the bumper as per the provided diagram.
-
Install Hardware:
- Thread the fish wire through the appropriate hole in the hitch bracket and raise the hitch into position.
- Loosely install washers and nuts to the bolts (Item 1). Pull the fish wire to position the bolt, then remove the fish wire and install the washer and nut.
- Attach the M8 bolt and washer (Items 8 and 9) through the bracket and into the weld nut in the frame.
-
Secure Hitch:
- Push the hitch forward and tighten all fasteners to the specified torque values:
- 1/2" fasteners: 50 Lb.-Ft. (68 N*M)
- M8 fasteners: 20 Lb.-Ft. (27 N*M)
- Push the hitch forward and tighten all fasteners to the specified torque values:
Hardware List:
- (4) 1/2”-13 x 4.00” Carriage Bolts (GR5)
- (1) 1/2”-13 x 1.75” Carriage Bolt (GR5)
- (2) Plates: 3-1/16” x 6-3/4” x 3/16”
- (1) 1 x 3 x 1/4 Block
- (5) 1/2” Conical Toothed Washers
- (2) 1/2” Flat Washers
- (5) 1/2”-13 Hex Nuts
- (1) M8 x 1.25 x 30mm Bolt
- (1) 3/8” Conical Toothed Washer
- (1) Fish Wire
Safety Notes:
- Regularly inspect all fasteners and the hitch ball to ensure proper tightening.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always observe safety precautions and wear eye protection when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Drawbar:
- Drawbar Kit: 3593
- Important: The drawbar must be used in the rise position only.
Compliance:
- This product complies with SAE J684, V.E.S.C. Regulation V-5, and safety requirements of the State of New York.
Additional Notes:
- Check the hitch frequently to ensure all fasteners remain tight.
- Turbo models require specific trimming as shown in the fascia trim diagram.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
