Trailer Tow Hitch For 13‑21 RAM 3500 4500 5500 Cab & Chassis Basket Cargo Carrier Platform w/ Hitch Pin
Model: 41952 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2021 RAM, 3500, Cab & Chassis, w/34" Wide Frames
2013 - 2021 RAM, 4500, Cab & Chassis, w/34" Wide Frames
2013 - 2021 RAM, 5500, Cab & Chassis, w/34" Wide Frames
Trailer Hitch Specs:
| Part Number | 41952 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 15,000 lbs |
| Max GTW w/ weight distribution | 16,000 lbs |
| Max Tongue Weight | 1,500/1,600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 2013 2014 2015 2016 2017 2018 2019 2020 2021
$538 49 $862.57 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$862.57 $538 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $134.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 41952 63153 63240

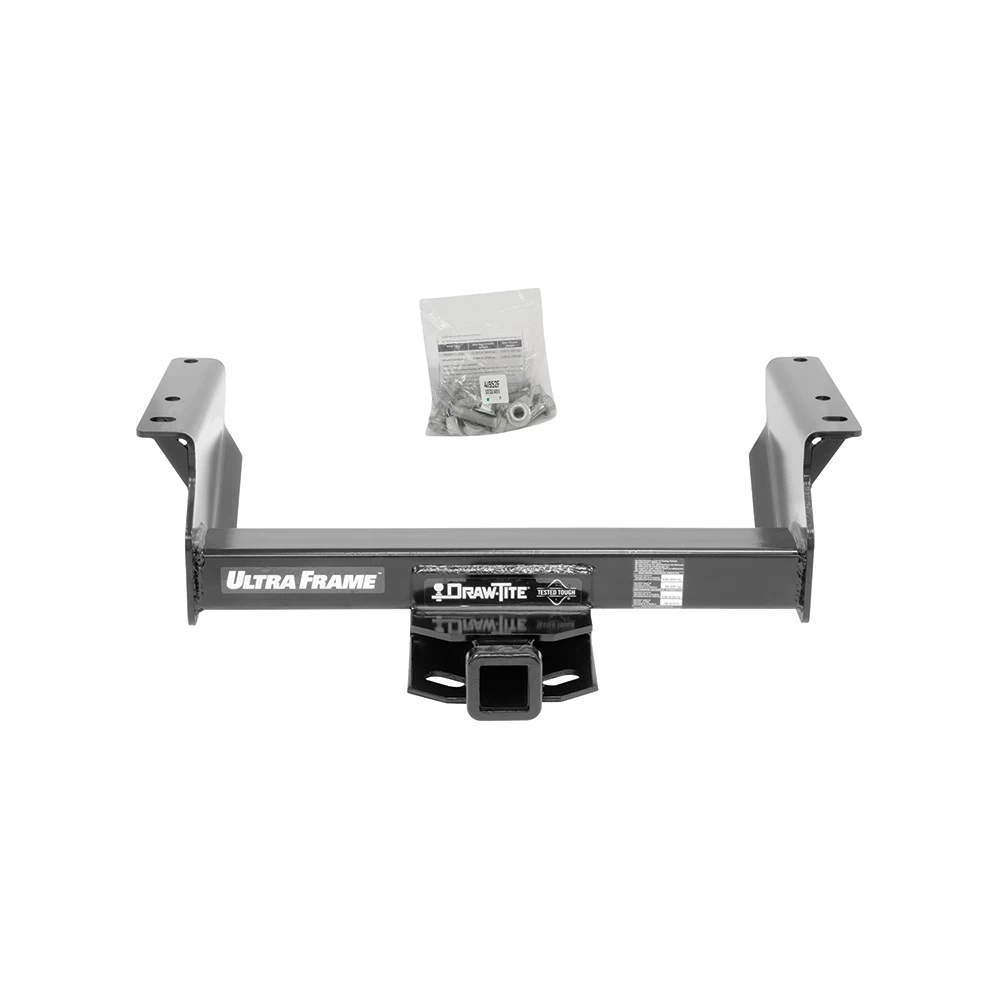

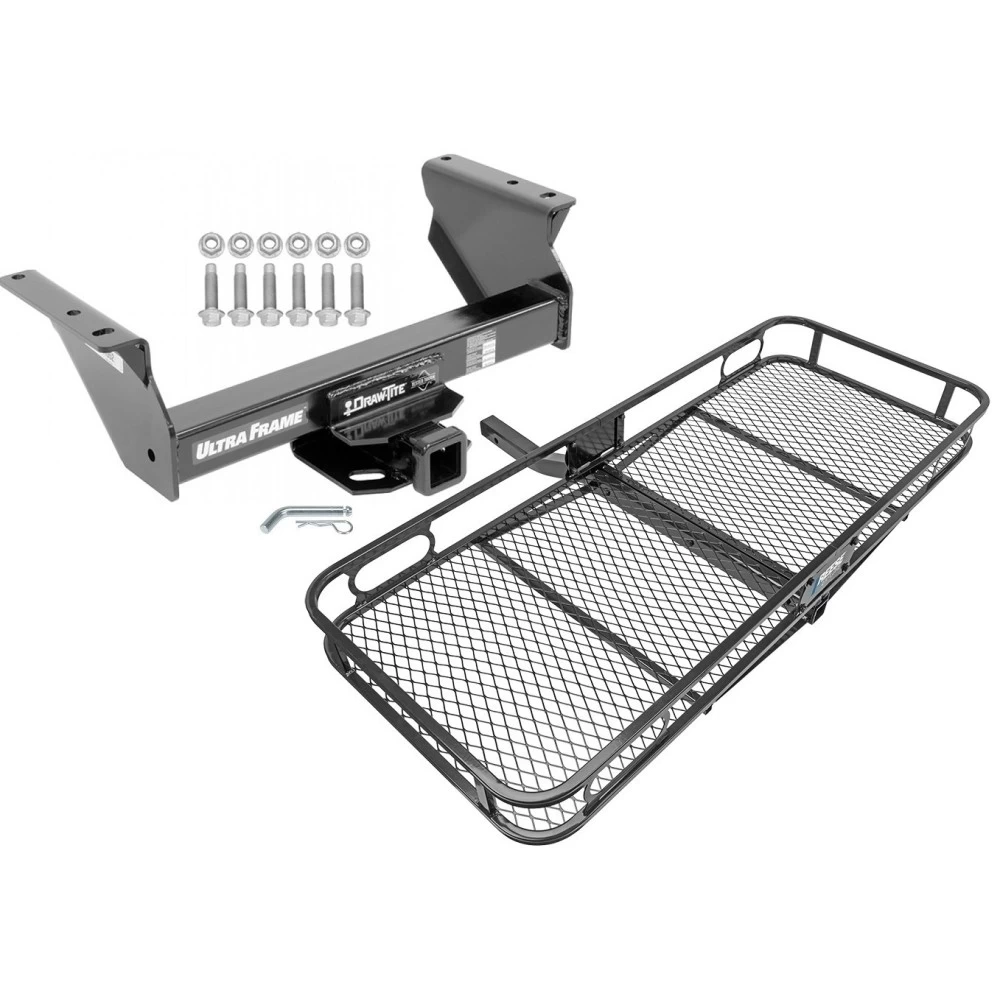

- Includes: Ultra Frame Class 5 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2021 RAM, 3500, Cab & Chassis, w/34" Wide Frames
2013 - 2021 RAM, 4500, Cab & Chassis, w/34" Wide Frames
2013 - 2021 RAM, 5500, Cab & Chassis, w/34" Wide Frames
Trailer Hitch Specs:
| Part Number | 41952 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2" |
| Max gross trailer weight | 15,000 lbs |
| Max GTW w/ weight distribution | 16,000 lbs |
| Max Tongue Weight | 1,500/1,600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 2013 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 13-21 RAM 3500 4500 5500 Cab & Chassis Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Ram 4500/5500 Cab & Chassis
Part Numbers:
- 41952
- 84952
- CQT41952
Wiring Access Location:
- Not specified
Tools Required:
- Wrenches: 21mm, 24mm
- Drill Bits: 11/16"
- Ratchet
- Torque Wrench
- Center Punch
- Hammer
- Clamp
- File
Installation Time:
- Approximately 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Remove Rivets:
- Remove the rearmost rivet on the bottom of each frame rail using a drill for easier removal. Enlarge the hole in the frame rail if necessary (see Step 5).
-
Position Hitch as Template:
- Raise the hitch into position, aligning the rear hole in the hitch with the hole from the removed rivet.
-
Clamp Hitch:
- Securely clamp the hitch to the end of the frame rail.
-
Mark Holes:
- Using the hitch as a template, mark the center of each attachment hole.
-
Drill Frame Holes:
- Remove the hitch and drill three (3) 11/16" holes in each frame rail. Use a small pilot hole for guidance and remove any burrs.
- Warning: Do not drill into fuel or electrical lines. Take appropriate precautions.
-
Install Hitch:
- Raise the hitch into position and install the provided fasteners as shown in Figure 1.
-
Tighten Fasteners:
- Torque all M16 CL10.9 fasteners to 210 lb-ft (285 N*m) using a torque wrench.
Torque Specifications:
- M16 CL10.9 fasteners: 210 lb-ft (285 N*m)

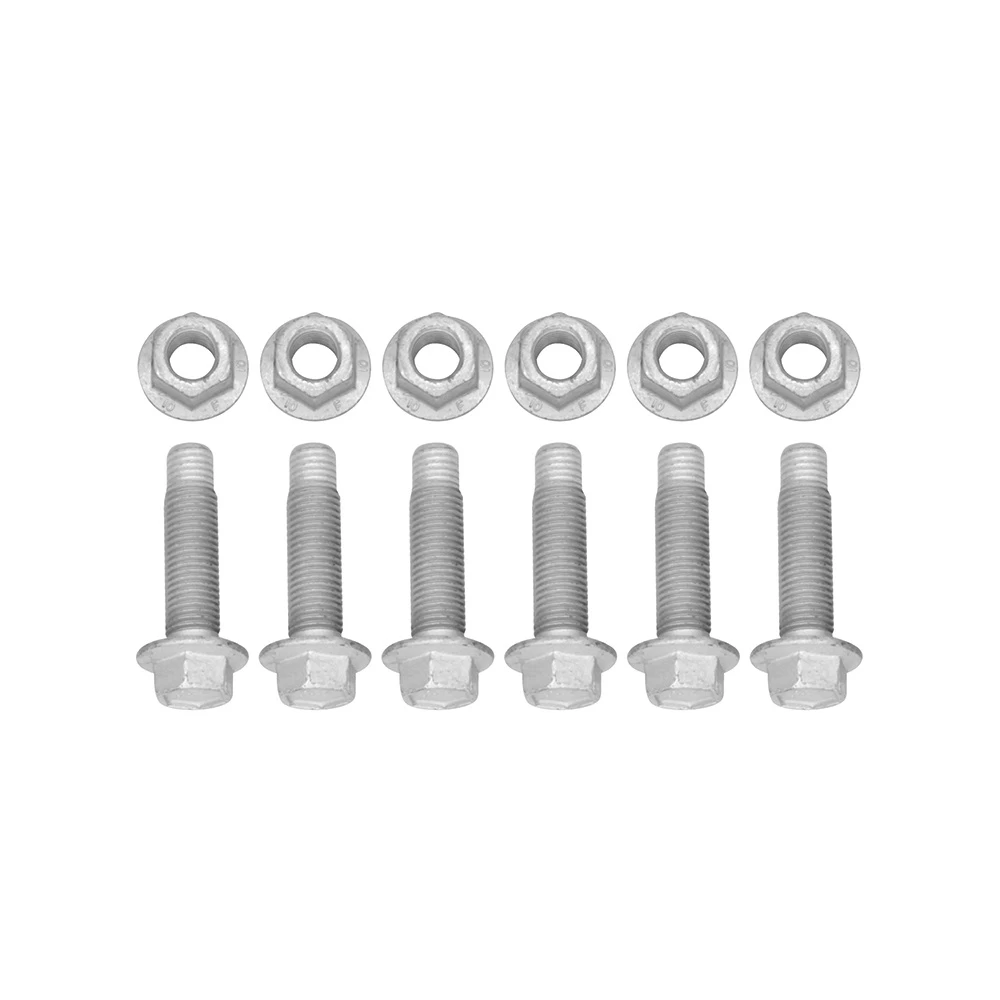

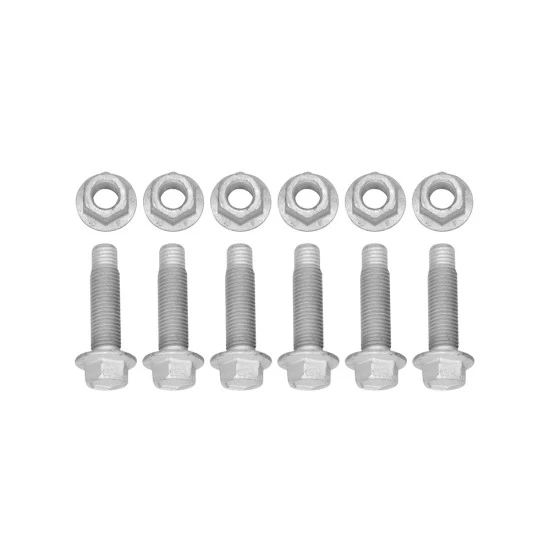

Hardware List:
- (6) Hex Flanged Bolts, M16 x 2.00 x 50mm CL10.9
- (6) Flange Locknuts, M16 x 2.00 CL10
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 16,000 lb (7,264 kg)
- Max Tongue Weight: 1,600 lb (726 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Installation Instructions for Cab & Chassis Trucks (4500/5500 Models)
Part Numbers:
- 41952
- 84952
- CQT41952
Wiring Access Location:
- Not specified
Tools Required:
- Wrenches: 21mm, 24mm
- Drill Bits: 11/16"
- Ratchet
- Torque Wrench
- Center Punch
- Hammer
- Clamp
- File
Installation Time:
- Approximately 30 minutes (for professional installers)
Step-by-Step Instructions:
-
Remove Rivets:
- Remove the rearmost rivet on the bottom of each frame rail using a drill for easier removal. Enlarge the hole in the frame rail if necessary (see Step 5).
-
Position Hitch as Template:
- Raise the hitch into position, aligning the rear hole in the hitch with the hole from the removed rivet.
-
Clamp Hitch:
- Securely clamp the hitch to the end of the frame rail.
-
Mark Holes:
- Using the hitch as a template, mark the center of each attachment hole.
-
Drill Frame Holes:
- Remove the hitch and drill three (3) 11/16" holes in each frame rail. Use a small pilot hole for guidance and remove any burrs.
- Warning: Do not drill into fuel or electrical lines. Take appropriate precautions.
-
Install Hitch:
- Raise the hitch into position and install the provided fasteners as shown in Figure 1.
-
Tighten Fasteners:
- Torque all M16 CL10.9 fasteners to 210 lb-ft (285 N*m) using a torque wrench.
Torque Specifications:
- M16 CL10.9 fasteners: 210 lb-ft (285 N*m)
Hardware List:
- (6) Hex Flanged Bolts, M16 x 2.00 x 50mm CL10.9
- (6) Flange Locknuts, M16 x 2.00 CL10
Safety Notes:
- Frequently check the hitch to ensure all fasteners and the ball are properly tightened.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 15,000 lb (6,810 kg)
- Max Tongue Weight: 1,500 lb (681 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 16,000 lb (7,264 kg)
- Max Tongue Weight: 1,600 lb (726 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
