Trailer Tow Hitch For 13‑17 Subaru Crosstrek XV Crosstrek except Hybrid Basket Cargo Carrier Platform w/ Hitch Pin
Model: 76084 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2017 Subaru, Crosstrek, All Styles
2013 - 2015 Subaru, XV Crosstrek, Except Hybrid

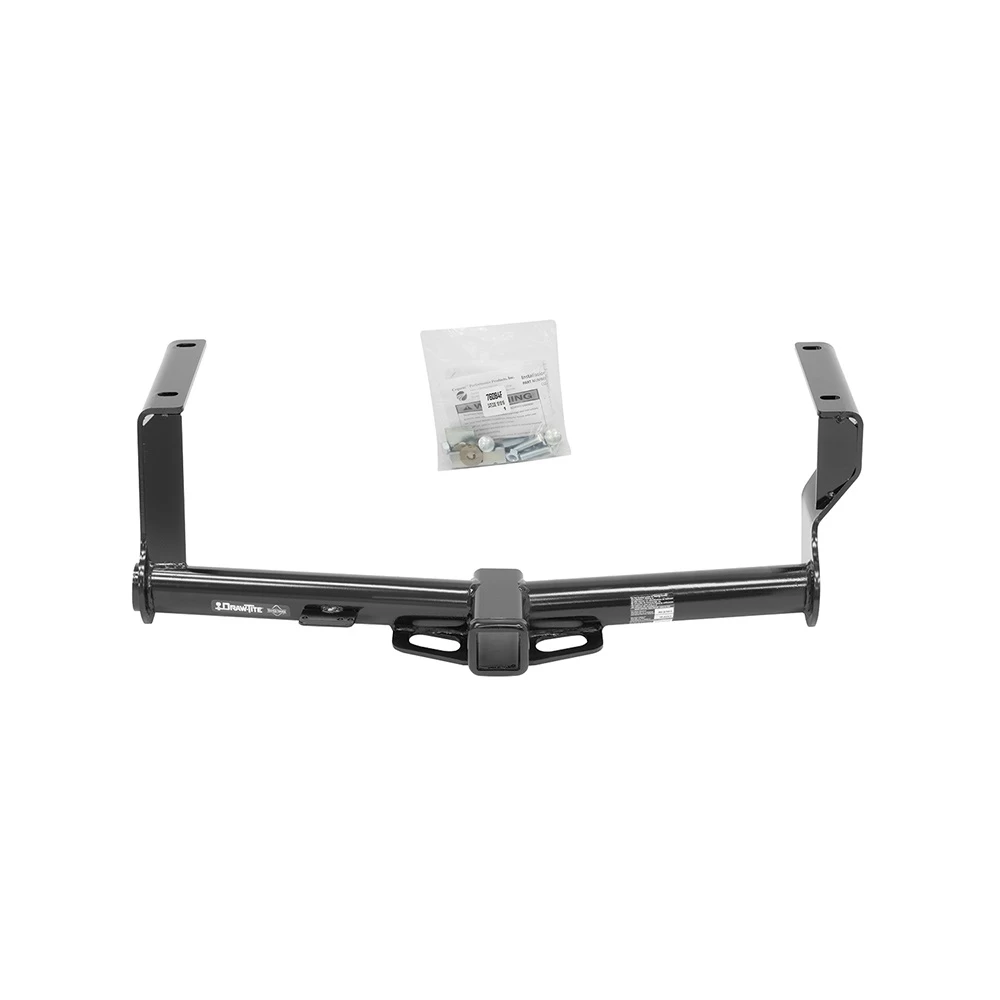

Trailer Hitch Specs:
| Part Number | 76084 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 2013 2014 2015 2016 2017
$484 16 $777.83 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$777.83 $484 16
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $121.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76084 63153 63240

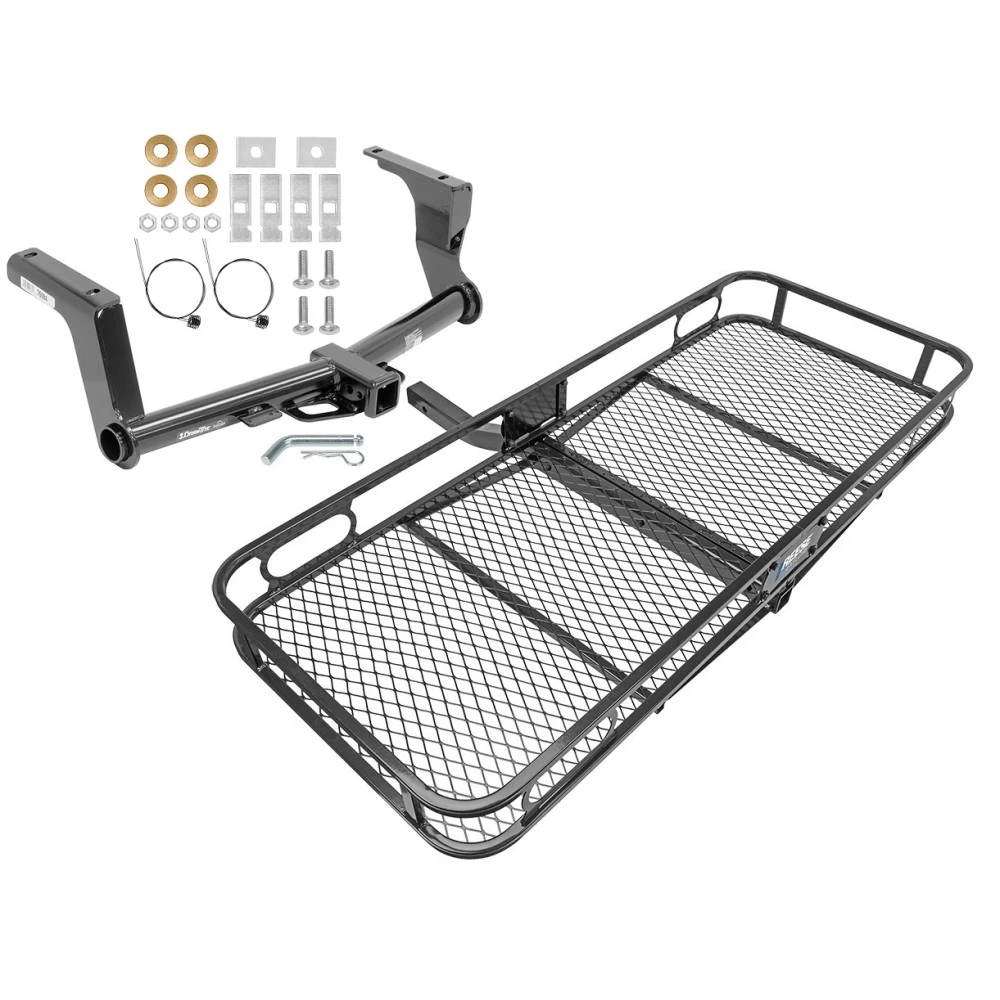

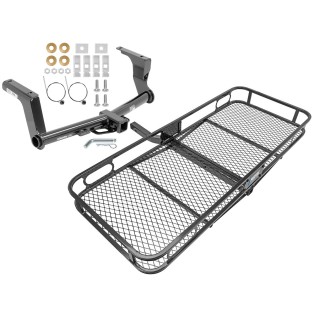

- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2016 - 2017 Subaru, Crosstrek, All Styles
2013 - 2015 Subaru, XV Crosstrek, Except Hybrid
Trailer Hitch Specs:
| Part Number | 76084 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 3,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 525 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 2013 2014 2015 2016 2017
Get Expert Help
Trailer Tow Hitch For 13-17 Subaru Crosstrek XV Crosstrek except Hybrid Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76084
- 84084
- CQT76084
Applications:
- Years: 2016-Current
- Make and Models: Subaru Crosstrek
- Years: 2013-2015
- Make and Models: Subaru XV Crosstrek
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 11/16"
- Flat Head Screwdriver
- Lubricant or Soapy Water
- Pry Bar
- Exhaust Removal Pliers (Optional)
Step-by-Step Instructions:
1. Remove Plastic Plugs:
- Remove (3) plastic plugs from existing holes in the frame rails using a flat head screwdriver if necessary.
- Set the plugs aside for the vehicle owner.
2. Lower the Exhaust:
- Lower the exhaust system at the (3) rubber isolators.
- Tip: Spray lubricant or soapy water on the metal hanger rod and the rubber isolator to ease removal. Use a pry bar or exhaust hanger tool if necessary.
3. Install Fasteners:
- Rear Fasteners:
- Insert the coiled end of the pull wire through the rearmost hole in the frame and out the access hole (forward hole).
- Slide a spacer onto the pull wire and attach a carriage bolt.
- Feed the spacer and bolt into the access hole and out the rearmost hole.
- Repeat on both sides.
- Forward Fasteners:
- Attach a carriage bolt to the pull wire and slide a spacer onto the pull wire.
- Insert the bolt into the forward-most access hole, followed by the spacer, and pull them out of the access hole.
- Leave the pull wires attached.
4. Raise the Hitch:
- Raise the hitch into position and guide the pull wires through the corresponding slots on the hitch.
- Place a spacer between the frame and the hitch bracket at the forward attachment points as shown.
- Install a conical washer and use it to hold the bolt in place, then remove the pull wires and attach the hex nuts.
- Tighten to hold the hitch in place. Repeat on all fasteners.
5. Tighten Fasteners:
- Torque all 7/16" GR5 fasteners to 50 lb-ft (68 N·m).
6. Reattach the Exhaust:
- Raise the exhaust back into position and reattach the hangers disconnected in Step 2.
- Tip: Use lubricant or soapy water to aid in reinstallation.

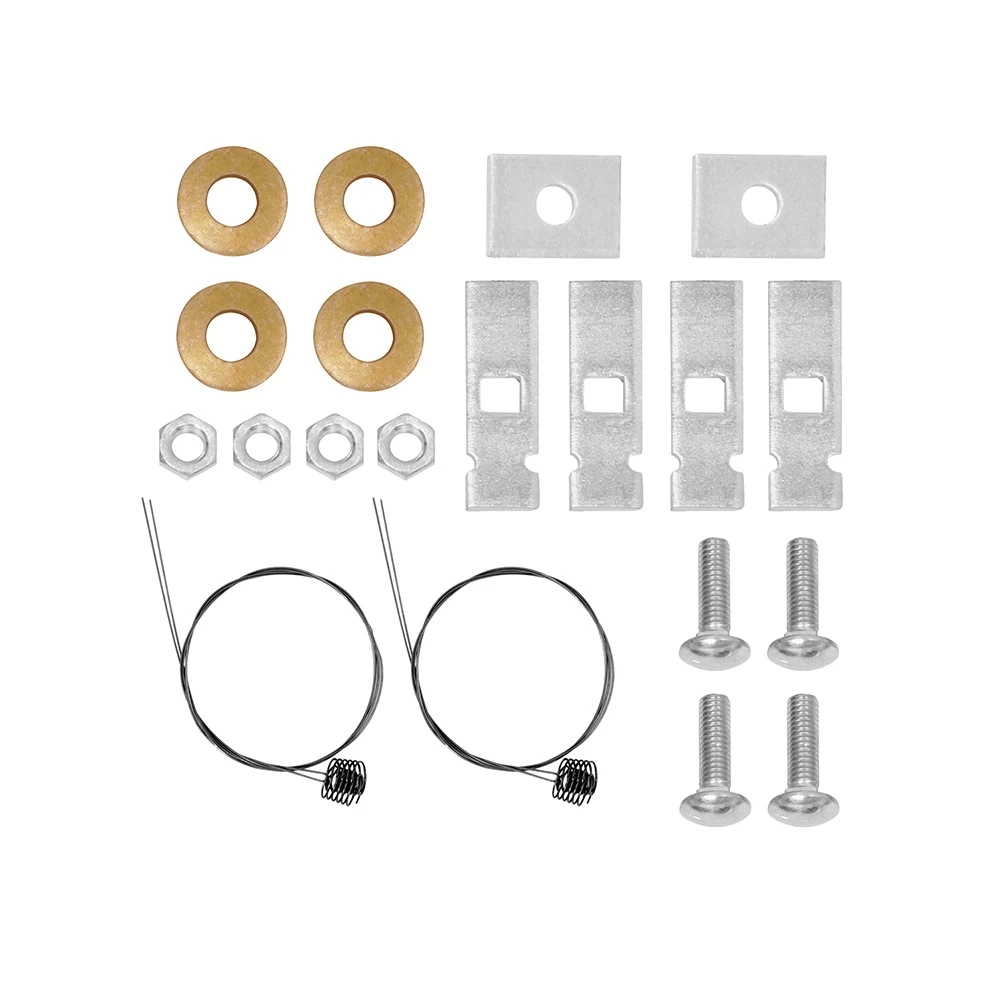

Hardware List:
- 4 × Carriage Bolts (7/16"-14 × 1.75" GR5)
- 4 × Spacers (.250 × .875 × 3")
- 4 × Conical Washers (7/16")
- 4 × Hex Nuts (7/16"-14 GR2)
- 2 × Spacers with Round Holes (.250 × 1.5 × 2")
- 4 × Pull Wires (7/16")
Safety Notes:
- Always wear safety glasses during installation.
- Periodically inspect the hitch to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 3,500 lbs (1,589 kg)
- Max Tongue Weight (Weight Carrying): 525 lbs (239 kg)
- Weight Distribution: Do not use with spring bars.
- Installation Time: Approximately 20 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
