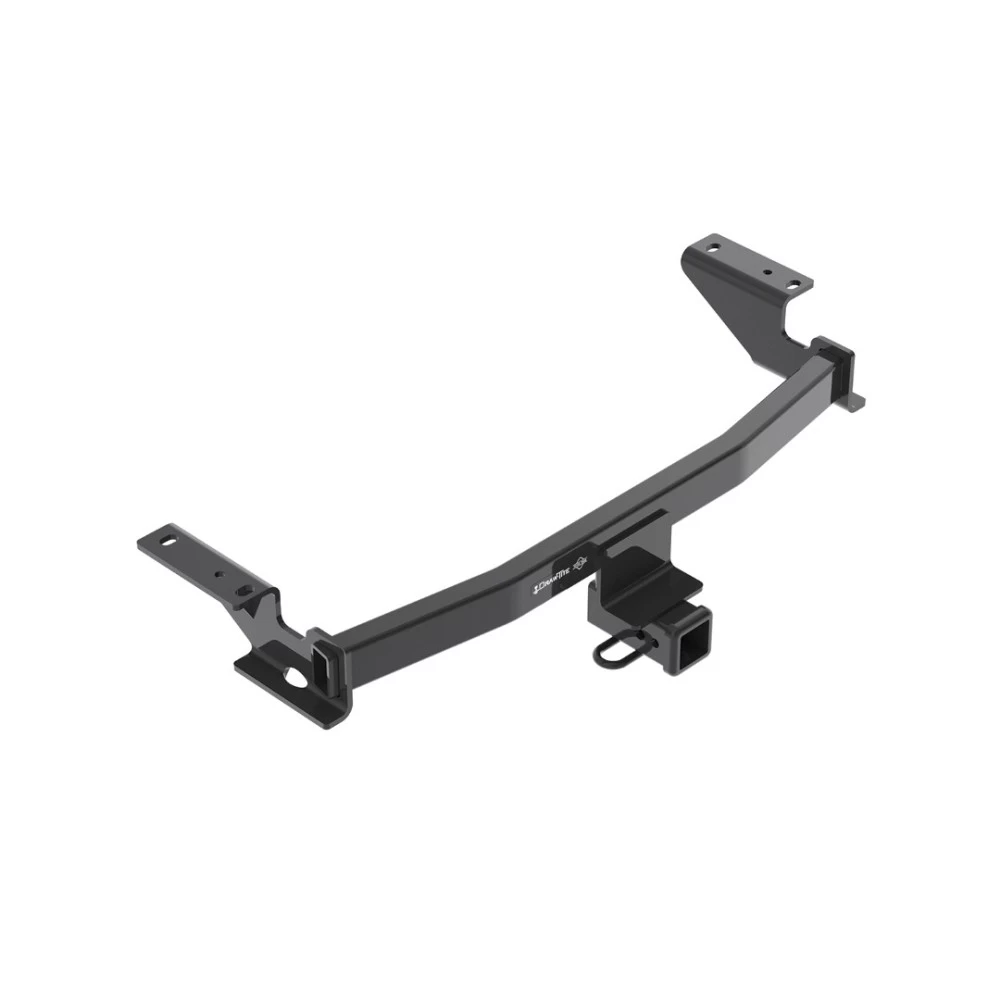

Trailer Tow Hitch For 13‑24 Mazda CX‑5 w/ Security Lock Pin Key
Model: 76138 580407 *Custom Fit Front Mount Trailer Hitch

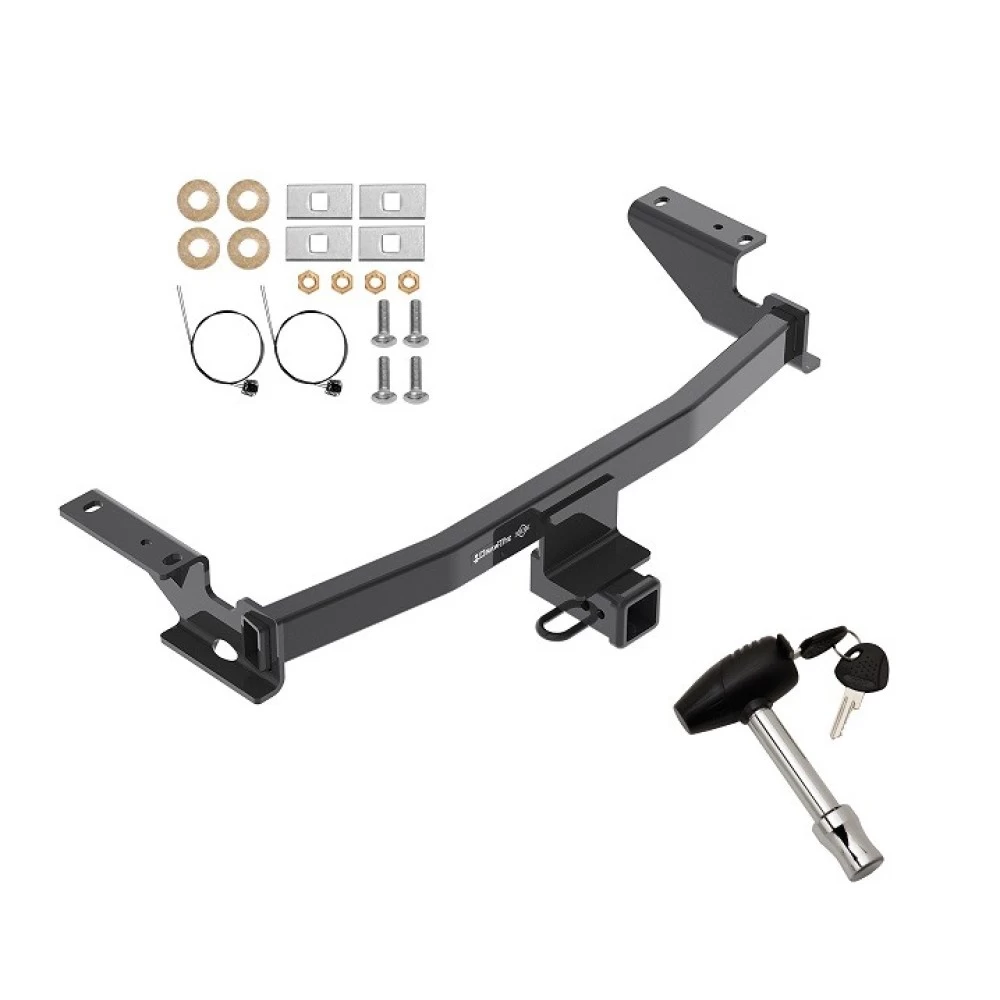

Security Lock Pin & Key

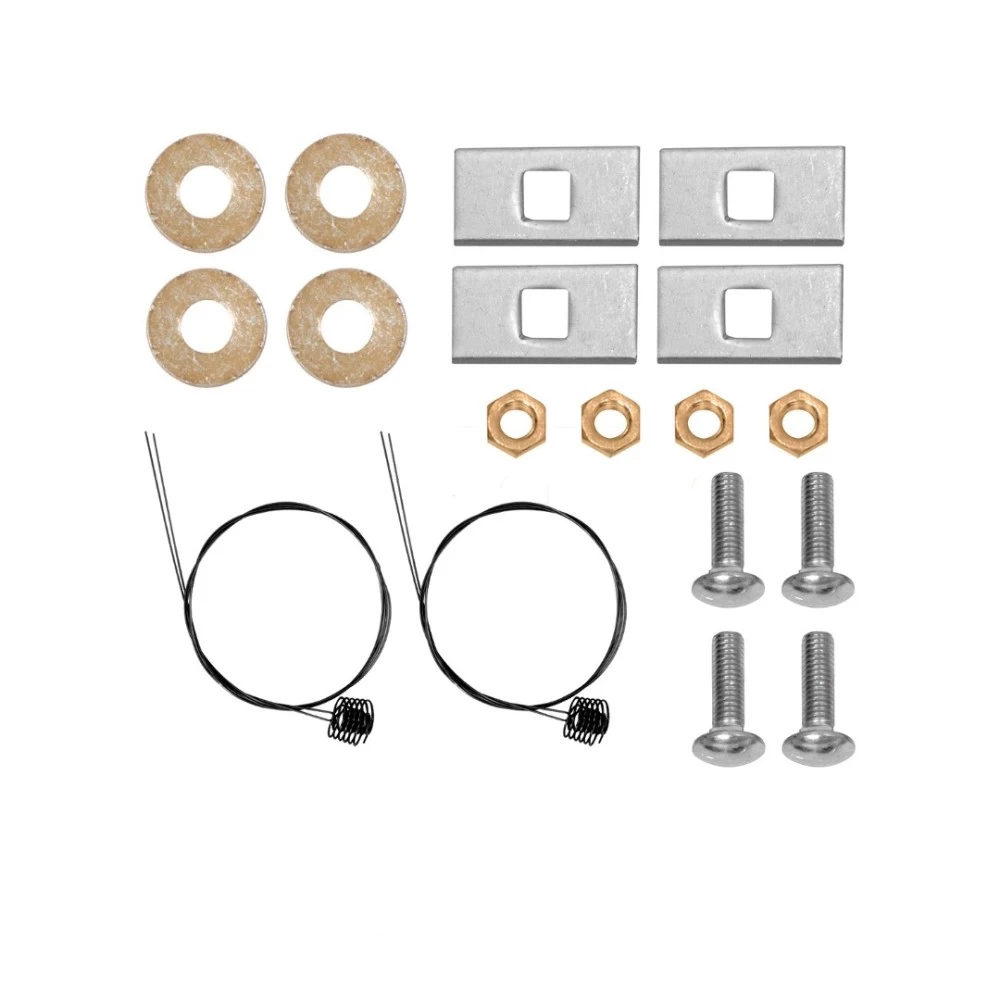

Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2016 Mazda, CX-5, All Styles
2017 - 2024 Mazda, CX-5, Except Diesel
Trailer Hitch Specs:
| Part Number | 76138 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 24 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$205 30 $323.25 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$323.25 $205 30
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $51.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 76138 580407 *
- Includes: Class 3 Trailer Tow Hitch, Trailer Tow Hitch Lock
Compatibility Chart
Custom Fit Front Mount Trailer Hitch
Security Lock Pin & Key
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2013 - 2016 Mazda, CX-5, All Styles
2017 - 2024 Mazda, CX-5, Except Diesel
Trailer Hitch Specs:
| Part Number | 76138 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,500 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 675 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 13 14 15 16 17 18 19 20 21 22 23 24 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Trailer Tow Hitch For 13-24 Mazda CX-5 w/ Security Lock Pin Key Install Notes
Installation Instructions for Trailer Hitch
Part Numbers:
- 76138
- 84138
- CQT76138
Applications:
- Years: 2013-Current
- Make and Models: Mazda CX-5
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4"
- 6" Socket Extension
- Small Flat Head Screwdriver (Optional)
- Pry Bar (Optional)
- Lubricant or Soapy Water
Step-by-Step Instructions:
1. Support and Lower Exhaust:
- Lower the exhaust by removing (4) rubber hangers.
- Support the exhaust to prevent it from falling under its own weight.
- Spray lubricant or soapy water on the metal hanger rods and rubber isolators to aid removal.
2. Remove Plastic Rivets:
- If present, remove the plastic rivets fastening the fascia tabs to the vehicle using a small flat head screwdriver.
- Keep the rivets for reinstallation.
3. Install Fasteners:
- Feed the coiled end of the pull wire through the forward attachment hole in the frame and out the access hole.
- Attach the spacer and thread the carriage bolt onto the pull wire. Pull the pull wire with fasteners into position through the hole.
- Leave the pull wire attached. Repeat this process on both frame rails.
- For the reverse pull wire procedure, thread the carriage bolt onto the pull wire and feed it into the access hole on the frame rail. Then feed the spacer onto the pull wire, pull it into position through the spacer, and leave the pull wire attached.
4. Install Hitch:
- Raise the hitch above the exhaust, feeding the pull wires through the attachment points on the hitch brackets.
- Gently pull the fascia rearward as needed to gain access between the fascia and exhaust hanger.
5. Secure Fasteners:
- Feed the conical washer over the pull wire and use it to hold the bolt in place. Remove the pull wires and attach the hex nuts.
- Hand-tighten both sides.
6. Torque Fasteners:
- Tighten all 1/2" GR5 fasteners to 75 lb-ft (102 N·m).
- Note: A universal joint socket may be needed to tighten the rearward fasteners on both sides.
7. Reinstall Exhaust:
- Raise the exhaust back into position and remove the support.
- Spray lubricant or soapy water on the metal hanger rods and rubber isolators to ease reinstallation.
8. Reinstall Plastic Rivets:
- Reinstall the plastic rivets removed in Step 2.
Hardware List:
- 4 × Carriage Bolts (1/2"-13 × 1.25" GR5)
- 4 × Spacers (0.250" × 1.00" × 3.00")
- 4 × Conical Washers (1/2")
- 4 × Hex Nuts (1/2"-13 GR5)
- 4 × Fish Wires (1/2"-13)
Safety Notes:
- Always wear safety glasses during installation.
- Proper torque is essential to secure the hitch to the vehicle.
- Check the hitch frequently to ensure all fasteners and the hitch ball are securely tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball before use.
- Do not cut access or attachment holes with a torch.
Specifications:
- Max Gross Trailer Weight (Weight Carrying): 4,500 lbs (2,043 kg)
- Max Tongue Weight (Weight Carrying): 675 lbs (306 kg)
- Weight Distribution: Not applicable
- Installation Time: Approximately 20 minutes
This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety specifications for towing systems.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
