Trailer Tow Hitch For 14‑21 Land Rover Range Rover Sport Except Diesel Complete Package w/ Wiring and 1‑7/8" Ball

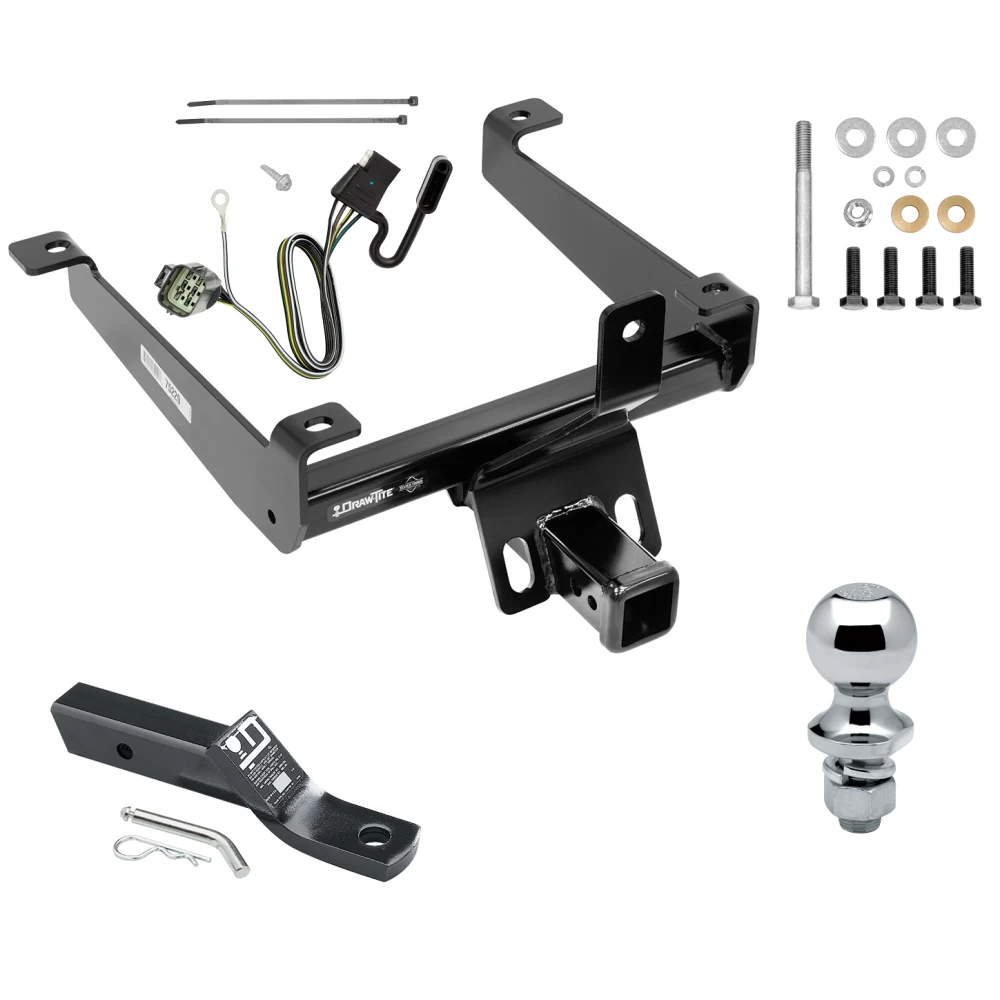

Model: 75229 118681 23 63816 *Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2021 Land Rover, Range Rover Sport, Except Diesel

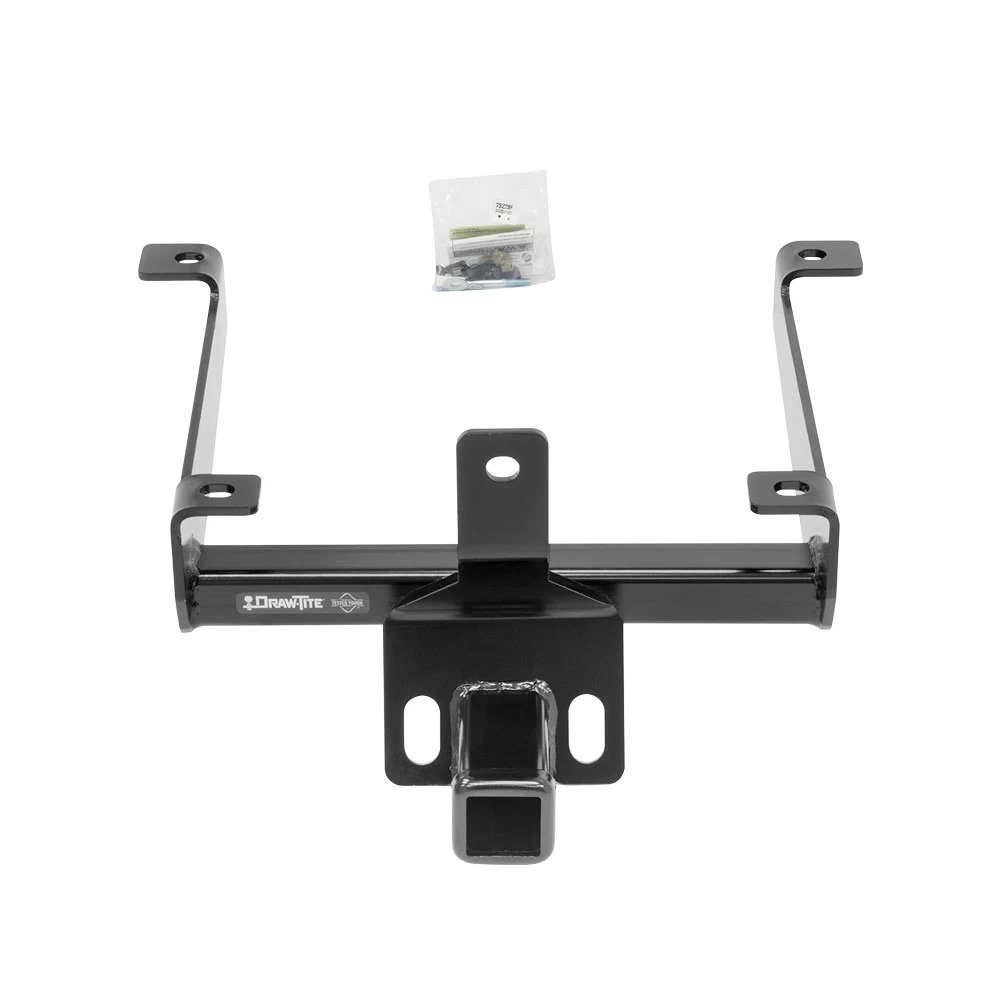

Trailer Hitch Specs:
| Part Number | 75229 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 8,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 800 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118681 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 21 2014 2015 2016 2017 2018 2019 2020 2021
$298 10 $457.23 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$457.23 $298 10
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $74.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75229 118681 23 63816 *
- Includes: Class 4 Trailer Tow Hitch, T-One T-Connector Custom Harness, Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Ball
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
2" Drop Ball-Mount w/ Pin/Clip
1-7/8" Chrome Ball
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2021 Land Rover, Range Rover Sport, Except Diesel
Trailer Hitch Specs:
| Part Number | 75229 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 8,000 lbs |
| Max GTW w/ weight distribution | N/A |
| Max Tongue Weight | 800 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118681 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Ball Mount Specs:
| Fits | 2" x 2" Trailer Hitch Receiver |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Length | 9" From Center of Pin Hole to Center of Ball Hole |
| Towing Capacity | 7,500 lb Gross Towing Weight 750 lb Tongue Weight |
| Drop | 2" From inside top of hitch opening |
| Rise | 3/4" from top of inside of hitch opening |
| Warranty | Lifetime |
Hitch Ball Specs:
| Part Number | 63816 |
| Brand | Draw-Tite |
| Size | 1-7/8" x 1" x 2-1/8", torgue to 160 ft. lbs |
| Towing Capacity | 2,000 lbs. GTW |
| Material | Chrome |
| Torque | torgue to 160 ft. lbs |
| Ball Hole Diameter | 1" |
| Warranty | Lifetime |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 21 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 14-21 Land Rover Range Rover Sport Except Diesel Complete Package w/ Wiring and 1-7/8" Ball Install Notes
Installation Instructions for Land Rover Range Rover Sport
Part Numbers:
- 75229
- 87693
- 44781
Applications:
- 2015-Current Land Rover Range Rover Sport (*Visit the manufacturer's website for the most up-to-date application years and trim levels.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 19mm
- Flat Head Screwdriver
- Philips Screwdriver
- Utility Knife
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Bottom Appearance Panel Removal:
- Use a flat head screwdriver to remove (2) plastic rivets attached to the upper panel, then remove the upper panel.
- Use a 10mm socket and Philips screwdriver to remove (4) bolts attached to the lower panel, then remove the lower panel.
-
Hitch Installation:
- Raise the hitch into position and loosely install:
- M12 bolt (Qty. 4) with conical washer (Qty. 2) at the rearward vehicle cross frame weldnuts.
- M12 bolt with flat washers (Qty. 3) and lock washers (Qty. 2) at the forward vehicle cross frame weldnuts.
- Insert 1/2”-13 bolt and flat washer into the bumper beam, then loosely secure with flange nut.
- Raise the hitch into position and loosely install:
-
Torque Fasteners:
- Tighten all fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Lower Panel Trimming:
- Trim the lower panel as shown in the provided diagram (approx. 7" x 5.5" x 4").
- Perform additional trimming if necessary.
-
Reinstall Appearance Panels:
- Reinstall the upper and lower appearance panels removed in Step 1.

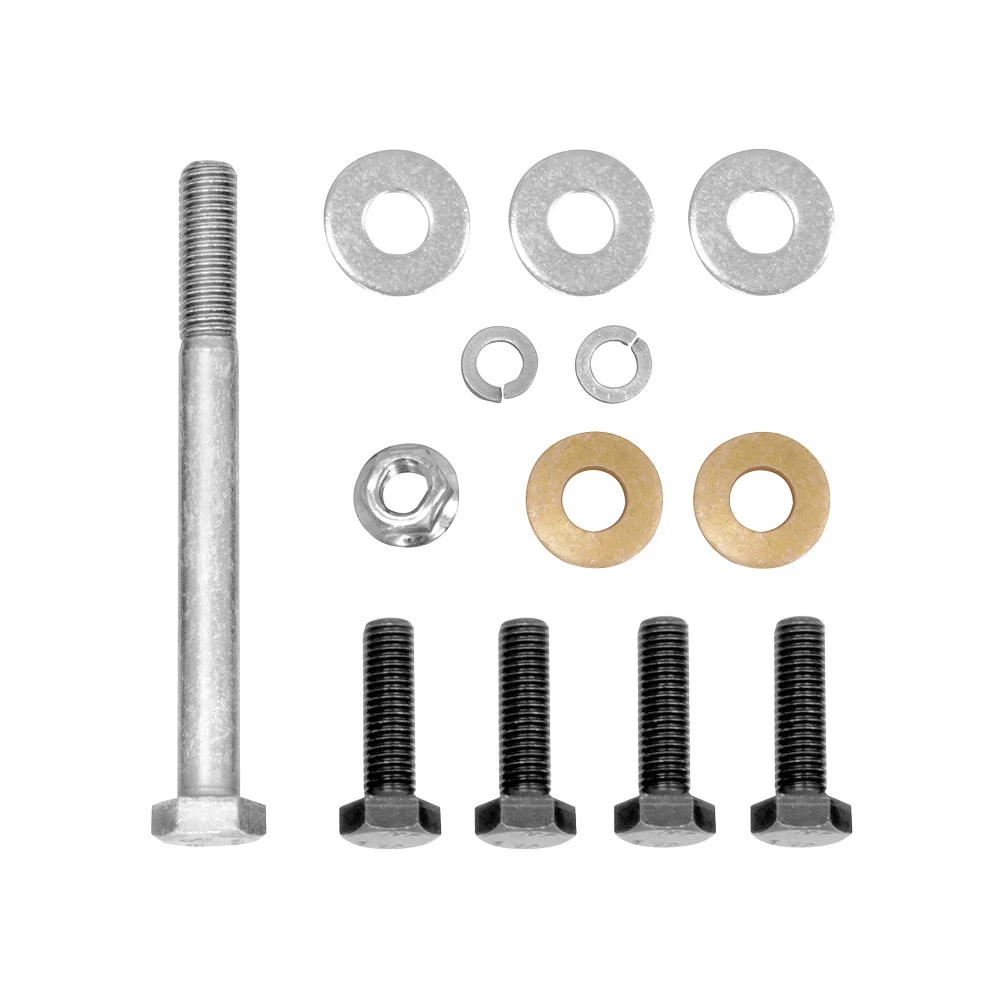

Hardware List:
- (4) M12 x 1.75 x 35mm CL10.9 Bolts
- (2) 1/2" Conical Washers
- (3) 1/2" Flat Washers
- (2) 1/2" Lock Washers
- (1) 1/2-13 x 5" GR5 Bolt
- (1) 1/2-13 GR5 Flange Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type and Weight Ratings:
- Weight Carrying: Max Trailer Weight 8,000 lbs (3,632 kg), Max Tongue Weight 800 lbs (363 kg).
- Weight Distributing: Not applicable.
- Complies with safety specifications and requirements for connecting devices and towing systems of the State of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Land Rover Range Rover Sport
Part Numbers:
- 75229
- 87693
- 44781
Applications:
- 2015-Current Land Rover Range Rover Sport
(*For the most up-to-date application years and trim levels, refer to the manufacturer's full instructions.)
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 10mm, 19mm
- Flat Head Screwdriver
- Philips Screwdriver
- Utility Knife
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Bottom Appearance Panel Removal:
- Use a flat head screwdriver to remove (2) plastic rivets attached to the upper panel, then remove the upper panel.
- Use a 10mm socket and Philips screwdriver to remove (4) bolts attached to the lower panel, then remove the lower panel.
-
Hitch Installation:
- Raise the hitch into position and loosely install:
- M12 bolt (Qty. 4) with conical washer (Qty. 2) at the rearward vehicle cross frame weldnuts.
- M12 bolt with flat washers (Qty. 3) and lock washers (Qty. 2) at the forward vehicle cross frame weldnuts.
- Insert 1/2”-13 bolt and flat washer into the bumper beam, then loosely secure with flange nut.
- Raise the hitch into position and loosely install:
-
Torque Fasteners:
- Tighten all fasteners with a torque wrench to 75 lb-ft (102 N·m).
-
Lower Panel Trimming:
- Trim the lower panel as shown in the provided diagram (approx. 7" x 5.5" x 4").
- Perform additional trimming if necessary.
-
Reinstall Appearance Panels:
- Reinstall the upper and lower appearance panels removed in Step 1.
Hardware List:
- (4) M12 x 1.75 x 35mm CL10.9 Bolts
- (2) 1/2" Conical Washers
- (3) 1/2" Flat Washers
- (2) 1/2" Lock Washers
- (1) 1/2-13 x 5" GR5 Bolt
- (1) 1/2-13 GR5 Flange Nut
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or other body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Follow all safety precautions when working beneath the vehicle, and wear eye protection.
- Do not cut access or attachment holes with a torch.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-One® T-Connector for Range Rover Sport
Part Numbers:
- 118681
Tools Required:
- Trim Panel Puller
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Flat Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate the Access Cover:
- Locate the access cover on the vehicle's rear bumper area.
- Using a screwdriver, unfasten the two clips holding the cover to the vehicle and remove it.
-
Connect the Tow Plug Adapter:
- Locate the grey 6-pin connector behind the access cover area.
- Remove the protective cap from the factory tow harness.
- Check and clean the mating surface to ensure it is free of dirt.
- Insert the 6-pin tow plug adapter and lock it into place, ensuring all connectors are fully inserted and the locking tabs are secure.
-
Secure the Ground Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- Alternatively, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Clean the grounding area of dirt and rustproofing before securing the wire.
Caution:
- Verify the surface behind before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Secure the T-One® T-Connector Harness:
- Use the provided cable ties to secure the remainder of the T-Connector harness.
- Avoid routing the wire near areas that could pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Replace the Access Cover:
- Reattach the cover that was removed during installation.
-
Test the Installation:
- Verify the installation with a test light or trailer.
- For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 7.5 amps
- Max. tail lights: 7.5 amps
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Overloading circuits can cause fires. Do not exceed the vehicle manufacturer's rating or the specified circuit ratings.
- Always wear safety glasses and follow safety precautions during installation.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
- Store these instructions for future reference.
Installation Instructions for T-One® T-Connector for Range Rover Sport
Part Numbers:
- 118681
Tools Required:
- Trim Panel Puller
- Drill (3/32” Drill Bit)
- Phillips Head Screwdriver
- Flat Head Screwdriver
- Test Probe
Step-by-Step Instructions:
-
Locate the Access Cover:
- Locate the access cover on the vehicle's rear bumper area.
- Using a screwdriver, unfasten the two clips holding the cover to the vehicle and remove it.
-
Connect the Tow Plug Adapter:
- Locate the grey 6-pin connector behind the access cover area.
- Remove the protective cap from the factory tow harness.
- Check and clean the mating surface to ensure it is free of dirt.
- Insert the 6-pin tow plug adapter and lock it into place, ensuring all connectors are fully inserted and the locking tabs are secure.
-
Secure the Ground Wire:
- Locate a suitable grounding point near the connector, such as an existing ground stud.
- Alternatively, drill a 3/32” hole and secure the white wire using the provided eyelet and screw.
- Clean the grounding area of dirt and rustproofing before securing the wire.
Caution:
- Verify the surface behind before drilling to avoid damage or injury. Do not drill into exposed surfaces.
-
Secure the T-One® T-Connector Harness:
- Use the provided cable ties to secure the remainder of the T-Connector harness.
- Avoid routing the wire near areas that could pinch, cut, or melt the wire.
-
Mount the 4-Flat Connector:
- Mount the 4-flat connector in an accessible location using a bracket or electrical box (not included).
-
Replace the Access Cover:
- Reattach the cover that was removed during installation.
-
Test the Installation:
- Verify the installation with a test light or trailer.
- For the initial test, reset the vehicle's electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 7.5 amps
- Max. tail lights: 7.5 amps
Safety Notes:
- All connections must be complete for the T-One® T-Connector to function properly.
- Overloading circuits can cause fires. Do not exceed the vehicle manufacturer's rating or the specified circuit ratings.
- Always wear safety glasses and follow safety precautions during installation.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Manufacturer Notes:
- Refer to the vehicle owner’s manual and instruction sheet for additional details.
- Store these instructions for future reference.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty:
For complete warranty instructions, please download the full installation PDF.
Related Products
