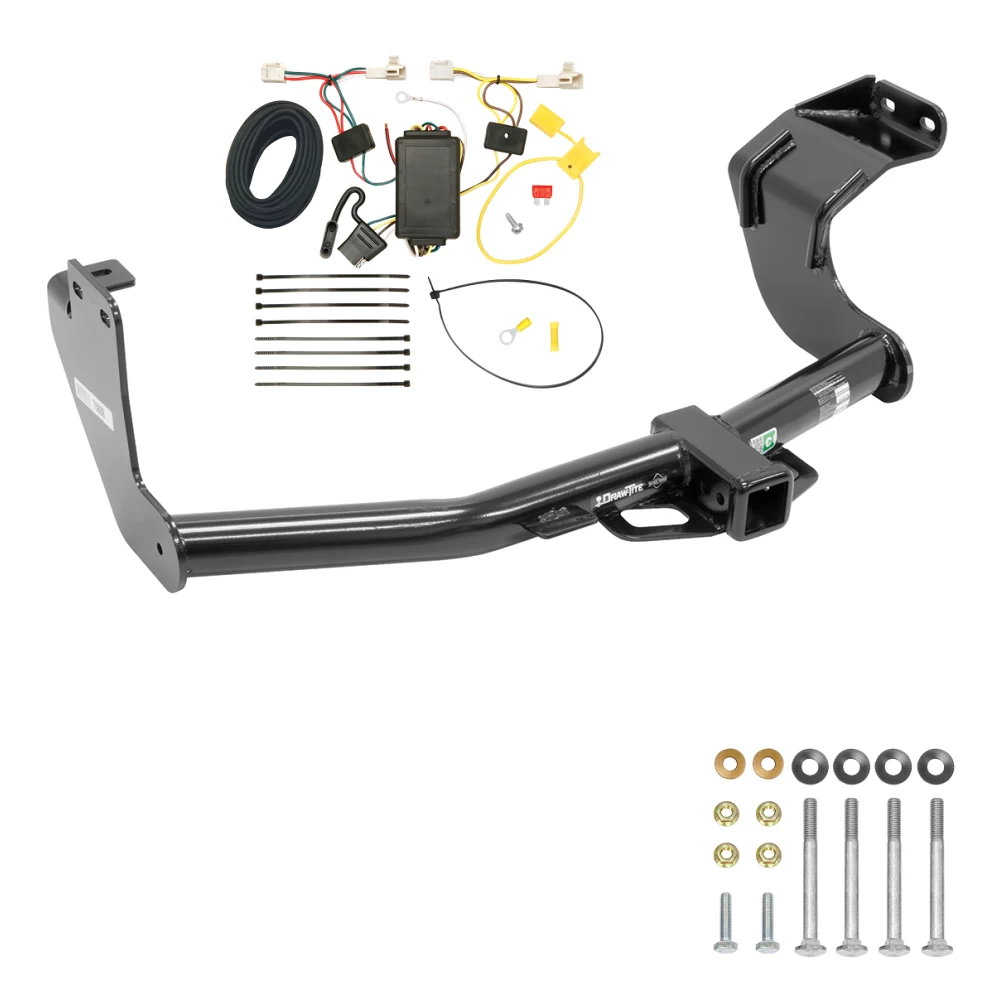

Trailer Tow Hitch For 14‑21 Mitsubishi Outlander Except Sport or PHEV w/ Wiring Harness Kit
Model: 75888 118482 *Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2021 Mitsubishi, Outlander, Except Sport or PHEV
Trailer Hitch Specs:
| Part Number | 75888 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Wiring Kit Specs:
| Part Number | 118482 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 21 2014 2015 2016 2017 2018 2019 2020 2021
$299 31 $459.47 35% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$459.47 $299 31
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $74.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75888 118482 *
- Includes: Class 3 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2014 - 2021 Mitsubishi, Outlander, Except Sport or PHEV
Trailer Hitch Specs:
| Part Number | 75888 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 600/600 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Wiring Kit Specs:
| Part Number | 118482 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount.
For our electrical we rely on Tekonsha. Our Trailer wiring kit comes with a 1 year warranty and everything necessary to install the trailer plug wiring. Tekonsha manufactures a wider range of different products for hooking up trailer lights to your Car Truck or SUV. Our connectors work great with boat trailer wiring and utility trailer wiring. Typically those trailers will use the standard 4 flat plug which is what our Wiring Kits offer. If you have an RV Fifth Wheel or any other large type of trailer you will us a 7 pin trailer plug to control your electric trailer brakes. Tekonsha offers 7 pin trailer connector as well. Simply do a search above to see if there is a 7 wire trailer wiring available for hooking up your 7 way. If there is not you can use part number 85343 trailer wiring adapter to convert any 4-Flat into a 7-Way. In addition you will use part number 20506 which will include the rest of wiring needed for electric brake controls. You can also call us or email us any time and we will be able to provide information you need.
Partial list of fitment years: 14 15 16 17 18 19 20 21 2014 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 14-21 Mitsubishi Outlander Except Sport or PHEV w/ Wiring Harness Kit Install Notes
Installation Instructions for Mitsubishi Outlander (Except Sport)
Part Numbers:
- 75888
- 87656
- 44707
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 14mm, 17mm, 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect three (3) rubber exhaust hangers from the muffler to lower the exhaust system.
-
Remove Tow Hook:
- Detach the tow hook from the driver-side vehicle frame. Return the tow hook and fasteners to the vehicle owner.
-
Install Hitch:
- Raise the hitch into position and align it with the existing weld nuts on the frame. Install all fasteners as shown in the instructions.
-
Raise Exhaust:
- Reconnect the rubber exhaust hangers to return the exhaust system to its original position. Reattach the muffler to the exhaust pipe if removed earlier.
-
Torque All Fasteners:
- Tighten all M10 x 1.25 CL8.8 fasteners to 42 lb-ft (57 Nm) and all 1/2"-13 GR5 fasteners to 75 lb-ft (102 Nm) using a torque wrench.

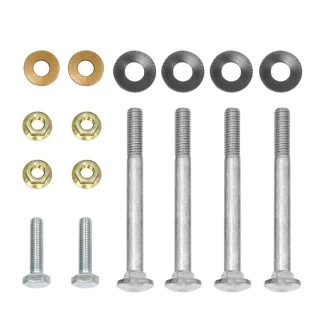

Hardware List:
- Qty (2): Hex Bolt – M10 x 1.25 x 40mm CL8.8
- Qty (2): Conical Toothed Washer – 3/8”
- Qty (4): Carriage Bolt – 1/2"-13 x 4.5" GR5
- Qty (4): Flanged Lock Nut – 1/2"-13
- Qty (4): Hardened Flat Washer – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Tighten all fasteners to the specified torque values.
- Removal of the spare tire may make the installation process easier.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicle (Except Sport)
Part Numbers:
- 75888
- 87656
- 44707
Wiring Access Location:
- SUV3, SUV4
Tools Required:
- Wrenches: 14mm, 17mm, 3/4"
- Drill Bits: None
Step-by-Step Instructions:
-
Lower Exhaust:
- Disconnect three (3) rubber exhaust hangers from the muffler to lower the exhaust system.
-
Remove Tow Hook:
- Detach the tow hook from the driver-side vehicle frame. Return the tow hook and fasteners to the vehicle owner.
-
Install Hitch:
- Raise the hitch into position and align it with the existing weld nuts on the frame. Install all fasteners as shown in the instructions.
-
Raise Exhaust:
- Reconnect the rubber exhaust hangers to return the exhaust system to its original position. Reattach the muffler to the exhaust pipe if removed earlier.
-
Torque All Fasteners:
- Tighten all M10 x 1.25 CL8.8 fasteners to 42 lb-ft (57 Nm) and all 1/2"-13 GR5 fasteners to 75 lb-ft (102 Nm) using a torque wrench.
Hardware List:
- Qty (2): Hex Bolt – M10 x 1.25 x 40mm CL8.8
- Qty (2): Conical Toothed Washer – 3/8”
- Qty (4): Carriage Bolt – 1/2"-13 x 4.5" GR5
- Qty (4): Flanged Lock Nut – 1/2"-13
- Qty (4): Hardened Flat Washer – 1/2"
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 600 lbs (272 kg)
Manufacturer Notes:
- Tighten all fasteners to the specified torque values.
- Removal of the spare tire may make the installation process easier.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
Installation Instructions for T-Connector Adapter for Toyota (Venza, Camry) and Mitsubishi Outlander
Part Numbers:
- 118482
Tools Required:
- Test Probe
- Trim Panel Puller
- Drill (3/32” Drill Bit)
- 10mm Socket & Ratchet
- Wire Cutter
- Wire Crimper
- Phillips Head Screwdriver
Step-by-Step Instructions:
Toyota Venza / Mitsubishi Outlander:
- Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the threshold, trunk floor panels, and trays.
- Remove the cargo loops on both sides to allow the trim panels to be pulled away carefully.
Toyota Camry:
- Prepare the Trunk Area:
- Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the taillight wiring harness.
Common Steps for All Vehicles:
-
Locate the Taillight Wiring Harness:
- On the driver’s side, locate the vehicle’s taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Check that the mating surfaces match the T-Connector ends, and clean all connectors if necessary.
-
Connect the T-Connector:
- Attach the T-Connector end with the yellow and brown wires to the driver’s side taillight harness.
- Ensure the connectors are fully inserted with the locking tabs engaged.
-
Route the Passenger-Side Wiring:
- Route the T-Connector end with the green wire below the threshold cover to the passenger’s side taillight housing.
- Repeat step 3 using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember.
- Clean the grounding area, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Mount the Black Converter Box:
- On the driver’s side, locate a flat surface and mount the black converter box using the provided double-sided tape.
-
Connect the Power Wire:
- Attach the provided black 12-gauge wire to the red wire from the converter box.
- Route the black wire through a grommet or along the existing wiring to the vehicle battery.
- Toyota Camry Hybrid: The battery is located inside the trunk.
Warning:
- Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the provided yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Secure the Wiring:
- Use the provided cable ties to secure the harness and prevent damage or rattling.
- Avoid areas where the wire may be pinched, cut, or melted.
-
Reassemble the Vehicle:
- Reinstall all panels, thresholds, storage covers, and floor coverings removed during the installation.
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all installation instructions and vehicle warnings.
Manufacturer Notes:
- Store the 4-flat connector in the side storage compartment when not in use.
- Refer to the vehicle owner’s manual for additional details.
Installation Instructions for T-Connector Adapter for Vehicle
Part Numbers:
- 118482
Tools Required:
- Test Probe
- Trim Panel Puller
- Drill (3/32” Drill Bit)
- 10mm Socket & Ratchet
- Wire Cutter
- Wire Crimper
- Phillips Head Screwdriver
Step-by-Step Instructions:
Vehicle 1: Toyota Venza / Mitsubishi Outlander:
- Prepare the Rear Cargo Area:
- Open the vehicle’s rear tailgate.
- Remove the threshold, trunk floor panels, and trays.
- Remove the cargo loops on both sides to allow the trim panels to be pulled away carefully.
Vehicle 2: Toyota Camry:
- Prepare the Trunk Area:
- Open the trunk and remove the threshold panel.
- Partially remove the corner felt trunk liner on both sides to expose the taillight wiring harness.
Common Steps for All Vehicles:
-
Locate the Taillight Wiring Harness:
- On the driver’s side, locate the vehicle’s taillight wiring harness.
- Separate the connectors carefully, ensuring not to break the locking tabs.
- Check that the mating surfaces match the T-Connector ends, and clean all connectors if necessary.
-
Connect the T-Connector:
- Attach the T-Connector end with the yellow and brown wires to the driver’s side taillight harness.
- Ensure the connectors are fully inserted with the locking tabs engaged.
-
Route the Passenger-Side Wiring:
- Route the T-Connector end with the green wire below the threshold cover to the passenger’s side taillight housing.
- Repeat step 3 using the T-Connector with the green wire.
-
Ground the White Wire:
- Locate a suitable grounding point near the connector, such as the vehicle frame or crossmember.
- Clean the grounding area, drill a 3/32” hole, and secure the white wire using the provided eyelet and screw.
- Caution: Verify what is behind the surface before drilling to avoid damage or injury.
-
Mount the Black Converter Box:
- On the driver’s side, locate a flat surface and mount the black converter box using the provided double-sided tape.
-
Connect the Power Wire:
- Attach the provided black 12-gauge wire to the red wire from the converter box.
- Route the black wire through a grommet or along the existing wiring to the vehicle battery.
- Toyota Camry Hybrid: The battery is located inside the trunk.
Warning:
- Avoid routing near hot pipes, heat shields, or areas that may pinch or damage the wire.
-
Connect to the Battery:
- Disconnect the vehicle’s negative (-) battery cable.
- Remove the fuse from the provided yellow fuse holder.
- Attach the ring terminal to the positive (+) battery cable and connect the other end of the fuse holder to the black wire using the provided yellow butt connector.
- Reconnect the negative (-) battery cable and install the 10-amp fuse into the fuse holder.
-
Secure the Wiring:
- Use the provided cable ties to secure the harness and prevent damage or rattling.
- Avoid areas where the wire may be pinched, cut, or melted.
-
Reassemble the Vehicle:
- Reinstall all panels, thresholds, storage covers, and floor coverings removed during the installation.
-
Test the Installation:
- Test and verify the installation using a test light or trailer.
- Reset the vehicle’s electrical system by temporarily removing the key from the ignition.
Specifications:
- Max. stop/turn light: 1 per side (2.1 amps)
- Max. tail lights: (5.6 amps)
Safety Notes:
- Overloading circuits can cause fires. Do not exceed the lower of the towing manufacturer’s rating or the unit specifications.
- Follow all installation instructions and vehicle warnings.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Warranty Information:
- This product is covered by a [warranty period]. For complete warranty instructions, please download the full installation PDF.
Technical Support:
- For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Manufacturer Notes:
- Store the 4-flat connector in the side storage compartment when not in use.
- Refer to the vehicle owner’s manual for additional details.
Related Products
