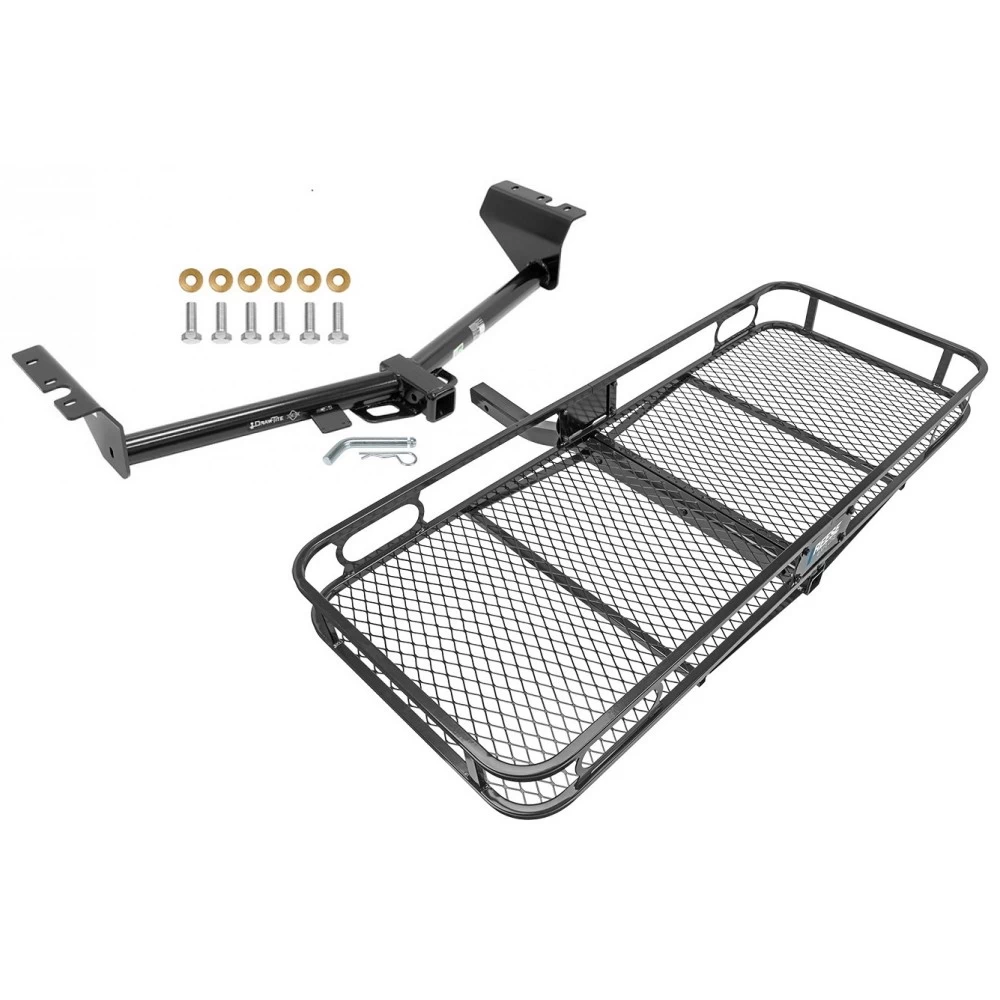

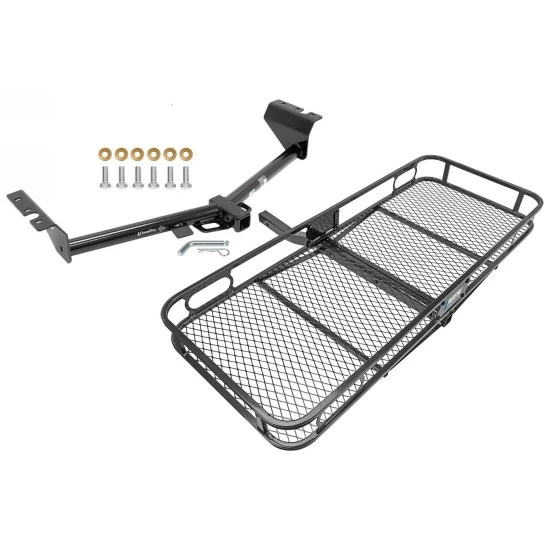

Trailer Tow Hitch For 15‑21 KIA Sedona Basket Cargo Carrier Platform w/ Hitch Pin
Model: 75894 63153 63240Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2021 KIA, Sedona, All Styles
Trailer Hitch Specs:
| Part Number | 75894 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 400/400 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 2015 2016 2017 2018 2019 2020 2021
$530 85 $850.72 38% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$850.72 $530 85
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $132.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 75894 63153 63240
- Includes: Class 3 Trailer Tow Hitch, Rambler Hitch Mount Cargo Carrier, Trailer Tow Hitch Pin & Clip
Compatibility Chart
Description
Custom Fit Trailer Hitch w/ Pin & Clip
Cargo Hitch Basket
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2015 - 2021 KIA, Sedona, All Styles
Trailer Hitch Specs:
| Part Number | 75894 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 3 |
| Receiver size opening | 2" |
| Max gross trailer weight | 4,000 lbs |
| Max GTW w/ weight distribution | 4,000 lbs |
| Max Tongue Weight | 400/400 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
When your gear is essential, these hitch baskets help you pack it in.
- 5.5" side rails to retain cargo
- Fits 2" trailer hitch receives
- 2-1/2"" Shank Rise elevates the platform
- 12-3/4" Distance from hitch pin to the edge of carrier
- Mesh floor for easy cleanup
- Up to 500 lbs. capacity
- Up to 60" x 24" (inside dimensions) cargo platform
- Black powder coat finish resists corrosion
- Bikes clips and fully functional light systems available
- 1 Year Warranty
Questions or Comments? Call 702-374-8999
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 15 16 17 18 19 20 21 2015 2016 2017 2018 2019 2020 2021
Get Expert Help
Trailer Tow Hitch For 15-21 KIA Sedona Basket Cargo Carrier Platform w/ Hitch Pin Install Notes
Installation Instructions for Kia Sedona
Part Numbers:
- 75894
- 87658
- 44709
- 78591 UH
Wiring Access Location:
- TBD
Tools Required:
- Small Phillips Head Screwdriver
- Lubricant or Soapy Water
- Spiral Wire Brush
- Wrenches: 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Appearance Panel:
- If present, remove the driver-side appearance panel by unscrewing the plastic rivets using a small Phillips screwdriver. Pull the remaining rivet out. Return the panel to the owner.
-
Lower Exhaust:
- Detach the rubber isolators from the muffler hangers. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator can make removal easier.
-
Position Hitch:
- Raise the hitch on the passenger side over the exhaust pipe and slowly rotate it into position.
-
Secure Hitch:
- Loosely install all bolts to hold the hitch in place.
-
Center Hitch:
- Align the hitch, ensuring there is proper clearance with the exhaust.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque:
- M12 CL8.8 fasteners: 76 lb-ft (103 N*m)
- Tighten all fasteners to the specified torque:
-
Reattach Exhaust:
- Reinstall the exhaust hangers removed earlier.
Hardware List:
- Qty (6): Hex Bolt – M12 x 1.25 x 35mm CL8.8
- Qty (6): Conical Washer – 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
Manufacturer Notes:
- Tighten all fasteners to the specified torque values.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Installation Instructions for Vehicle
Part Numbers:
- 75894
- 87658
- 44709
- 78591 UH
Wiring Access Location:
- TBD
Tools Required:
- Small Phillips Head Screwdriver
- Lubricant or Soapy Water
- Spiral Wire Brush
- Wrenches: 19mm
- Drill Bits: None
Step-by-Step Instructions:
-
Remove Appearance Panel:
- If present, remove the driver-side appearance panel by unscrewing the plastic rivets using a small Phillips screwdriver. Pull the remaining rivet out. Return the panel to the owner.
-
Lower Exhaust:
- Detach the rubber isolators from the muffler hangers. Spraying lubricant or soapy water on the metal hanger rod and rubber isolator can make removal easier.
-
Position Hitch:
- Raise the hitch on the passenger side over the exhaust pipe and slowly rotate it into position.
-
Secure Hitch:
- Loosely install all bolts to hold the hitch in place.
-
Center Hitch:
- Align the hitch, ensuring there is proper clearance with the exhaust.
-
Torque Fasteners:
- Tighten all fasteners to the specified torque:
- M12 CL8.8 fasteners: 76 lb-ft (103 N*m)
- Tighten all fasteners to the specified torque:
-
Reattach Exhaust:
- Reinstall the exhaust hangers removed earlier.
Hardware List:
- Qty (6): Hex Bolt – M12 x 1.25 x 35mm CL8.8
- Qty (6): Conical Washer – 1/2”
Safety Notes:
- Check the hitch frequently to ensure all fasteners and the ball are properly tightened.
- If the hitch is removed, plug all holes in the trunk pan or body panels to prevent water and exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Observe safety precautions when working beneath the vehicle and wear eye protection.
- Do not cut access or attachment holes with a torch.
Specifications:
- Hitch Type: Weight Distributing
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
- Hitch Type: Weight Carrying (Ball Mount)
- Max Gross Trailer Weight: 4,000 lbs (1,816 kg)
- Max Tongue Weight: 400 lbs (182 kg)
Manufacturer Notes:
- Tighten all fasteners to the specified torque values.
- Complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
